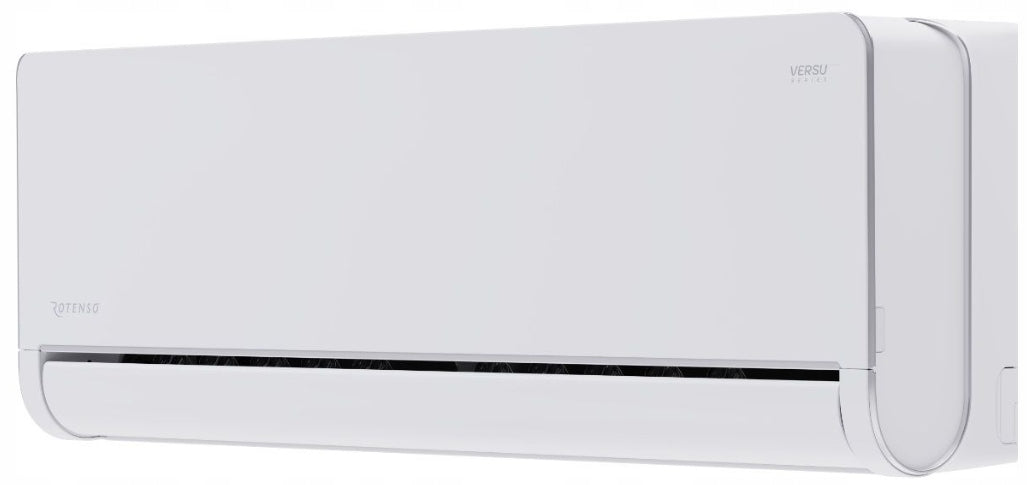

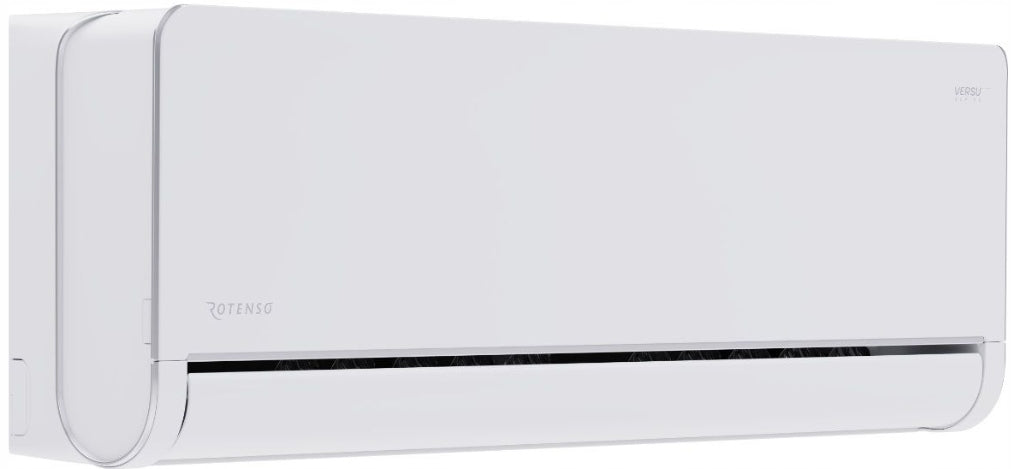

Oro kondicionierius Rotenso Versu Pure 3,5 kW

Trumpai apie prekę

Prekė: Oro kondicionierius Rotenso Versu Pure 3,5 kW. Kategorija: Oro kondicionieriai.

• Gamintojas: Rotenso
• Modelis: Versu-VP35X

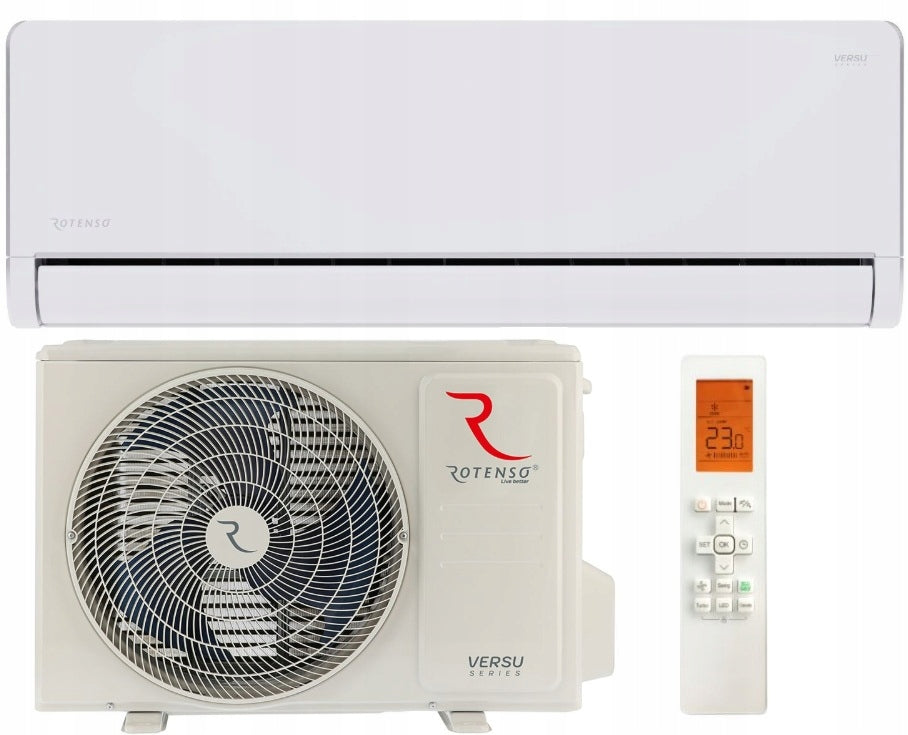

The set includes:

- indoor unit VP35XI R16

- outdoor unit VP35Xo R16

- pilot

- Wi fi module

Air conditioner Rotenso Versu Pure R16

Unique design and aesthetics: The Versu Pure R16 is distinguished by a minimalist, slim body in matte white, which gives the interior a lightness and modern character. The front panel with a subtle texture makes the device not only cool, but also becomes a prestigious decorative element, perfectly fitting into luxurious arrangements.

The air conditioner is equipped with an innovative 180° cascade air supply, implemented thanks to the horizontal blind rotating around its axis. The advanced air distribution control system, of course, allows you to control the operation of vertical and horizontal blinds using a remote control or wall controller.

Automatically controlled vertical and horizontal blinds efficiently distribute air in the room, ensuring effective cooling or heating.

Advanced system that cares about the quality of the atmosphere in the room. The device is equipped with technologies actively combating pollution:

By producing negative ions, the iAIR Super Ionizer eliminates viruses, bacteria, mites and allergens from the air. Unpleasant odors are eliminated almost immediately after contact of the ionizer with polluted air.

The combination of an HD iAIR electrostatic filter and two additional filters (including an antibacterial filter) provides an effective barrier against dust, pollen and bacteria.

• Thanks to the use of a compressor carter heater and a drip tray, the air conditioner efficiently heats rooms even in sulphurous frosts up to -25°C.

• High energy efficiency: Versu Pure is characterized by the prestigious energy class A+++ for cooling (SEER 8,5) and A++ for heating (SCOP 4,6), which translates into lower operating costs.

This model takes care of your peace of mind - on the lowest gear it emits sound at only 19 dB, which makes it almost inaudible when working in night mode.

The Versu Pure R16 offers complete freedom of comfort management thanks to modern solutions:

• WiFi remote control as standard: The built-in modem allows you to manage all the functions of the air conditioner from anywhere in the world using a smartphone application.

• Intuitive airflow management: The advanced system allows you to control vertical and horizontal blinds with a modern, aesthetic remote control or wall controller.

• Intelligent operating modes: The device is equipped with features that optimize comfort and savings, m.in. Eco mode, sleep mode, timer and 1W standby mode.

• Intuitive control: Operation is carried out using an aesthetic wireless remote control or a dedicated mobile application.

Technical specification

Model

Versu Pure 3,5 kW

Rotenso series

Versu

Generation

X

Efficiency / Cooling / Nominal (W)

3516

Efficiency / Cooling / Min-Max (W)

1320-4307

Power Consumption / Cooling / Nominal (W)

900

Power Consumption / Cooling / Min-Max (W)

130-1650

Operating Current / Cooling / Nominal (A)

3.9

Operating Current / Cooling / Min-Max (A)

0,6-7,2

Efficiency / Heating / Nominal (W)

3809

Efficiency / Heating / Min-Max (W)

879-4395

Power Consumption / Heating / Nominal (W)

950

Power Consumption / Heating / Min-Max (W)

120-1500

Operating Current / Heating / Nominal (A)

4.1

Operating Current / Heating / Min-Max (A)

0,5-6,5

Type of reverse heat pump

air-to-air

Cooling load (kW)

3.5

SEER (W/W)

8.5

Energy efficiency class - cooling

A+++

Annual energy consumption - cooling (kWh/a)

146

Heat load (Tbiv -7°C) (kW)

2.5

SCOP (W/W)

4.6

Energy efficiency class - heating

A++

Annual energy consumption - heating (kWh/a)

776

Dehumidification (l/h)

1.2

Maximum energy consumption (W)

2200

Maximum operating current (A)

9.6

External unit

VP35Xo

Product code EAN j. external.

5905567600982

Fan Speed / (H. Wed. No. ) (rpm)

800 / 620 / 450

Maximum airflow (m³/h)

2200

Sound pressure level (dB(A))

53

Sound power level (dB(A))

62

Net dimensions / (S×G×W) (mm)

765 × 303 × 555

Gross dimensions / (S×G×W) (mm)

887 × 337 × 610

Mounting spacing / (S×G) ((mm))

452 × 286

Net weight / Gross weight (kg)

26,4 / 28,8

Refrigerant / Type

R32

Refrigerant / GWP

675

Refrigerant / Quantity (up to 5 mb) (kg)

0.7

Refrigerant / Quantity (up to 5 mb) (TCO2eq)

0.472

Additional factor over 5 mb (g/m)

12

Pipe connections / Liquid / Gas (mm(inches))

Φ6,35 / Φ9,52 (1/4"" / 3/8"")

Maximum installation length (m)

25

Maximum Level Difference (m)

10

Compressor type

Rotational DC

Type of power supply for outdoor unit (V-Hz, Ø)

220-240~50, 1f

Security (A)

B10

Power cords: outdoor unit (il. × mm²) L < 20m

3 × 1,5

Control and power cables: outdoor unit. - internal. (il. × mm²)

5 × 1,5

Control and power cables: Hiro unit - internal.

4 × 1,5

Range of work in the room / (Cooling/Heating) (°C)

16~32 / 0~30

Outdoor working range / (Cooling/Heating) (°C)

-15~50 / -22~30

Declared performance under heating conditions / (average season) (kW)

2,049

Power supply under heating conditions / (average season) (kW)

0,451

In connection with the amendment to the Act Journal of Laws 2017 item.

- in the case of purchase for the company, a statement that the device will be installed by a company with an F-Gas certificate or a resale clause as a commercial commodity

- in the case of a person, a statement that the device will be installed by a person holding an F-Gas certificate (company or personal)

Statement to be downloaded in the "Additional information" tab of -Poradnik.pdf.

ALWAYS CHECK, THE CONDITION OF THE SHIPMENT IN THE PRESENCE OF THE COURIER, IF NECESSARY, WRITE DOWN THE DAMAGE REPORT, WILL BE THE BASIS FOR THE COMPLAINT.

The condition of the 5-year warranty is installation by a qualified Installer documented by an entry in the warranty card.

The guarantor is the company / installer installing the device, having the necessary permissions and certificates of the manufacturer, in the event of a failure, the installer finds a fault and reports to the service. Detailed warranty conditions of the "Warranties" tab
