Oro kondicionierius sieninis 5,3 kW R32 Wi-Fi MDV AROMA

Trumpai apie prekę

Prekė: Oro kondicionierius sieninis 5,3 kW R32 Wi-Fi MDV AROMA. Kategorija: Oro kondicionieriai.

• Gamintojas: no brand
• Modelis: ZAF-18N8-C1

Purchase of products containing F-Gazy

In accordance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No 842/2006

Products non-hermetically sealed (i.e. those in which the Installer replenishes the refrigerant) containing F-gases cannot be purchased without an appropriate statement.

Non-hermetically sealed products in the offer containing F-gases include:

- split heat pumps,

- split air conditioners.

F-gases are short for "fluorinated greenhouse gases", which include primarily hydrofluorocarbons, perfluorocarbons, sulphur hexafluoride and greenhouse gases containing fluoride.

?? Purchase by end customer:

The purchase of split air conditioners and split heat pumps can be carried out only after the buyer sends to our e-mail address a scan of the contract concluded with the company holding the appropriate certificate for enterprises or a scan of the contract concluded with a natural person holding a certificate for personnel.

• Purchase by end customer - send a scan of the completed statement from page 1 + contract for the installation service from page 2.

?? Purchase by company:

The purchase of split heat pumps and split air conditioners for further resale can be carried out only after submitting the buyer’s statement, in which he declares that the device is buying for further resale.

• Purchase by the company - send a scan of the completed statement from page 3.

The purchase of split air conditioners and split heat pumps in order to install to the end customer requires sending in a message to the seller, the F-GAZ certificate number for enterprises. The seller verifies the submitted certificate, after verification, the order is processed.

• Purchase by an authorized company holding an f-gas certificate for entrepreneurs in order to make assembly at the end customer - a scan of the completed statement from page 4 should be sent.

!! ATTENTION!!

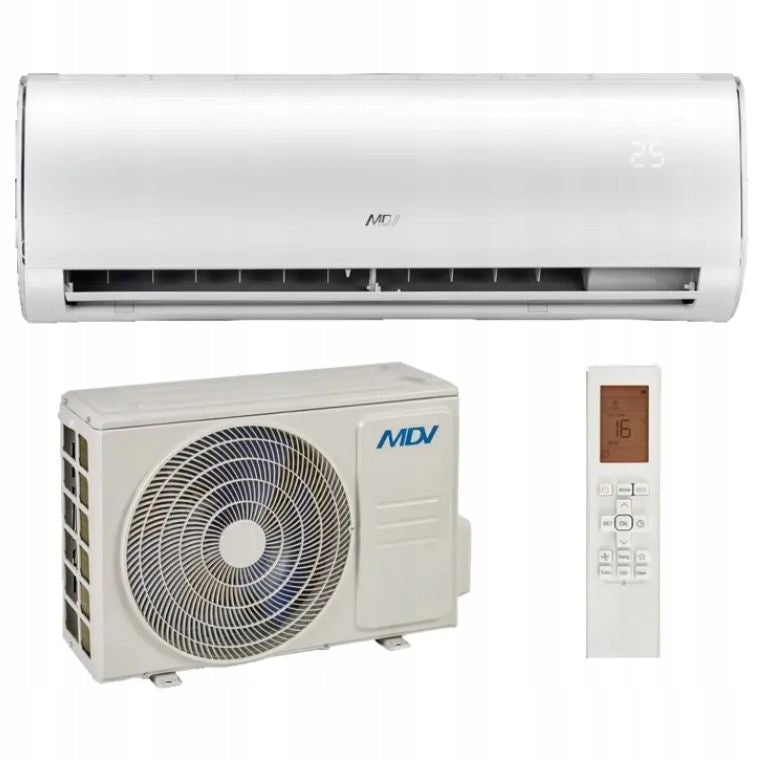

The set includes:. .

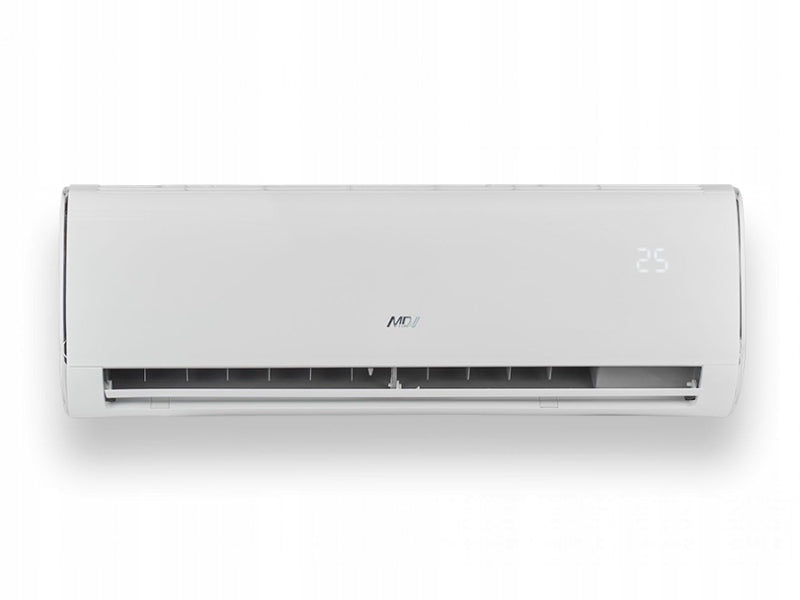

• 1 x AFCU-18HRFN8-QRD0 indoor unit,
• 1 x outdoor unit MOX330-18HFN8-QRD0N,
• 1 x Wireless Remote Control with Frost Protect.

Wall air conditioner SPLIT MDV AROMA 2022 5,3kW R32 Wi-Fi remote control Frost Protect ZAF-18N8-C1 MDV - consists of two units - internal (evaporator) and external (condenser). Both units are connected to each other by two wires filled with refrigerant (e.g. R410a, R32 etc. ). The evaporator is mounted on the wall inside the building, and the condenser is mounted outside as little distance as possible from the indoor unit. Split air conditioning only supports one room and is most commonly used in homes, offices or shops

The AROMA 2022 series from MDV provides thermal and acoustic comfort. The model with an aromatic filter as standard has been equipped with an ionizer neutralizing dust, mites, bacteria and viruses. The ionizer can emit up to 2 million positive and negative ions, eliminating unpleasant odors, dust, smoke and pollen from the environment.

Aroma 2022 has Frost Protect function, which prevents excessive cooling of the room during a longer absence of the user in winter while maintaining a minimum temperature of 8°C.

Aroma 2022 air conditioners have new features such as a compressor carter heater and a drip tray heater so that the series is very well adapted to changing climatic conditions (e.g. moderate climate). These heating devices allow for safe operation of the device at external temperatures up to -25°C.

The series has an ECO function - it allows you to save up to approx. 60% energy during 8 hours of cooling.

• power supply [V/phase/Hz]: 220 - 240 V / 1F / 50 Hz
• Version: reverse heat pump
• maximum current consumption: 13 A

Refrigerant:

• Type: R32
• Quantity: 1,08 kg

Refrigeration pipes:

• liquid/gas [mm]: Ř6,35 / Ř12,70
• maximum length [m]: 30 m
• maximum level difference [m]: 20 m

Recommended electrical wiring and protection:

• power supply unit/section [mm2]: external / 3x2,5 mm2
• communication [mm2]: 5 x 1,5 mm2
• protection: 16 A, characteristics: C

Recommended operating temperature range (external) [°C]:

• cooling [°C]: -25 ~ +50°C
• heating [°C]: -25 ~ 30°C

Cooling:

• capacity [kW]: nominal 5,3 kW; Min-max 0,34 - 5,83 kW
• nominal power consumption [kW]: 1,55 kW
• EER [kW/kW]: 3,42 kW
• SEER: 7.4
• energy efficiency class: A++

Warming:

• capacity [kW]: nominal 5,6 kW; min-max 3,10 - 5,85 kW
• nominal power consumption [kW]: 1,57 kW
• COP [kW/kW]: 3,57 kW
• SCOP: 4
• energy efficiency class: A+

Technical data:

• dimensions [width. x L x H (mm)]: 957 x 213 x 302 mm
• transport dimensions [width. x L x H (mm)]: 1035 x 295 x 385 mm
• weight [net/gross (kg)]: 10,0 / 13,0 kg
• airflow [low/medium/high m3/min]: 9,0 / 11,3 / 14,0 m3/min.
• sound pressure level [quiet/low/medium/high dB(A)]: 20,0 / 26,0 / 36,0 / 42,5 dB(A)
• sound power level [dB(A)]: 56 dB(A)

Technical data:

• dimensions [width. x L x H (mm)]: 805 x 330 x 554 mm
• transport dimensions [width. x L x H (mm)]: 915 x 370 x 615 mm
• weight [net/gross (kg)]: 32,7 / 35,4 kg
• airflow [m3/min]: 35 m3/min.
• sound pressure level [dB(A)]: 56 dB(A)
• sound power level [dB(A)]: 63 dB(A)

MDV is a Midea brand that was founded in 1968 and has been a leading manufacturer of air conditioning equipment for several years. Midea has been working closely with Toshiba’s Japanese company, m.in, for many years. in the production of compressors and other components for air conditioners and refrigeration equipment.
