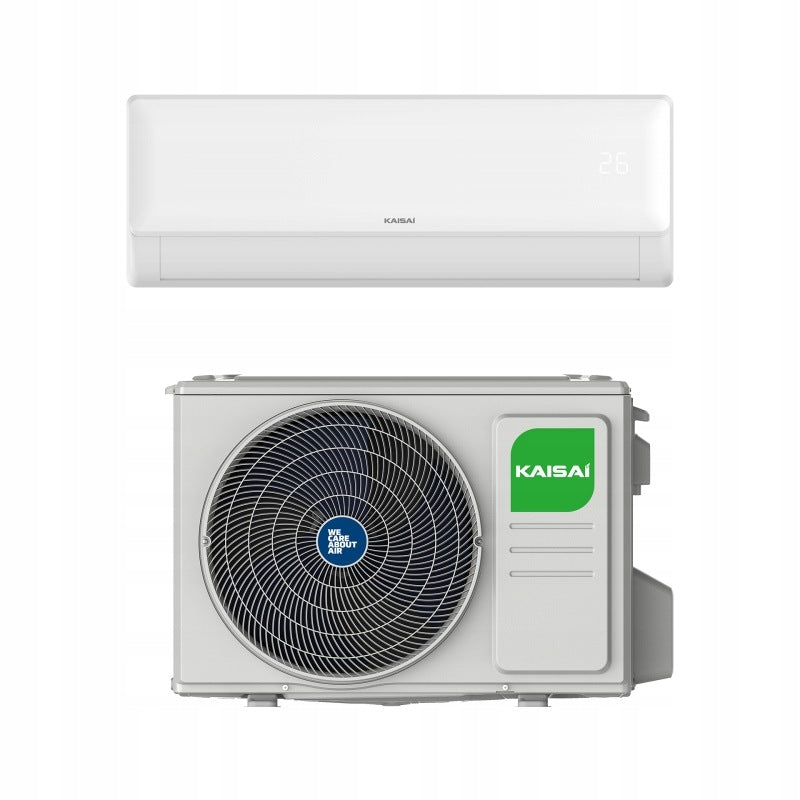

Oro kondicionierius sieninis Kaisai FLY+ 3,5 kW

Trumpai apie prekę

Prekė: Oro kondicionierius sieninis Kaisai FLY+ 3,5 kW. Kategorija: Oro kondicionieriai.

• Gamintojas: Kaisai
• Modelis: KKWX-12RRA1 KKOX-12RRA1

Kaisai Fly+ is a modern wall air conditioner that combines advanced technology, energy efficiency and high comfort of use. Thanks to intelligent functions and thoughtful design, it will work both in apartments and in office spaces.

ECO+ uses artificial intelligence algorithms based on billions of operational data. The device analyzes operating parameters and automatically optimizes settings, ensuring high comfort with even lower energy consumption. This solution goes beyond conventional savings modes, offering real and noticeable savings.

Kaisai Fly+ cares not only about temperature, but also about hygiene. The 56°C sterilization function eliminates bacteria within 30 minutes. In addition, by reversing the fan operation, the device automatically dries and cleans the interior of the unit, preventing the growth of bacteria and mold. This is a guarantee of healthier air in your home.

Gear mode allows you to adjust the maximum operating intensity of the device by controlling the temperature and fan speed. The user can independently set the level of energy consumption, adjusting the operation of the air conditioner to current needs.

Thanks to the Silent function, the outdoor unit works even quieter. Simply press and hold the fan speed button to reduce noise levels – the perfect solution for multi-family installations or at night.

The optional MFB board extends the functionality of the device by enabling connection of a wired KJR-120N controller, central CCM controller, Modbus gate, external ON/OFF control signal, alarm signal output. This solution is particularly appreciated in commercial installations and building management systems (BMS).

The new design of the air conditioner has been designed with installers and service technicians in mind. Universal components are easy to disassemble, which significantly reduces maintenance time. Strong and spacious mounting plates provide more space for pipe and cable connections, making installation easier and quicker.

Kaisai Fly+ is a combination of intelligent technologies, energy efficiency and care for air hygiene – a modern solution for demanding users.

• Constant heating function 8°C

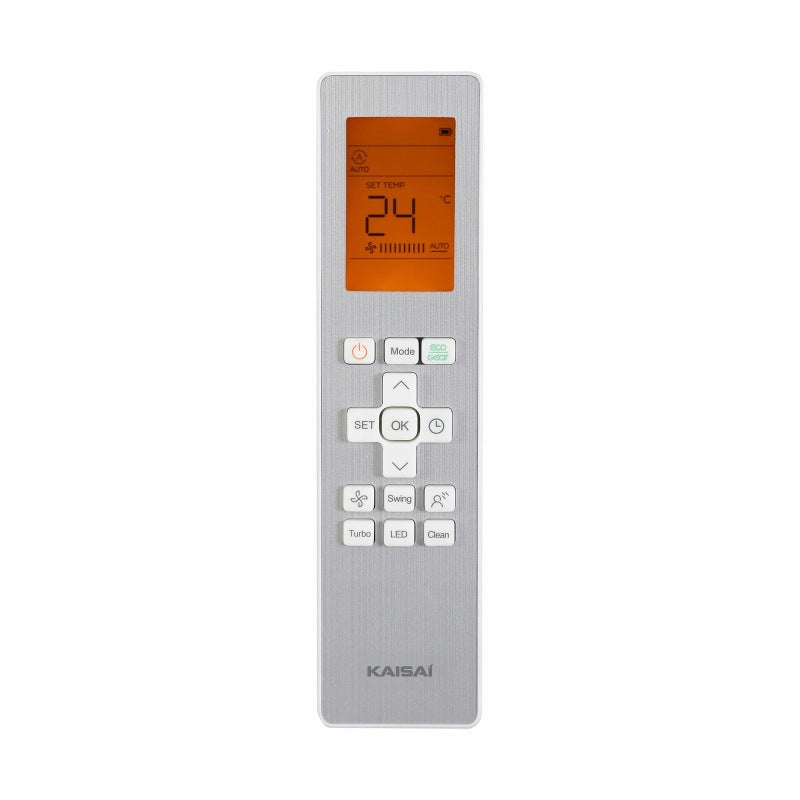

• Temperature sensor in the remote control
• Standby mode
• Eco+ function
• Sleep function
• Gear Function
• Function breeze away
• Smooth fan speed control
• Automatic restart
• 3D air supply
• Turbo mode
• Cold air supply control
• Personalized remote control
• Quiet operation
• Quiet operation of the outdoor unit
• Louver Settings Memory
• Automatic shutter (SWING)
• Self-cleaning evaporator
• Time programmer
• Factor leakage signalling
• Wide temperature range
• Self-diagnosis
• Emergency use
• Wi-Fi control as standard
• High Density Filter
• Cold Catalytic Filter
• Sterilization 56°C
• Compressor heater and condensate tray
• Easier installation, service and maintenance
• Gold lamellas
• Double-sided installation
• Personalized remote control

Technical data

• Model: KKWX-12RRA1 indoor unit, KKOX-12RRA1 outdoor unit
• Nominal capacity (min÷max) (kW): cooling 3,5(1,1÷3,8), heating 3,8(1,1÷4,1)
• Energy class cooling/heating: A++/A+
• SEER (W/W): 6,5
• SCOP (W/W): 4,1
• Power consumption cooling/heating (kW): 1350 / 1190
• Air flow (m3/h): internal 590/420/340/190, e.g. 1750
• Sound pressure (dB(A)): internal 39.0, e.g. 56.0
• Net dimensions (mm): internal j. 813x202x121, external 720x495x270
• Net weight (kg): internal 7.4, e.g. 20.4
• Connection diameter liquid/gas (mm): 6,35/9,52
• Max. L. refrigeration system (m): 25
• Max. Level difference (m): 10
• Permissible outdoor temperature range. (°CDB): cooling -15 to 50, heating -25 to 24
• Refrigerant: Type (GWP) R32 (675), factory quantity (kg): 0,49
• Power supply (V/Hz/Ph): 220÷240/50/1

In connection with the amendment to the Act Journal of Laws 2017 item. 1567 from 01.01.2018. Please be advised that in accordance with applicable law we require:

• if the sale is made to an entity authorized to perform the service of installing the device, presentation by the Buyer of the F-GAZ certificate issued by the Office of Technical Inspection
• if the sale is made to an entity not authorized to perform assembly, presentation by the Buyer of a declaration of signing a contract for the performance of the installation service by an authorized entity, containing information about the name of the entity and the number of the F-GAZ certificate.
• if the sale is made for further resale, present an appropriate statement.

The statement to be completed can be found in the attachment "Guide".
