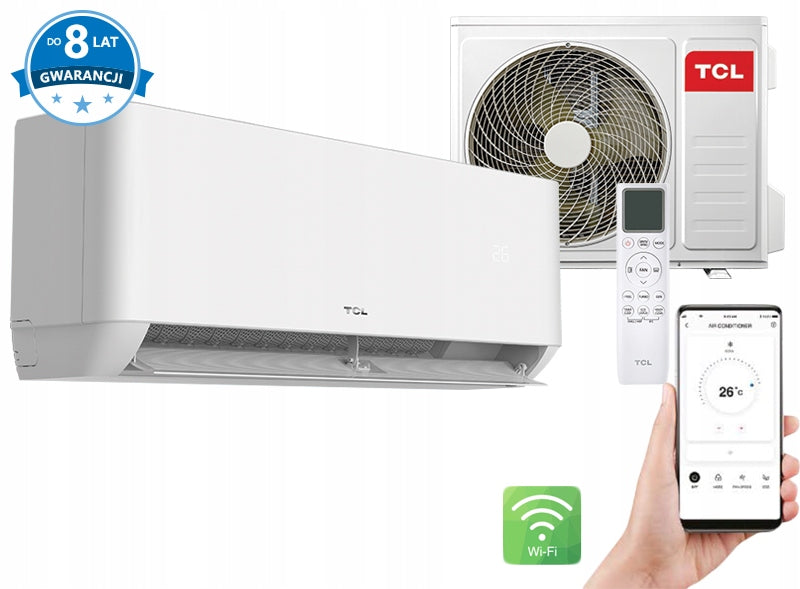

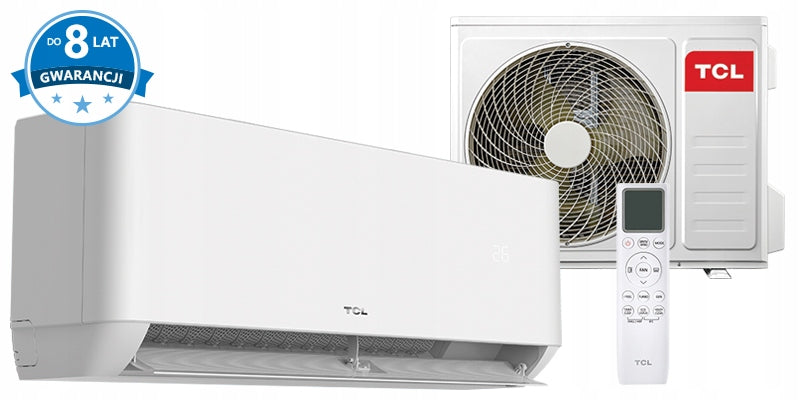

Oro kondicionierius TCL OCARINA TAC-12CHSD, 3,4 kW, WiFi

Trumpai apie prekę

Prekė: Oro kondicionierius TCL OCARINA TAC-12CHSD, 3,4 kW, WiFi. Kategorija: Oro kondicionieriai.

• Gamintojas: TCL
• Modelis: TAC-12CHSD/BCA/TPG11IN + TPG11IT

DESCRIPTION

Ocarina 2023 series wall air conditioners are a proposal for demanding investors who value high quality solutions, but at an affordable price. The units are distinguished by their stylish design, and thanks to the high energy class A++/A+ they provide energy savings. The devices are equipped with a number of innovative functions that improve the comfort of use, including: Drain tray heater, dipolar ionizer, UV lamp, Gentle Wind, Easy cleaning and 4-way air supply.

ADDITIONAL INFORMATION

• Cooling and heating function,
• remote control included,
• ecological factor R32,
• high energy class,
• Wi-Fi control,
• ultra-quiet operation,
• intelligent air supply.

In accordance with the Act of 15 May 2015 on substances that deplete the ozone layer and on certain greenhouse gases (Journal of Laws U. pos. 881 and 2016 pos. 1579 and 1948), amended on 12 July 2017. (Journal U. pos. 1951) after purchase, the customer will be obliged to complete the statement together with the F-Gas installer certificate number. In the absence of a statement based on the current regulations, we will not be able to fulfill such an order. The statement is available for download in the "Additional information" section as "montażu.pdf Manual" or will be delivered to the customer by email.

Technical data

• Nominal cooling capacity - 3,4 (1,0~3,77) [kW]
• Nominal heating capacity - 3,42 (1,0~3,81) [kW]
• Energy class (cooling/heating) - A++ / A+
• SEER - 6.1
• SCOP - 4.0
• Power supply - 220-240/ 50 [V/Hz]
• Electricity consumption (cooling/heating) - 195-840 [kW/a]
• Operating current cooling - 5,1 (1,5~9,0) [A]
• Operating current heating - 4,7 (1,5~10,0) [A]
• Power consumption cooling - 1,05 (0,29~1,5) [kW]
• Power consumption heating - 0,92 (0,29~1,73) [kW]
• Refrigerant - R32
• Air flow cooling - 560 [m³/h]
• Air flow heating - 560 [m³/h]
• Liquid Cooling Wire Diameter - 1/4'' [inches]
• Gas Refrigeration Wire Diameter - 3/8'' [inches]
• Maximum installation length - 25 [m]
• Maximum elevation - 10 [m]

Internal unit

• Operating temperature (cooling/heating) - 17～32 / 0～30 [°C]
• Net dimensions (L x H x W) - 790x275x192 [mm]
• Acoustic power (H/M/L/MUTE) - 51/47/43/35/32 [dB(A)]
• Sound pressure (H/M/L/MUTE) - 41/37/33/25/22 [dB(A)]

External unit

• Operating temperature (cooling/heating) - -15～50 / -20～30 [°C]
• Net dimensions (L x H x W) - 777x498x290 [mm]
• Acoustic power - 60 [dB(A)]
• Sound pressure - 50 [dB(A)]

Functions of the TCL air conditioner

4-way airflow - Vertical blinds and enlarged horizontal blinds provide up to 72 air supply angles, guaranteeing precise and comfortable air conditioning of the interior of the room.

7 fan speeds - The device is equipped with 7 internal unit fan gears: turbo, high, medium-high, medium, medium-low, low and muted.

Filter cleaning alarm - Reminds you when to clean the filter and the notification appears on the device display or in the TCL HOME app.

Anti-Cold - The function prevents cold air from entering the room when the heating mode is switched on. The fan of the indoor unit begins to work at the lowest speed, and its speed gradually increases with the increase in the temperature of the indoor unit exchanger.

Auto mode - The sensor built into the device allows you to monitor and adjust the temperature in the room, automatically adjusting the operating mode and fan run to the temperature set by the user.

Auto-cleaning - 30-minute, 4-step program for cleaning and sterilizing the evaporator at 56°C: from freezing, defrosting, drying to sterilization. The function inhibits the development of harmful microorganisms on the surface of a humid heat exchanger, thus preventing the formation of rust on it, the device is maintained in optimal condition.

Self-diagnosis - In the event of a failure, the device performs self-diagnosis and displays the appropriate error code, thanks to which the problem is precisely defined, and the repair itself - faster and cheaper.

Autorestart - In the event of a failure in the supply of electricity to the device, after resuming power, the air conditioner will start automatically with the restoration of the set operating mode before the failure.

Parental lock - Prevent unauthorized persons/children from controlling the operation of the device. Possibility to block changes to settings.

Cooling - In cooling mode, the air conditioner lowers the room temperature to the user's set temperature value.

DC Inverter - Thanks to energy-efficient DC inverter compressors and the use of state-of-the-art microprocessor systems, the device quickly and efficiently reaches and maintains the set temperature in the room.

Double-sided condensate drainage - Freon piping and condensate drainage can be connected both to the right and left side of the indoor unit, making it easier to install the device according to the layout of the room.

Ecological refrigerant R32 - A more modern, environmentally safe and effective refrigerant R32 currently used in refrigeration and air conditioning.

Energy-efficient - Intelligent algorithm allows the device to reach the required temperature faster, more precisely and more smoothly. The inverter compressor is more economical than conventional systems, accurately maintains the set temperature and has smooth power regulation.

Gold Fin - Both heat exchangers are coated with a special coating with titanium compounds. This coating is designed to reduce the occurrence of galvanic corrosion, and its high hydrophobic properties make it easy to keep the exchangers clean, prolonging their lifespan.

Drip tray heater - In heating mode, the drip tray heater protects the outdoor unit from freezing condensate flowing onto the drip tray. The heater quickly removes snow and ice from the outdoor unit.

Heating - The function is implemented based on the principle of operation of the heat pump: the air conditioner blows warm air into the room to obtain the temperature set by the user.

I Feel - Precise temperature control thanks to the sensor built into the remote control: the device strives to maintain the set temperature where the user is currently located together with the remote control.

Intelligent dehumidification - Maintains an adequate level of air humidity, ensuring increased user comfort in the air-conditioned room.

Intelligent air supply - In cooling mode, the air is fed towards the ceiling and then falls down to provide a refreshing shower effect. In heating mode, the air flow is directed downwards in the form of a warm gust right next to the floor, and then rises upwards.

Mute mode - Thanks to the use of a unique internal design, the sounds generated by the device are kept to a minimum.

Rust resistance - Rust-resistant technology ensures that the outdoor unit does not corrode, thereby prolonging the life of the device. Increased tightness protects against flooding, insects and dust. .

Heating 8°C - Prevent excessive cooling of the room and the ability to set the device to be switched to heating mode when the temperature inside the room drops below 8°C.

Louver memory - Automatically return the blind settings to the previous position after restarting the device.

Wireless remote control - The remote control allows you to control the device at a distance from the indoor unit. On the remote control, you can also read the current operating mode, temperature and other operating parameters.

Emergency button - In case of loss or damage to the wireless remote control, it is possible to start the device via the emergency button located on its housing.

Voice control - The ability to control the device with simple voice commands via Google Assistant. Connection to the smartphone is achieved via the TCL HOME and Google Home apps.

Wi-Fi Control - Remotely control your device from anywhere with internet access using the TCL Home or Intelligent AC app.

Fast cooling and heating - Thanks to the use of a high-efficiency compressor, the device quickly cools or heats the room to a set temperature value.

Timer - The ability to set the time of switching on and off the device or the entire work schedule taking into account its repeatability, mode, temperature, airflow speed.

Eco mode - Allows the device to operate with reduced electricity consumption, thanks to which the user saves on electricity bills.

Night mode - In night mode, the device will automatically adjust the temperature and rotation speed of the fan to make the night in the room quieter, more pleasant and more comfortable.

Turbo - The highest fan speed allows you to reach the set temperature value faster.

Fan - Operating mode, during which the indoor unit operates like a fan, without changing the air temperature, only forces air circulation in the room.

On/off display - The ability to completely disable the indoor unit hidden under the display panel when it is not currently needed.

Gentle wind - Distributed gentle stream of air gradually cools the environment. The use of a special design of vertical blinds (flake sections) equipped with micro-holes allows to obtain a gentle, dispersed stream of supply air resembling a sea breeze. Compared to ordinary air conditioners, where the air supply can be too intense, the "Gentle Wind" solution gently and quietly cools the room, while consuming little energy.

Dipolar ionizer - Neutralizes harmful particles of bacteria and viruses as well as spores of fungi and mold, positively affecting the health of the user. Improves the user's well-being by increasing negatively charged ions in an air-conditioned room.

UV lamp - Sterilizes the air thanks to its strong bactericidal and virucidal effects by damaging the DNA structure of pathogens.

Easy cleaning - Intuitive cleaning concept: four key components (filter, blind, blades and bottom mounting plate) can be easily disassembled for manual cleaning and then easily put back on.

3D ventilation - Automatic movement of horizontal blinds and vertical blinds ensures the spread of air in every direction, which increases user comfort and ensures even cooling (heating) of air throughout the air-conditioned room.
