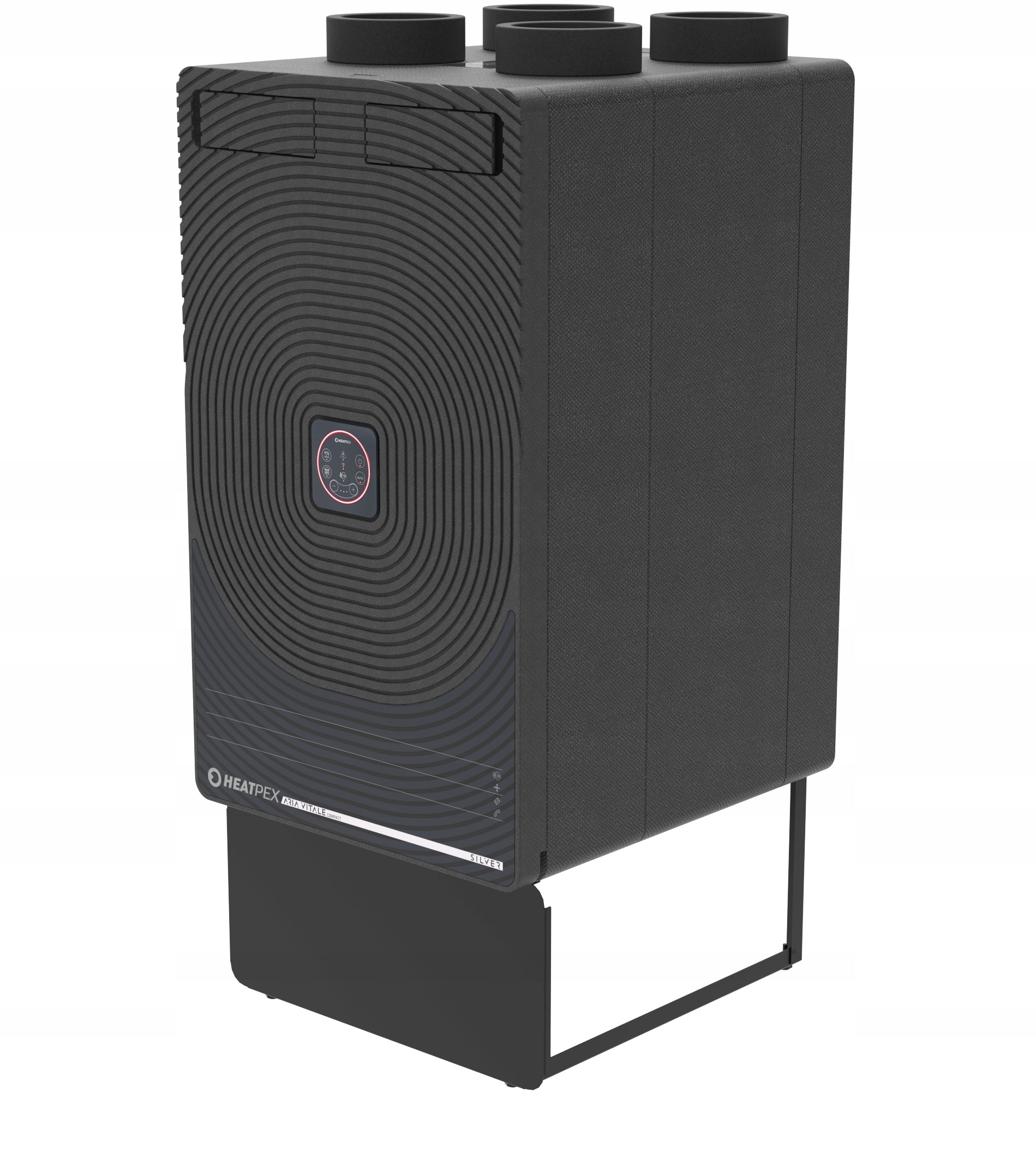

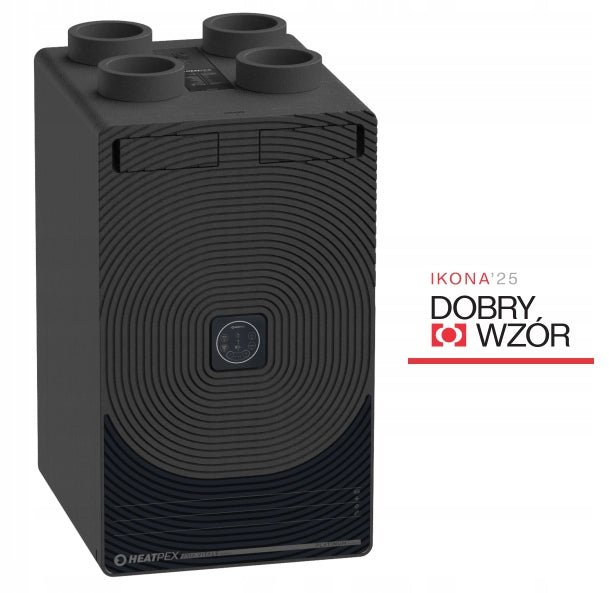

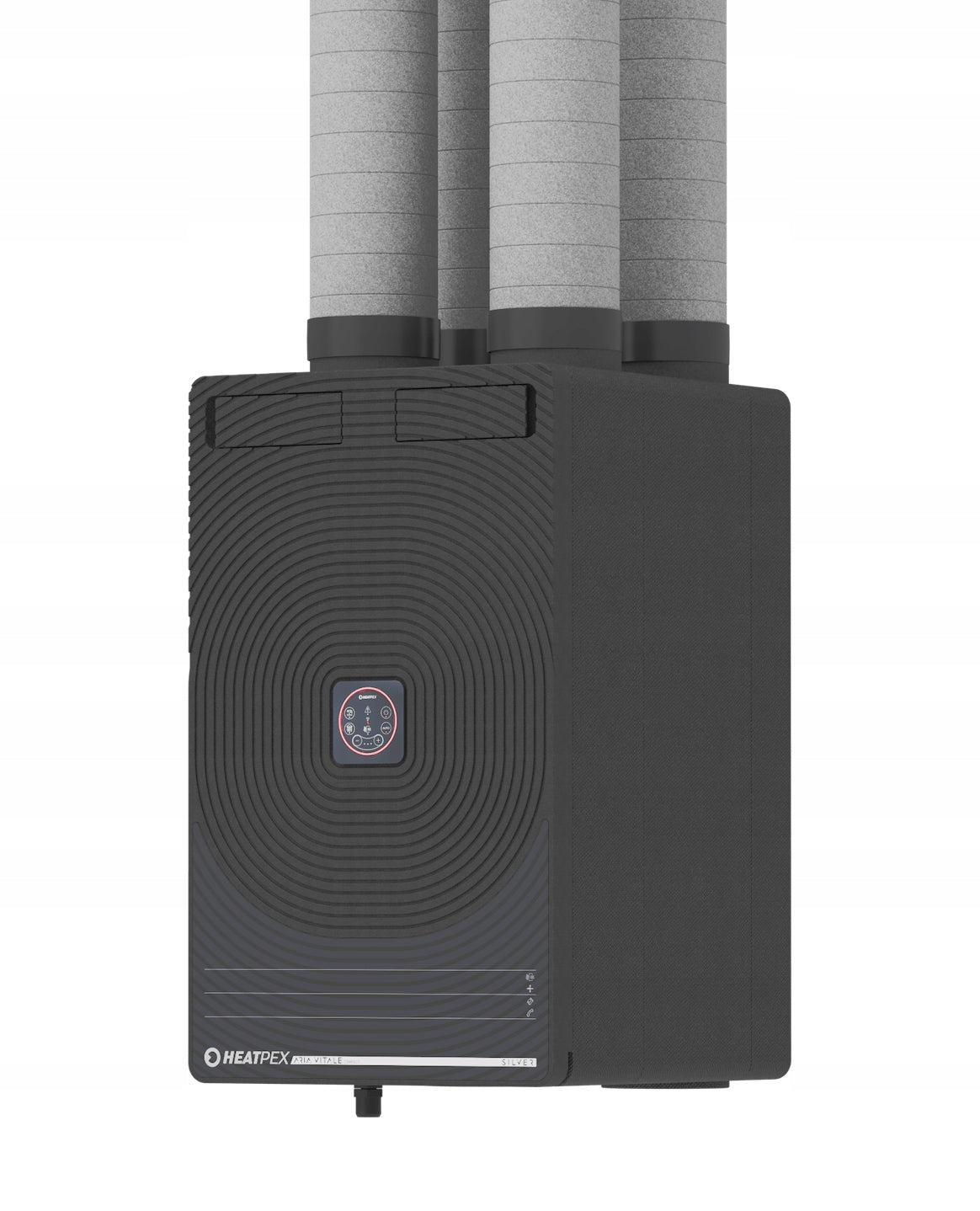

Oro rekuperatorius Aria Vitale Compact Platinium Enthalpy CF 250/350

Trumpai apie prekę

Prekė: Oro rekuperatorius Aria Vitale Compact Platinium Enthalpy CF 250/350. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Heatpex
• Modelis: 50525113100W

The ARIA VITALE and ARIA VITALE COMPACT models are designed with different needs in mind – the compact version will work well in rooms with limited space, while the standard model provides full performance for larger installations. The intuitive control panel allows you to conveniently manage the device without the need for specialized technical knowledge. Thanks to these properties, the HEATPEX ventilation system combines functionality, comfort and ecology in one device.

In the production of the ARIA VITALE compact air handling unit, the best components were used, focusing on speed and simplicity of installation. The housing is made of innovative, laser-enriched expanded polypropylene (EPP), thanks to which the device is light, quiet and aesthetic, and at the same time more environmentally friendly.

The ARIA VITALE compact is designed to work well in a very limited space as well. It allows installation in 2 positions – it can be installed both on the wall and in the floor version. In addition, 4 connection variants — right-, left-hand and only from the top or top and bottom. This significantly facilitates the adjustment of the device to the available technical space and simplifies service.

The whole is complemented by an intuitive, simple control panel, which does not require specialized technical knowledge, ensuring convenient and trouble-free use every day.

The ARIA VITALE compact PLATINUM enthalpy CF recuperator is equipped with an enthalpic exchanger, a constant flow function and temperature, humidity and CO2 sensors.

• Model, Aria Vitale compact Silver 250,
• Nominal air flow, 250 m3/h,
• Heat Exchanger, Countercurrent,
• Sound pressure level 3m Sound pressure level 3m from the device, respectively at expenditure: 30%/ 50%/ 70%, 25,5 dB(A)/ 33,8 dB(A)/ 42,1 dB(A),
• Energy class, A+,
• Thermal efficiency of heat recovery, 88,8,
• Maximum fan power, 2x90 W,
• Preheater power, 500 W,
• Power supply, 230 V/50 Hz,
• Degree of protection IP, IP 40,
• Diameter of air nozzles, 125 mm,
• Condensate drain diameter, 32 mm,
• Housing material, EPP,
• Height, 865 mm,
• Width, 520 mm,
• Depth, 585 mm,
• Weight, 20 kg,
• Sensors, Temperatures,
• Air flow regulation, traditional, fully smooth fan speed control,
• 100% automatic by-pass, YES,
• Anti-freeze system with heater, YES,
• Wi-Fi/ wireless connection, YES,
• Catalog number, 50525011100W,
