Oro užuolaida AERIS AC200C1P, 2 m, 230V, balta, be šildytuvo

Trumpai apie prekę

Prekė: Oro užuolaida AERIS AC200C1P, 2 m, 230V, balta, be šildytuvo. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS AC200C1P
• Galia: 260 W

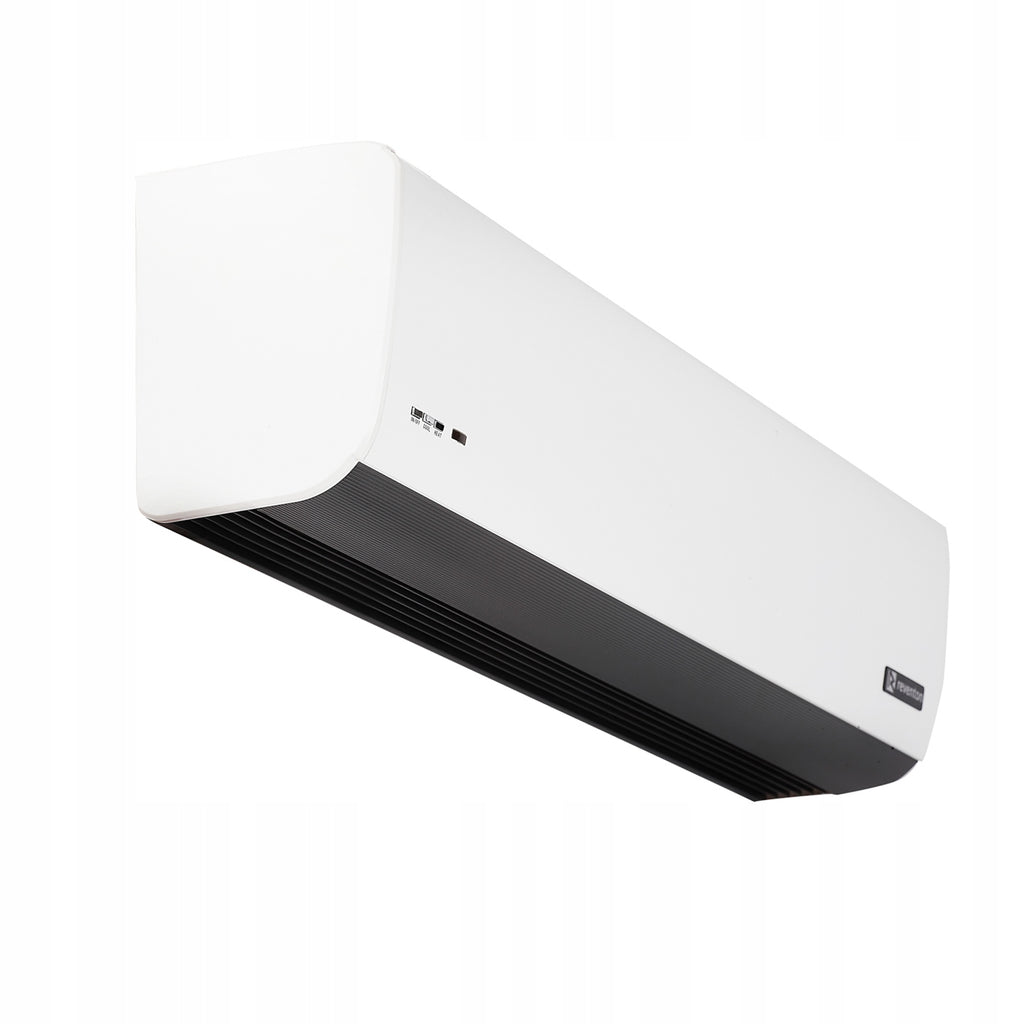

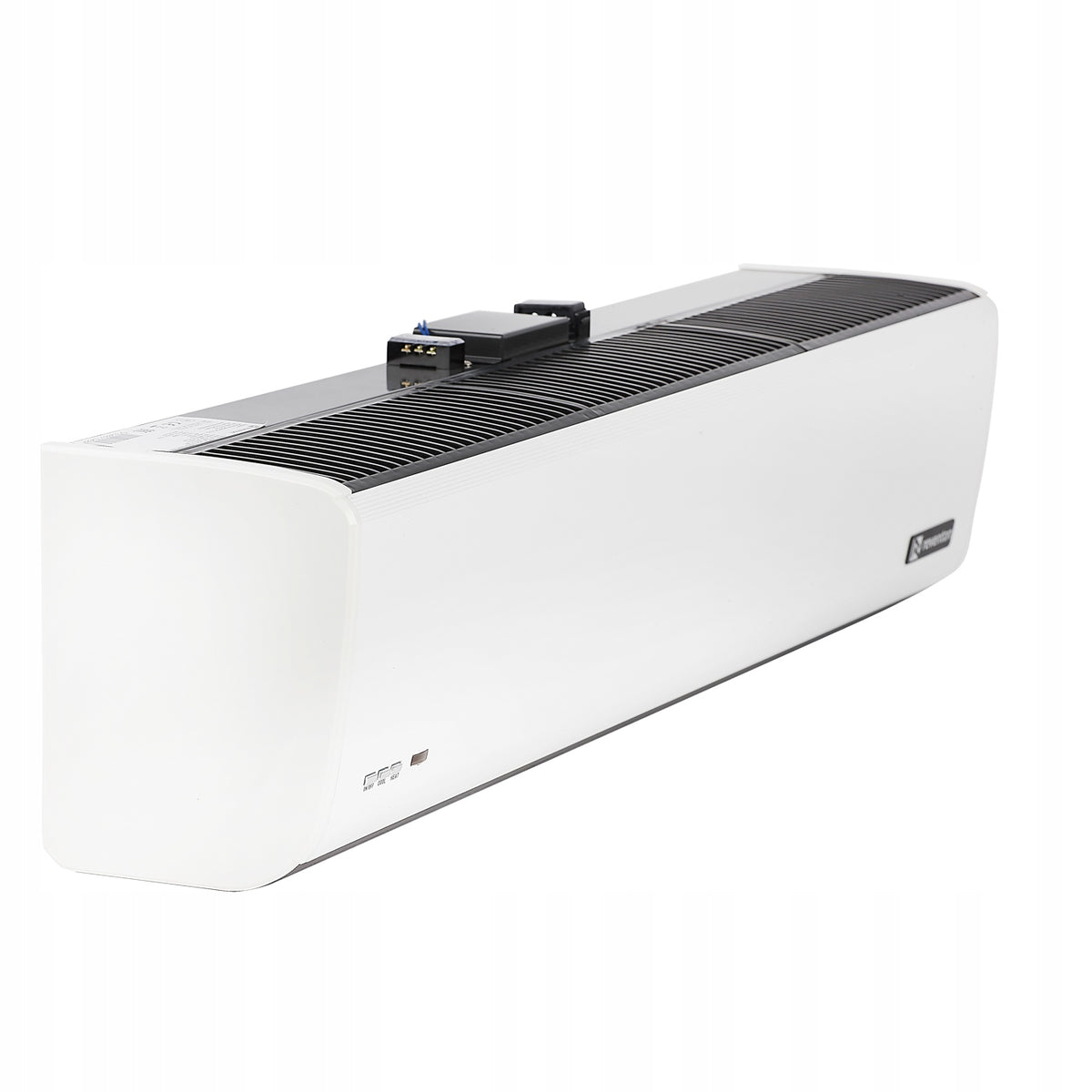

The AERIS "C" series air curtain with a width of 2 meters is a powerful heaterless device designed to protect wide door openings. It creates an effective air barrier that separates the conditions inside the building from the external environment. It is an indispensable solution in air-conditioned facilities, where the priority is to keep the cold inside in summer and protect against dust, exhaust fumes and insects.

❄ Maximum Efficiency and Energy Savings

The AC200C1P does not have built-in heaters, which makes it an extremely energy-efficient device. It focuses exclusively on producing a strong air stream that prevents air masses from mixing at different temperatures. This allows for a significant reduction in air conditioning costs in large service premises and warehouses.

💨 Wide Stream and Long Range

Thanks to the width of 200 cm and the use of reinforced transverse fans, the curtain perfectly covers wide passages, eliminating the formation of "gaps" in the protective barrier. The device generates a stream with a range of up to 2,5 meters, which provides stable protection for most standard store and office doors.

🛡 Modern Design and Durability

The device is characterized by a solid housing made of powder coated steel in white (RAL 9016). It is resistant to harsh operating conditions and easy to clean. Thanks to its minimalist form, the curtain, despite its large size, does not overwhelm the interior and looks professional above every entrance.

🔌 Simple 230V Power Supply

Despite the large width, the curtain is powered by a standard voltage of 230V. The lack of heating modules means that the electrical installation does not require additional protection, and the installation is limited to a solid fixation of the device on the wall or under the ceiling and connecting to electricity.

WORKING PARAMETERS:

• Curtain type: Cold (heaterless)
• Width of the device: 2000 mm (2 meters)
• Maximum flux range: 2,5 m
• Maximum airflow: 2500 m³/h
• Power supply: 230V / 50Hz
• Number of fans: Increased sectional efficiency

📦 SET COMPOSITION – WHAT YOU WILL GET:

• ✅ Cold air curtain – AERIS AC200C1P (200 cm)
• ✅ Complete mounting bracket system – built into the housing
• ✅ Instructions for assembly and operation – in Polish
• ✅ Guarantee Card

ASSEMBLY:

• Mounting type: Levels (wall or underfloor)
• Recommended mounting height: Up to 2,5 m above the floor
• Design advantage: Possibility of mounting two devices side by side for extremely wide entrances

• EXTERNAL DIMENSIONS:

  MOUNTING DIMENSIONS:

• B (Total spacing of extreme holes): 1520 mm
• C (First section spacing): 520 mm
• D (Second section spacing): 520 mm
• E (Height between mounting holes): 130 mm
• F: 143 mm
• A (Total width): 2000 mm
• G (Total depth): 215 mm
• H (Total height): 180 mm
