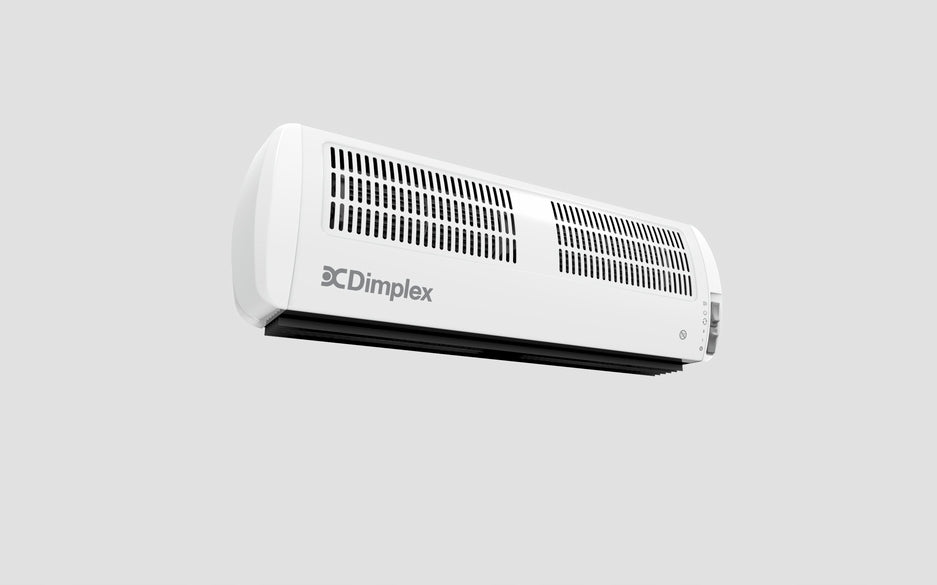

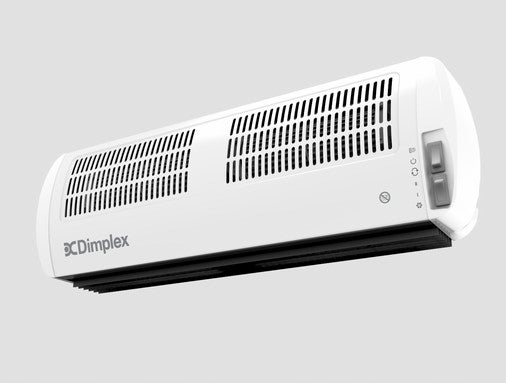

Oro užuolaida Dimplex AC6W, 6 kW, elektrinė, 92 cm

Trumpai apie prekę

Prekė: Oro užuolaida Dimplex AC6W, 6 kW, elektrinė, 92 cm. Kategorija: Oro užuolaidos.

• Gamintojas: Dimplex
• Modelis: AC6W 400001832
• Galia: 6000 W

Heater designed for installation above the entrances. The Dimplex AC6W curtain provides powerful, directional heating with a power of 6kW up to a height of 2,3m. Ideal for maintaining comfort while keeping entrances open.

Curtain Ac6W me work at full power 6kW , with power 3kW or without heater

AC6W electric curtain we use

• shops,
• offices,
• publishing windows,
• and other commercial facilities.

The new Dimplex AC 6W curtain can also be used as a full-fledged heater for space heating, thanks to the use of a thermostat in the range from 7C to 32 C and programmability

Approximate heating area up to 45m² *

* depends on warming and volume

Manual: available after start-up; full heating settings, half heating and only fan

Advanced: control via ConfigR application; including: temperature control, seven-day timer.

Advantages of AC 6W Electric Curtain

-Powerful airflow with efficient heat control

AC3W provides a strong, directional airflow of 5,2 m/s, helping to stabilize the temperature inside even with frequent door opening. This constant airflow improves comfort and helps reduce energy loss by minimizing heat escape at the entrance. Despite its efficiency, the unit operates at a controlled noise level of 54 dB(A), which makes it suitable for use in places where customers have direct contact with the heater

-Flexible manual control and intelligent application

The controls are simple and flexible. Built-in rocker switches allow you to quickly choose between ventilation, semi-heating and full heating modes, making everyday work easier. For more advanced control, the heater connects to the Dimplex ConfigR app, allowing precise temperature control between 7 and 32°C.

The application also allows you to set seven-day schedules, use the functions of increasing and increasing power and switch between manual modes, schedule (automatic) and standby, which gives you full control over comfort and energy efficiency.

-Built for reliability and everyday use

Constructed with pressed steel and a durable powder-coated finish, the AC6W heater is designed for long-term commercial use. The EnduroTech motor ensures smooth and efficient operation, while the two thermal switches with manual reset provide the necessary safety.

-Additional remote control (option-separate product)

The ACW remote control allows users to conveniently remotely control AC.W heaters mounted on doors or in places with difficult access. The remote control can control up to 4 individual heaters. Features for easy operation include simple on/off, boost mode, two preset temperature settings.

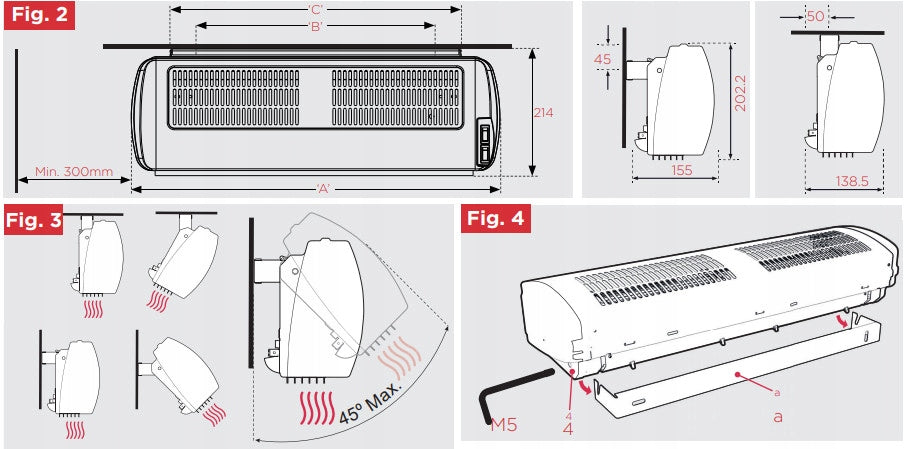

Dimensions of Curtain AC6W

width A-924 mm

Each curtain, heater installed requires proper preparation of the power supply system and permanent connection. It should be done by an electrician (as instructed).

Technical data Curtain AC3W

• Manufacturer: DIMPLEX
• Production: EU
• product code: 400001832
• model: AC6W
• Heating power: 6kW / 3kW/0kW
• Power supply voltage: ~230V
• Max. Air flow: 446 m3/h
• Air speed: 8,2m/s
• Max. mounting height: 2,3 m
• mounting location: wall/ceiling
• Type of heater: Electric
• Control Type: Manual/ Application
• thermostat: Yes/ (7-32°C)
• programming: Yes-through applications
• remote control: yes/option
• Weight: 8,1 kg
• color: white
• Dimensions (W/H/D) mm: 921/214/139 mm
• Max. noise level: 57 dB
• Safety certificate: CE
• degree of protection: IP21
