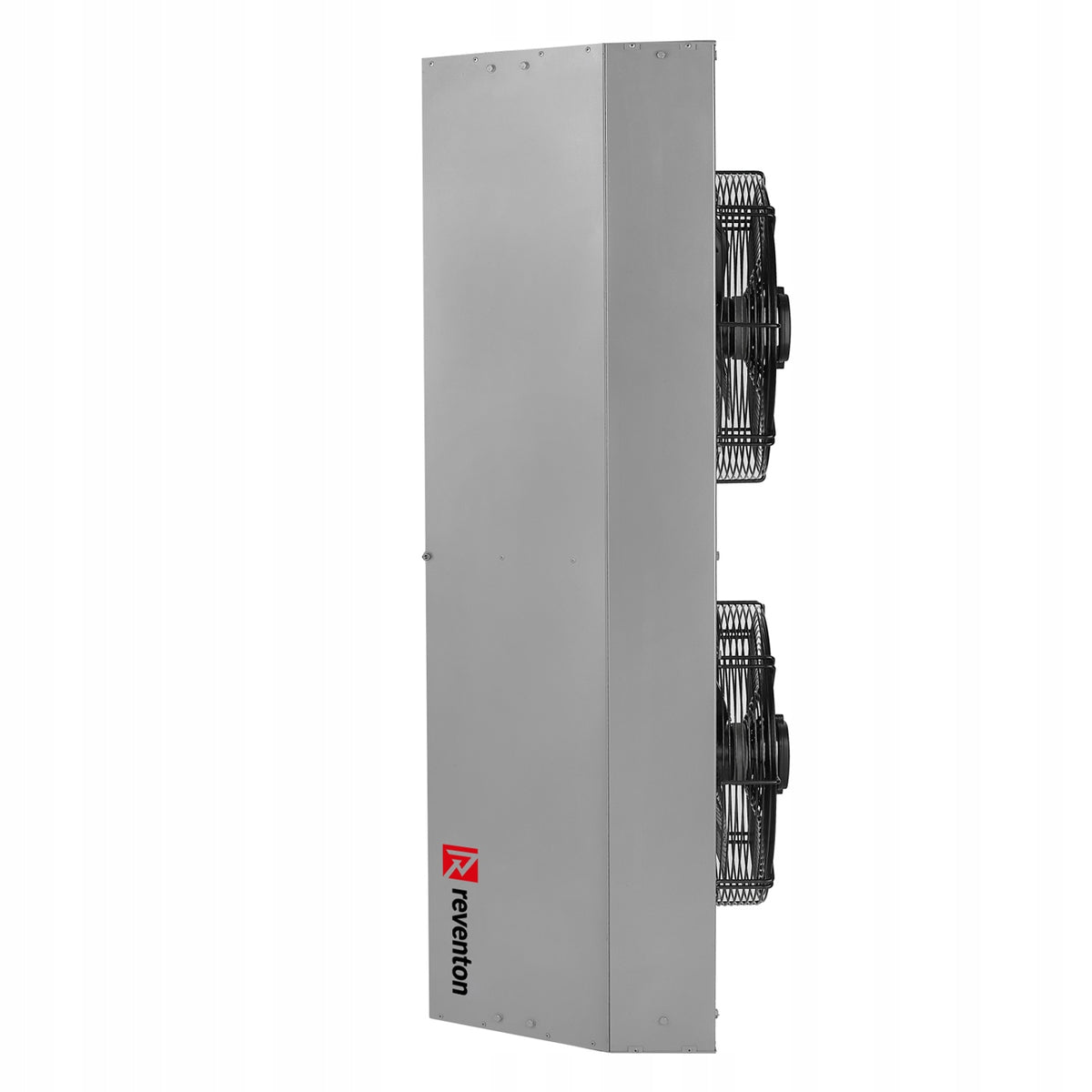

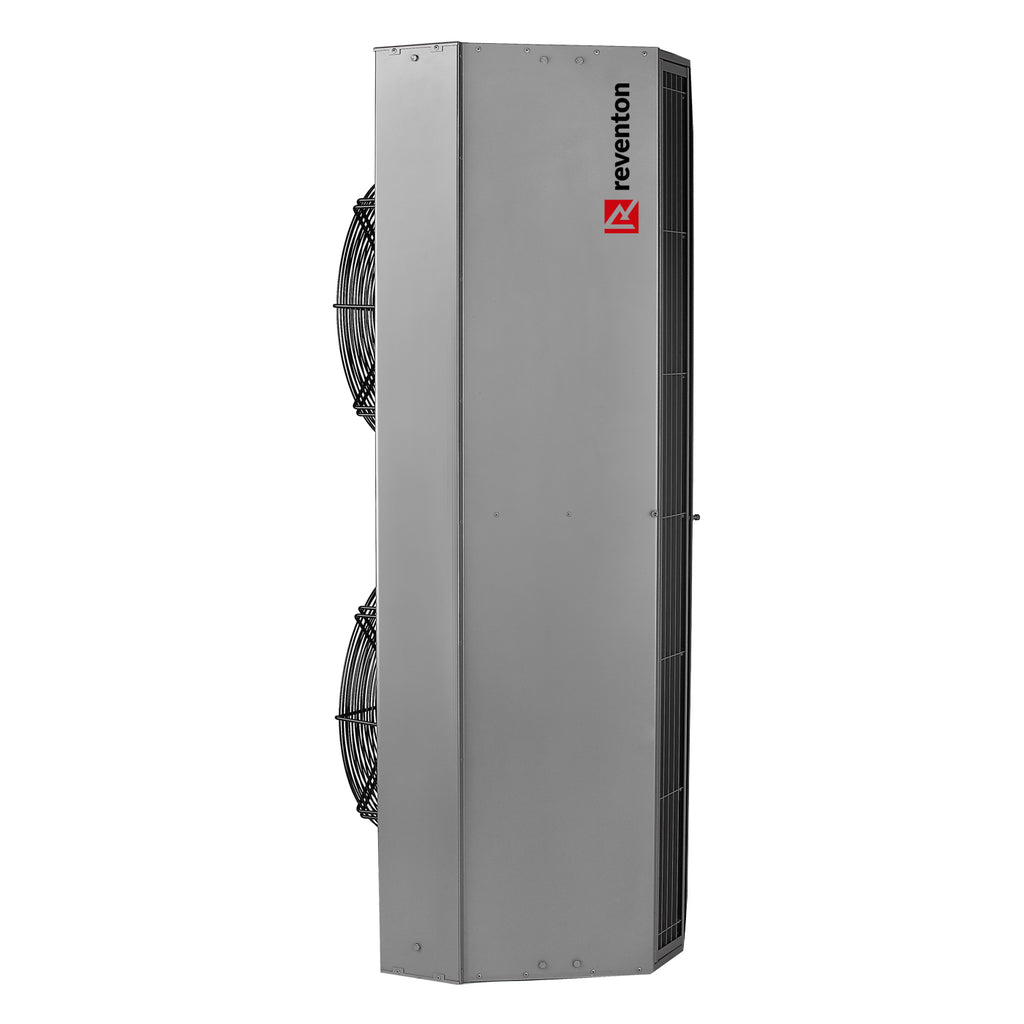

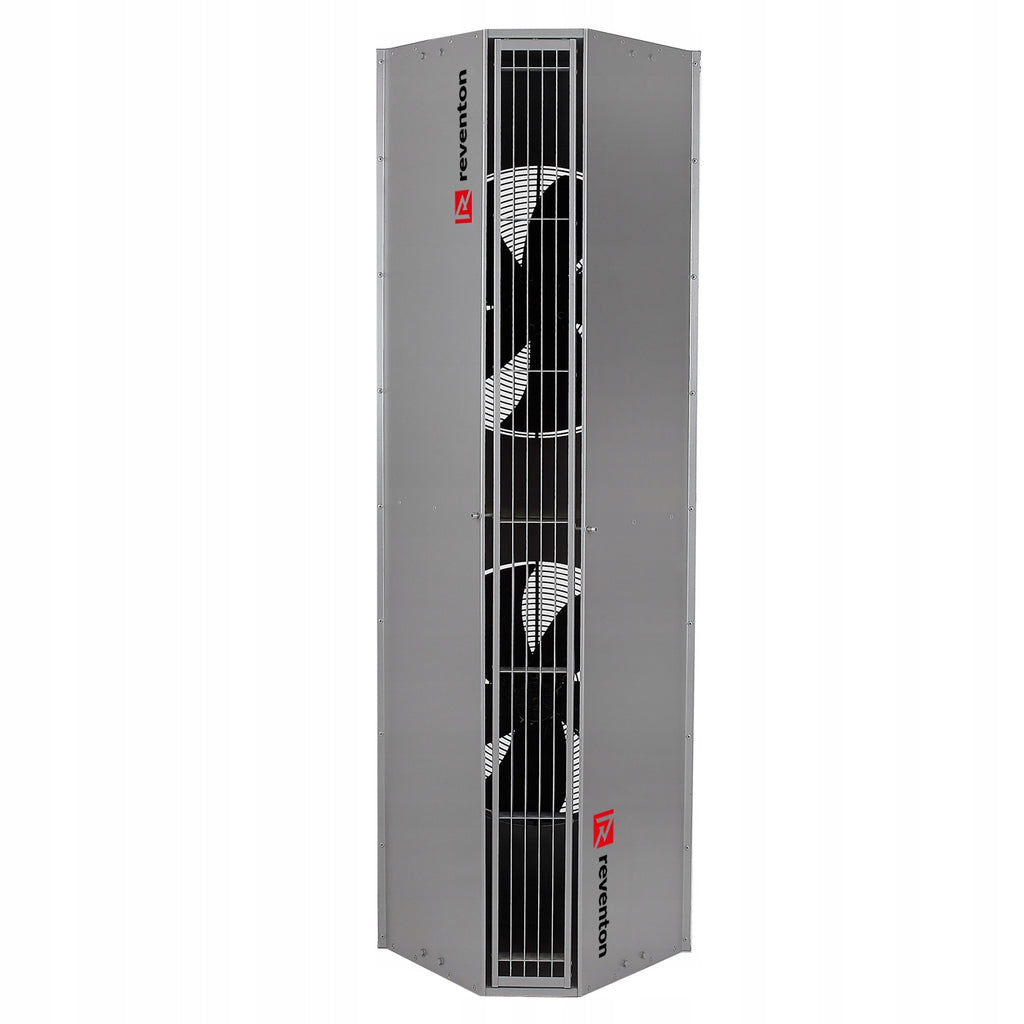

Oro užuolaida HUMMER ACH150C-1P, 150 cm, pramoninė

Trumpai apie prekę

Prekė: Oro užuolaida HUMMER ACH150C-1P, 150 cm, pramoninė. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: Hummer ACH150W-1P2R230V
• Galia: 960 W

The HUMMER ACH150C-1P is a high-performance air curtain with a width of 1,5 meters, designed to work in harsh industrial environments. The "cold" model (without heater) is used to create a powerful air barrier that effectively separates the internal environment from the external, protecting against loss of cold, dust, exhaust fumes and insects.

⚙ TAPER DESIGN – MAXIMUM FORCE

Unique, tapered housing shape (so-called. "cone design") allows for a significant acceleration of the air flow at the outlet. As a result, the Hummer 150C curtain generates a much stronger barrier than standard commercial curtains, which is crucial for large warehouse gates and production halls.

✅ KEY FEATURES OF THE 150C:

• Industrial range: Effective protection of the gate opening up to a height of 3,0 m.
• Solid construction: Durable housing adapted to work in dust and harsh environments.
• Efficient fans: The device is equipped with two powerful motors powered by 230V.
• Quick installation: The mounting system integrated into the housing allows the curtain to be quickly mounted over the gate.

WORKING PARAMETERS:

• Width of the device: 1500 mm (1,5 meters)
• Curtain type: Cold (without heater)
• Maximum mounting height: 3,0 m
• Power supply: 230 V / 50 Hz

OVERALL DIMENSIONS:

• Overall height: 540 mm
• Overall depth: 522 mm
• Outlet nozzle width: 156 mm
• Weight of the device: 24 kg

According to the attached technical drawing, the dimensions of the curtain are as follows:

• Total width: 1500 mm
• Total height: 540 mm
• Total depth: 522 mm
• Height of upper housing: 152 mm
• Height of conical part: 262 mm
• Exhaust nozzle width: 156 mm

Fan spacing (upper dimensions):

• Distance between fan axes: 676 mm
• Distance from the axis of the extreme fan to the edge: 412 mm

📦 ORDER COMPOSITION

By purchasing from this listing, you get:

• ✅ Curtain air cold HUMMER ACH150C-1P
• ✅ Integrated mounting bracket system
• ✅ Instructions for use and assembly in Polish
• ✅ Guarantee Card

Specifications
