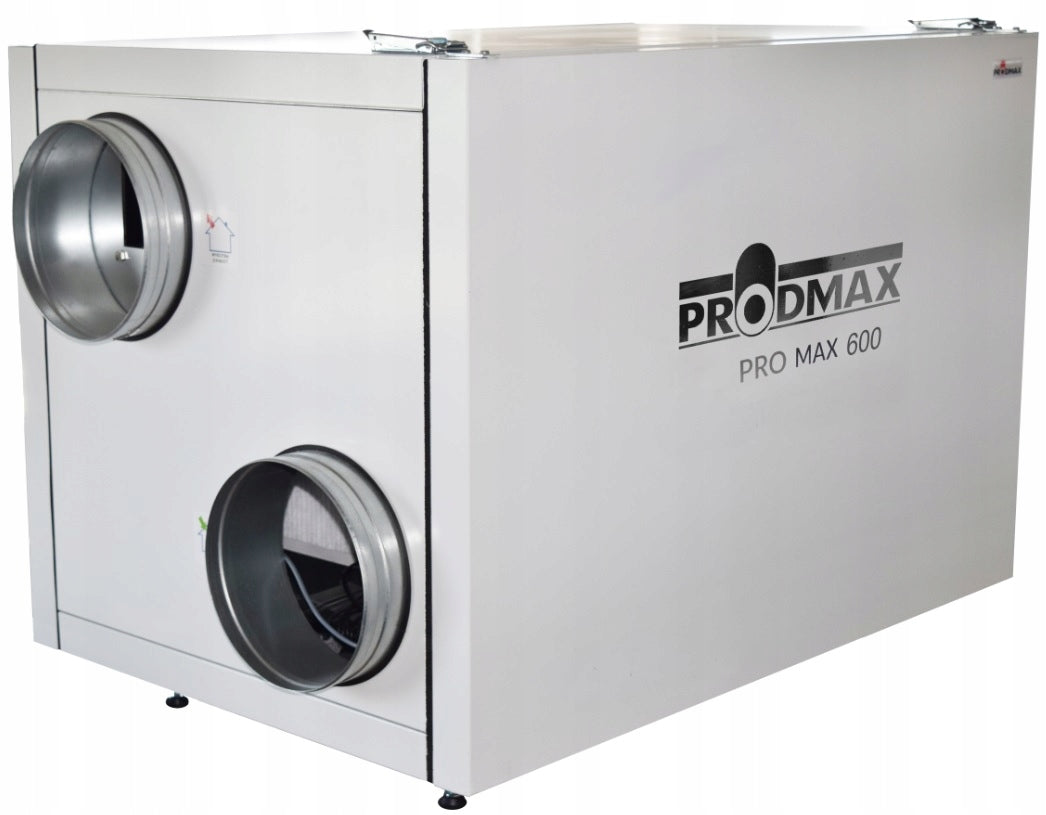

Oro vėdinimo rekuperatorius Pro Max Classic 600H

Trumpai apie prekę

Prekė: Oro vėdinimo rekuperatorius Pro Max Classic 600H. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: PROMAX 600H CLASS

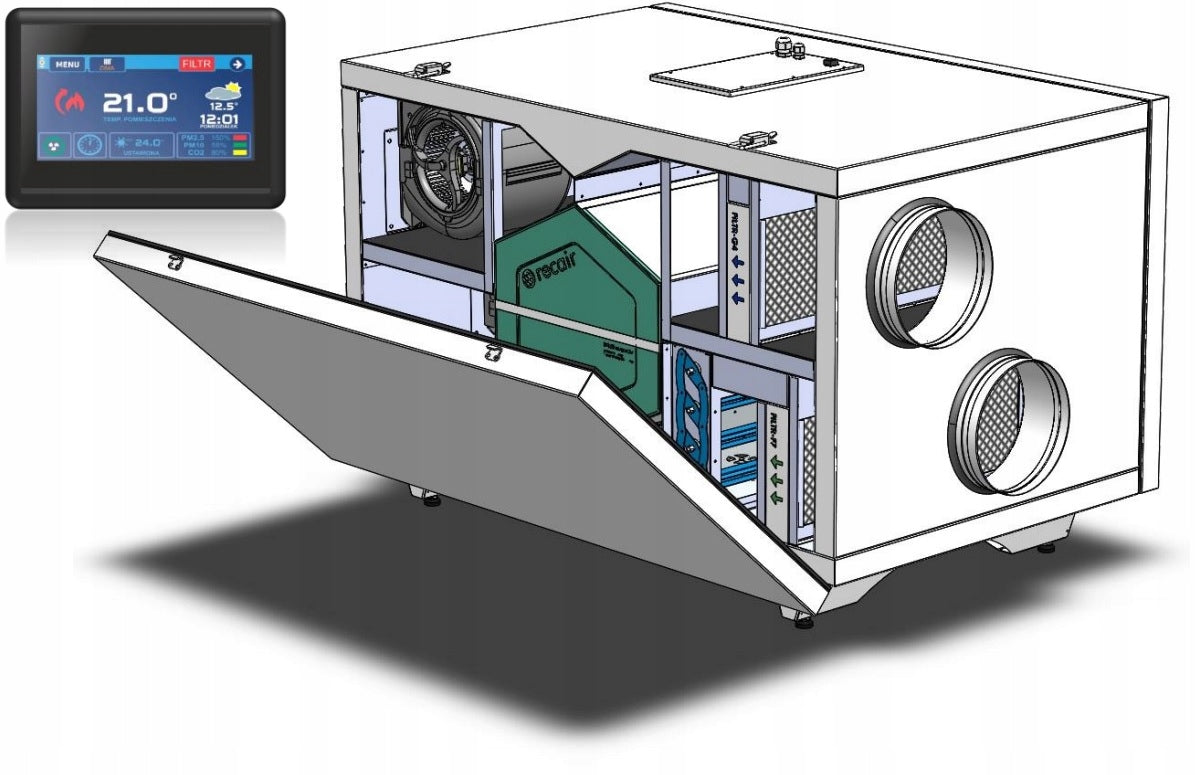

THE MOST IMPORTANT FEATURES OF THE CONTROL PANEL

✔ Housing made entirely of powder coated steel, sound insulation gr. 40 mm is characterized by excellent vibration damping properties, noise.

✔ Heat exchanger the most effective and reliable cross-current o high efficiency heat exchange - efficiency up to 98% - reputable company Recair with many years of experience.

✔ Fans - EC DC electro-commutator motors from the renowned company AFL have been used, guaranteeing reliability and energy-saving quiet operation.

✔ Automatic bypass – the offered control panels are equipped with 100% by-pass, providing, if necessary, the possibility of cooling the room thanks to the direct supply of cool air to the rooms from the outside in the summer without the need to replace the exchanger with summer cassettes, which in retrospect and operation is quite burdensome in operation.

✔ M5 filtration in the intake chamber and G4 filtration in the exhaust chamber

✔ Preheater starts automatically, prevents the exchanger from freezing, power 1,7 KW.

✔ Modern controller – advanced automation allows you to precisely adjust the parameters of the control panel for the current installation and prevailing weather conditions.

PRO MAX

is a series of economical and compact control panels

ventilation PLUG&PLAY type, which are the main

element of mechanical ventilation system.

Their main task is to replace and process air.

PROMAX control panels are high-quality supply and exhaust devices

with heat recovery, which is carried out by means of

high-efficiency cross-current exchangers.

MODERN CONTROLLER

advanced automation allows you to precisely adjust the parameters of the control panel for the current installation and prevailing weather conditions. Basic functions of control panel automation:

✔ GWC control

✔ pre-heater/secondary control

✔ bypass control

✔ setting a weekly schedule

✔ filter contamination indicator

✔ control of the heating system

✔ Online control

✔ reading of all temperatures

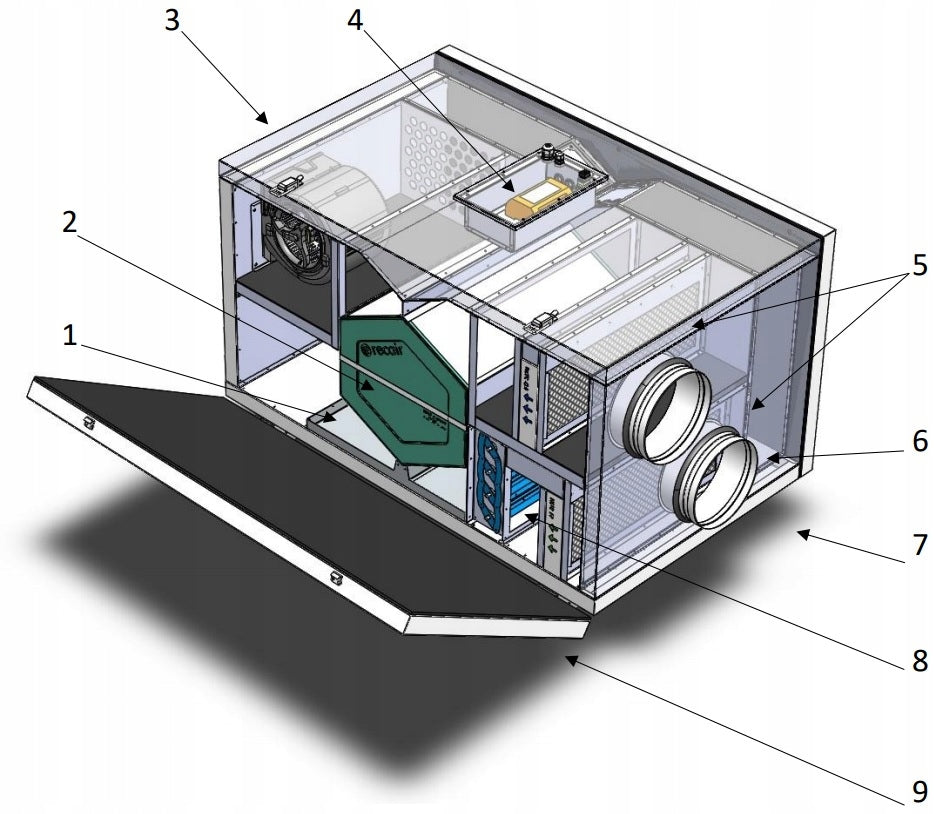

1. Drain tray

2. Heat exchanger Recair with cross-current design

3. Fans EBM Papst radial

4. Control AREO 4 – Compit + Internet module

5. Filter M5, in the intake chamber, filter G4 in the exhaust chamber

6. Connections to the 4 x Ø200 system

7. Preheater in the intake chamber

8. Bypass controlled by electric actuator Belimo

9. Hinged flap, closed with buckle locks

PARAMETERS:

• Maximum flow rate at 100 Pa : 655 m3/h
• Preheater power : 1700 W

Technical data:

Voltage: 230 V

Maximum fan power: 2 x 230 W

Maximum fan current consumption: 2 x 1,80 A

Preheater power: 1,7 kW

Preheater current consumption: 7,4 A

Total power of the device: 2,16 kW

Total current consumption of the device: 9,4 A

Rotation: 2400/min

Maximum temp. Pressed air: -20 to +50°C

Exchanger material: polystyrene

Housing material: powder coated steel

Insulation: 40 mm, mineral wool

Intake filter: M5 (F7* option)

Extraction filter: G4

Diameter of air connection connectors: Ø200 mm

Air flow at 100Pa: 655 m3/h

Dimensions [length x width x height]: 1081x745x706 mm

Heat exchanger: cross-current RECAIR

Maximum Exchanger Efficiency: up to 98 %

Fans: EC EBM Papst

Internet module: yes

Bypass: yes
