Apraksts
Trumpai apie prekę
Prekė: Palydovinė galvutė Opticum Unicable LNB SCR 3, 4 išėjimai. Kategorija: Keitikliai.
- Gamintojas: Opticum
- Modelis: Unicable Lnb SCR 3

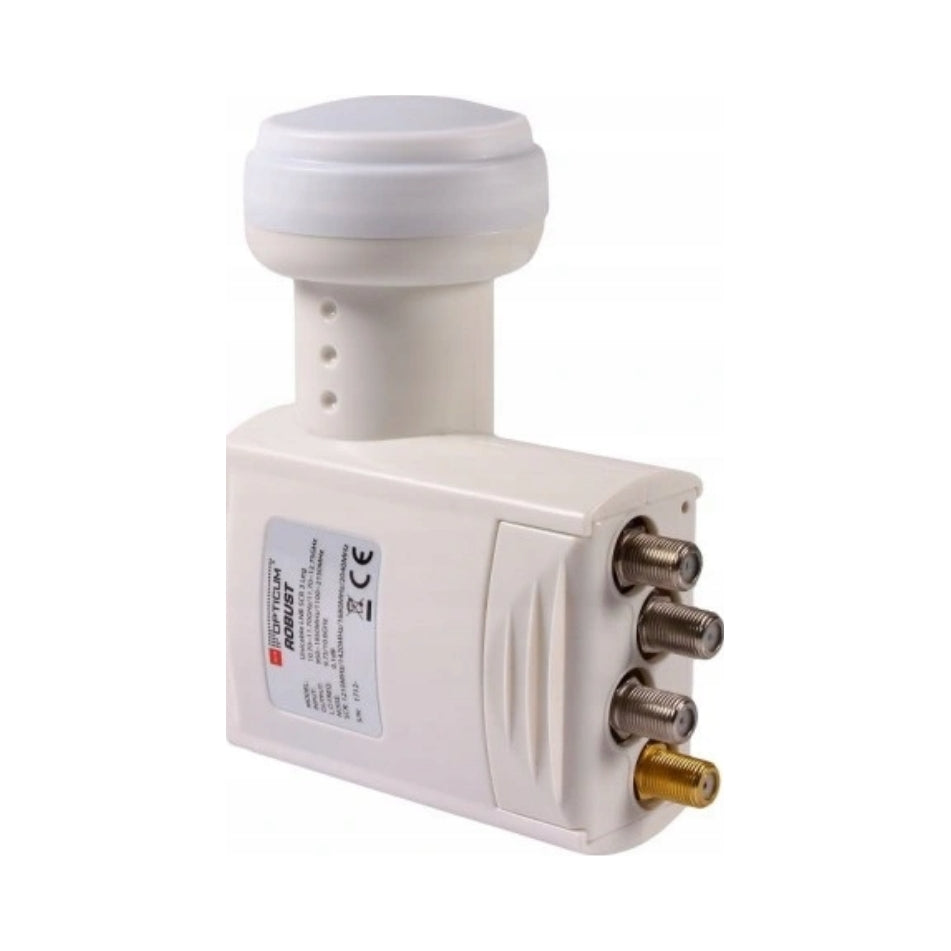

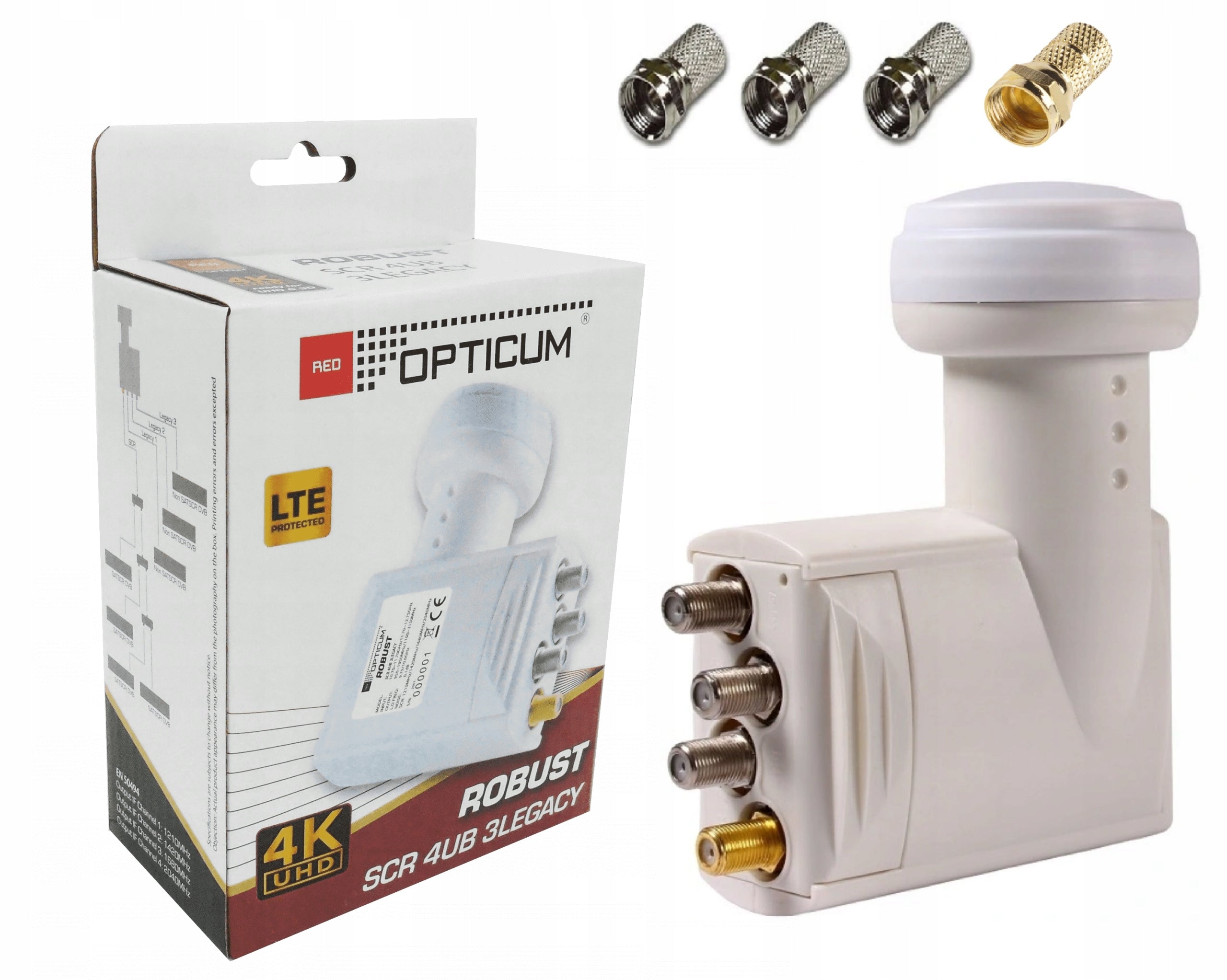

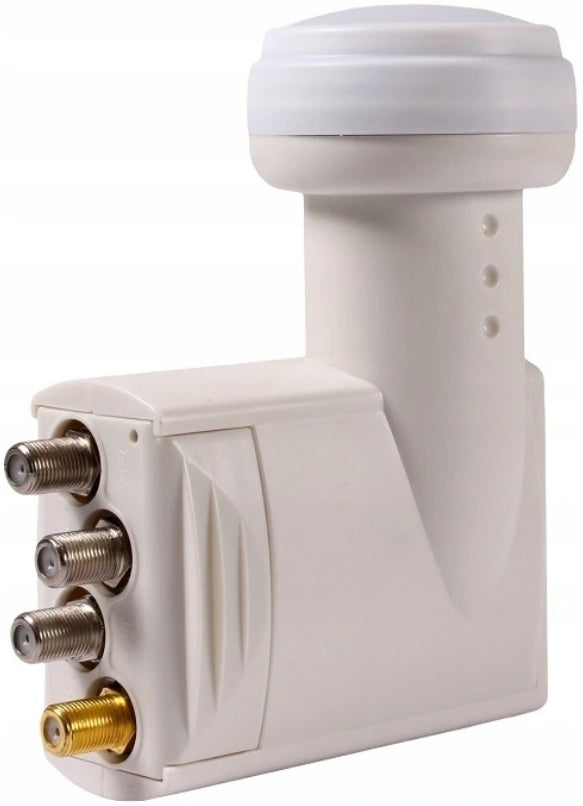

Opticum UNICABLE Red Robust SCR 3 LEGACY converter
The UNICABLE function consists in using 4 frequencies for signal transmission:
- Receiver 1 - 1210 MHz
- 2 - 1420 MHz receiver
- Receiver 3 - 1680 MHz
- Receiver 4 - 2040 MHz.
One UNICABLE converter output (SCR) in gold allows you to route the signal with one cable to up to 4 digital receivers with SCR or UNICABLE signal. Three converter outputs in silver allow you to connect three traditional digital receivers.
Technical parameters:
- Lower input band: 10,7-11,7 GHz
- Lower oscillator: 9,75 GHz
- Upper Input Band; 11,7-12,75 GHz
- Top oscillator: 10,6 GHz
- IF Channel 1 (SCR) Output: 1210 MHz
- IF Channel 2 (SCR) output: 1420 MHz
- IF Channel 3 (SCR) output: 1680 MHz
- IF Channel 4 (SCR) output: 2040 MHz
- Reinforcement: pow. 57 dB
- Number of full band outputs: 2
- Noise Ratio: 0,1 dB
- Current consumption: 300 mA
- Handle diameter: 40 mm
- Operating temperature: - 40°C + 65°C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 80256 |
| Parametry | Product weight with unit packaging | 0.3 kg |
| Parametry | Type | Quad |
| Parametry | Brand | Opticum |
| Parametry | Model | Unicable Lnb SCR 3 |
| Parametry | Noise factor | 0.1 dB |
| Parametry | Energy consumption | 200 mA |
| Parametry | Handle diameter | 40 mm |
| Parametry | Product width | 27 cm |
| Parametry | Product depth | 9 cm |
| Parametry | Product weight | 280 g |
| Parametry | EAN (GTIN) | 5901912286122 |
| Parametry | Certificates of conformity | CE,WEEE |
