Apraksts
Trumpai apie prekę
Prekė: Palydovinis multiswitchas Opticum OMS PRO-TR 9/6, 2x SAT Astra/Hotbird, DVB-T2, TV. Kategorija: Multijungikliai.
- Gamintojas: Opticum
- Modelis: OMS 9/6 Pro

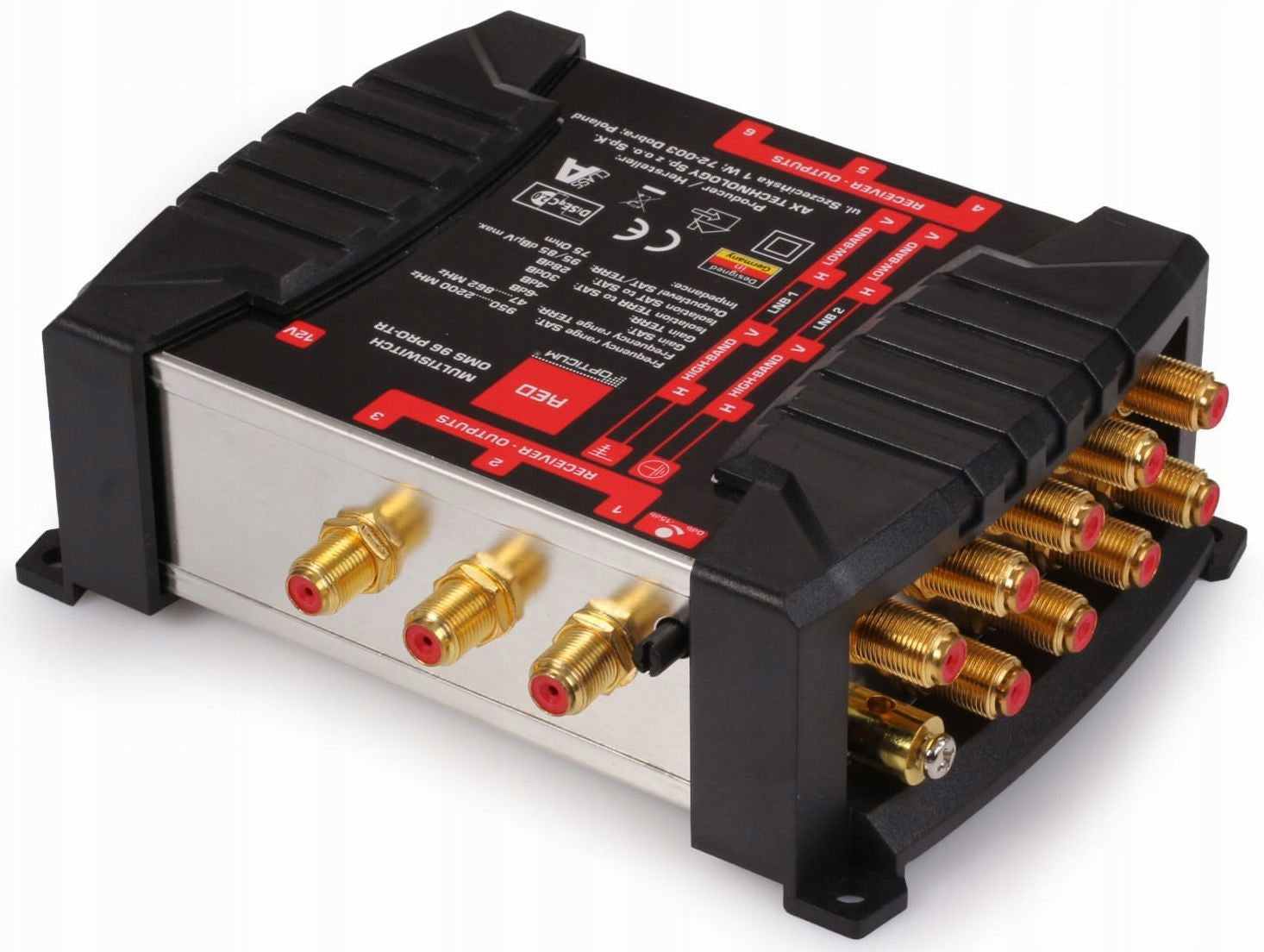

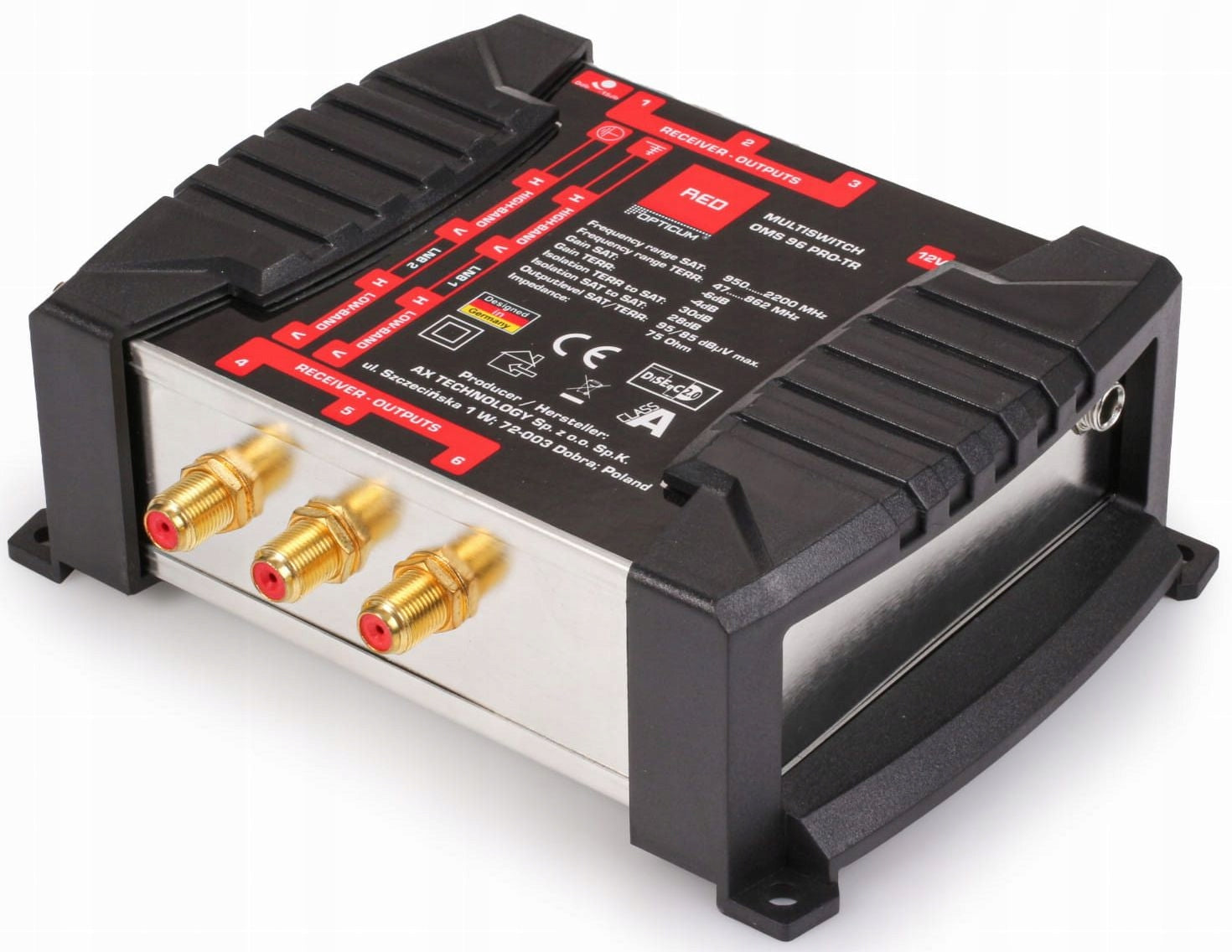

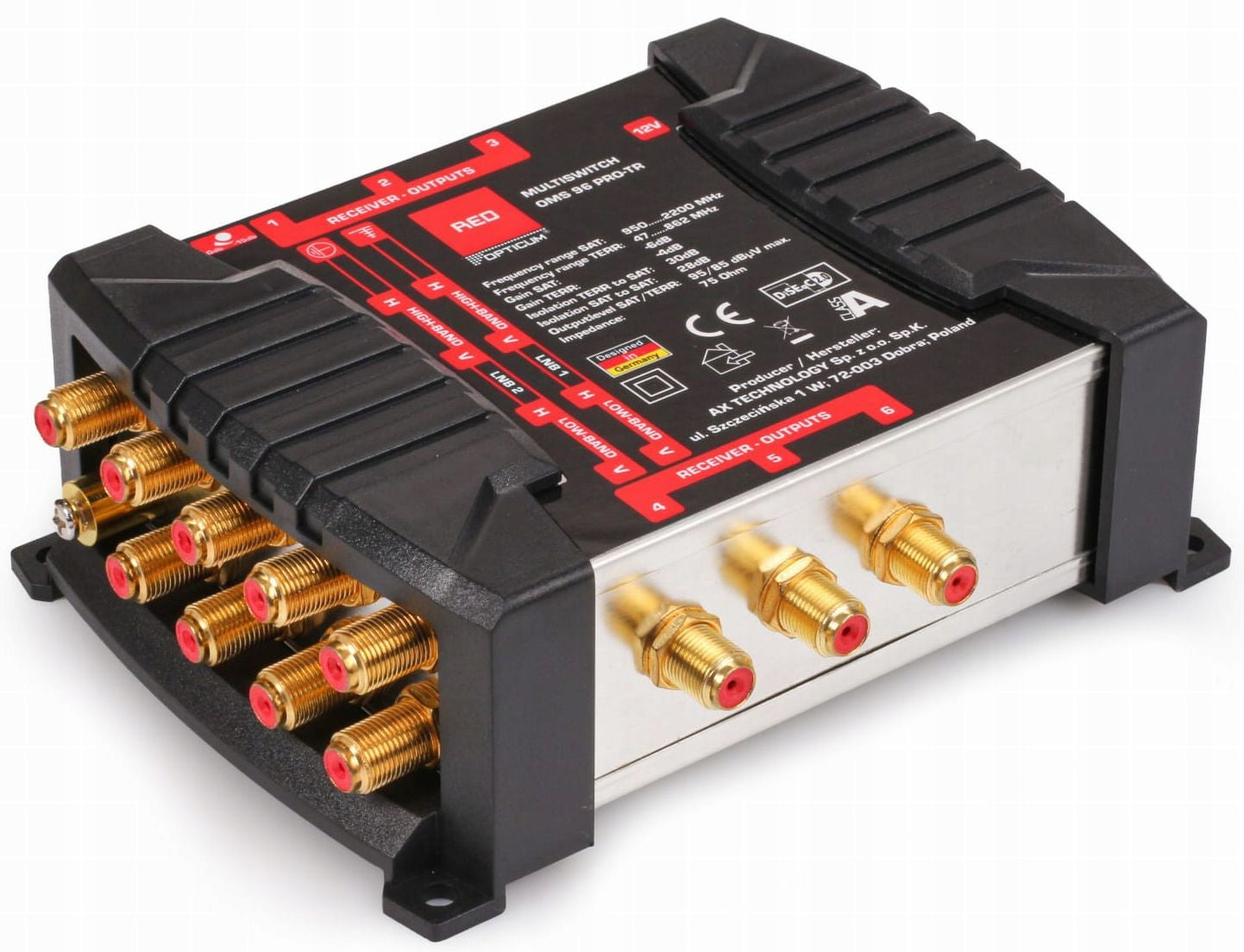

Multiswitch Opticum OMS 9/6 with 8 satellite inputs for two Quattro converters (available in our offer) and 1 input from the terrestrial TV antenna (dvb-t) allows distribution of the signal to 6 subscriber sockets TV SAT (sockets are available in our offer).
MutliSwitch 9/6 HD is a modern signal division system of the Opticum brand, has a set of practical handles made of high quality plastic, which allow the installation of a multiswitch in various types of telecommunications switchboards and RTV boxes (surface and flush-mounted boxes are available in our offer). Included with multiswitch is power supply.
Gold-plated sockets significantly reduce signal loss at the antenna cable connection, and no oxidation.
Power supply of the multiswitch is carried out through an external power supply (included), thanks to which the phenomenon of increased operating temperature is eliminated, which is a frequent cause of damage to the device.
- SAT frequency range: 950-2200 MHz
- TER frequency range: 47-862 MHz
- SAT gain (950-2150 MHz) : -6 dB
- TER gain (47-862 MHz) : -4 dB
- SAT to TER separation: 30 dB
- TER to SAT separation: 28 dB
- Separation between H/V polarities: 25 dB
- Maximum SAT Output Level: 95 dBuV
- Maximum TER Output Level: 85 dBuV
- Input/Output Impedance: 75 Ohms
- Polarity/band switching : 13V/18V 13V/22kHz-18V/22kHz
- Power supply from mains: 230V AC 50Hz
- Operating temperature: 0...+55 oC
- Dimensions: 155 x 130 x 52 mm (real dimensions)
- Multiswitch Opticum OMS 9/6
- Wrench for screwing the F connector
- AC adapter
- Packaging
- multiswitch Opticum OMS 5/6,
- multiswitch Opticum OMS 5/8,
- multiswitch Opticum OMS 5/12,
- multiswitch Opticum OMS 5/16,
- multiswitch Opticum OMS 5/24,
- multiswitch Opticum OMS 5/32,
- multiswitch Opticum OMS 9/4,
- multiswitch Opticum OMS 9/8,
- multiswitch Opticum OMS 9/12,
- multiswitch Opticum OMS 9/16,
- multiswitch Opticum OMS 9/24,
- multiswitch Opticum OMS 9/32.
SWI0619
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | OMS 9/6 Pro |
| Parametry | Brand | Opticum |
| Parametry | Model | OMS 9/6 Pro |
| Parametry | Number of entrances | 9 |
| Parametry | Number of outputs | 6 |
| Parametry | Product width | 16 cm |
| Parametry | Product height | 6 cm |
| Parametry | Product depth | 13 cm |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 5901912285835 |
| Parametry | Certificates of conformity | CE,WEEE |
