Paviršinė LED sieninė lempa su judesio jutikliu, 10W, 4000K, juoda

Trumpai apie prekę

Prekė: Paviršinė LED sieninė lempa su judesio jutikliu, 10W, 4000K, juoda. Kategorija: Sieniniai šviestuvai.

• Gamintojas: TG LED
• Modelis: TG-WLN-PIR-10N-S
• Spalva: black

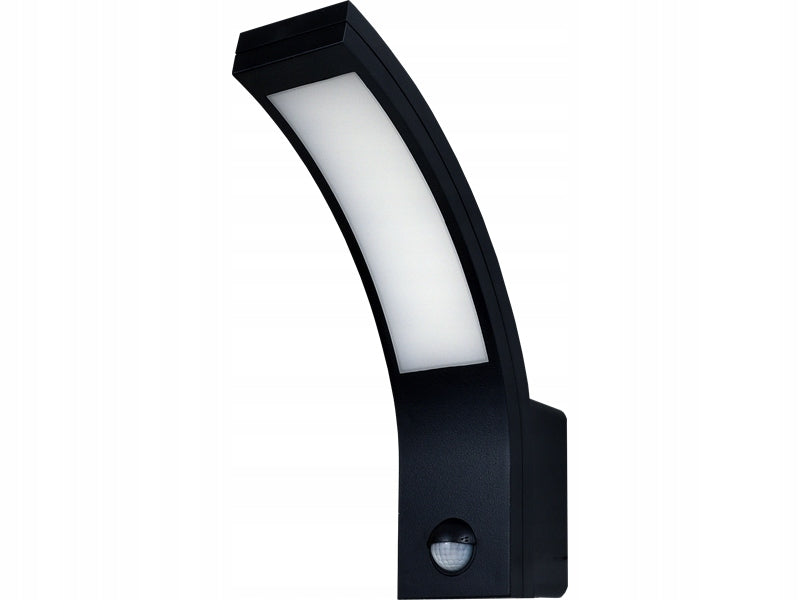

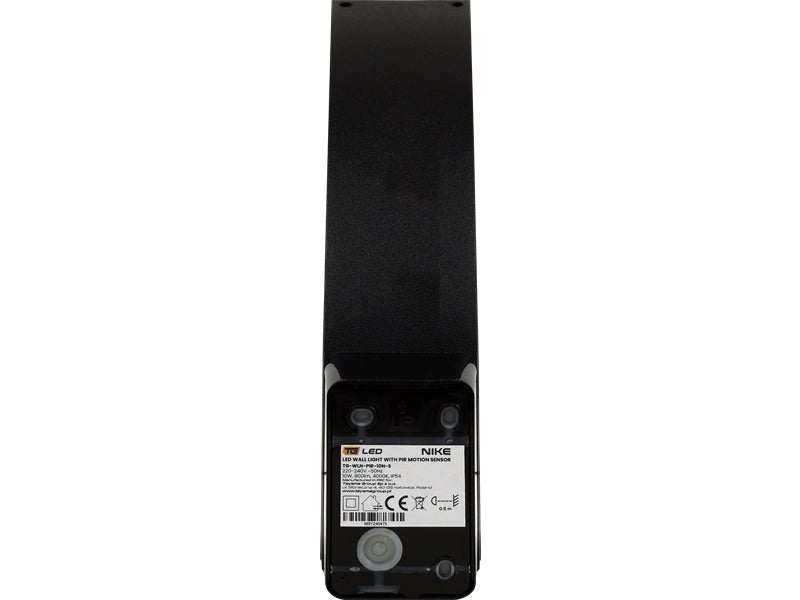

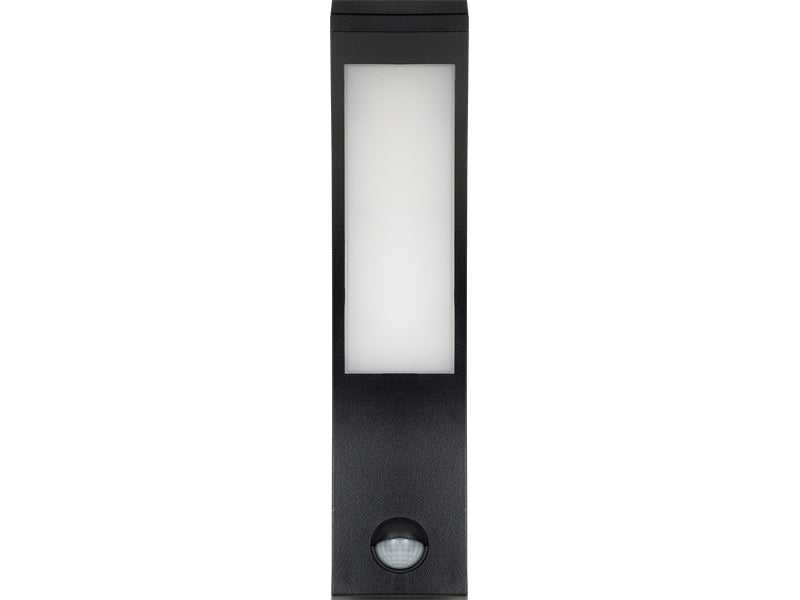

LED surface mounted 'NIKE' with PIR motion sensor 10W, 4000K, black

The NIKE LED Kit is a modern lighting with a built-in PIR motion sensor and an integrated control system that automates operation and saves energy. The device detects infrared radiation emitted by the human body and identifies its presence in the monitored area. It can operate in continuous mode or turn on the lamp depending on the set light intensity.

The wall lamp is characterized by aesthetic design, giving an elegant look and character.

The most important parameters:

✔ Power: 10 W

✔ Luminous flux: 800 lm

✔ Colour of light: neutral

✔ Detection range: 9 m

✔ Overall colour rendering index [Ra]: >80

✔ Adjustment of activation time and light sensor

PIR technology

The luminaire-mounted PIR motion sensor uses infrared radiation detection technology that responds to movement in its field of view. It works on the basis of a thermal effect, which consists in detecting changes in ambient temperature.

Detection characteristics

Built-in sensor with sensitivity adjustment allows detection of motion of objects up to 9 meters away, with a detection angle of 140°

Application

The luminaire is designed for both outdoor and indoor lighting – ideal for building facades, fences, staircases, communication routes, etc.

SENSOR PROGRAMMING is done in a simple way by selecting the appropriate value for the parameters: TIME, and LUX

Delay and continuity of detection [TIME]

When the detection occurs, the sensor is activated, the re-occurrence of detection resets the activation time. Activation time adjustment: from 10 s ±3 s to 5 min ±1 min.

Light sensor [LUX]

Adjusting the operation of the device depending on the intensity of ambient light. The sensor can react on the day when it is set to the maximum position [2000 lux] When set to the minimum value [3 lux], the device will only be activated in the dark. When setting the maximum value - 2000 LUX, the sensor will activate the lamp both day and night.

Logistic parameters:

• Number of pieces in direct packaging: 1 pcs.
• Number of pieces in multipack: 20 pcs.
• Dimensions of packaging. direct [D x S x W]: 76 x 110 x 310 mm
• Dimensions of packaging. collective [D x S x W]: 560 x 310 x 320 mm
• Gross weight of packaging. direct: 0.37 kg
• Gross weight of packaging. multipack: 9.96 kg
• Volume pack. collective: 0.056 m³

Product parameters:

• Type: LED wall lamp with motion sensor
• Sensor technology: passive infrared sensor [PIR]
• Rated supply voltage: AC 220 - 240 V
• Rated power frequency: 50 - 60 Hz
• Rated power: 10 W
• Light source: SMD LED
• Light source included: yes
• Luminous flux: 800 lm
• Place of application: internal, external under the roof
• Place of installation: surface mounted, on the wall
• Min. distance from the illuminated object: 0.5 m
• Correlated color temperature: 4000 K
• Light color: neutral
• General colour rendering index [Ra]: ≥80
• Light efficiency: 80 lm/W
• Energy efficiency class: F
• Average durability L70B50: 50000 h
• Number of cycles on. /off: 100000
• Angle of light: 120°
• Type of connection: electric cube with screwless terminals
• Scope of cross-sections of cables used: 0.75 - 1.5 mm²
• Assembly height: 1.8 - 2.5 m
• Lamp ignition time: < 0.5 s
• Lamp heating time: < 0.1 s
• Character of light distribution: wide
• Method of light distribution: direct
• Geometry of light distribution: symmetric
• Photobiological safety: risk group 0 (low risk)
• Ability to work with dimmer: nie
• Control: nie
• Relay output: no
• Detection range: max. 9 m
• Standby mode: nie
• SENS detection range adjustment: no
• Adjustment of activation time 'TIME': yes; min. 10 s ±3 s, max. 5 min ±1 m.
• Twilight sensor adjustment 'LUX': yes; < 3 - 2000 lux
• Sensing angle: 140°
• Horizontal adjustment [horizontal]: nie
• Vertical adjustment [vertical]: nie
• Motion speed of the detection object: 0.6 - 1.5 m/s
• Sensor adjustment method: potentiometers
• Protection class: II
• Degree of protection: IP54
• Mechanical resistance: IK07
• Material of lampshade: polycarbonate [PC]
• Type of lampshade: milky
• Material: polycarbonate [PC], integrated electroluminescent diodes
• Housing material: polycarbonate [PC]
• Dimensions: 250 x 188 x 66 mm
• Working and storage temperature: min. -20°C, max. +40°C
• Working and storage humidity: RH < 93% non-condensed
• Product purpose: for household and general-purpose use
• Housing color: black
• Accessories included: expansion pins, mounting screws
