Pjovimo degiklio rinkinys SHERMAN: propano–deguonies degiklis, antgaliai, žarna, reduktoriai

Trumpai apie prekę

Prekė: Pjovimo degiklio rinkinys SHERMAN: propano–deguonies degiklis, antgaliai, žarna, reduktoriai. Kategorija: Žibintuvėliai.

• Gamintojas: Sherman
• Modelis: 1548451
• Ilgis: 50 cm

Propane Oxygen Cutting Kit : Burner+Nozzles+Snake+Reducers

Sherman

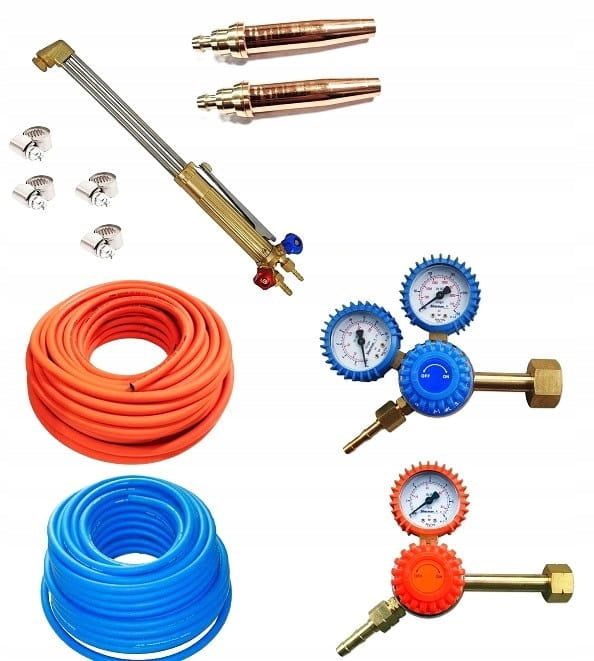

Ready-made cutting set consisting of:

1) Cutting torch

2) Propane-oxygen cutting nozzles No.4 and No.5

3) Propane + Oxygen welding hose

4) Sherman mouse 200bar oxygen reducer

5) Propane reducer Sherman mouse

6) Worm bands for welding hoses (2x oxygen, 2x propane)

1) The cutting torch is a flavorless (non-injector) burner in which gases are mixed in a block nozzle:

• Depending on the nozzles used, it is possible to cut with acetylene or propane.
• Burner works with PNME and ANME compatible block nozzles

Specification:

• Length: 50cm
• Connections: 3/8L (propane), 1/4 (oxygen)
• Type: non-injector/flavourless
• Supported combustible gases: propane, acetylene

2) Nozzles for cutia propane-oxygen in sizes:

• PNME size 4 cutting range: 30-60mm
• PNME size 5 cutting range: 60-100mm

3) Welding hose 10mb propane + oxygen:

Specification:

• Polish cable manufacturer M-Flex
• Inner layer: synthetic rubber, black, resistant to oxygen/propane
• Reinforcement: 1 textile braid.
• Outer layer: special synthetic rubber resistant to abrasion, weather conditions, flame retardant.
• Temperature range: -30°C to +80°C.
• Application: welding hose for oxygen/propane flow
• Standards: ISO 3821, ISO 1307

4) Oxygen reducer mouse 200bar

Single stage cylinder reducer with rated inlet pressure of 200 bar with outlet pressure regulation. It allows you to reduce the pressure of gases taken from the cylinder to the required outlet pressure (working pressure) and ensures that this pressure is maintained as constant as possible regardless of changes in the inlet pressure.

Technical data:

• Rated inlet pressure [bar] 200
• Exhaust pressure range [bar] 0,5 – 10
• Rated throughput [l/min] 30
• Reducer thread - 3/4″ RH cylinder
• Connector thread - 1/4″RH nut (oxygen/Ar/CO2/Nitrogen)
• Diameter of nozzle ø and gas 6,3mm (oxygen/Ar/CO2/nitrogen)
• Oxygen gas
• Weight [kg] 0,88

5) Reducer Propane Sherman mouse:

• Catalogue number 7811383
• Rated inlet pressure [bar] 25
• Exhaust pressure range [bar] 0,5 – 4
• Rated throughput [l/min] 5
• Reducer thread - cylinder W21.8×1/14 LH
• Connector thread - 3/8″LH nut (acetylene/propane)
• Diameter of nozzle ø and gas 8,0mm (acetylene/propane)
• Propane butane gas (LPG)
• Weight [kg] 0,78

6) Worm bands for welding hoses:

2x oxygen: 8-12mm

2x propane: 10-16mm
