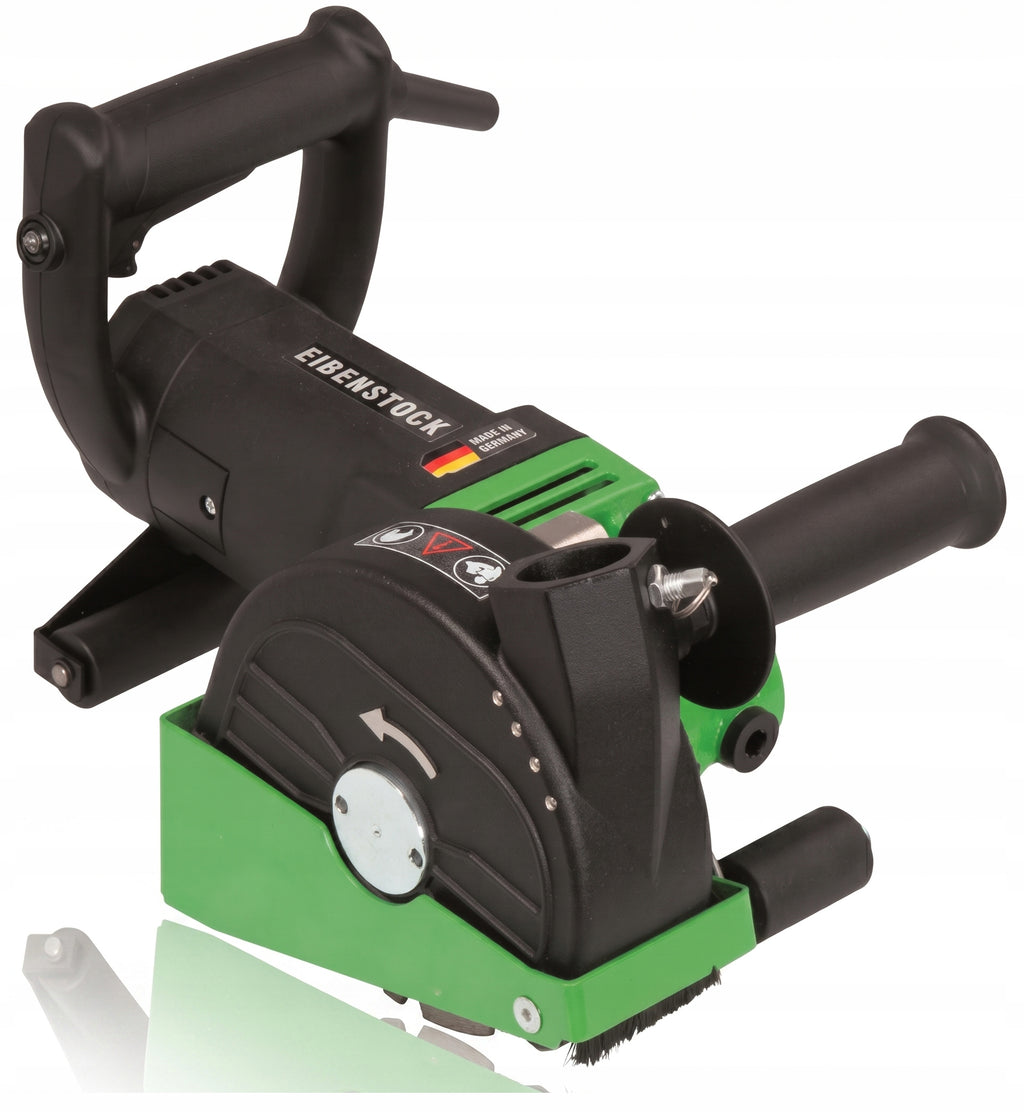

Pjovimo mašina EIBENSTOCK, 2300W, 150 mm, vėdinimo ir šildymo angoms

Trumpai apie prekę

Prekė: Pjovimo mašina EIBENSTOCK, 2300W, 150 mm, vėdinimo ir šildymo angoms. Kategorija: Sienų frezos.

• Gamintojas: Eibenstock
• Modelis: Bruzdownica Eibenstock EMF 150.1

Specification:

POWER AND PERFORMANCE PARAMETERS

• Power: 2300 W
• Power supply: ~230 V
• Rotary speed: 4300 rpm
• Rotary speed (no load): 7500 rpm

WORKING PARAMETERS

• Diameter of the disc: 150 mm
• Diameter of disc opening (spindle): Ø 22.2 mm
• Maximum groove depth: 45 mm
• Maximum groove width: 46 mm

PHYSICAL PARAMETERS AND IDENTIFICATION

• Weight: 3.8 kg

Cutting hard silicate without downtime with 2300W motor

Your time at the construction site is a real profit. When you face the toughest silicate or commodity concrete, the 2300 W motor guarantees smooth feed without stopping the disc. You will forget about forced interruptions to cooling equipment that waste man-hours. The rotation support system ensures that the machine maintains a constant dynamics of operation even under high pressure.

15 mm furrowing from the edge of the walls

Finishing the furrow at the very corner of the room usually means cumbersome manual forging. Thanks to the narrow housing, groove cutting takes place at a distance of only 15 mm from the edge. You shorten the time of work on each installation passage, eliminating the need to use a hammer and chisel on the edges of ceilings and walls.

Dust-free operation thanks to the DSS 35 stub lock

Inhaling dust on a construction site is a simple way to lose health and downtime at work. A special locking system prevents accidental disconnection of the vacuum cleaner tube with a diameter of 35 mm during dynamic movements. The tight cover optimizes directional airflow by draining the debris directly into the tank of the connected vacuum cleaner.

Engine protection against overheating and smooth start-up

• Electronic soft start eliminates sudden jerking and protects the electrical system from overload during start-up.
• Dioid overload indicator informs you about the optimal downforce, preventing excessive wear of components.
• Thermal current cut-off protects the motor windings from burning at extreme material resistance.
• Leading in the direction of cutting ensures the natural position of the operator's body and significantly reduces shoulder strain.
• Tool-free depth setting reduces the time to change operating parameters to just a few seconds.
• The 1 mm wide stroke adjustment allows the furrow to be precisely adjusted to the specific diameter of pipes or wires.
• Quick spindle lock facilitates efficient replacement of discs directly at the workplace.

The set includes:

• Eibenstock EMF 150.1
• Transport case
• 2 premium diamond discs (for concrete)
• Regulatory keys

Choose equipment that protects your health, eliminates downtime on the construction site and allows you to execute orders at the assumed time. Order Eibenstock EMF 150.1 now and get full stability in all conditions.

FAQ Frequently Asked Questions

Does the device work with vacuum cleaners from other brands?

Yes. The furrow is equipped with a standard connector with a diameter of 35 mm, which allows for direct connection of most industrial vacuum cleaners available on the market, ensuring efficient dust extraction.

What is the minimum and maximum width of the furrow that can be obtained?

Adjustment of the groove width is carried out using spacers with an accuracy of 1 mm. The maximum width of the furrow is 46 mm, which allows free deposition of installation pipes.

Are diamond discs included?

Yes. In the factory set you get two premium diamond discs designed to work in concrete, packed together with the device in the original transport case.
