Plastikinis korpusas OPU-4, tinka Control Panel, 7,2 Ah transformatoriaus ir ekspanderio vieta, SATEL

Trumpai apie prekę

Prekė: Plastikinis korpusas OPU-4, tinka Control Panel, 7,2 Ah transformatoriaus ir ekspanderio vieta, SATEL. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: OPU-4 P obudowa plastikowa - natynkowa

OPU-4 P plastic housing - Satel.

SURFACE MOUNTED.

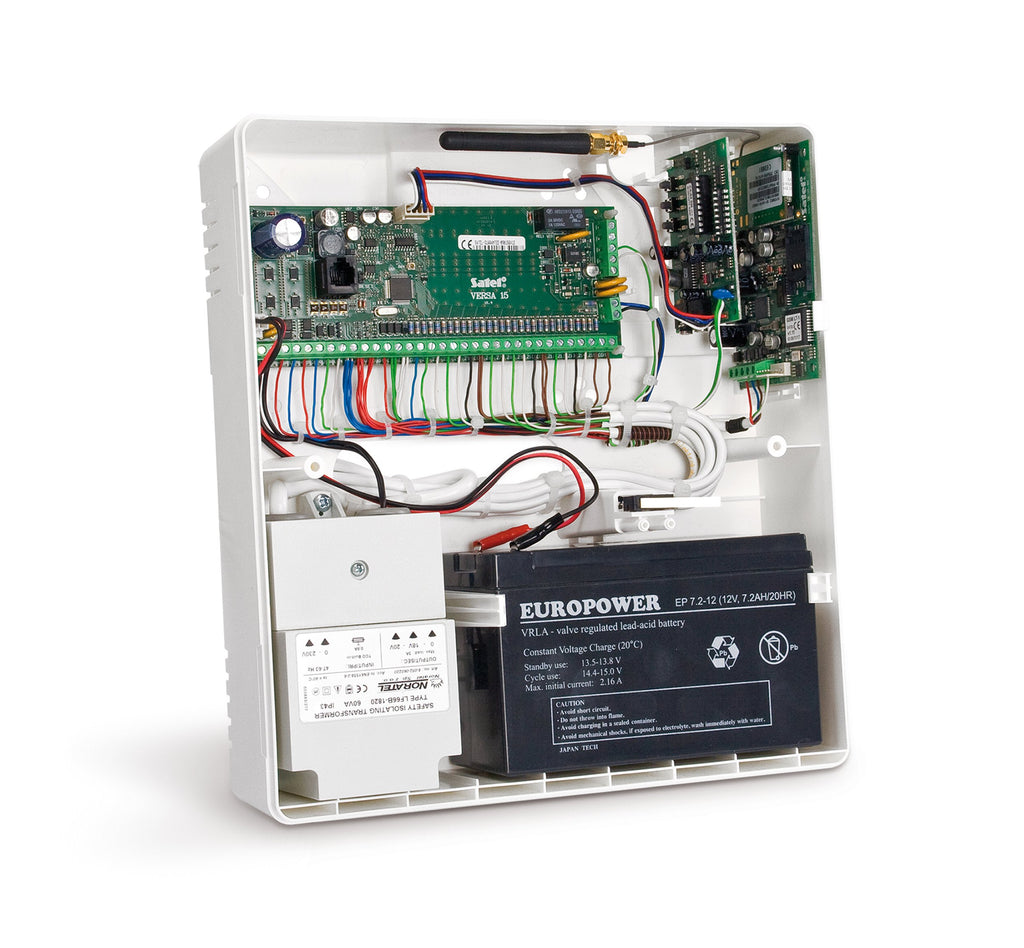

Attention!!! - the presented equipment inside the housing is illustrative.

Universal plastic housing made of polystyrene (plastic with flame retardant) with space for TR40VA or TR60VA and battery 7,2Ah/12V and additional accessories.

DESCRIPTION

Universal enclosures from the OPU-4 series are dedicated to devices manufactured by SATEL.

They are made of polystyrene in white.

They can be installed in enclosed spaces.

The OPU-4 P housing is designed for surface mounting, and the OPU-4 PW is designed for plug-in mounting.

The housing provides space for mounting a dedicated 40VA or 60VA transformer.

The housing is equipped with a holder designed for GSM antenna and has two tamper contacts reacting to the opening of the lid

and detachment from the ground.

In the set with the housing – in addition to tamper contacts – there are dowels, spacers, two wires for connecting the transformer and additional screws.

Properties :

Double tamper protection

Possibility of installing wireless devices with antennas inside the enclosure

Dimensions: 266 x 286 x 100 mm

Weight: 0,92 kg

Possibility of mounting the APS-412 power supply in place of the transformer

Surface mounted

Application:

- alarm control panels manufactured by SATEL

- expansion modules manufactured by SATEL

- GSM communication modules manufactured by SATEL

OTHER enclosures - as well as the entire range of SATEL products, can be found in adjacent auctions.
