Plėtimosi dėžė Heatpex Aria Flat500, 2x50 mm

Trumpai apie prekę

Prekė: Plėtimosi dėžė Heatpex Aria Flat500, 2x50 mm. Kategorija: Dalys.

• Gamintojas: Heatpex
• Modelis: 54012500001W

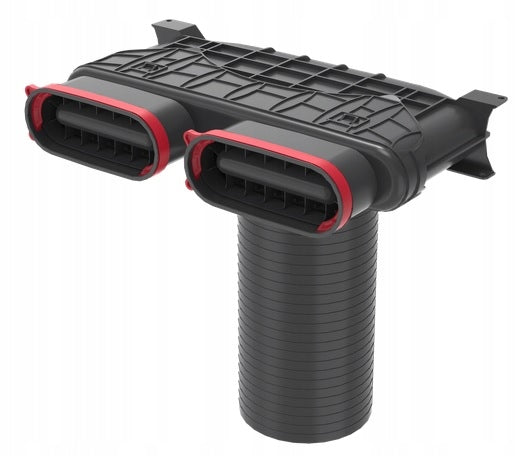

Expansion Box Aria Flat500 2x50 mm 54012500001W

Expansion box HEATPEX ARIA FLAT500 with OneClick® technology is an element of a flat ventilation system to which we mount round supply/exhaust anemostats.

Sturdy, eco-friendly and safe

The box is made of lightweight yet durable polypropylene (PP).

The material is resistant to mechanical damage thanks to the special addition of plasticizer and is 100% recyclable.

This makes the ARIA system both durable and environmentally friendly.

Quick and easy installation with OneClick®

Thanks to the proprietary OneClick® technology, all elements of the system are connected without tools.

If necessary, you can easily disconnect individual parts without the risk of damage to the system.

ARIA is the only system on the market with the highest tightness class ATC 1 according to PN-EN 17192, which guarantees energy efficiency, quiet operation and reliability for years.

Perfect with limited space

The ARIA FLAT500 system uses a flat channel, which is perfect where traditional round channels do not fit in the structure:

• Under the suspended ceiling, in ceilings or tight installation spaces.
• In the floor layer, while maintaining the appropriate thickness of the floor.
• In modern interiors, where aesthetics and discretion of installation are crucial.
• Upgrading and adapting existing buildings.

Flexibility and freedom of design

The ARIA FLAT500 system can be combined with round channels using ARIA CONNECT, which allows for optimal air distribution and saves space and investment costs.

• Compact design, ideal for tight spaces: can be mounted on the ceiling or under the ceiling in the suspended ceiling.
• Possibility of integrating flat and round channels in one installation.
• Quick installation and easy system expansion with OneClick®: 2 50 mm connections with seals and rings
• Floor/stroke mounting brackets.
• Ribbons to help trim the approach under the anemostat.
• Smooth regulation of air flow thanks to a dedicated throttle
• The ARIA recuperation system is the only one on the market that has the highest tightness class – ATC 1 according to PN-EN 17192, which guarantees greater energy efficiency and quiet operation.
• High mechanical resistance thanks to the use of a specialized additive in the form of a plasticizer.

• Length [mm] : 258
• Width [mm] : 380
• Height [mm] : 361
• Number of connections 50 mm: 2
• Material: PP

The expansion box includes the following elements*:

• Expansion box body – 1
• Module 2x50 mm with elliptical socket seal – 1
• Mounting ring for flat channel with gaskets – 2
• Blinding stopper for flat channels – 2
• Floor/stroke mounting brackets. – 2
• Approach cap for anemostat – 1

*) Supplied factory assembled, with a set of caps and gaskets. Aesthetically packaged. Unused sockets should be left blinded.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Heatpex
Parametry	Kind	plenum box
Parametry	Manufacturer code	54012500001W
Parametry	Batteries included	no
