Plytelių pjaustyklė didelio formato, 360 cm, akmens masės ir glazūruotoms plytelėms

Trumpai apie prekę

Prekė: Plytelių pjaustyklė didelio formato, 360 cm, akmens masės ir glazūruotoms plytelėms. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Geko
• Modelis: G30129

Characteristics:

Professional, modular system for manual cutting of large format plates, stoneware and ceramics by Geko with a maximum cutting length of up to 360 cm. It has been designed for precise machining of modern, large-format wall and floor coverings used in bathrooms, kitchens or facades.

The construction is based on light but rigid aluminum modular guides (total length 3,8 m, consisting of sections 2 × 1,5 m and 1 × 0,8 m). The guide is stably attached directly to the surface of the plate using a system of 11 strong suction cups, which excludes the risk of shifting it during operation and guarantees a perfectly straight incision line.

The cutting unit moves across the strip with 4 bearing rollers, providing an extremely smooth and lightweight feed. It is equipped with a revolutionary rotary mechanism that holds up to 3 cutting wheels measuring 22 × 6 × 2 mm, which allows you to immediately change the blade without the use of tools. The set also includes a dedicated screw breaker, which allows you to break the tile in a controlled and precise way after making a scratch (for materials with a thickness of less than 12 mm). The whole set is packed in a durable carrying bag.

Technical data:

• Device Type: Modular Large Format Board Cutter
• Cutting length range: from 60 cm to 360 cm
• Maximum thickness of the workpiece: less than 12 mm
• Total length of the guide set: 3,8 m (modules: 2 × 1,5 m + 1 × 0,8 m)
• Guide Material: High Quality Aluminum Alloy
• Tile Mount: 11 Stable Suction Cups
• Driving cutting trolley: 4 bearing rollers
• Combined cutting head: rotary mechanism for 3 cutting wheels
• Cutting wheel dimensions: 22 × 6 × 2 mm
• Breaking system: screw breaker with adjustable pressure
• Application: stoneware, large format tiles, ceramic tiles, glaze, terracotta

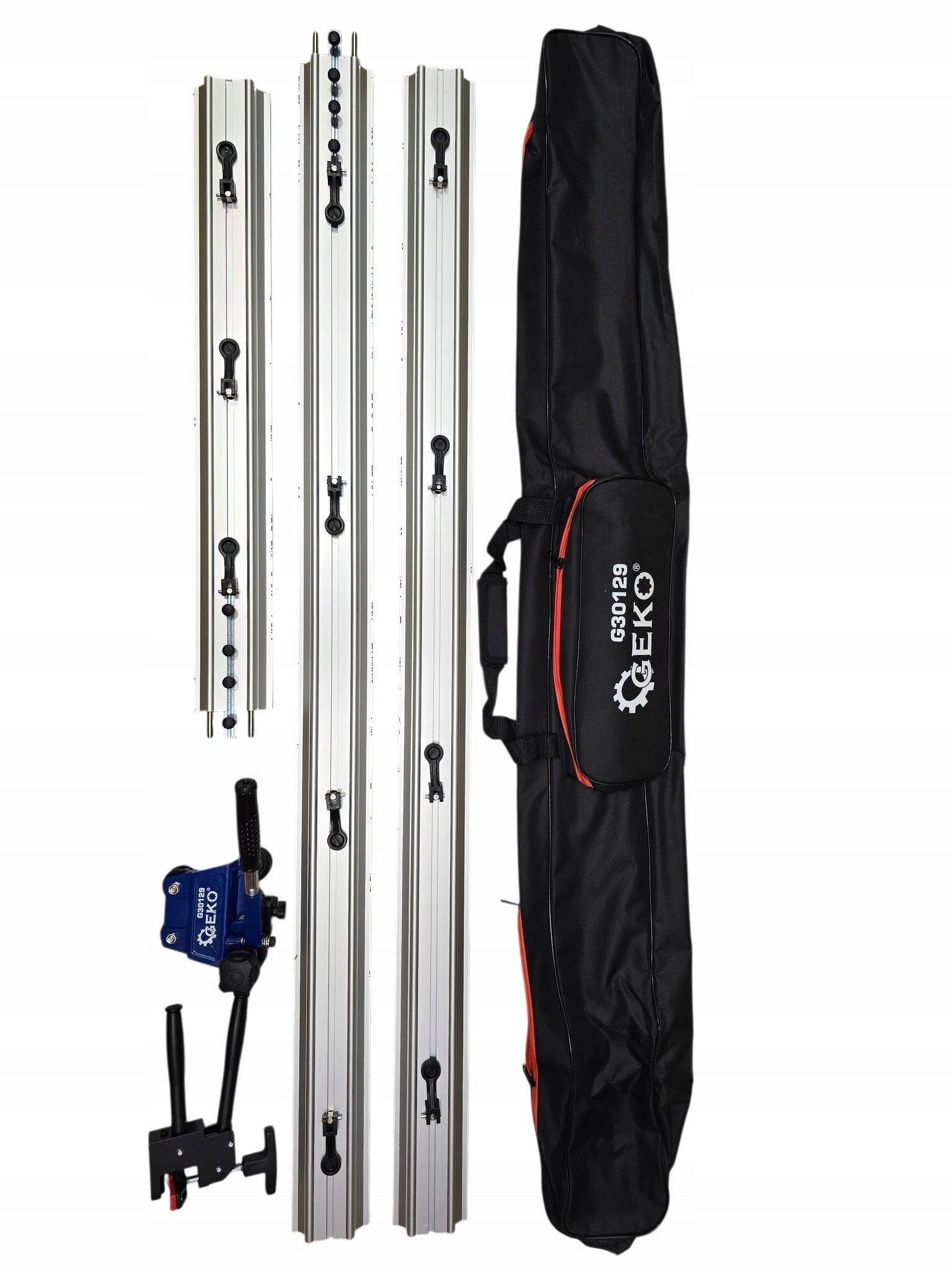

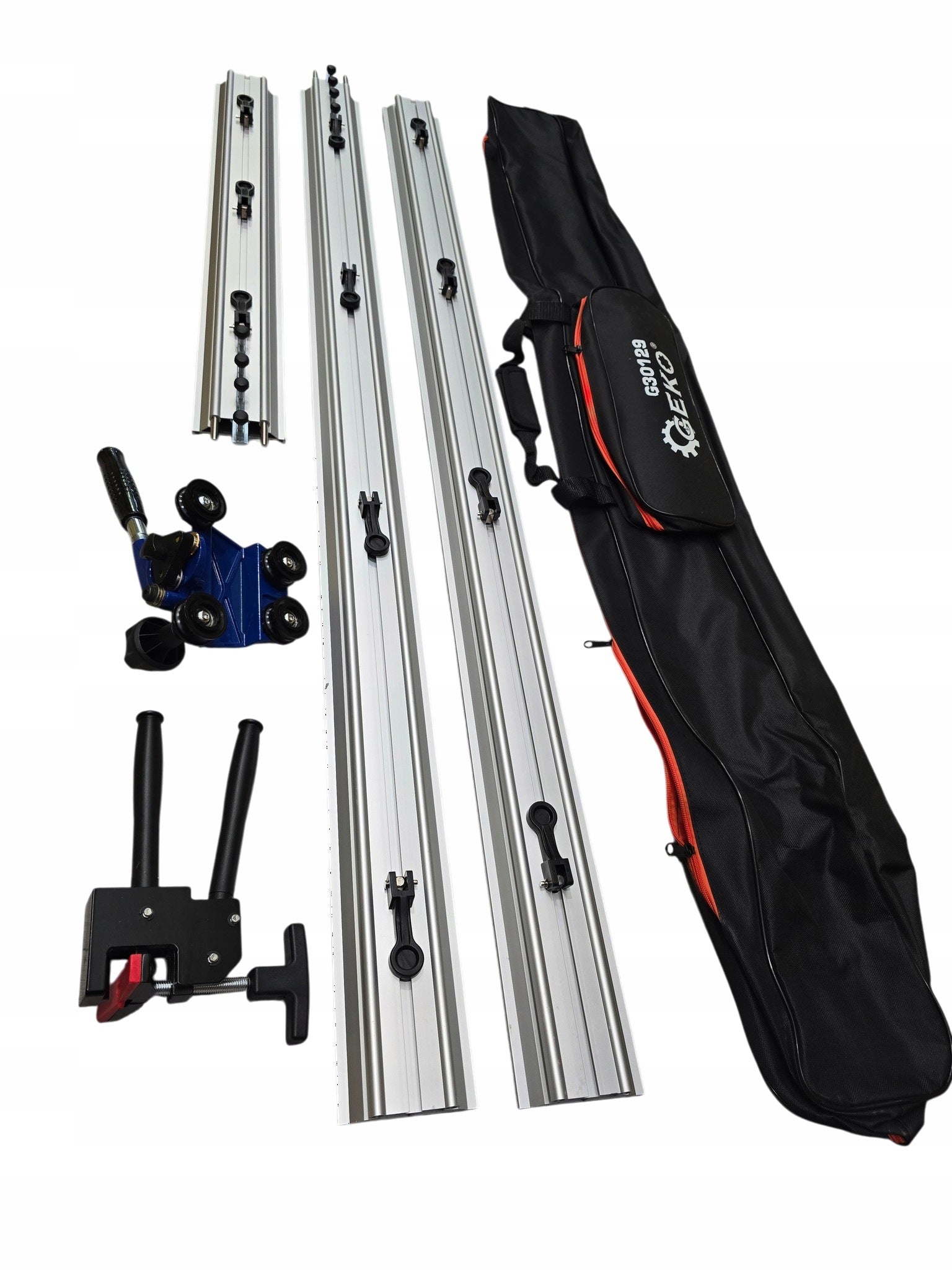

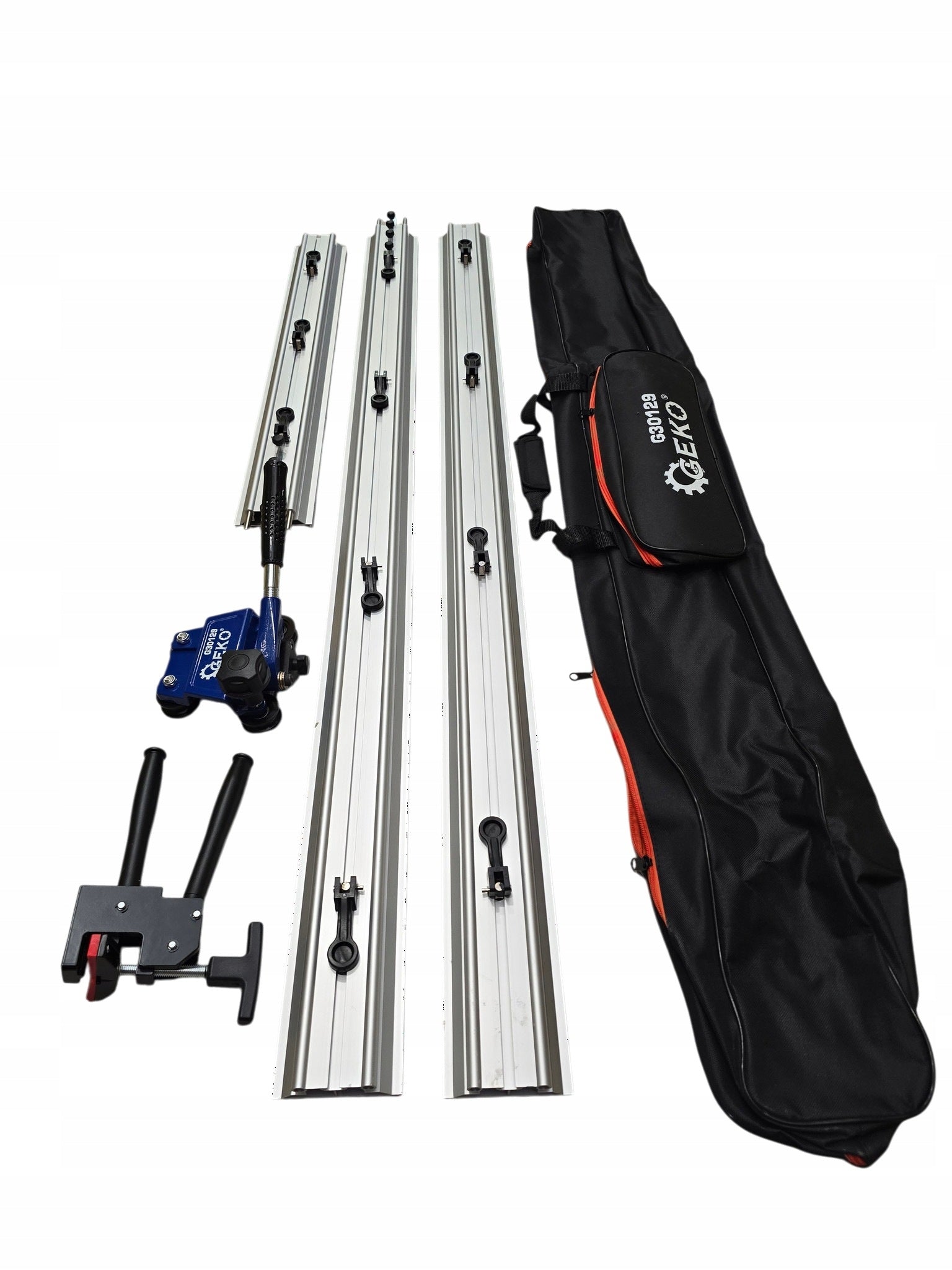

Set Contents:

• Aluminum modular guides (3,8 m total length)
• Cutting trolley with ergonomic handle
• 3 cutting wheels mounted in the disc
• Set of 11 mounting suction cups
• Connecting and mounting elements
• Screw Breaker
• Durable carry bag
