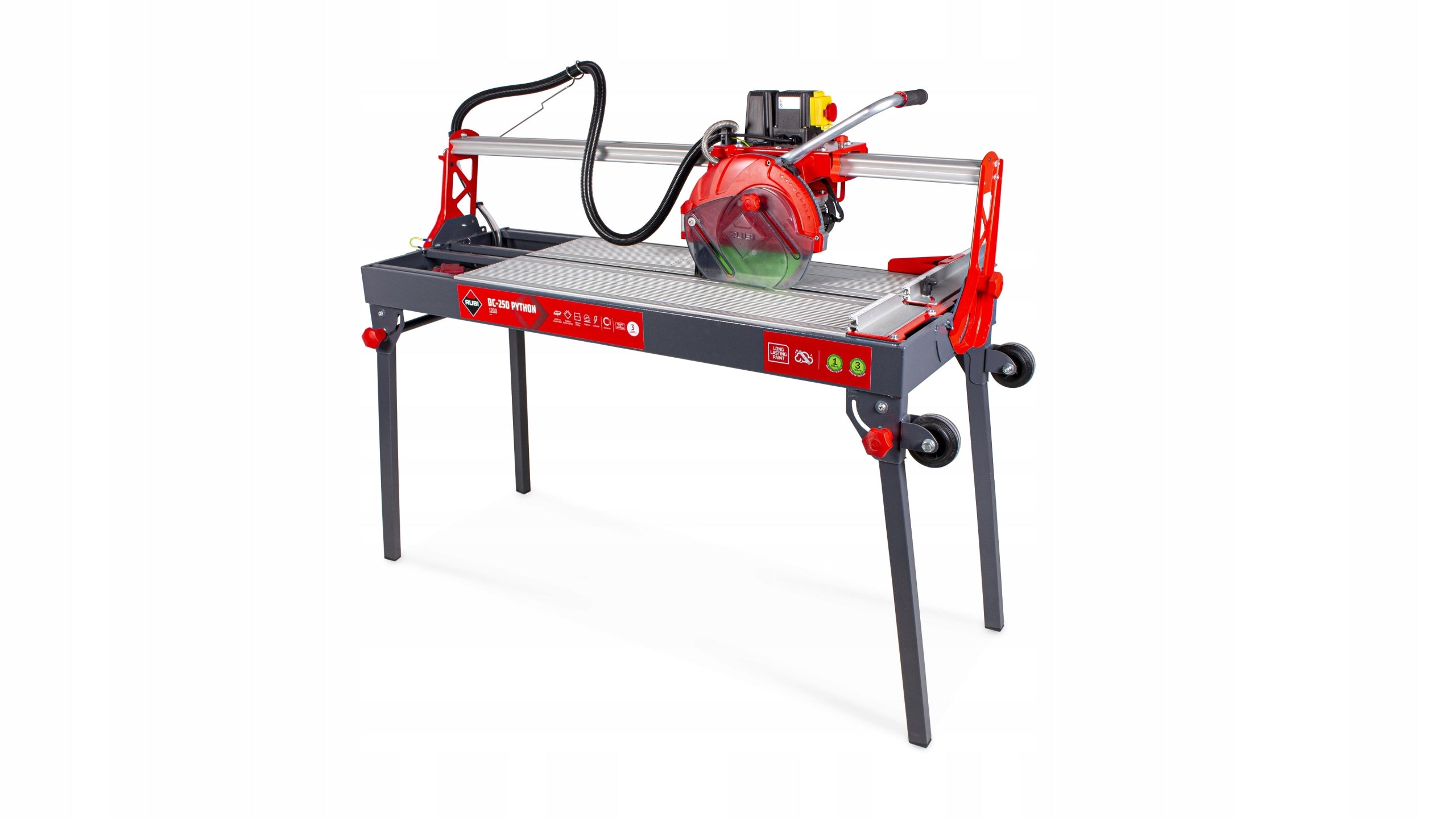

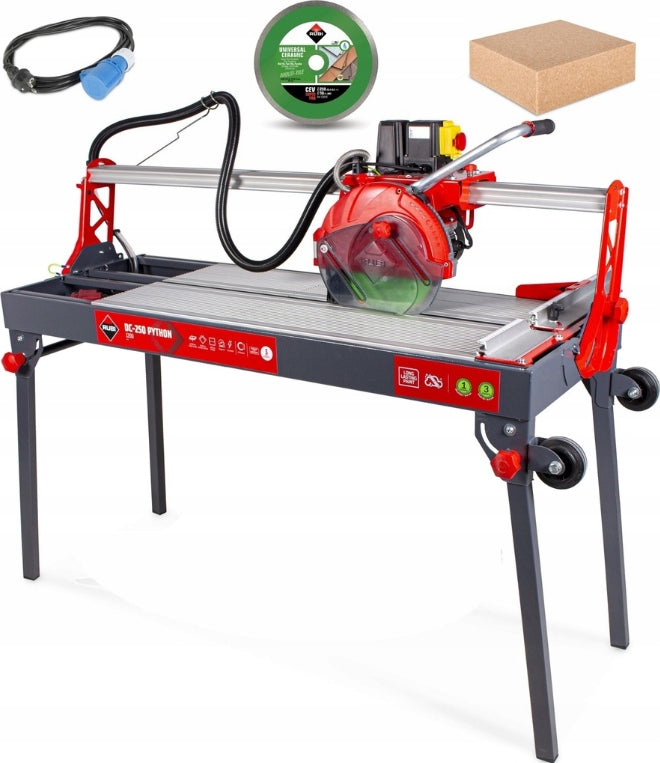

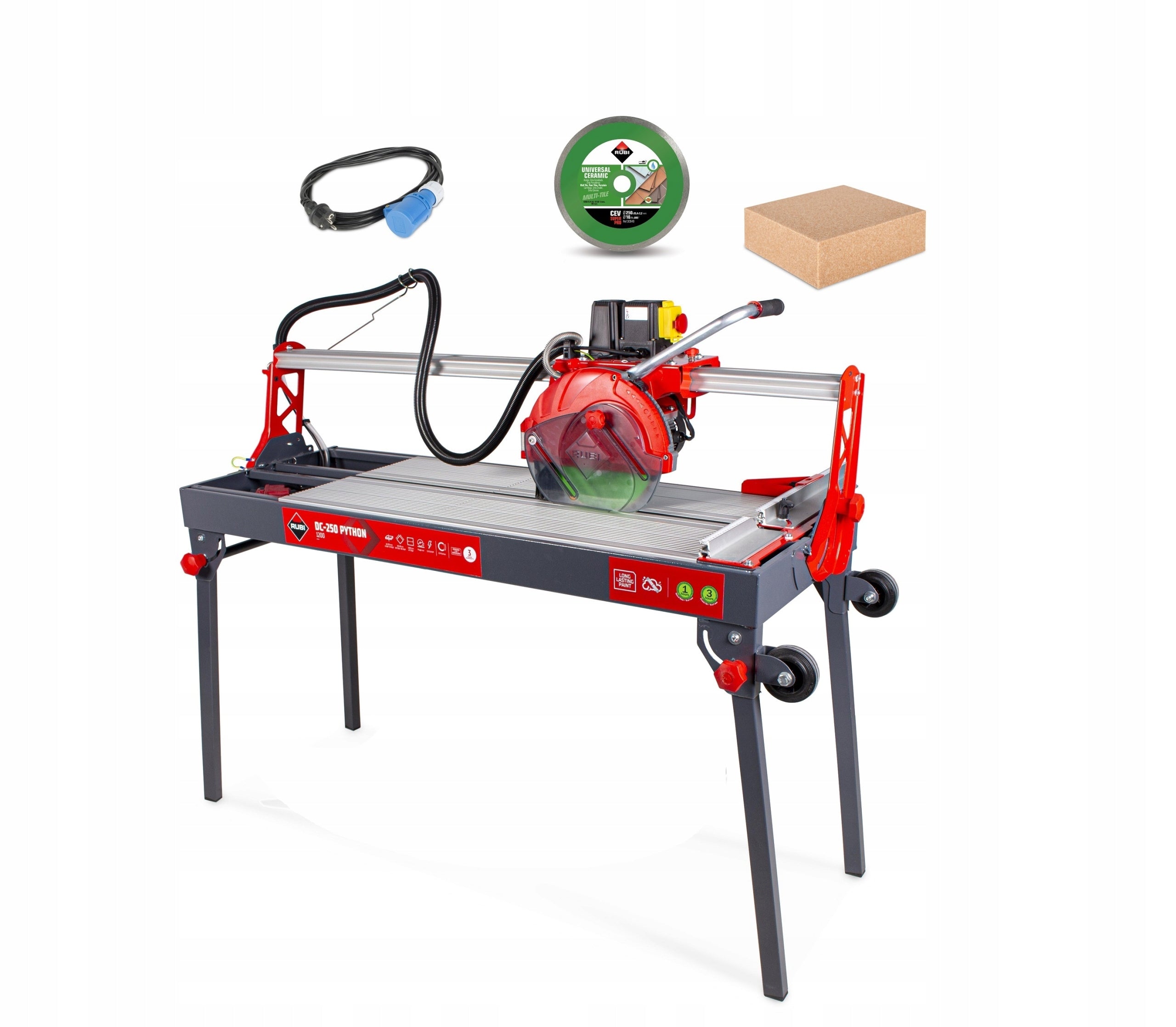

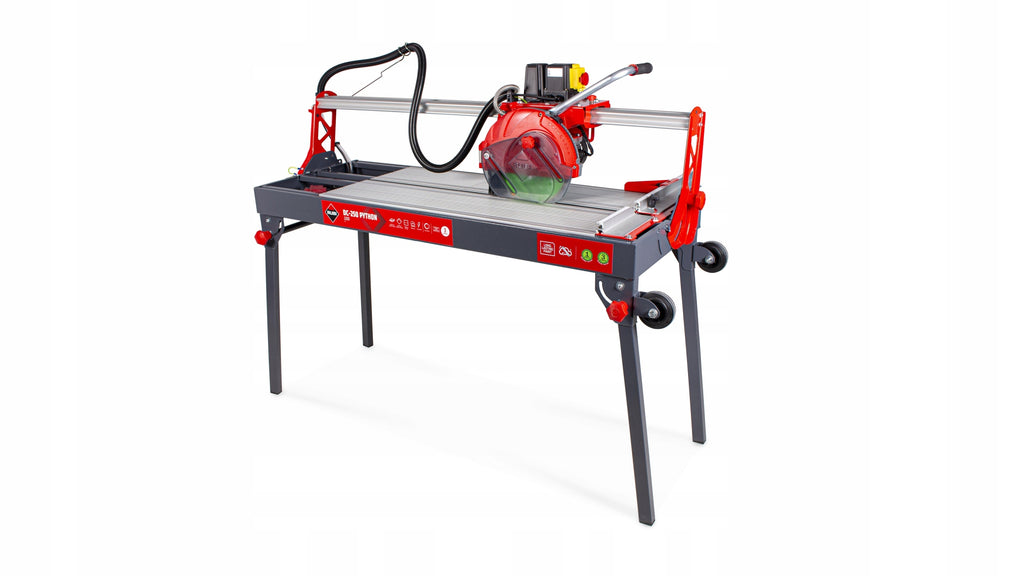

Plytelių pjaustyklė RUBI DC-250 1200 GRES GLAZE, 120 cm

Trumpai apie prekę

Prekė: Plytelių pjaustyklė RUBI DC-250 1200 GRES GLAZE, 120 cm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Rubi
• Modelis: 55941
• Galia: 1100 W

The RUBI DC-250 PYTHON series cutters are models with adjustable disc height, which ensures maximum functionality and reliability for tilers.

DC-250 PYTHON cutters are ideal for intensive cuts of wall and floor tiles, as well as porcelain stoneware and occasional cutting of natural stone tiles.

Two models are available: 850 and 1200, which offer cutting lengths of 98 and 121 cm respectively.

The head feed with motor in DC-250 PYTHON cutters is carried out on bearings, which translates into maximum precision and cutting quality and the ability to make cuts at an angle of 45 degrees at a length of 85 cm (model 850) or 108 cm (model 1200). The 1,1 kW (1,5 hp) motor has thermal protection and is perfect for cutting stoneware tiles.

DC-250 PYTHON electric cutters are equipped with a C3 PYTHON cooling system, which allows you to adjust the water supply point depending on the thickness of the material, so that the water goes directly to the cutting point. The C3 PYTHON system allows you to increase cooling efficiency and reduces splashing and water loss.

The removable aluminum work tables make it easy to clean and maintain the DC-250 PYTHON, while the folding leg system with built-in transport wheels makes it easy to transport and move the machine.

The DC-250 PYTHON cutters are equipped with a CEV SUPERPRO 250 mm diamond disc, except for reference 56949, which is equipped with a CPA SUPERPRO 250 mm disc.

The continuous edging of the disc allows you to make cuts with a good finish effect and the right cutting speed. Thanks to the approved shield cover, the DC-250 PYTHON cutters can safely use TURBO and segmented discs.

The DC-250 PYTHON cutter has a gauge with the ability to adjust up to 60º, which makes it much easier to cut tiles of larger formats from any angle in this range.

In order to protect the health of users, the DC-250 PYTHON is equipped with a patented and TNO* certified ZERO DUST system. By reducing dust particles generated during cutting, it allows the air content of silica from ceramic materials and natural stones to be reduced to a safe level.

The large work table (100x48,5 cm) is perfect for cutting large tiles, and the working height of 84,5 cm ensures good ergonomics during work. RUBI has always paid close attention to the health of users of our tools. Ergonomics issues have always been taken into account when designing tools, because we believe that safety and minimizing risk at work are crucial for maintaining health and achieving proper work efficiency.

*the value of "safe exposure" to inhaled quartz dust particles in the "user inhalation zone", which allows for uninterrupted operation of the RUBI electric cutter up to 3 hours a day when cutting ceramic tiles and 1 hour when cutting natural stone.

Specific properties

• Angular fitting (0º to 60º) with side stop.
• Equipped with ZERO DUST dust-free system tested and certified by TNO.
• Folding legs with wheels for easy transport of the machine.
• DC-250 1200, chassis with anti-corrosion protection.

TECHNICAL DATA:

• Ref. - 56939
• EAN-13 - 8413797569391
• Cutting length - 108 cm
• Length of cut with recess - 120,5 cm
• Maximum cutting thickness in 1 or 2 passes - 61/90 mm
• Length of oblique cutting - ∞ cm
• Bevel thickness - 55 mm
• Power supply - 230V-50Hz.
• Rotations per minute - 2790
• Outer diameter - 250 mm
• Depth cutting - yes
• Length width height - 162x82x131 cm
• Net weight - 60 kg
• Gross weight - 75 kg

CEV diamond discs with continuous edging are the best choice when cutting wall tiles.

CEV discs, thanks to their versatility, are great for situations where the tiler has to work with different types of tiles.

Using universal diamond discs, such as CEV, reduces working time because you do not need to replace the disc every time you change the material. In this way, we can achieve optimal results and cutting quality for a wide range of wall and floor tiles.

The CEV diamond blade has a continuous rim. This type of blade provides the highest quality cutting finish.

CEV discs are ideal for cutting ceramic tiles and other stone finishing materials with a thickness of less than 25 mm.

Fixing the edging with laser welding technology guarantees high quality and user safety.

RUBI diamond discs are offered in two classes: PRO and SUPERPRO.

PRO blades provide users with the best value for money.

SUPERPRO blades are the best choice for the most demanding jobs.

guarantees high quality and user safety.

TECHNICAL DATA

• Ref. - 30949
• EAN-13 - 8413797309492
• Outer diameter - 250 mm
• Internal diameter - 25,4 mm
• Disc edging height - 7 mm
• Disc edging thickness - 2,2 mm

Shield mounted on the device.

Approximate cable length - 3,5 m.

TECHNICAL DATA:

• Ref. - 58850
• EAN-13 - 8413797588507
• Power supply - 230V - 50 Hz.EUR

RB-05973

• Especially recommended for sharpening diamond discs
• For cleaning and sharpening diamond discs.
• It is recommended to periodically use the block (every few cuts) to maintain the ideal cutting properties of the disc.

The RUBI brand is known for the best durability and quality of its tools. For more than 65 years, RUBI has been manufacturing tools of the highest quality and durability to achieve the best performance in the toughest working conditions and to meet the needs reported in each market. Since its inception, RUBI has actively participated in professional training and international fairs, which ensured continuous intensive development. RUBI continues to pay close attention to participation in international fairs and exhibitions, as this helps to maintain the pace of growth and promotes the search for solutions that facilitate the daily work of professional tilers around the world.
