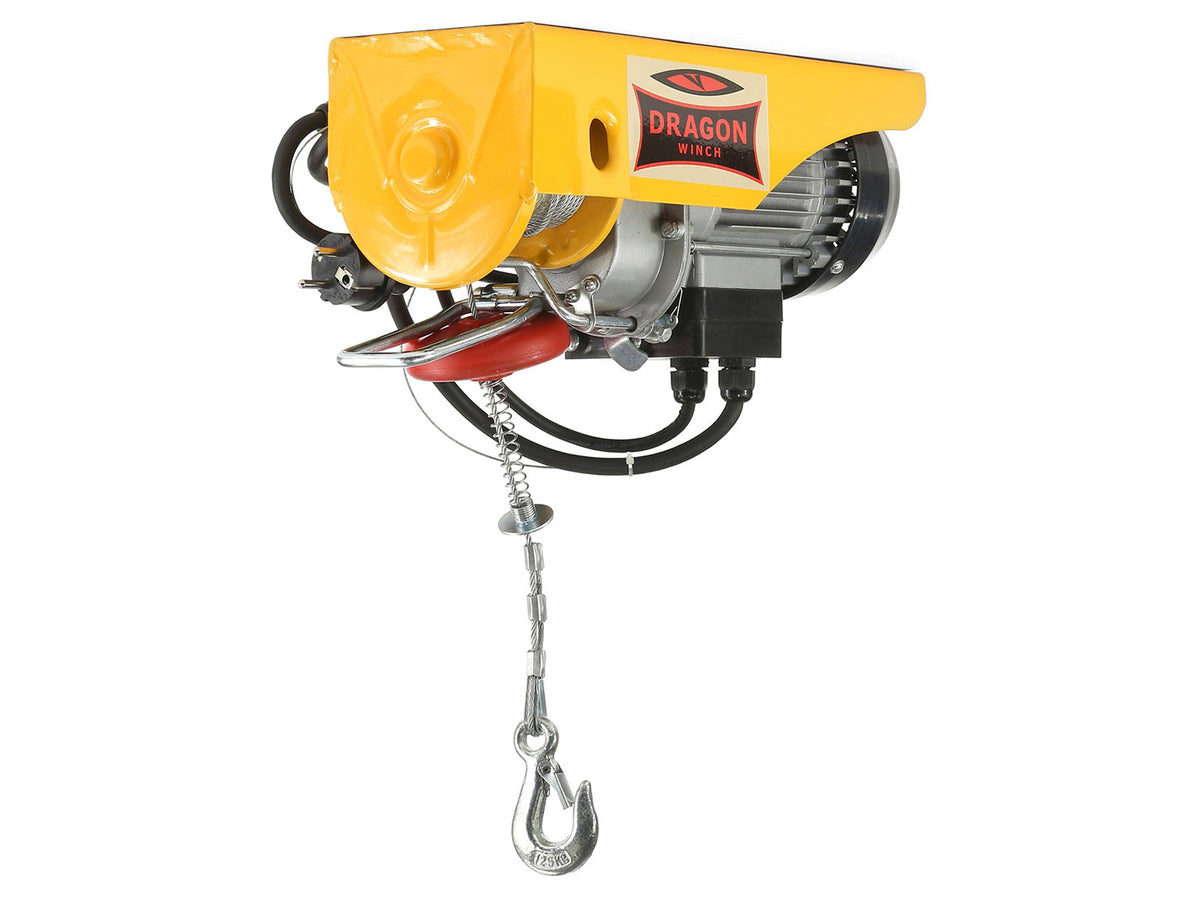

Pramoninis gervė DRAGON WINCH DWI 125/250 HD, 230 V

Trumpai apie prekę

Prekė: Pramoninis gervė DRAGON WINCH DWI 125/250 HD, 230 V. Kategorija: Keltuvai.

• Gamintojas: Dragon Winch
• Modelis: DWI 125/250

The INDUSTRIAL Series

Main features of the winch:

• Power supply from socket 230V
• Lifting capacity on single line 125 kg
• Lifting capacity on double line 250 kg
• Additional friction brake

• Transmission of high-quality steel

• extreme rope extension switch

• extreme rope coil switch

• Steel rope 12m flexible

• Motor with copper stator winding

• Control remote control up/down with safety switch

100% Dragon Winch - there is only one original. Confidence and reliability for many years, as well as technical support and competent advice and express service.

ISO 9001 certificate - confirmed the highest quality of materials used and constantly improved processes of improving the quality of products.

Consumer Laurel - thanks to high recognition and high quality products, winner of the consumer award.

"New Approach" of the European Union.

Ideal for applications:

• In the workshop



• In stock



• In the garage



• At home and in the garden



• On the construction site



• On the ramp

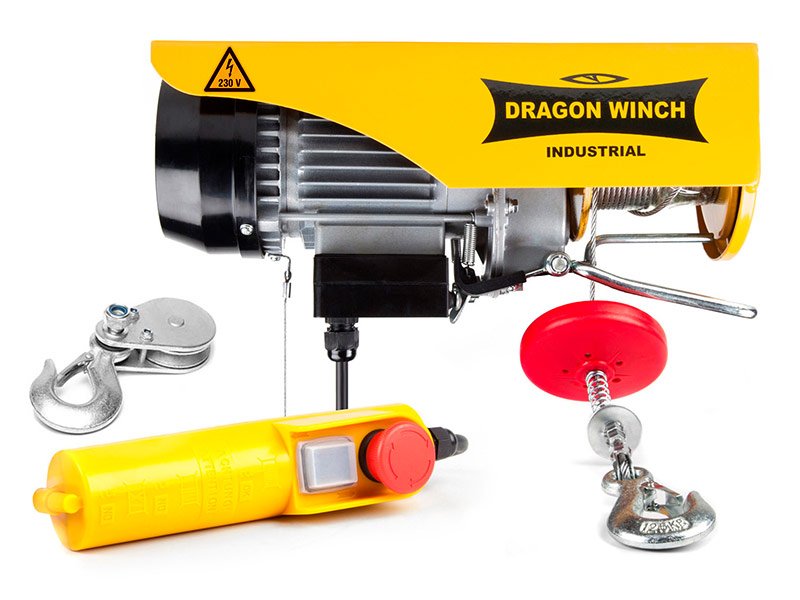

The set includes:

• Wire rope



• Hook



• Hook with a block



• Limiter



• Controller on cable



• Mounting brackets and screws

• For those who are looking for a good winch without having to break the bank.

• Its design allows for various mounting options: permanently, on the mast, on the crane / mobile trolley.

• The redesigned sealing system provides a high degree of resistance to water, dust and other contaminants.

• The transmission is made of high-quality steel, with a new design for efficient and reliable operation.

• The new safety system guarantees that the winch stops automatically with maximum coiling and unwinding of the rope (limit switches).

• The unique friction brake design provides better control when pulling in.

• The control is carried out by means of a cable remote control equipped with a 1,5-meter cable, additionally secured with a cable protecting against breakage.

• Thanks to the heat sink and fan, the user has greater comfort of longer and more efficient operation of the device.

• Winch with a modern look, proven performance and legendary reliability from Dragon Winch.

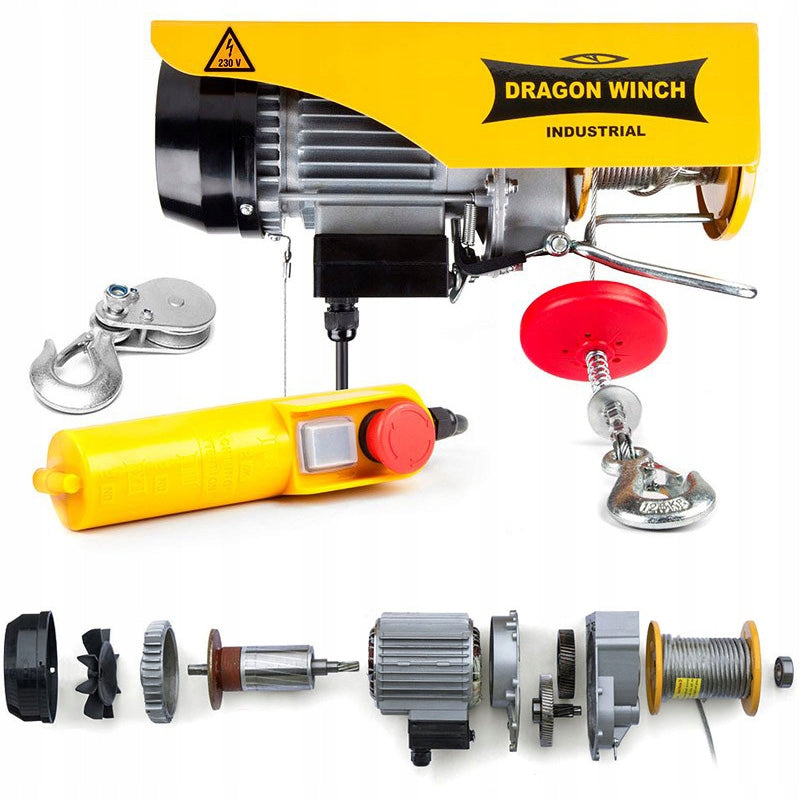

1. Steel rope 12 meters

2. Transmission made of high-quality steel

3. Motor with copper stator winding

4. Aluminum Heatsink

5. Durable steel housing

6. Additional friction brake

7. Efficient fan

8. Limit switch

• Manufacturer Dragon Winch

• Lifting capacity on single line 125 kg

• Lifting capacity on double line 250 kg

• Rope length 12 m

• Supply voltage 230 V

• Insulation class B

• Rope diameter 3 mm

• Engine power 500 W

• Weight 10 kg

• automatic brake

• Emergency switch extreme

• Rope breaking resistance >1870N/mm2

• Break time S3-20% 10 min.

• Instantaneous power consumption 2,2 A

• Rotation speed 2800r/min.

• Water protection class IP54

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Dragon Winch
Parametry	Series	Industrial
Parametry	Power supply	mains
Parametry	Maximum load capacity	0.25 t
Parametry	Lifting height	12 m
Parametry	Rope / chain length	12 m
Parametry	Rope diameter	3 mm
Parametry	Tool weight	10 kg
Parametry	Product weight with unit packaging	10 kg
Parametry	Manufacturer code	DWI 125/250
Parametry	EAN (GTIN)	5903140650720
Parametry	Packaging status	original
