Pramoninis oro užuolaida SONNIGER Guard PRO 150E, elektrinė, 400V

Trumpai apie prekę

Prekė: Pramoninis oro užuolaida SONNIGER Guard PRO 150E, elektrinė, 400V. Kategorija: Oro užuolaidos.

• Gamintojas: Sonniger
• Modelis: PRO150E
• Galia: 14000 W

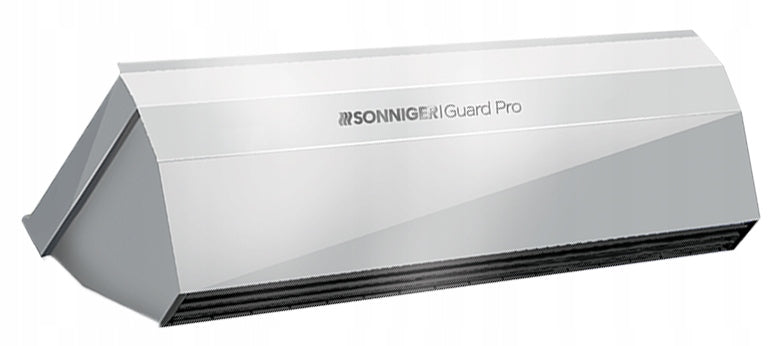

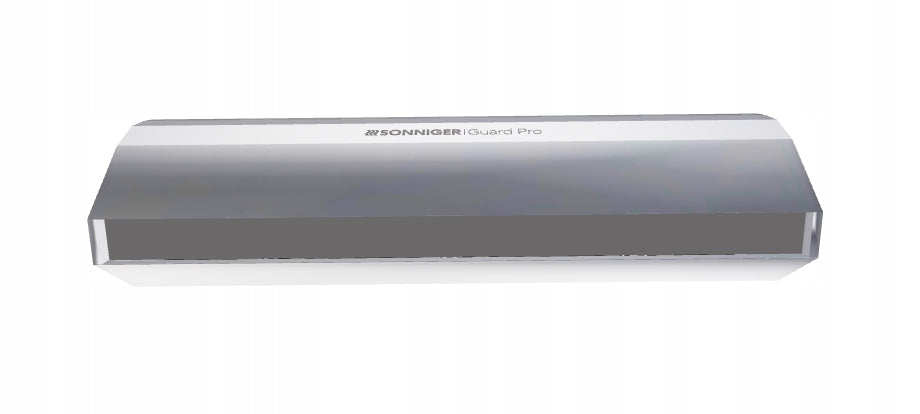

Secure industrial gates in your plant with a powerful air barrier designed to withstand the toughest conditions. The Sonniger GUARD PRO 150E electric industrial curtain is a professional device with a length of 1,5 meters, designed for maximum operation in warehouses, factories and delivery docks.

Contents of the pack:

• Electric air curtain
• User manual

📉Effective thermal insulation of halls – real savings on heating costs

The investment in the GUARD PRO 150E allows for a drastic reduction of heat losses with large-size open gates. The curtain creates a tight barrier that maintains a comfortable temperature inside the hall. This is a simple way to reduce expenses in your company.

🌬 Extreme range up to 8 meters – reliable protection of high entrances

At the heart of the device are high-performance fans with a diameter of 450 mm, which generate a powerful air flow (up to 6550 m³/h). With a range of up to 8 meters, the curtain effectively cuts off the supply of cold, dust, and debris, protecting even the tallest industrial gates.

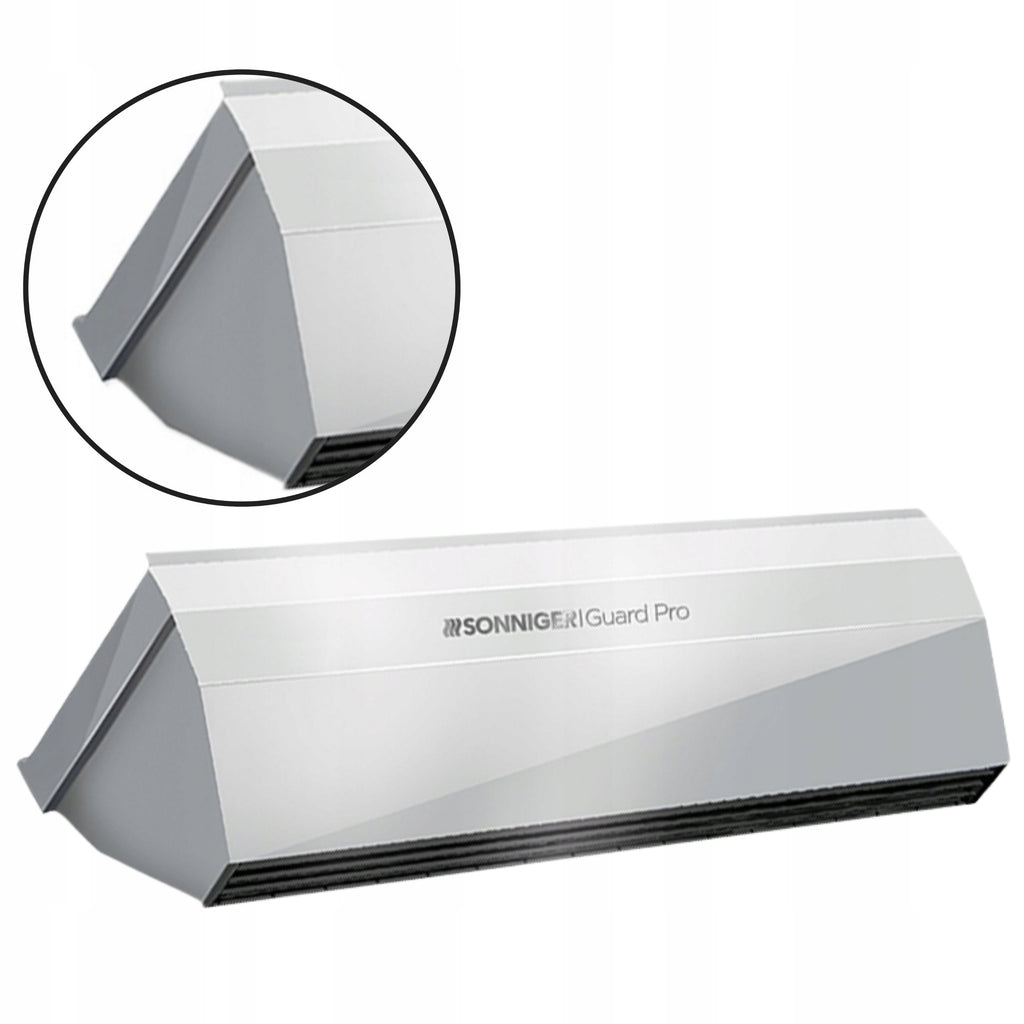

⚙ Universal vertical and horizontal installation

The design of the device has been thought out to fit into any space. You can mount the curtain both horizontally above the gate and vertically at its edge. This allows you to optimally use the power of the device regardless of the architectural specificity of your dock or factory.

🛡 Rugged IP54 construction – reliability in harsh environments

GUARD PRO 150E has a high protection class IP54, which guarantees resistance to dust and moisture. Powder coated housing.

⚡Powerful 400V electric heater – instant heat

The use of an electric heater with a power of 14 kW powered by 400V allows you to quickly obtain a warm blower. The lack of connection to the water system significantly simplifies installation, making the curtain ready for efficient operation immediately after connecting to the electrical network.

Want to see what the product looks like? Scan the QR code to see the curtain in AR augmented reality. (AR visualization is illustrative and may differ from reality)

Technical specification:

• Device length: 1,5 m
• Maximum range (door height): 8 m
• Maximum air output: 6550 m³/h
• Heating power: 14 kW
• Heater supply voltage: 400 V / 50 Hz
• Weight: 21 kg (reduced weight for easier installation)
• Protection class: IP 54
• Dimensions: 608,5 mm (H) ) x 1500 mm (W) ) x 520 mm (depth
