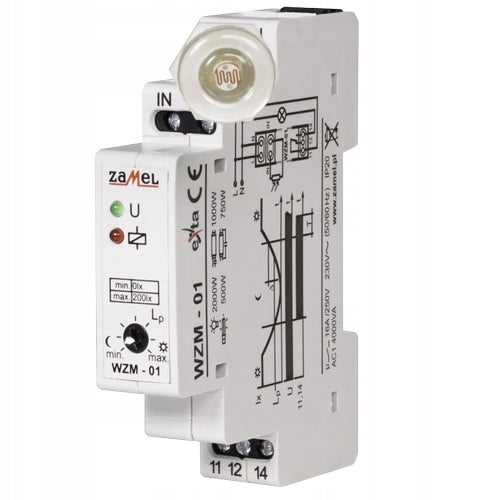

Prieblandos jutiklis Zamel WZM-01/S1

Trumpai apie prekę

Prekė: Prieblandos jutiklis Zamel WZM-01/S1. Kategorija: Jutikliai.

• Gamintojas: Zamel
• Modelis: WZM01S1

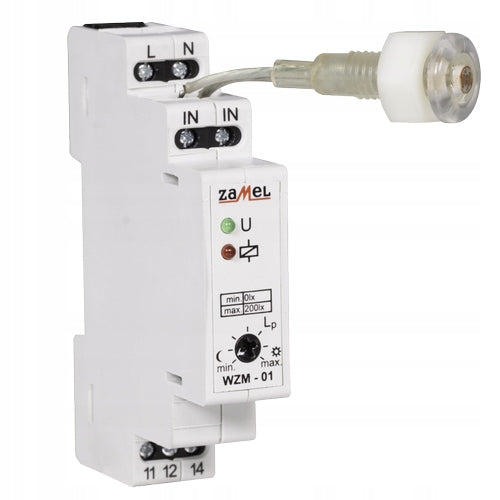

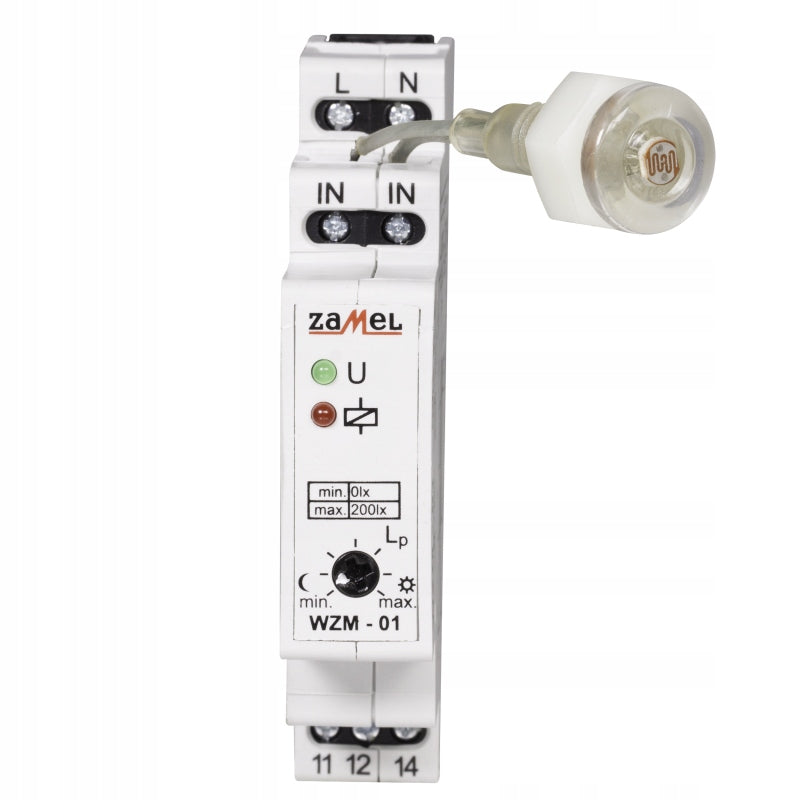

Twilight switch WZN-01/S1 is used to control lighting devices or other energy receivers depending on the intensity of lighting - turns on the lighting at dusk and turns off at dawn. The attachment threshold can be smoothly set by the user. The device is resistant to short-term changes in lighting intensity, which guarantees reliability of operation. The external light intensity probe SOH-01 with a cable with a maximum length of 50 m allows it to be placed in convenient places.

FUNCTIONAL FEATURES OF THE PRODUCT:

• Control of receivers depending on lighting intensity
• smooth adjustment of the attachment threshold
• resistance to short-term changes in lighting intensity,
• single-module housing
• supply voltage indicator
• wide range of switching threshold settings (from 0 to 200 lx),
• switching threshold hysteresis
• relay status indicator
• The system requires an external illuminance probe (e.g. SOH-01, SOH-03, SOH-05),
• relay output - voltage with a maximum load capacity of 16 A.
• two relay outputs with a maximum load capacity of 16 A.

TECHNICAL DATA:

Contacts - 1 switching contact

Maximum switching current (resistance load) - 16 A

Maximum switching power - 2000 W

Attachment brightness threshold - 0/200 lx

Degree of protection (IP) - IP20

Power terminals - L, N

Working temperature - -20/46 °C

Rated frequency - 50/60 Hz

Relay contact parameters - 1NO/NC - 16 A / 250 V AC1 4000 VA

Housing protection degree - IP20

Width - 90 mm

Height - 17,5 mm

Depth - 66 mm

Weight - 0,07 g

Scope of switching threshold - 0 ÷ 200 lx (rotary potentiometer)

Maximum length of probe cable - 50 m (MTY 2x 0,5 mm2)
