Priekabos apšvietimo modulis PiAir ETK 7.01, 7 kontaktų, lenkiškas

Trumpai apie prekę

Prekė: Priekabos apšvietimo modulis PiAir ETK 7.01, 7 kontaktų, lenkiškas. Kategorija: Laidai ir lizdai.

• Gamintojas: PiAir

The device controls the lighting of the trailer through information taken from the rear lamps of the car.

The device is designed to work with ordinary bulbs and LED lamps in the trailer.

The device also works with a single-fiber installation (PWM), where the parking light and stop or parking and fog light are on one wire. In this case, connect the input of the position lamp and the input of the stop lamp to the cable on which both signals occur, or take information about the stop lamp from the third stop lamp.

In the version supporting the cut-off of parking sensors (PDC) - which is available at our other auction - you need to cut off the negative power pole from the PDC control panel and connect the white cable (on the side of the PDC), the device will control the PDC by feeding or losing weight.

Recommended for cars with an on-board computer.

Required if the car has a light failure indicator or so many lamps in LED technology.

The offered electric set also works with trailers with LED lighting

Suggested connection:

1. Disassembly of the rear part of the upholstery in a way that will allow access to the rear lamps of the vehicle
2. Installation of the control panel in a dry and best invisible place
3. Connecting the electrical harness to the device
4. Connection of the control unit mass to the vehicle body
5. Connection of input wires according to the scheme (next to)
6. Information from the Reversing light is connected in the case of mounting a 13 pin socket
7. Installation of the trailer socket and connection of wires according to the scheme (below)
8. Connecting the power cord to the positive pole of the battery and inserting the fuse
9. All connections should be soldered and insulated or used for this purpose quick couplers,which are included.

The installation of the device should be carried out by a specialized plant.

• Works with CAN-Bus installation;
• Works with LED and single-fiber lighting;
• For connecting a 7 PIN socket;
• Detection of trailer connection;
• E20 approval (available at the device control panel)

FUNCTIONS OF THE MODULE

• fog lamps - YES
• reversing lights - NO (other module available on our other auctions)
• brake lights STOP - YES
• position lamps - YES
• direction indicators - YES
• trailer module - YES
• CAN BUS - YES
• cooperation with parking sensors - NO (other module available at our other auctions supporting parking/reverse sensors)
• approval - YES, E20

The ETK 7.01 electronic module is designed to connect the hook electrical system in cars where computer lighting control systems are used. In such cars, direct connection to the rear lamps of the 7-pin trailer socket may result in damage to the on-board computer. The use of the module does not constitute additional loads for the installation of the car, because each module input is characterized by a very low current consumption of 1mA. Each module output is protected against possible short circuits from the side of the trailer electrical system.

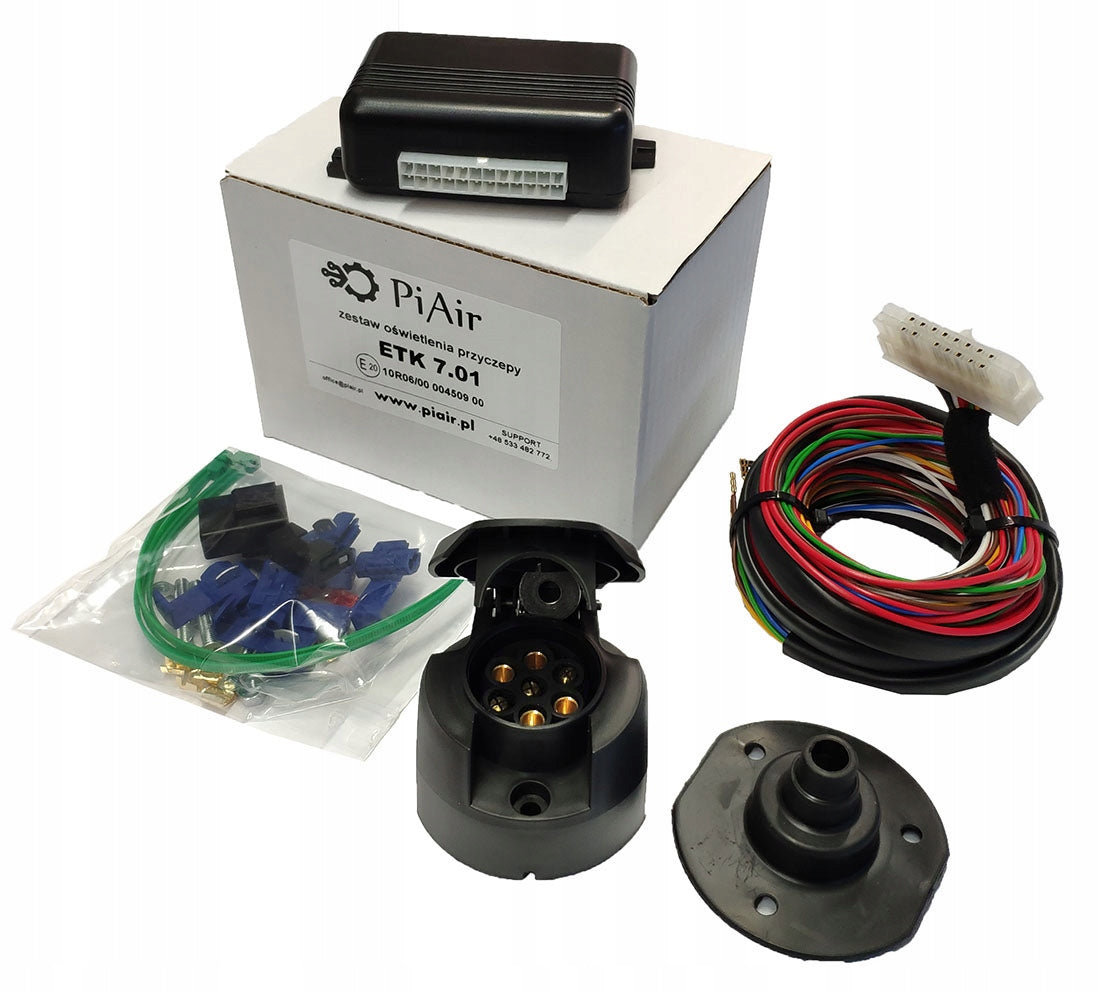

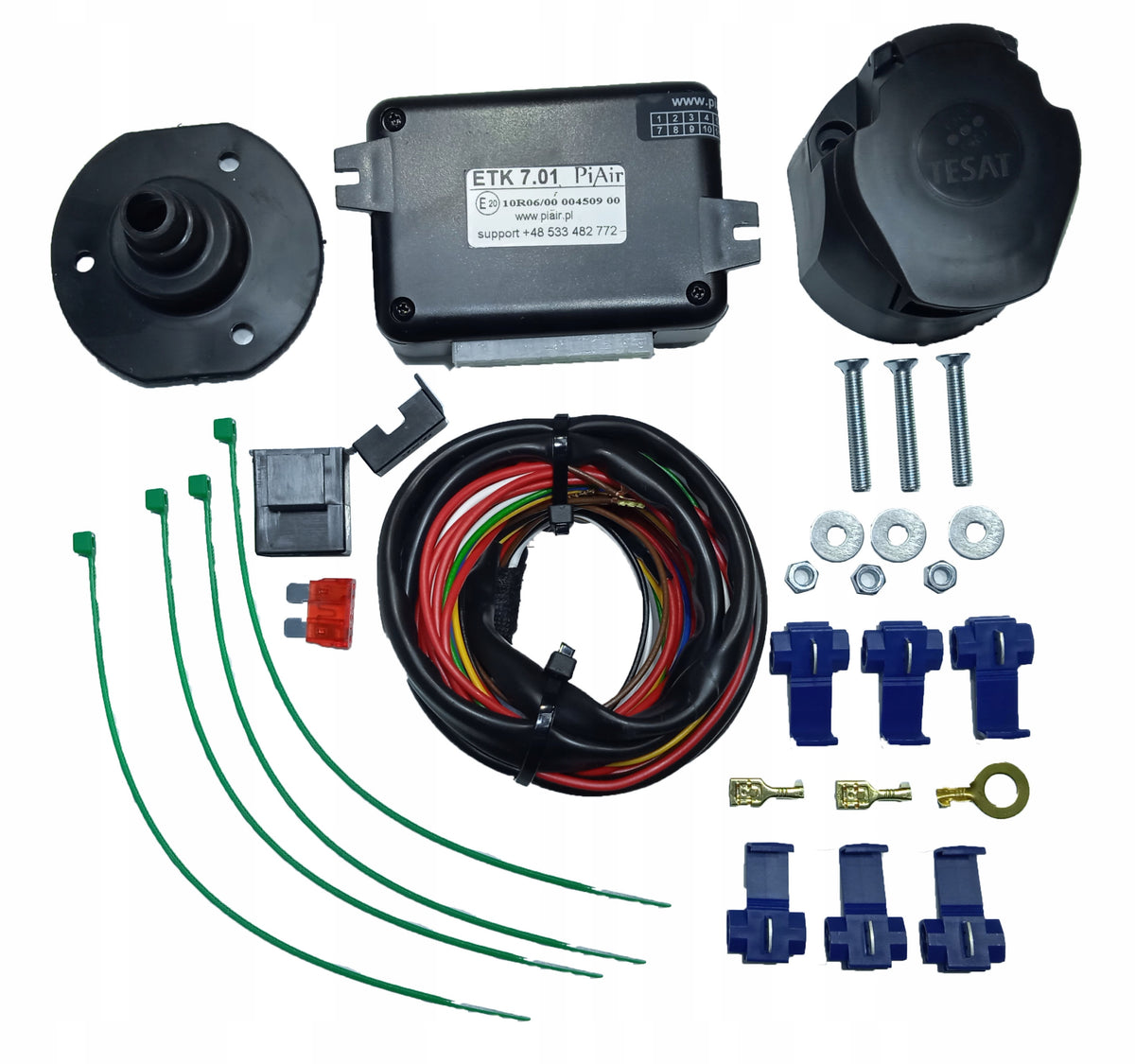

Set Contents:

• Control unit
• Electrical harness 7.0 (ready-made connection harness with access to the control panel and exit to the socket)
• Socket 7 PIN
• Rubber (seal)
• Quick couplers
• Mounting screw, nut and washer
• Clamp ties
• Connectors
• Connector Eyelet
• Fuse 10A
• Fuse holder

MODULE WORKS WITH VIRTUALLY EVERY CAR MODEL PRODUCED FOR THE EUROPEAN MARKET

IN THE APPENDIX BELOW INSTRUCTIONS FOR CONNECTING THE MODULE WITH THE DIAGRAM !
