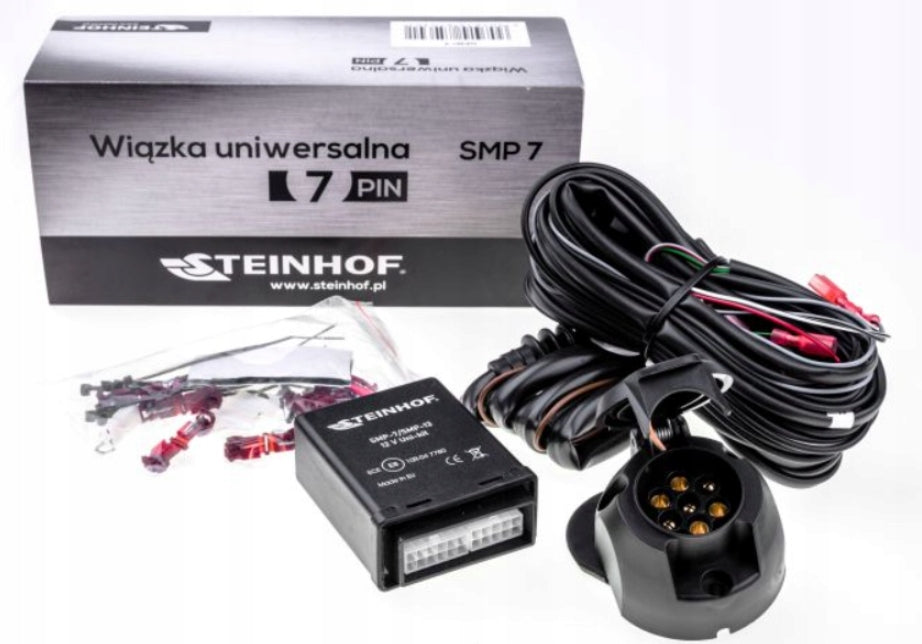

Priekabos elektros instaliacija su valdymo moduliu, 7 kontaktų, STEINHOF

Trumpai apie prekę

Prekė: Priekabos elektros instaliacija su valdymo moduliu, 7 kontaktų, STEINHOF. Kategorija: Laidai ir lizdai.

• Gamintojas: Steinhof

Electronic 7-pin hook module is designed for installation in cars where computer lighting control systems are used to:

• LED lighting
• Power supply and diagnostics of light bulbs (Check Control)

• Product Condition: New
• Producer : Steinhof
• number: SMP-7
• Socket: 7-Pin
• CAN-BUS : YES
• Beam with module: YES
• Reverse light support: NOT
• Support for parking sensors: YES
• Disabling parking sensors: YES
• Beam coding required: NOT
• Indication of burnt bulb : Buzzer
• Full compatibility with LED lights in the car: YES
• Support for dual-fiber bulbs : YES
• Automatic trailer detection : YES
• Cable Socket-Module : 1,6M

UNIVERSAL ELECTRIC KIT WITH 7 PIN MODULE :

An electric set extended with a module that fits cars with the CAN bus, performing all the necessary functions. The 7 PIN socket allows you to tow light trailers up to 750 kg without a reversing light. Economical option with complete mounting hardware. The module is adapted to bulb and LED lighting

Modern and reliable module

The SMP-7 beam uses a modern control module based entirely on microprocessors and software. It does not use mechanical switches or relays.

The beam does not require coding after installation.

ASSEMBLY :

Universal electrical harnesses require interference with the electrics of the car. Most often, they are connected using quick couplers to wires leading to the lights. The second option is soldering if we want the connections to be more durable. The set comes with an instruction manual.

Trailer Lighting Control

• Left turn signal
• Right turn signal
• Left tail light
• Right tail light
• Stop light
• Rear fog light
• Bulb failure detection

• Complete 7 pin electrical kit with module and mounting hardware
• All screws, washers and quick couplings and fuses needed for electrical installation
• Installation instructions for the electrical kit

Each kit comes with detailed instructions that describe the entire electrical harness assembly process step by step.

The electrical rating plate bears the EU approval number, which is necessary to obtain a technical test at the Vehicle Inspection Station.

Installation instructions can be downloaded in the "Additional information" tab under the listing description.

Specifications
