Priekabos jungties modulis 13 kontaktų su laidu

Trumpai apie prekę

Prekė: Priekabos jungties modulis 13 kontaktų su laidu. Kategorija: Laidai ir lizdai.

• Gamintojas: Auto-hak

The module is an electronic device designed to connect the electrical hook installation in cars where computer lighting control systems are used to:

• power supply and diagnostics of bulbs in lamps
• control of LED lamps
• PWM power supply (variable pulse width) of a single-fiber bulb realizing simultaneously position light and stop or position and fog where the average supply voltage is 5V and 12V respectively

In cars with digital buses (e.g. CAN-Bus) - direct connection to the rear lamps of the 13-pin socket used to connect the trailer results in errors on the board or damage to the car computer.

The module does not cause additional loads for the installation of the car, because each module input draws a current of about 1mA. The device allows you to connect the hook installation to the rear lamps of the car in which the PWM power supply of a single-fiber bulb is used and additionally protects the on-board computer against:

• excessive load on the current consumed by the trailer filament lamps
• possible short circuits in the electrical system of the trailer

• trailer connection detection
• protection of each output with a polymer fuse
• automatic test of lights and trailer installation
• support for PWM-powered single-fiber bulbs
• cooperation with parking sensors
• Disconnecting the car fog light

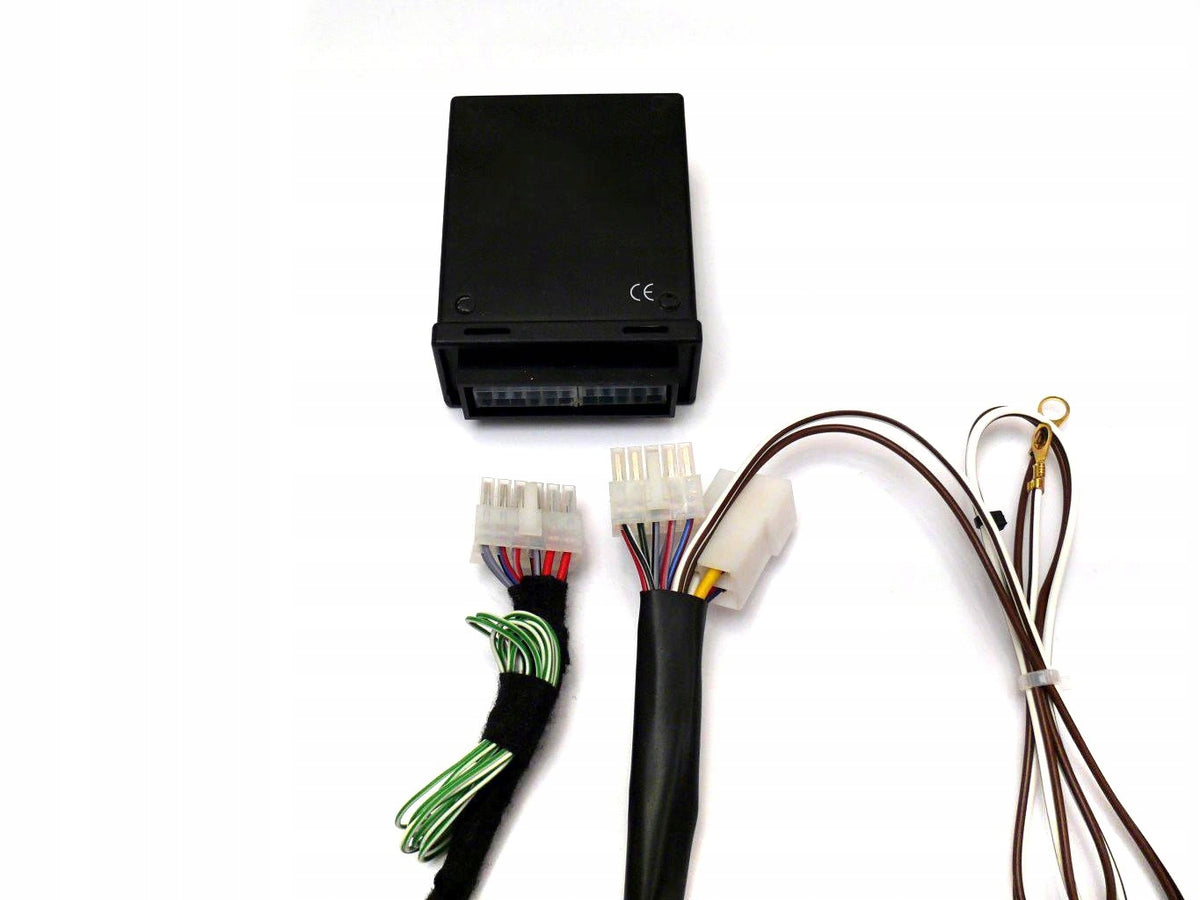

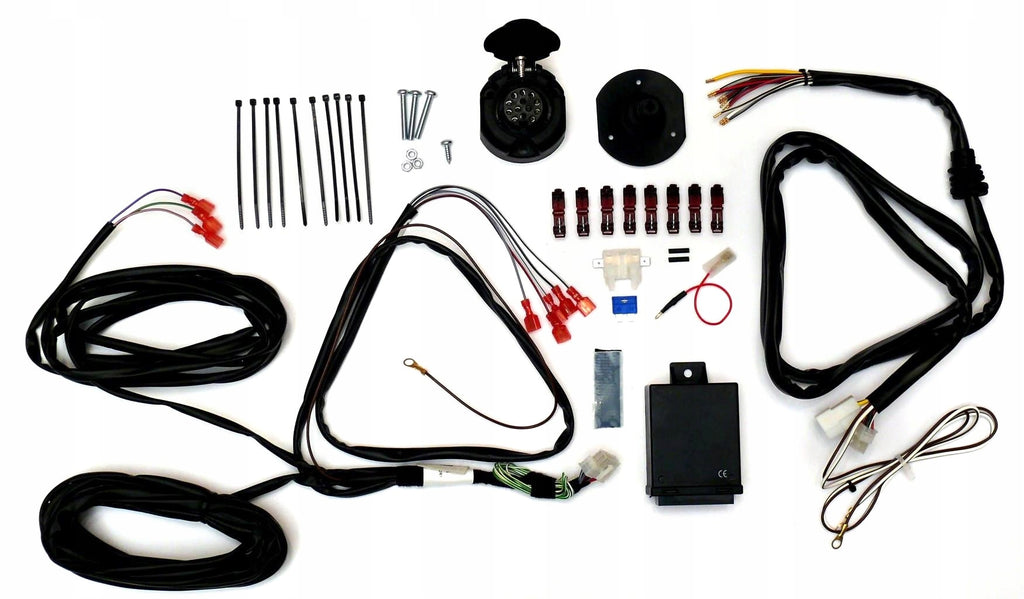

• Module control unit

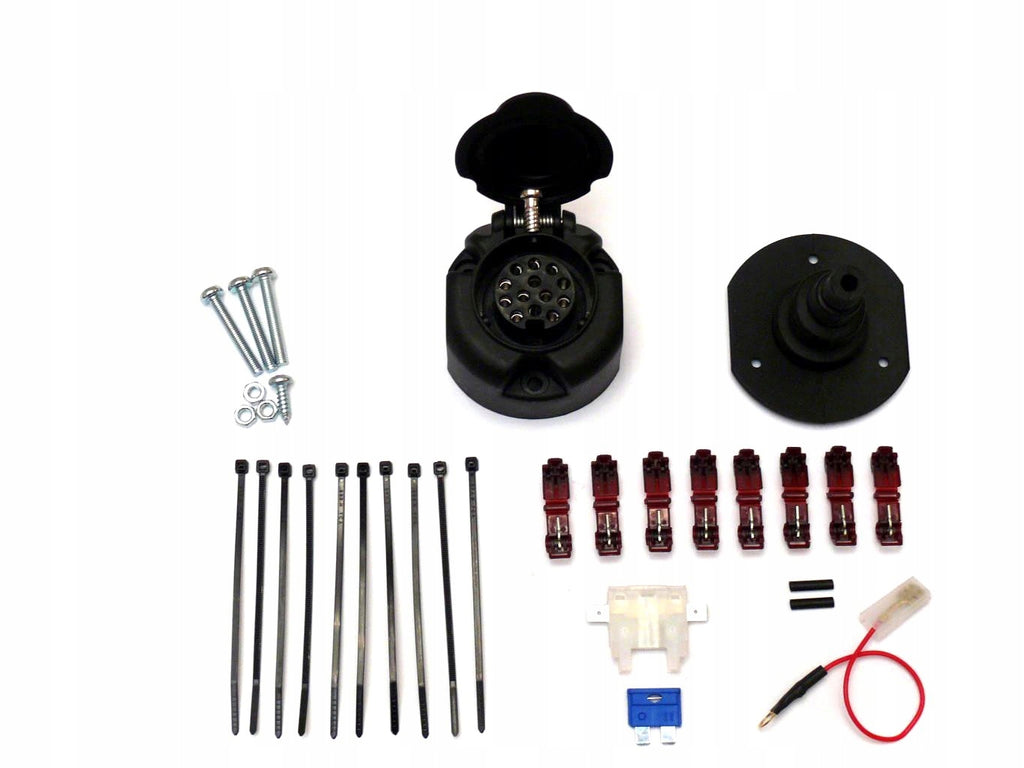

• 13-PIN socket
• Fuse holder and fuse 15A
• Beam connecting the module to the socket
• Power and signal beam
• Quick couplers
• Gasket for hook socket
• Detailed connection diagram

Specifications
