Priekabos jungties modulis su laidų jungtimi, 7 ir 13 PIN, universalus, pagaminta Lenkijoje

Trumpai apie prekę

Prekė: Priekabos jungties modulis su laidų jungtimi, 7 ir 13 PIN, universalus, pagaminta Lenkijoje. Kategorija: Laidai ir lizdai.

• Gamintojas: no brand

The WH0 module is the simplest trailer lighting controller in the most economical picking.

This is the simplest module with a minimum number of accessories at the lowest price.

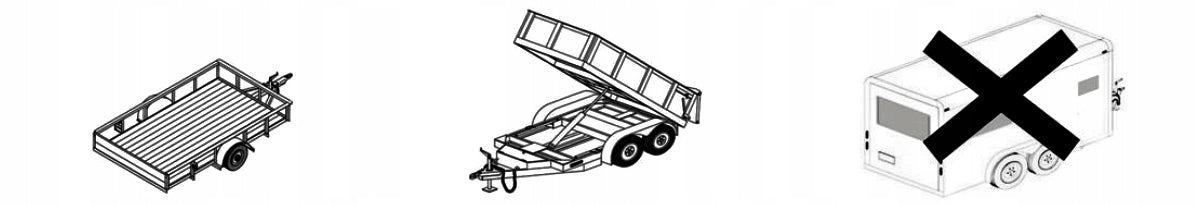

IMPORTANT: The module is designed to connect a 8-wire trailer installation (i.e. with a reverse light) and should be used with a 13-pin socket but can be used with a 7-pin socket (then without reverse light support).

MAIN FEATURES OF THE MODULE:

• Possibility to connect a 7 or 13pin socket!
• Designed for installation in vehicles with bulbs and LEDs!
• No fog light off in the car
• Reversing light!

BASIC FUNCTIONS OF THE MODULE

• Input current load: ≤2 mA
• Works with LED and single-fiber car lighting: YES
• Support car installation with variable lamp supply voltage (PWM)L YES (analog)
• Cooperation with LED lighting and incandescent trailer: YES
• Possibility to control the operation of the car parking sensor module: NO
• Trailer reverse light control: YES

METHOD FOR OPERATING THE REAR FOG LAMPS OF A CAR

• Method of controlling the trailer fog lamp: Direct
• Sequential way of controlling the trailer fog lamp: NIE

TECHNICAL DATA

• Supply Voltage:10-18 V
• Maximum output load of position lamps: (each side) 3 x 5 W
• Maximum stop light output load: 3 x 21 W
• Maximum output load of direction indicator lamps: (each side) 21+10 W
• Maximum fog light output load: 21 W
• Maximum load output of reversing lights: 21 W

Brief characteristics:

The WH0 module is the simplest trailer lighting controller in the most economical picking.

The module is designed to connect a 8-wire trailer installation (i.e. with a reverse light) and should be used with a 13-pin socket but can be used with a 7-pin socket (then without reverse light support).

It should be noted that this module is adapted to incandescent lighting as well as LED of the car as well as works correctly with the control of lighting type "PWM" in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position").

The module does not load the electrical circuit of the car, because the current consumption from the beam at each of the signal inputs is about 1mA, which excludes interference with the electronic system of the vehicle. It can be connected to both vehicle installations with filament bulbs and LEDs. The module is the most economical solution for mounting 13-wire installations.

Set Contents:

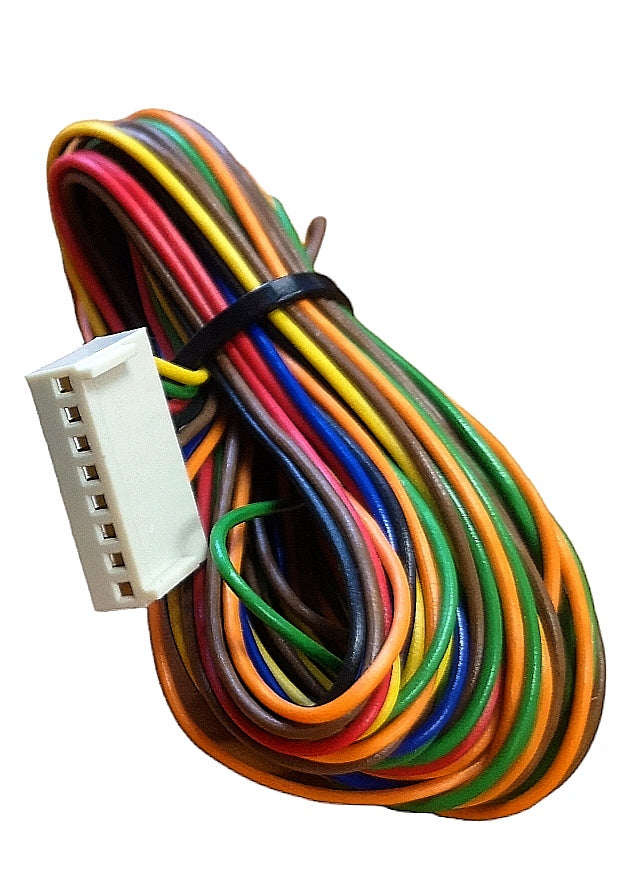

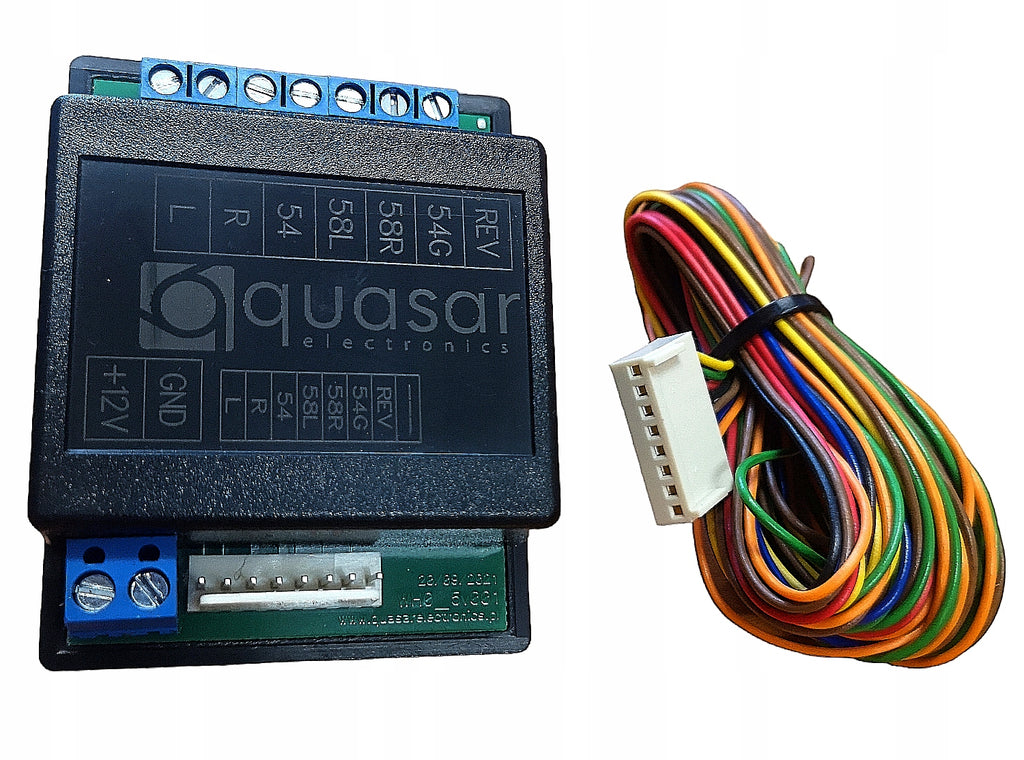

1. Module control panel
2. Beam for connecting module inputs
3. Scheme and assembly instructions

ASSEMBLY DIAGRAM:

IN THE ANNEX BELOW FULL INSTRUCTIONS WITH A DESCRIPTION OF THE COLORS OF THE WIRES, ETC.
