Priekabos lizdo testeris, 13 kontaktų

Trumpai apie prekę

Prekė: Priekabos lizdo testeris, 13 kontaktų. Kategorija: Laidai ir lizdai.

• Gamintojas: GMP

Description of the goods

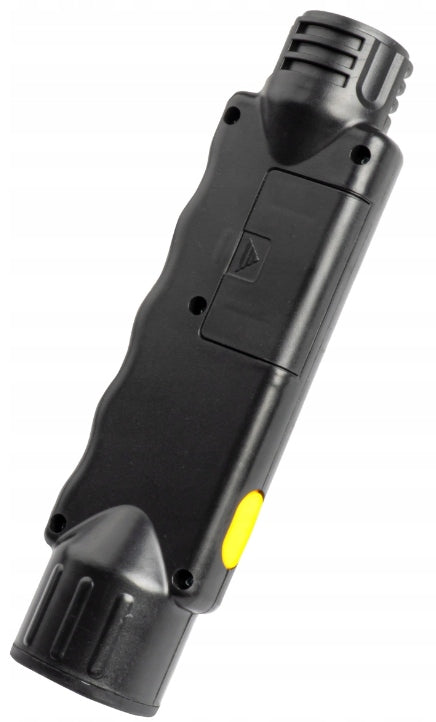

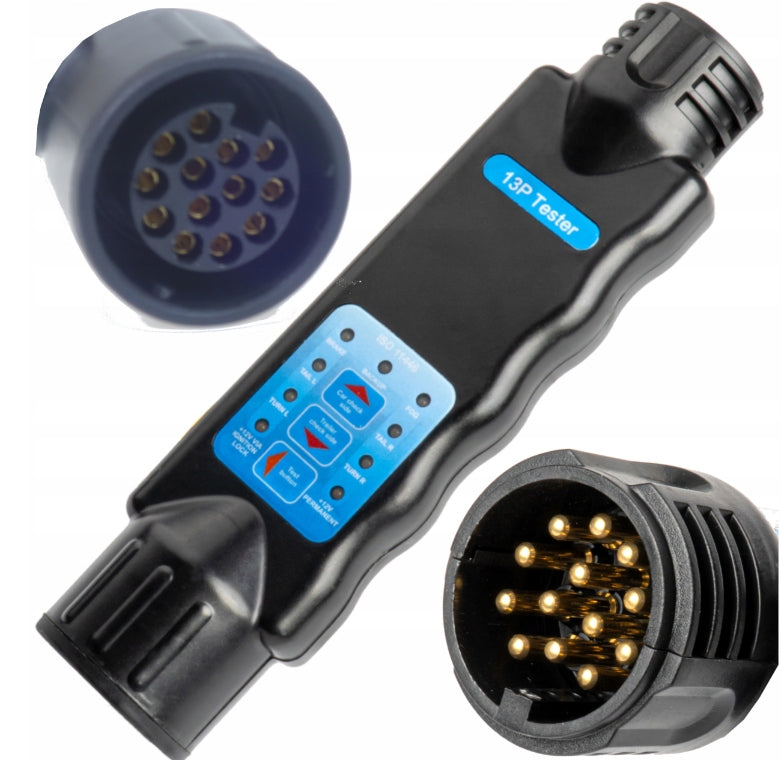

Professional, wireless tester designed to check and diagnose 13-pin plugs and sockets of trailers and hooks.

It allows you to quickly and easily check the correct operation of trailer lighting.

It is ideal for use by both inexperienced users and professionals.

It is great for use by both private trailer owners and in car workshops, trailer rental points, etc.

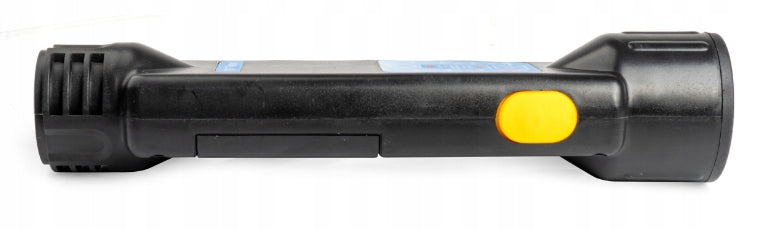

The tester has a finger recess on one side and a button on the other side, so it can be conveniently operated with one hand.

Checking the correct operation of the lighting before embarking on a journey can protect against detention by the police or even a fine!

USE:

One side of the tester is designed to check the plug in the trailer, and the other to diagnose the socket in the car.

PLUG TEST (TRAILERS):

Connect the plug to the tester.

Press the yellow button on the side of the tester.

If the light is green, the installation is EFFICIENT.

If the light is red, the installation is DAMAGED or the bulb is BURNED.

SOCKET TEST:

Connect the tester to the socket in the car

Turn on the light, e.g. stop or turn signal.

Press the yellow button on the side of the tester.

If the socket is FUNCTIONAL, the active light indicator light will turn green.

If the socket is DAMAGED (or the installation is FAULTY), the light will continue to glow RED.

SPECIFICATION:

The tester is designed for 13-pin (13-pole) plugs and sockets.

The tester is powered by a 9V battery (not included).

Wiring diagram 13 poles ISO 11446.

NOTE 1: Due to the low load of LED lamps, the tester is not suitable for checking installations in trailers based on LED lighting.

NOTE 2: To avoid damage to the tester or problems with the electrical system, you should never connect the device to the trailer and vehicle at the same time.
