Priekabos vilkimo modulis su 7 ir 13 pin laidų komplektu

Trumpai apie prekę

Prekė: Priekabos vilkimo modulis su 7 ir 13 pin laidų komplektu. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar

. . :: SUPPORT FOR REVERSE LIGHT✅ ❗ ::. .

✔ 8-wire trailer installation 7PIN

✔ 13-wire trailer installation 13PIN

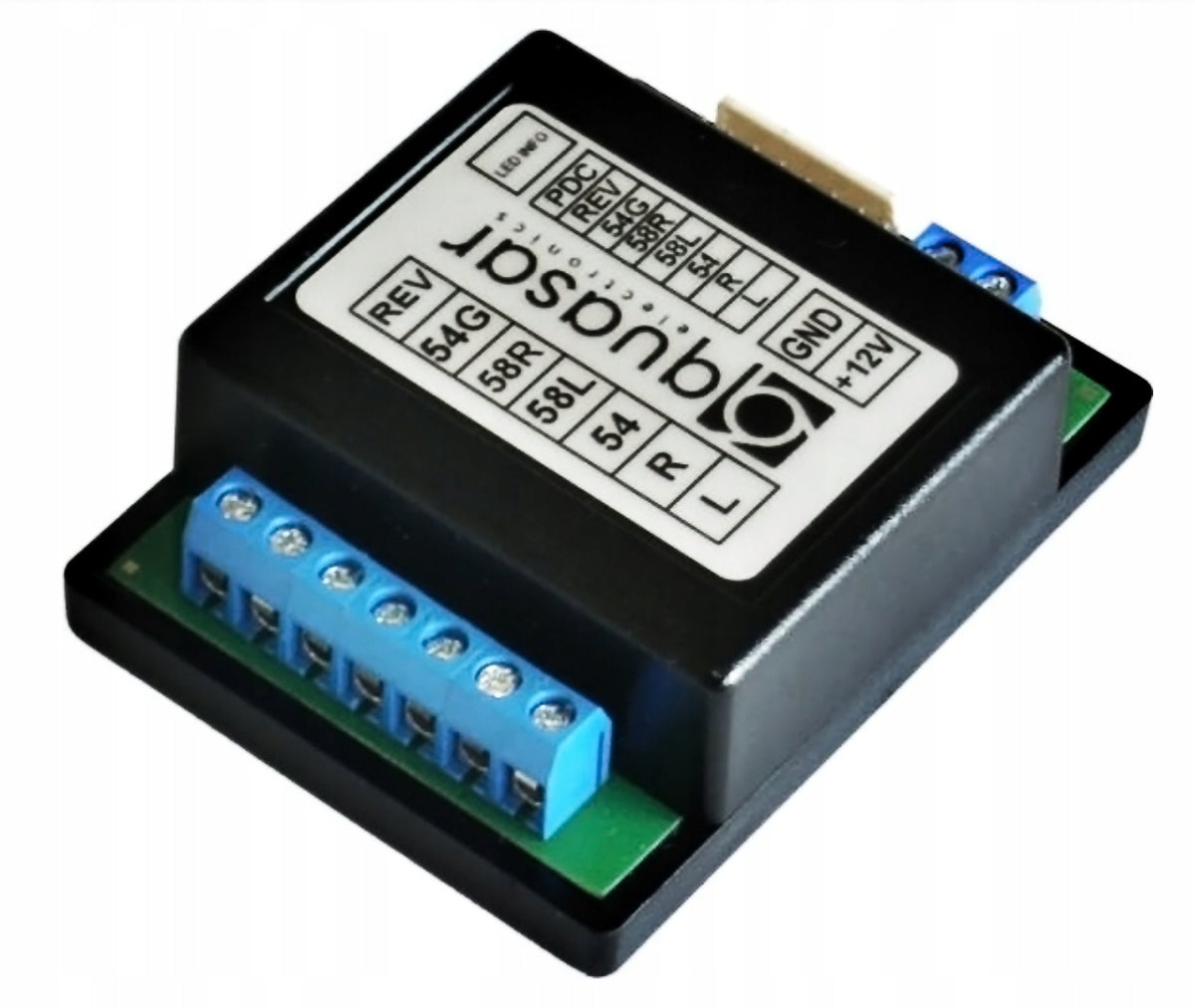

Elements of the MODULE set:

1 Control unit (control panel) 1 pc

2 Signal beam (7 inputs) 1 pc

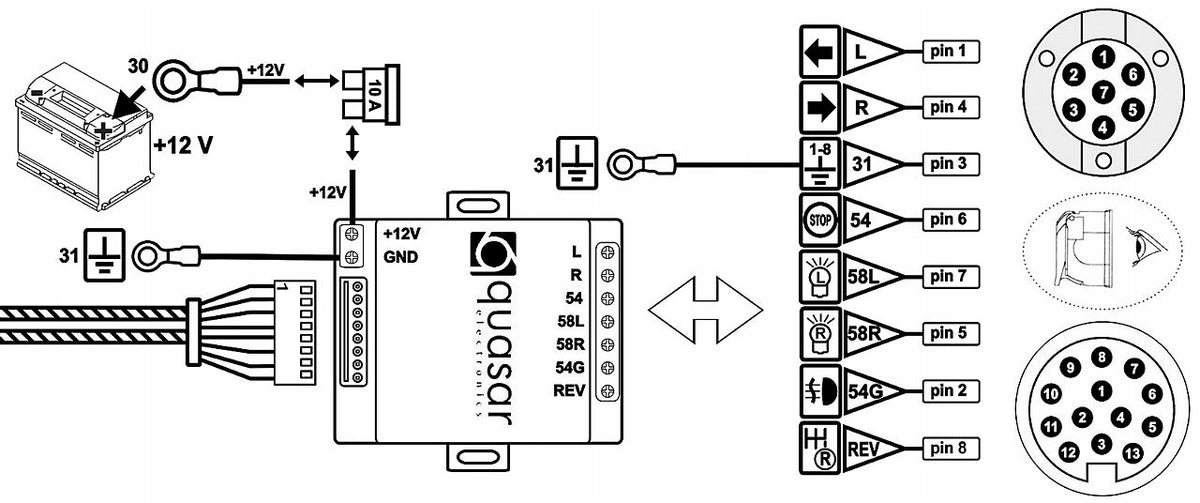

3 Connection diagram

Basic functions of the module

• ✅Input current load ≤2 mA
• ✅Cooperation with LED and single-fiber car lighting
• ✅Support car installation with variable lamp supply voltage (PWM)
• ✅Cooperation with LED lighting and incandescent trailer
• ❌Ability to control the operation of the car parking sensor module NO
• ✅Trailer reverse light control

Technical data

• Supply voltage 10-18 V

Max Output Load

✔ position lights (each side)3 x 5 W

✔ stop3 x 21 W lights

✔ direction indicator lamps (each side)21+10 W

✔ fog lamp21 W

✔ reversing lights21 W

Equipment of the set

Complete hook bundle kit with installation accessories (only the control unit and short bundle in. )

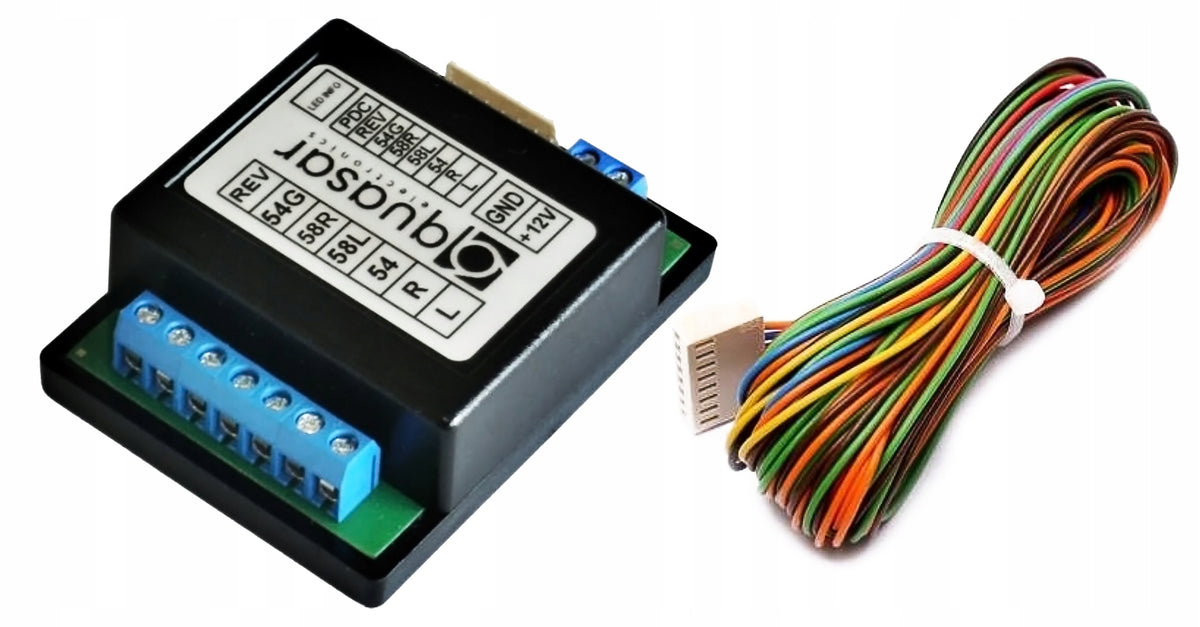

Set Contents:

1. Module control panel
2. Beam for connecting module inputs

Connection diagram of hook module wh0

Brief characteristics:

The WH0 module is the simplest trailer lighting controller in the most economical picking.

The module is designed to connect an 8-wire trailer installation (i.e. with reverse light) and should be used with a 13-pin socket but can be used with a 7-pin socket (then without reverse light support).

It should be noted that this module is adapted to incandescent lighting as well as LED of the car as well as works correctly with the control of lighting type "PWM" in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position").

The module does not load the electrical circuit of the car, because the current consumption from the beam on each of the signal inputs is about 1mA, which excludes interference with the electronic system of the vehicle. It can be connected to both vehicle installations with filament bulbs and LEDs. The module is the most economical solution for mounting 13-wire installations. The module packaging has small dimensions and weight, which is additionally advantageous for shipping.

NOTE: The kit does not include a socket (for connecting the trailer) or output wires (for the socket or power supply).
