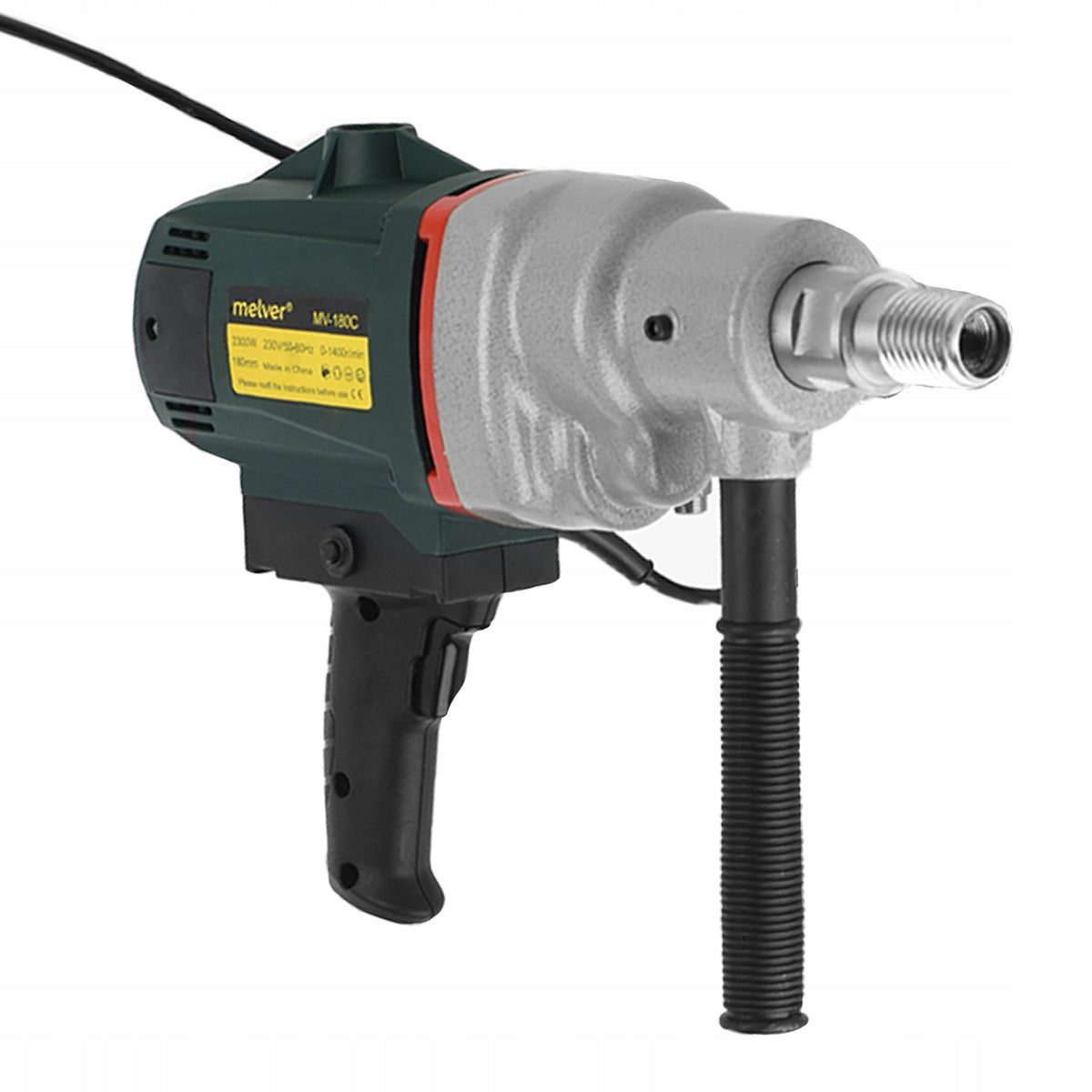

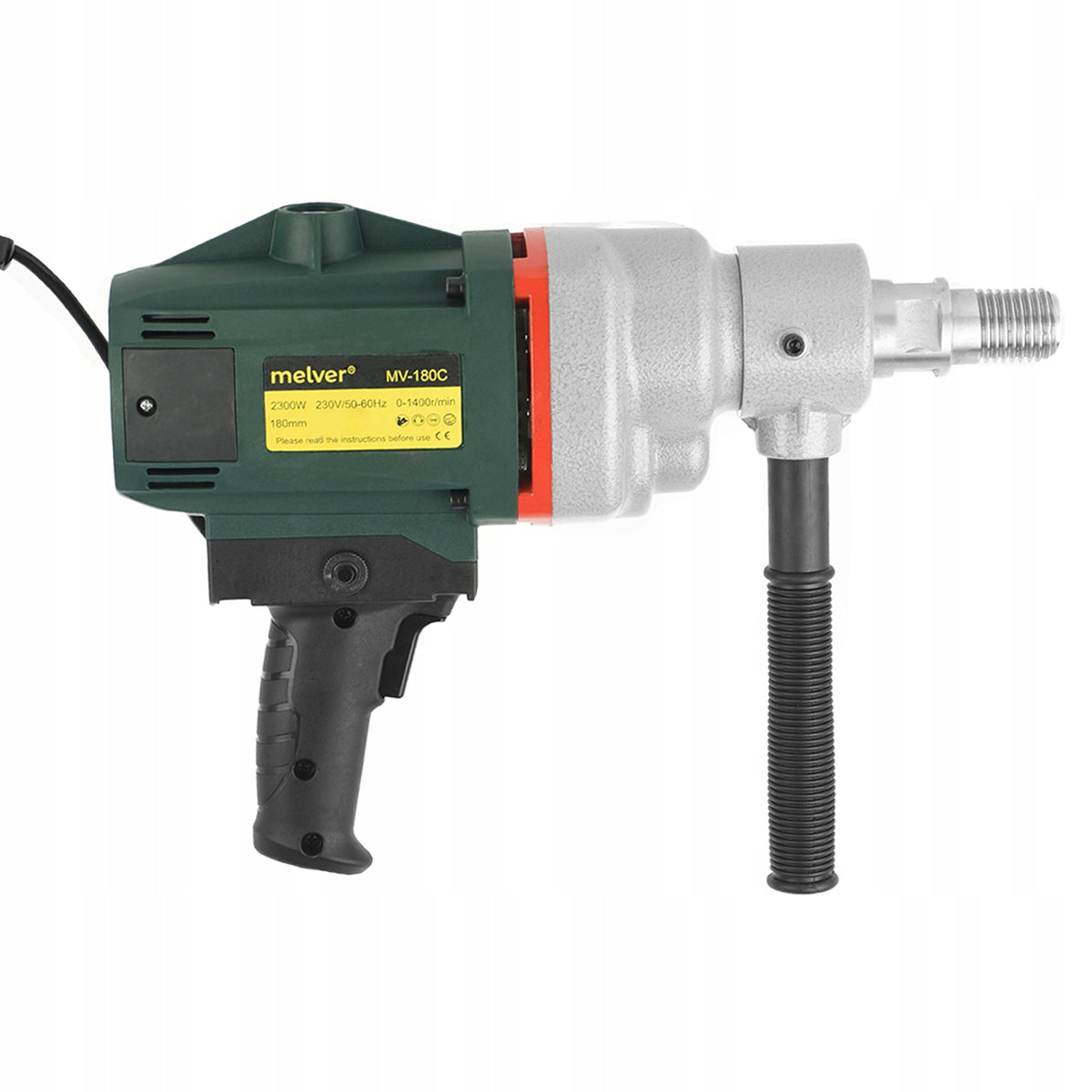

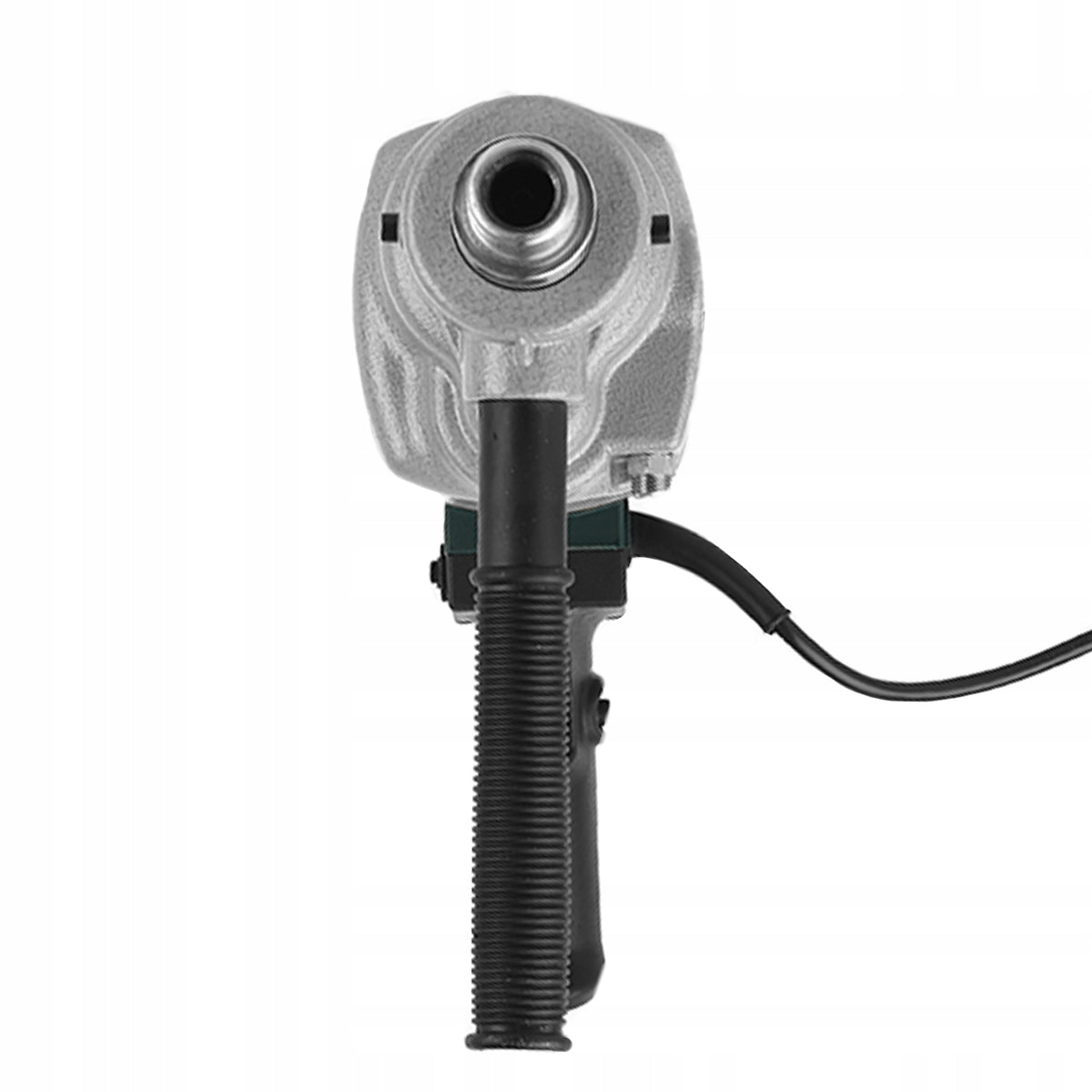

Profesionali rankinė deimantinė gręžimo mašina, 2300 W

Trumpai apie prekę

Prekė: Profesionali rankinė deimantinė gręžimo mašina, 2300 W. Kategorija: Grunto grąžtai.

• Gamintojas: Melver
• Modelis: MV-180C_bez_statywu

Professional Diamond Hand Drilling Rig 2300W | Ideal for Concrete, Reinforced Concrete and Asphalt-

SPECIAL FEATURES:

✅ Engine Power 2300W – reliable power for the toughest conditions

✅ Max. Diameter of Drilling 180 mm – ideal for large holes in concrete, reinforced concrete and asphalt

✅ Rotation speed 0 - 1400 rpm /min – the ability to adjust the speed to the type of material

✅ Spindle Compatibility: 1 ¼" external thread and ½" internal thread – a wide range of drill bits available

✅ Drilling Modes: Wet and dry – excellent versatility for a variety of applications

Get an edge with our high-performance diamond drilling rigs, which offer a better power-to-weight ratio in very good quality at an affordable price.

TECHNICAL DATA:

• Power supply: 230 V
• Engine power: 2300 Watt
• Max. Drilling diameter (pipe drill): 180 mm
• Max. Rotational speed [rpm. / min.]: 0 - 1400
• Spindle size: External thread 1 ¼
• Spindle size: Internal thread ½"
• Mechanical clutch: YES
• Number of gears: 1
• Residual current circuit breaker on power cable: 16A
• Wet drilling / dry drilling: YES
• Substrate material: Concrete, Reinforced concrete, Asphalt
• Length of power cord [m]: 2,2
• Drilling rig weight: 7,5 kg
• Purpose: Making culverts for pipes, ventilation ducts and cables, connections, etc.

Dimensions:

• h1 [total height] 29 cm
• L2 [length of side handle] 18 cm
• L3 [total length] 41 cm
• d1 [external spindle size] 1.1/4"
• d2 [internal spindle size] 1/2"

MAIN APPLICATION:

• drilling holes and drilling in all types of concrete max. up to 180 mm
• for work on electrical, hydraulic or heating-air conditioning systems
• drilling in masonry, concrete, reinforced concrete, reinforced concrete, silicate, clinker, brick, hollow block or stone
• drilling under cans in electrical installations
• making passes for cables, sewage pipes, ventilation
• drilling holes for anchors and through holes
• drilling in brittle materials and near edges
• drilling through rebar
• wet drilling from a tripod or from a hand in reinforced concrete
• service and repair and demolition works

ADDITIONAL INFORMATION:

• universal spindle size 1 ¼'' external and ½" internal allows for direct installation of crown drills and extensions widely available on the market
• integrated cooling system increases cooling efficiency, reduces dusting and extends the life of crown drills. Allows you to connect the drill to a garden hose or hydronet source.

• safety- overload clutch and thermal relay protects the engine and transmission, while PRCD cable module protects the user from shock and prevents accidental start-up or switch-on of the device in the event of a short circuit

SCOPE OF DELIVERY:

• Diamond Drilling Rig 2300W
• User manual
• Suitcase

INFORMATION: THE SUITCASE IS NOT SUBJECT TO SALE AND THEREFORE IS NOT SUBJECT TO COMPLAINT.
