Programuojama elektroninė apkrova OWON OEL1520, 150V, 20A, 300W

Trumpai apie prekę

Prekė: Programuojama elektroninė apkrova OWON OEL1520, 150V, 20A, 300W. Kategorija: Baterijų testeriai.

• Gamintojas: Owon
• Modelis: OEL1520

Programmable electronic load OWON OEL1520 is a versatile DC measuring device that combines precision with high power 300 W. This model is designed to operate in voltages up to 150 V and currents up to 20 A, making it an ideal tool for testing a wide range of power supplies, inverters, as well as battery packs used in consumer electronics and electric vehicles. Thanks to its excellent resolution and stability, the OEL1520 is suitable for both quality control and advanced R&D projects.

The device is equipped with a clear, 2.8-inch TFT color LCD display, which presents key parameters in real time. The OEL1520 offers high measurement accuracy with a current reading resolution of 0.1 mA. It supports four standard operating modes: constant voltage (CV), constant current (CC), constant resistance (CR) and constant power (CP). In addition, the equipment has the function of dynamic tests up to 5 kHz, which allows you to verify the behavior of the tested systems with rapid load changes. The efficient cooling system guarantees stable continuous operation at full power of 300W. Remote communication is possible thanks to the USB Device and RS232 interfaces (SCPI support).

Parameters:

• Brand: OWON
• Model: OEL1520
• Voltage range: 0 - 150 V DC
• Current Range: 0 - 20 A
• Maximum power: 300 W
• Operating modes: CC, CV, CR, CP
• Reading resolution: 1 mV / 0.1 mA
• Dynamic test up to 5 kHz
• Rate of current build-up to 2 A/μs
• Display 2.8" LCD TFT
• Protections: OVP (voltage), OCP (current), OPP (power), OTP (thermal)

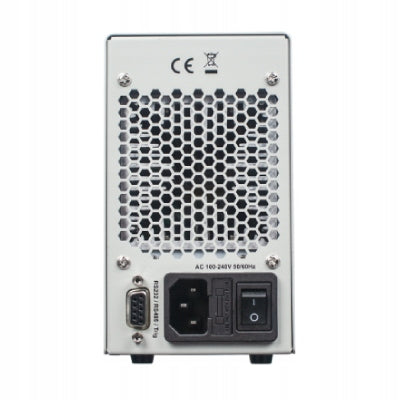

• Communication interfaces: USB Device, RS232 (RS485 optional)
• Power supply 100 V - 240 V AC, 50/60Hz
• Active cooling
• Dimensions: 84 x 151 x 283 mm
• Weight: approx. 2.5 kg
• Additional Features: Settings Memory, Keyboard Lock, Remote Compensation
• Optional test functions: Battery test, OCP/OPP dynamic test

Constant Voltage (CV) mode: adjustment range from 0 to 150 V, resolution 1 mV, accuracy ±(0,05% + 0,05% FS)

• Constant Current (CC) mode: adjustment range from 0 to 20 A, resolution 1 mA, accuracy ±(0,05% + 0,05% FS)

• Constant resistance (CR) mode: adjustment range from 0,05 Ω to 7,5 kΩ, accuracy ±(0,1% + 0,01% R)

• Constant power mode (CP): adjustment range from 0 to 300 W, resolution 10 mW, accuracy ±(0,1% + 0,1% FS)

• Voltage reading in the range from 0 to 150 V, resolution 1 mV, accuracy ±(0,05% + 0,05% FS)

• Current reading in the range from 0 to 20 A, resolution 0,1 mA, accuracy ±(0,05% + 0,05% FS)

• Power reading in the range from 0 to 300 W, resolution 10 mW, accuracy ±(0,1% + 0,1% FS)

• Dynamic parameters: time T1 and T2 adjustable from 0,1 ms to 50 s, time accuracy ±15%

• Adjustable current build-up rate (Slew Rate) ranging from 0,001 A/µs to 2 A/µs, minimum build-up time 20 µs

• Dimensions (width x height x depth): 84 x 151 x 283 mm

• Weight of the device: about 2,5 kg

The set includes

• 1 x Electronic load OWON OEL1520
• 1 x Power Cord
• 1 x Fuse (spare)
• 1 x User Manual (User Manual)
• 1 x Original packaging
