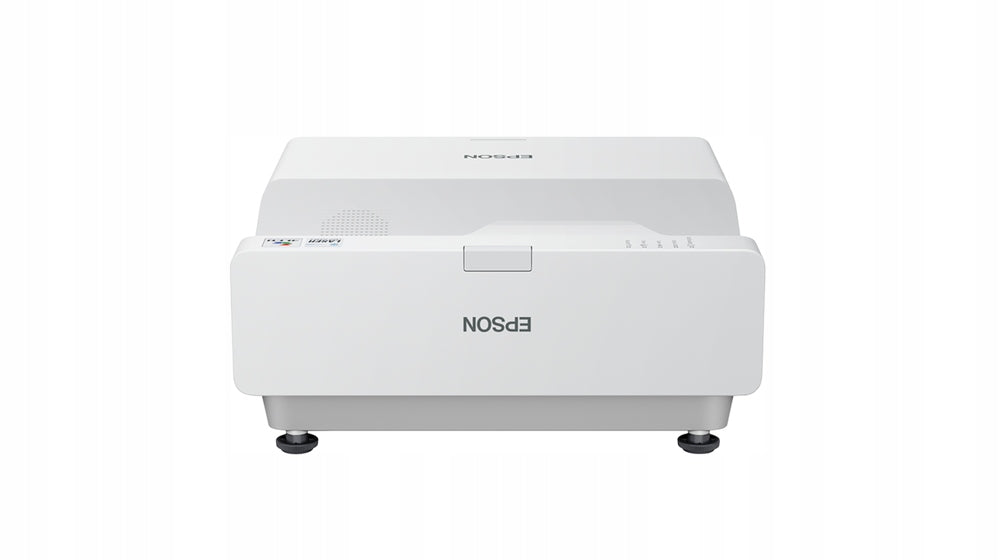

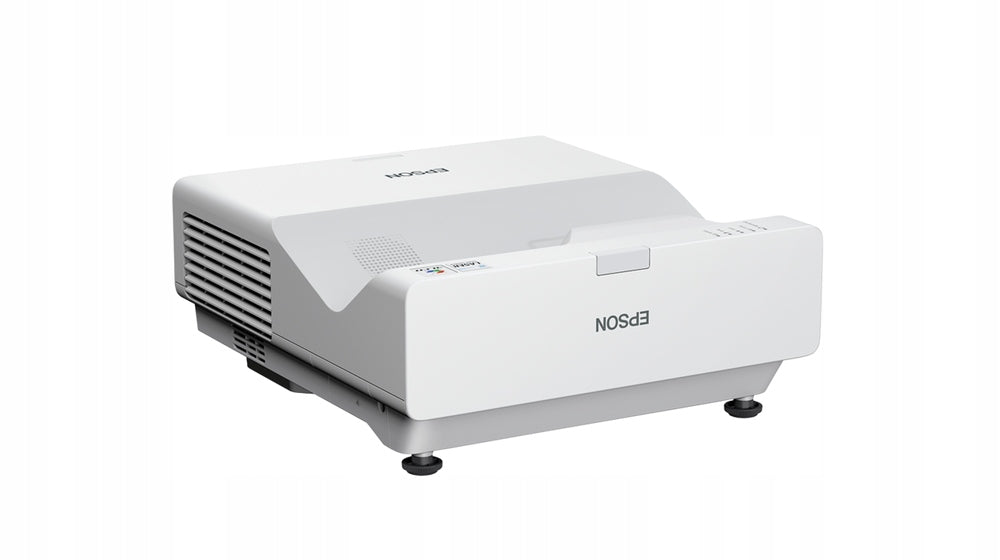

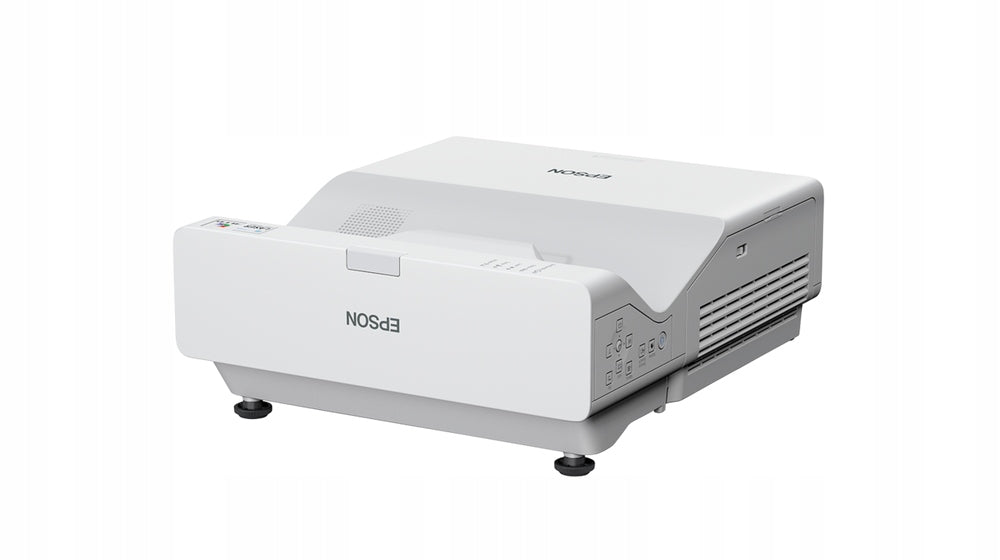

Projektorius Epson EB-760W

Trumpai apie prekę

Prekė: Projektorius Epson EB-760W. Kategorija: Įrenginiai.

• Gamintojas: Epson
• Modelis: EB-760W
• Spalva: white

Flexible UST Laser Projector

Showcase your vision with an affordable large format projector with an image size of up to 150 inches, which allows you to increase engagement and productivity and makes learning easier.

• Projector 53 – 150” HD UST
• CLO laser with 4100 lumens brightness
• Wireless connectivity

This bright, clear, compact and accessible display provides unlimited possibilities for immersive presentations regardless of the size of the classroom or conference room.The bright image of the EB-760W projector with the ability to scale up to 150 inches is clearly visible from any angle and from a long distance,and also allows you to easily share content and stream directly from multiple devices for optimal collaboration.

The ultra-short throw lens of the EB-760W allows for secure, discreet positioning near the screen, giving presenters the freedom to operate without casting a shadow. With 4,100 lumen color light output and Epson 's 3LCD technology, up to 150-inch diagonal images are bright and vivid and clearly visible from any angle and from long distances. Immersive user-friendly environment.

The projector also enables flexible image scaling in 49 to 150 inches, allowing you to optimize it to room size using a single, well-known product at no additional cost Versatile wireless and wired connection options such as Miracast™ screen mirroring allow participants to easily share content from computers or mobile devices. By connecting an optional Epson visualizer, you can view documents, presentations and 3D objects in incredible detail.

Unlike flat screen monitors, it does not require the use of a heavy glass panel prone to breakage, on which blind spots and reflections appear at a certain angle. In addition, presenters are not affected by direct blue light radiation harmful to vision. Combined with a hygienic, antibacterial whiteboard, teachers can make annotations to presentations using dry erase pens or simply use a whiteboard with the projector turned off to save energy.

Key features

• Scalable HD display for any room53-150” UST projector for interference-free viewing (shadows/reflections)
• Bright and energy-efficient laserBrightness 4100 lm CLO and 3LCD technology provide brighter colors with a power consumption of only 205 W
• Seamless connectivity optionsAutomatic on, wired/wireless projection with USB 2 A output for smart modules
• Easy operation and durable constructionPr
• Visualizer compatibilityCreate and record a live immersive lesson or presentation

Technique

Projection system

3LCD Technology, Liquid Crystal RGB Shutter

LCD panel

0.59 inch with C2 Fine


Colour light intensity

4.100 lumen- 2.800 lumen (economy mode) according to IDMS15.4

White light intensity

4.100 lumen - 2.800 lumen (economy mode) In accordance with ISO 21118:2020

Resolution

WXGA

High Definition

HD ready

Image aspect ratio

16:10

Contrast ratio

Over 2,500,000 : 1

Light source

Laser

Light source

20.000 Hours Durability High, 30.000 Hours Durability Eco

Image correction

Manual operation (or "Operating Manual") vertically: ± 3 °, Manual operation (or "Operating Manual") horizontally ± 3 °

Video processing

10 Bit

2D Vertical Refresh Rate

100 Hz - 120 Hz

Color reproduction

up to 1,07 billion colours

Optical system

Projection ratio

0,27 - 0,37:1

Zoom

Digital, Factor: 1 - 1.35

Lens

Optical

Projection size

60 inches - 150 inches

The aperture value of the projection lens

1,6

Focal distance

3,7 mm

Focus

Manually

Shift

6 : 1

Connectors

Connections

USB 2.0-A (2x), RS-232C, Ethernet Interface (100 Base-TX / 10 Base-T), IEEE 802.11a/b/g/n/ac Wireless LAN (WiFi 5), VGA Input (2x), VGA Output, HDMI Input (3x), Composite Signal Input, Miracast, Output Plug Socket, Input Plug Socket (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone Input

Connection to a smartphone

Ad-hoc / Infrastruktura

Network protocol

HTTPS, IPv4, IPv6, SNMP, ESC/ VP.net , PJLink

Advanced features

Security

Kensington Lock, Control Panel Lock, Padlock, Security Cable Hole, Wireless LAN Module Lock, Wireless LAN Security, Password Protection

Functions

A/V mute, Arch correction function, Automatic switching on,Automatic image source search, Built-in speaker,Compliance with CEC standard, User logo with the possibility of personalization,Digital Zoom, On/Off Direct,Compatible with document scanner, Email notification,Display, Horizontal and Vertical Image Geometry Correction,Image Offset, JPEG Browser, Long Life Light Source,Network Projection, OSD Copy Function, Without Computer,Power on button, Quick Corner, Scheduling function, Mirror screen reflection, Panoramic screen (16:6), Network control, Online remote control function, Wireless LAN connection possible, iProjection app

Color Modes

Whiteboard, Cinema, Dynamic, Presentation, sRGB

Projector control

via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Finding, Control4 Simple Device Discovery Protocol

General information

Power consumption

197 W - On mode power consumption (Normal)

263 W (Peak), 199 W (Eco), 0.5 W (Energy saving standby)

Heat dissipation

895 BTU/hour (max)

Supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product Dimensions

356 x 395 x 133 mm (Width x Depth x Height)

Product weight

5,9 kg

Noise level

Normal mode: 37 dB (A) - Economy mode: 27 dB (A)

Temperature

Storage -10°C - 60°C

Humidity of air

Work 20% - 80%, Storage 10% - 90%

If the projector is mounted on a ceiling or wall in a place exposed to oil smoke,evaporated oils or chemicals, or in place,in which soap bubbles and smoke are produced during events,and where aromatic oils are often roasted,some parts of our products may become susceptible to material degradation over time,This can result in the projector breaking the mount and falling off the ceiling.

Attached Software

EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Options

Air filter, Ceiling mount, Connection and control box, External speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN module, Wireless transmitter - ELPWT01

Loudspeakers

16 IN

Contents of the set

Power Cable, Quick Start Guide, Remote Control with Batteries

Type of room / application

Conference room/class

setting

Ceiling Mount, Desk Projectors, Wall Mount

Color

White

Other

Specifications
