Apraksts
Trumpai apie prekę

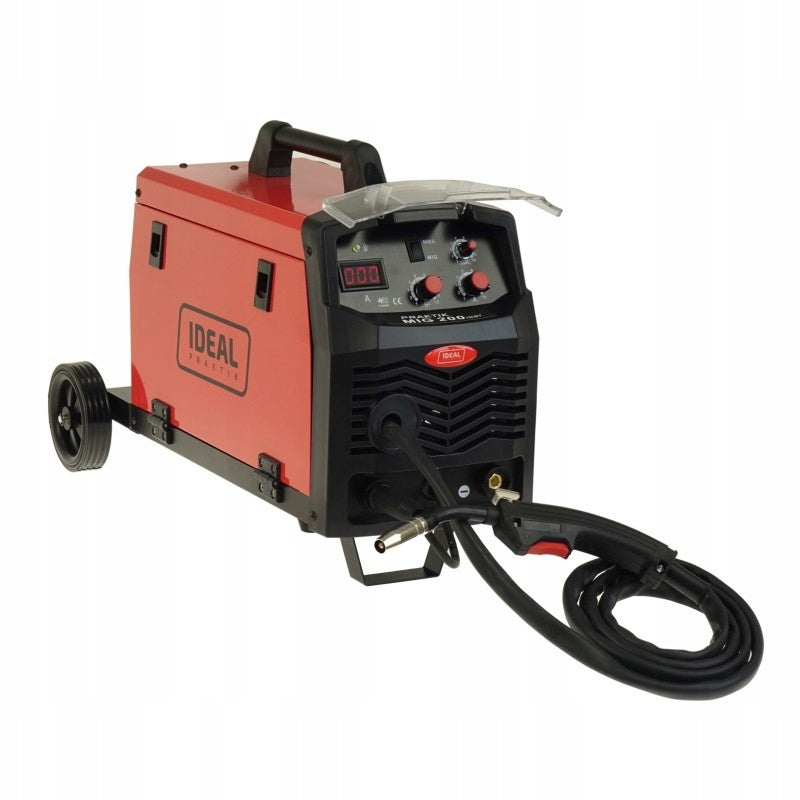

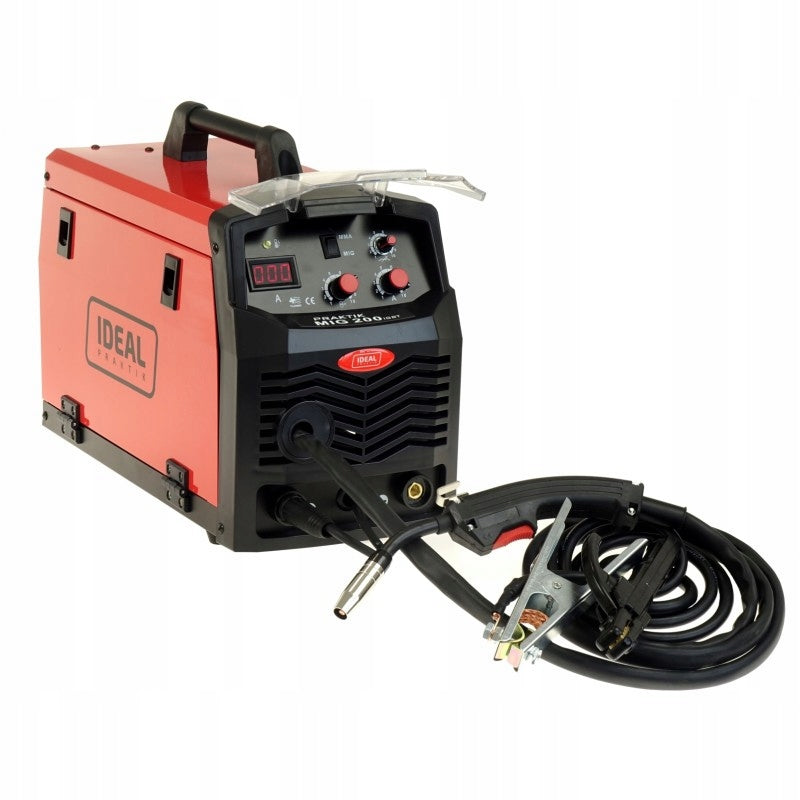

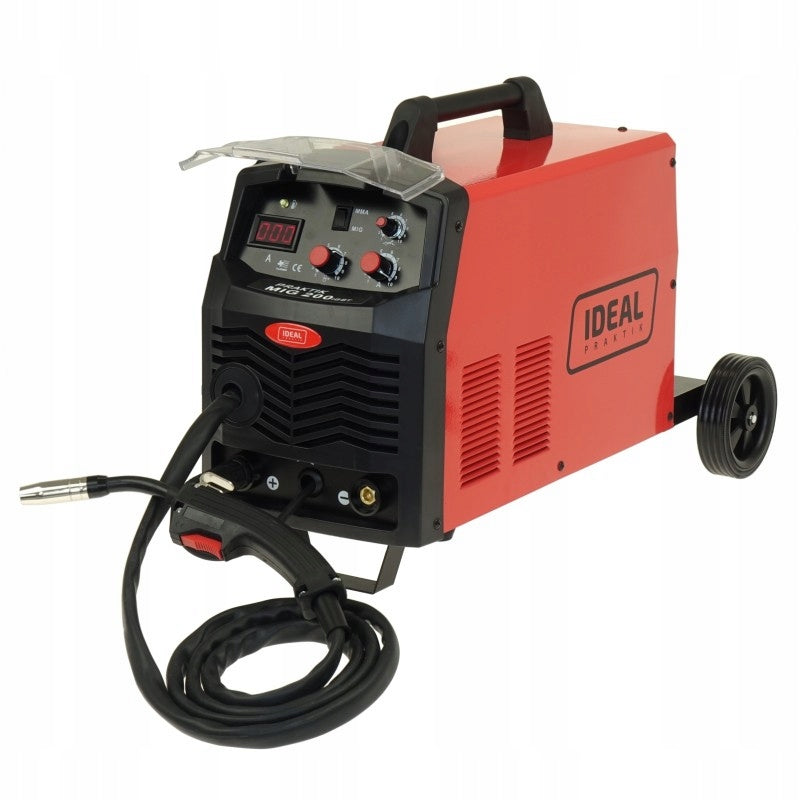

Prekė: Pusiau automatinis suvirinimo aparatas Ideal PMIG200V2 PRAKTIK MIG 200 MMA IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: PMIG200V2
- Ilgis: 550 mm
- Plotis: 230 mm
- Aukštis: 325 mm
Product code: PMIG200V2
Brand: Ideal
PRAKTIK MIG 200 MMA DIGITAL is an inverter semi-automatic welding machine designed for MIG/MAG, MMA and FLUX arc welding. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
PRAKTIK MIG 200 is used for welding carbon and low alloy steels and aluminium. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.
The device is equipped with inductance regulation.
Single-phase power supply.
Maximum spool with wire: 5 kg.
Welding torch with a length of 2,2m permanently mounted.
Smooth regulation of welding current.
With MIG-MAG welding, the possibility of adjusting: welding current, wire feed speed.
Wire feeder: 2-roll, with 0,6-0,8 roll for steel wire.
Cooled by a fan.
Protection against overload.
Technical data:
- Degree of protection: IP21S
- Power: 5,2 kW
- Idle Voltage: 56 V
- Current at 60% operation: 180 A
- Self-shielding wire diameter: 0,8 - 0,9
- Steel wire diameter: 0,6 - 0,8
- Stainless steel wire diameter: 0,6 - 0,8
- Welding current adjustment range: 30 - 200 A
- Power supply network protection: 20 A
- Rated supply voltage: 230 V; 50Hz (1ph)
The delivery includes a device with a direct MIG welding torch, a mass cable with a length of 2 meters and an electrode cable with a length of 2 meters.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 6.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 14.7 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 325 mm |
| Parametry | Length | 550 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 220 cm |
| Parametry | Product weight with unit packaging | 28 kg |
| Parametry | Manufacturer code | PMIG200 ZESTAW#0 |
| Parametry | EAN (GTIN) | 5903991106599 |
| Parametry | Model | PMIG200V2 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,LCD display |
