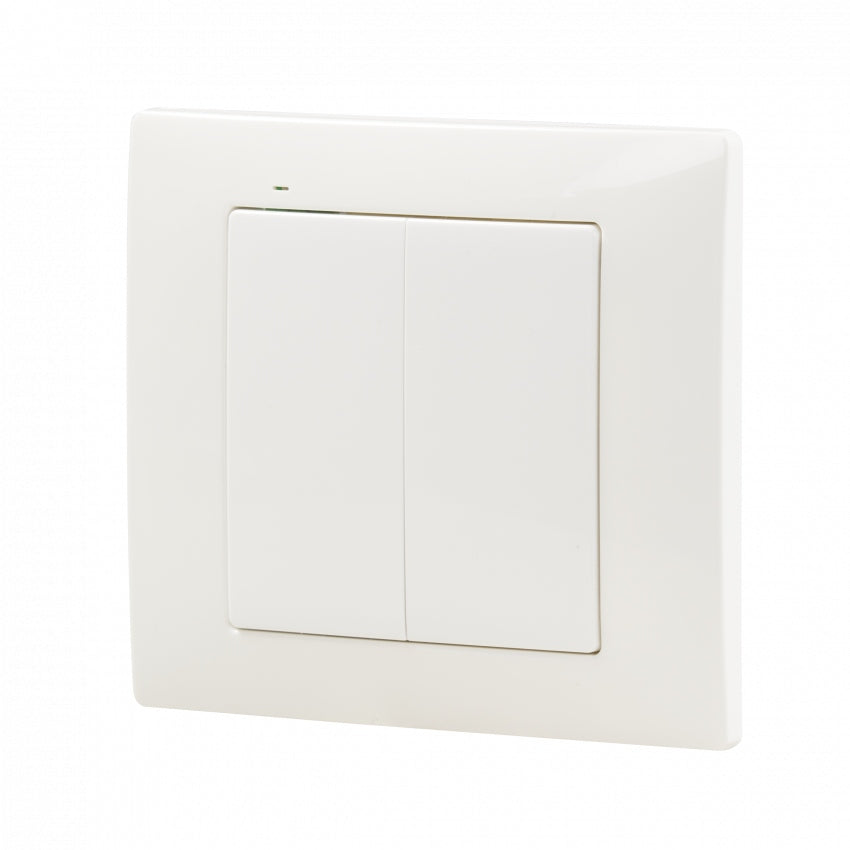

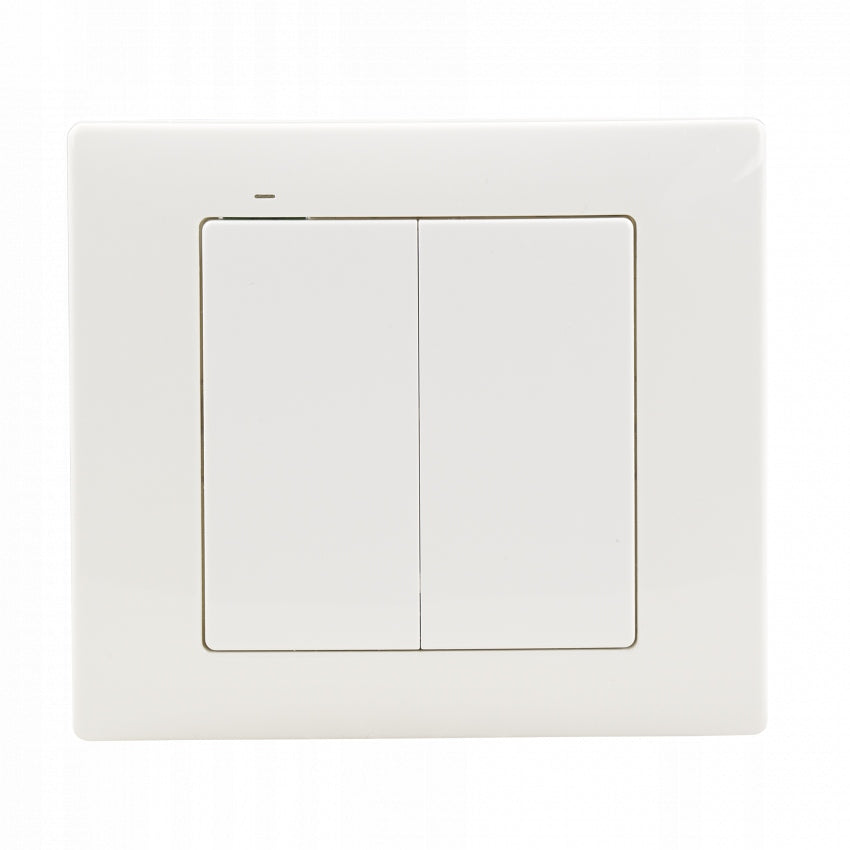

Radijo raktų siųstuvas RNK-24 Exta Life, 4 kanalų

Trumpai apie prekę

Prekė: Radijo raktų siųstuvas RNK-24 Exta Life, 4 kanalų. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: RNK-24

Transmitter with temperature sensor

ZAMEL RNK-22 for EXTA LIFE series

Radio transmitters RNK-22 and RNK-24 are used to send control signals and information about the temperature value in the EXTA LIFE system. They are used in the implementation of such operations as switching on / off, brightening / dimming, control of window blinds. The implemented frame encoding algorithm increases transmission security. Temperature information combined with the functionality of the EFC-01 controller can be used to control the heating system. Transmitters in appearance and dimensions refer to traditional installation connectors. Battery power and lack of any wiring give a wide range of application possibilities.

Transmitters can be placed on any surface (excluding metal) and in any location of the room. The ability to program several transmitters to one receiver gives great freedom when creating the control part of the installation.

FUNCTIONAL FEATURES OF THE PRODUCT:

The RNK-22 and RNK-24 buttons allow for mounting on any surface. This is especially important for large glazing, as well as wooden houses. The button can be moved to another, more convenient place at any time.

Thanks to the integration of the temperature sensor inside the key, we have constant control over changes occurring during the day.

The 4-channel key transmitter allows for independent control of 4 circuits. It is also possible to program selected scenarios.

Power supply: Battery (battery)

Variable (carousel) code system: Yes

Handheld radio transmitter: Yes

Degree of protection (IP): IP20

Transmission: radio – ISM band 868 MHz ( 868,50 MHz )

Transmission method: algorithm based on 128 bit key

Protection class: III

Compliance with standards: PN-ETSI EN 300 220-1,

PN-ETSI EN 300 220-2

Optical signaling of battery transmission/discharge: LED green

Temperature measurement range by the sensor:-40 ÷ 125 °C

Measurement resolution:0,1 °C

Measurement accuracy1 °C (type) 0 ÷ 85 °C and 2 °C (type) -40 ÷ 125 °C

Temperature measurement frequency: every 15 minutes

Attention!!!

Shipping takes up to two business days/48 hours. It is carried out depending on the time of purchase, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the stated (2 days), i.e. that the product has sold out and we expect delivery, usually up to 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.

Specifications
