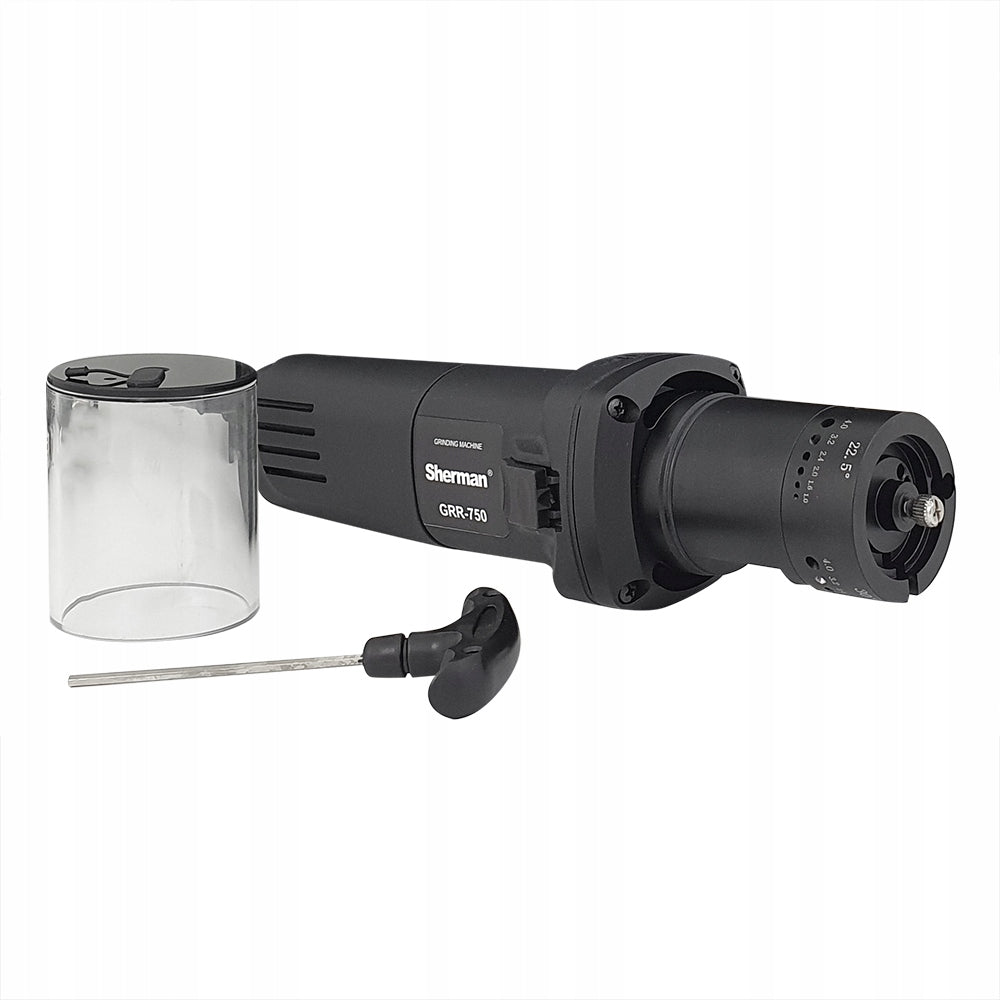

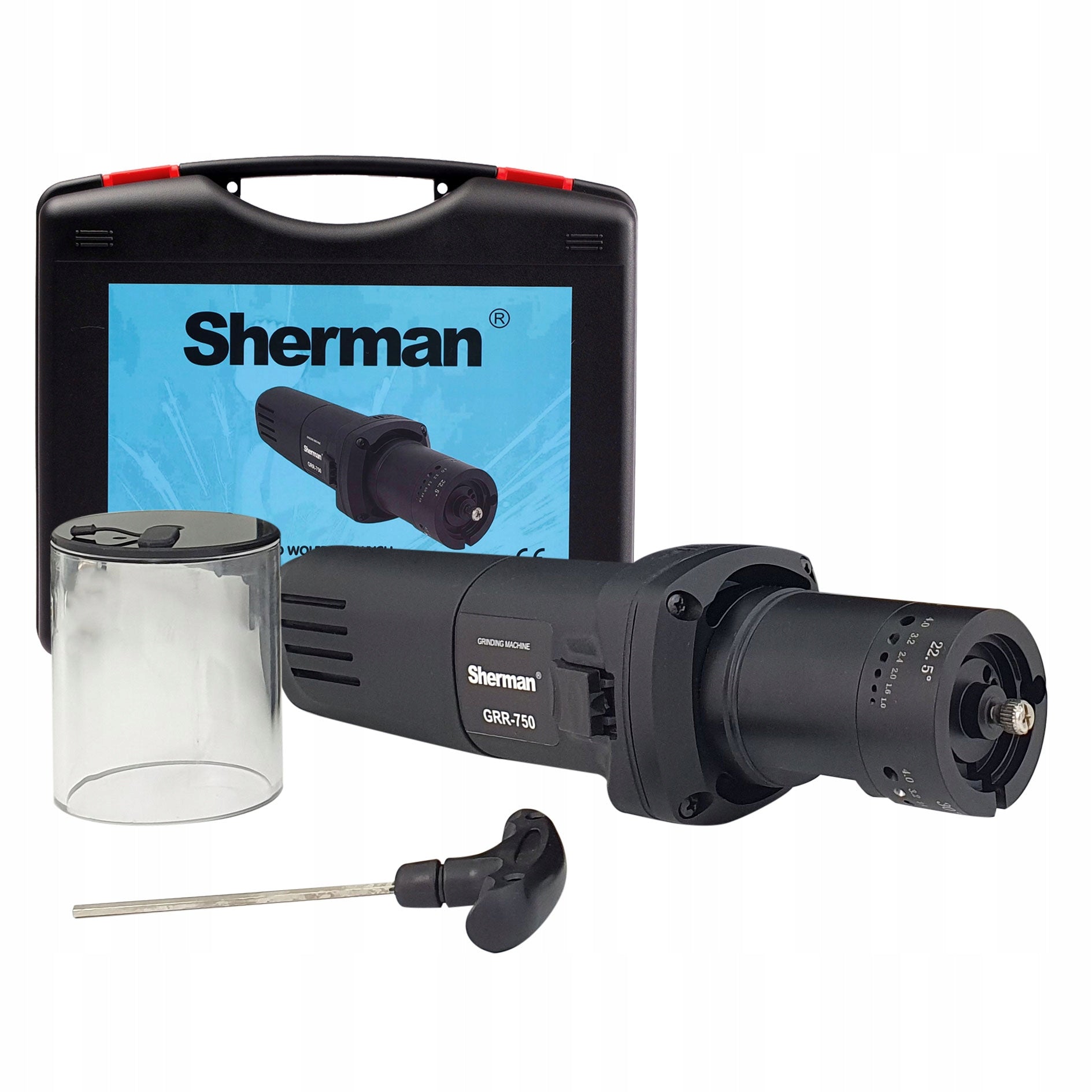

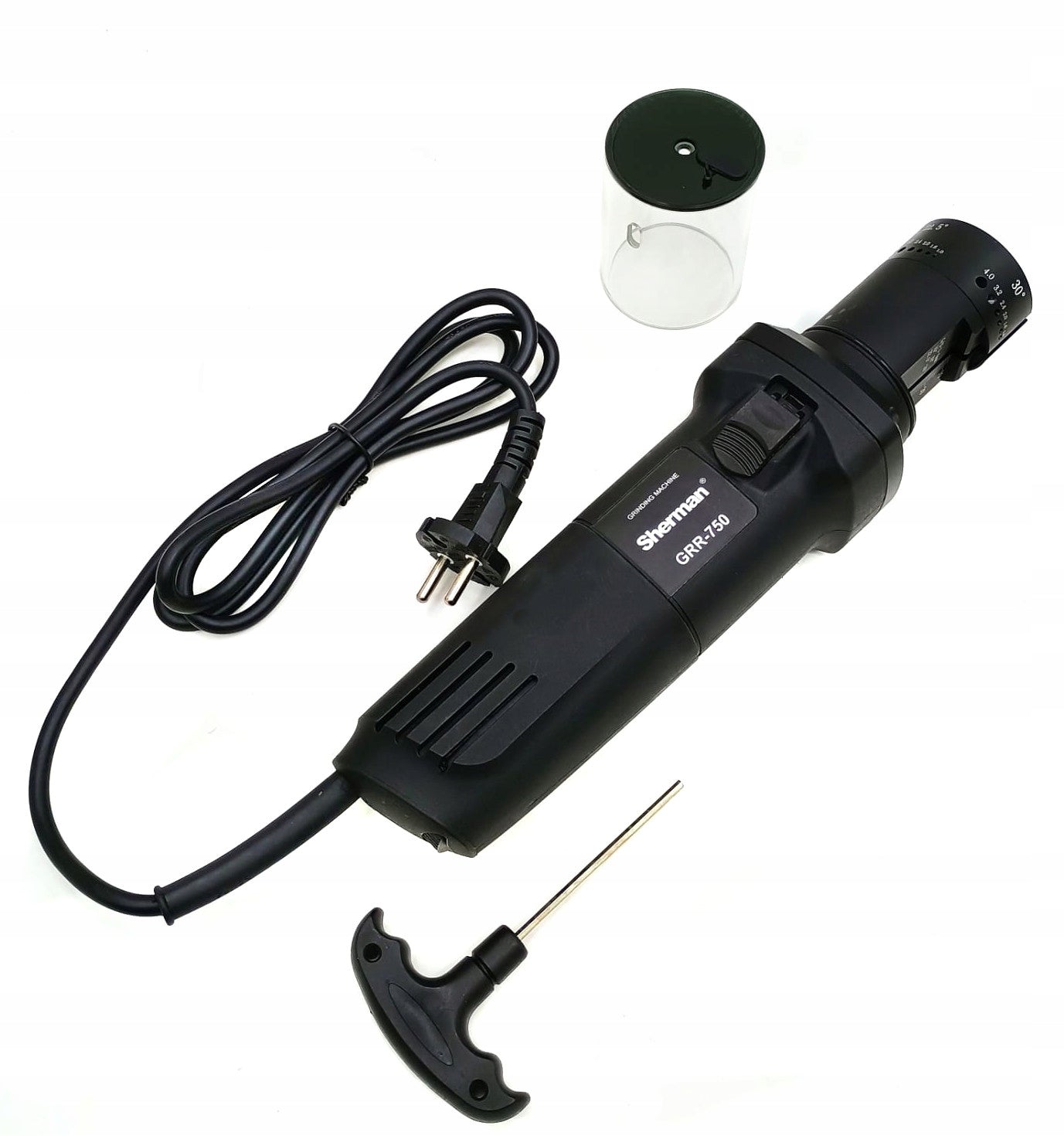

Rankinis volframinių TIG elektrodų galąstuvas SHERMAN GRR-750

Trumpai apie prekę

Prekė: Rankinis volframinių TIG elektrodų galąstuvas SHERMAN GRR-750. Kategorija: Įrankių galąstuvai.

• Gamintojas: Sherman
• Modelis: GRR-750
• Galia: 750 W

The sharpener is designed to prepare tungsten electrode tips. It works especially well during welding of high-alloy materials, titanium, copper and in all works where high quality of weld is required (e.g. aerospace, pipeline, medical).

Pthe repeatability of the geometry of the electrode tip allows to obtain welds of the highest quality, improving arc stability and minimizing pollution of the welding lake.

Key parameters and benefits

• The tool allows setting and constant maintenance of the electrode cone angle, which directly translates into control of the focus and stability of the arc and the depth of penetration. Ideal for welding requiring a narrow or wide melt profile.
• Thanks to the precise mechanism, the sharpener minimizes material loss (shortening of the electrode) during sharpening, significantly extending the life of expensive tungsten electrodes.
• The sharpener effectively reduces tungsten dust, protecting the operator.
• Precision guides support standard electrode diameters (1.0 /1.6 / 2.0 / 2.4 / 3.2 / 4.0 mm), guaranteeing universality in various TIG applications (DC and AC current).

Basic features

• Easy operation thanks to set angles and grinding diameters
• Choice of grinding angle 15°, 18°, 22,5° and 30°
• Handy device, ideal for use in the workshop or during assembly
• Integrated 5-stage speed control with knob
• Easy replacement of grinding wheel

TECHNICAL DATA:

• Electrode diameter: 1.0 – 4.0mm
• Electrode length min.: 30mm
• Grinding angle: 15°, 18°, 22,5° and 30°
• Speed: 0 – 11000 rpm
• Speed control: 6-stage
• Abrasive Material: Diamond Disc
• Disc diameter 33,5mm
