Reguliuojamas DC-DC įtampos keitiklis 0.5–30V 4A su LCD ekranu

Trumpai apie prekę

Prekė: Reguliuojamas DC-DC įtampos keitiklis 0.5–30V 4A su LCD ekranu. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

⭐⭐[Reference data]

• The input voltage range is 5 to 30 V DC; the output voltage range is 0,5 to 30 V DC, adjustable as needed; the output current can reach 3 A with continuous operation and 4 A with better heat dissipation; the maximum output power is 35 W, and with better heat dissipation is 50 W.

⭐⭐[Security]

• Multiple safety mechanisms are available and the protection threshold is adjustable. If the module operating parameters exceed the protection threshold, the output will be automatically disabled.

⭐⭐【LCD】 displays

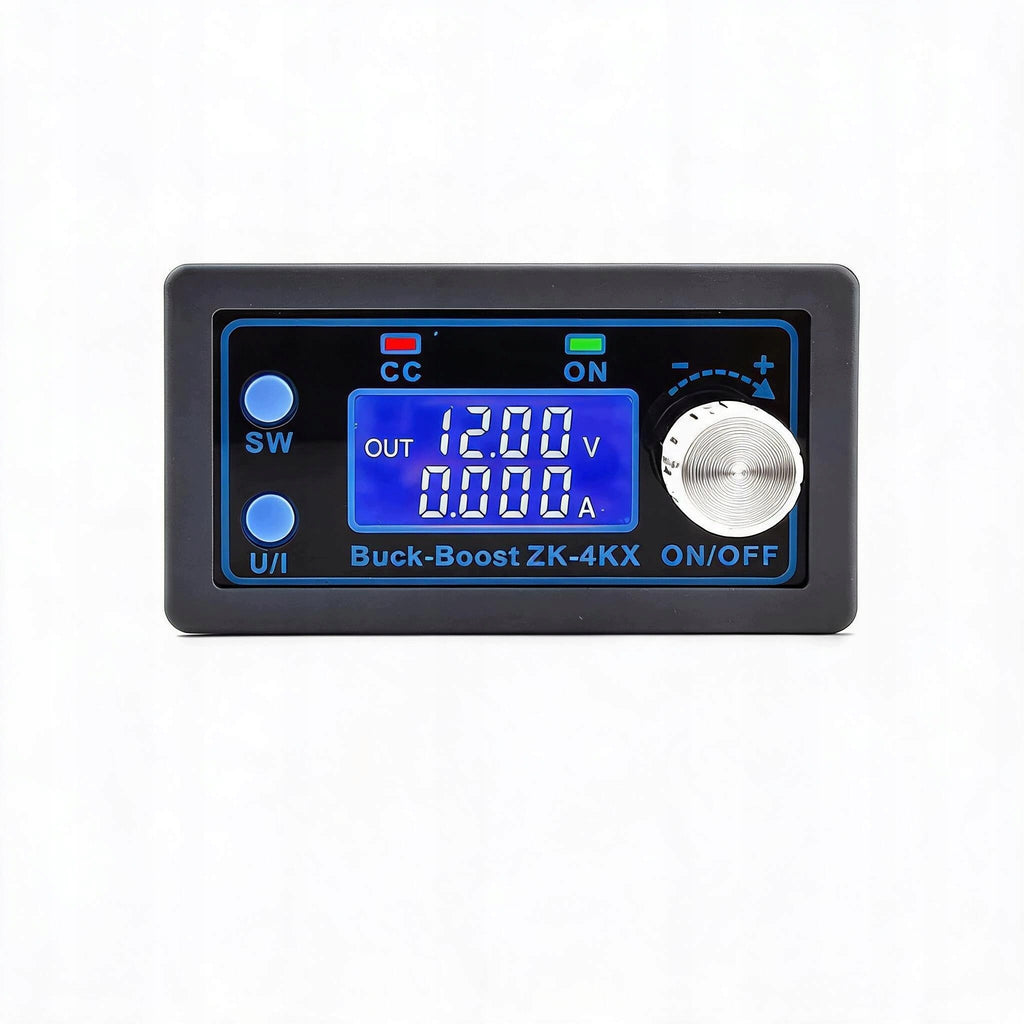

• The LCD display displays input/output voltage, output current/output power/output efficiency/operation time. The module can be enabled/disabled by default.

⭐⭐【Wide range of applications】

• The voltage conversion board can be used as a standard buck/boost module with overcurrent protection; as a high-power LED DC driver module; or for standalone solar energy controllers and battery charging.

💎Specification:

• Input Voltage: 5,0-30 V
• Output voltage: 0,5-30 V
• Output current: 3 A (stable operation for a long time), up to 4 A (increased heat dissipation)
• Output power: 35W (natural heat dissipation), 50W (increased heat dissipation)
• Voltage display resolution: 0,01 V
• Current display resolution: 0,001 A
• Conversion efficiency: about 88%
• Operating frequency: 180 kHz

📦 Set Contents:

• 1 x Voltage Regulator
