Apraksts
Trumpai apie prekę
Prekė: Reguliuojamos vartų vyriai M16, lenkti 180°, cinkuoti, 125 mm. Kategorija: Vyrių.
- Gamintojas: PSG
- Modelis: 61.327

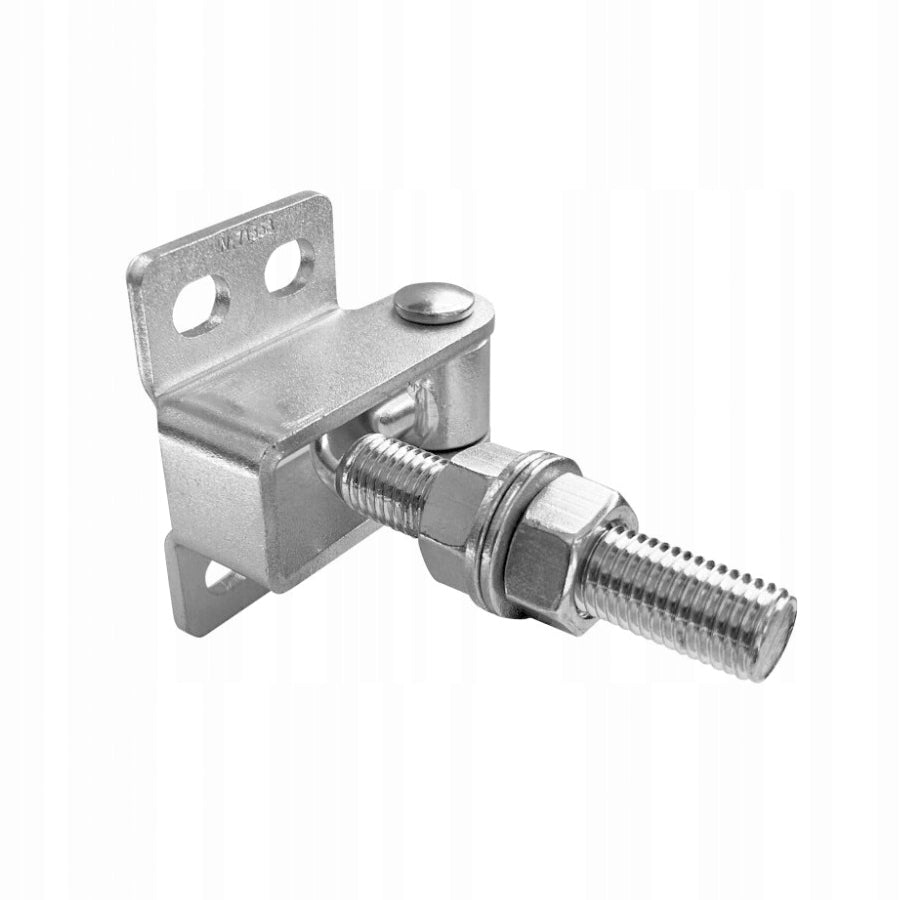

Specialized adjustable bent hinge on M16 thread with a length of 125 mm. The design with a contoured arm allows you to get a opening angle of 180 degrees. This allows the sash to be completely opened wide (parallel to the fence line), which is impossible with standard straight hinges.
Model dedicated as hinge adjustable to the gate or light gate mounted on masonry and steel posts, where maximum transition light is required.

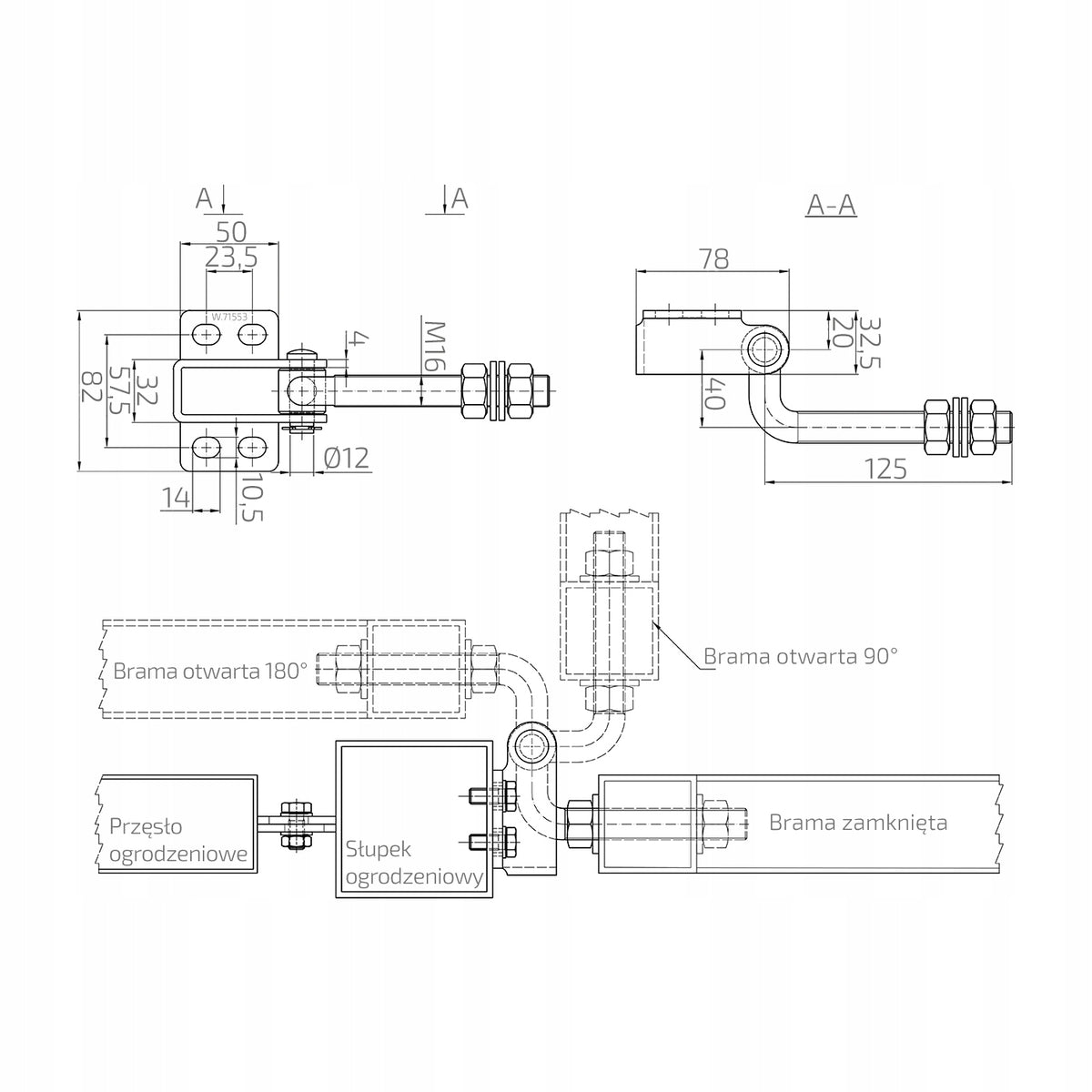

⚙ Technical Parameters:
- Type: Hinges for gate adjustable m16 (Bent / Broken)
- Thread: M16
- Opening angle: to 180° (depending on embedding)
- Total length (L): 125 mm
- Material: Structural steel S235JR
- Security: Full Galvanized Zinc (corrosion resistance)
- Attachment: 4-hole mounting plate
- Hole spacing: 57,5 x 23,5 mm
- Manufacturer: PSG
➡ Application and Assembly:
- Purpose: Garden gates, swing gates, technical doors requiring a wide opening angle.
- Assembly: Adjustable screw-on hinge. Base mounted to post for 4 screws/anchors. Threaded part (M16) mounted to the ear in the gate frame (ear is not included in this offer unless otherwise noted).
- 180° function: The hinge arm "bypasses" the edge of the post, allowing the wing to move freely beyond 90°.
- Adjustment: Smooth on M16 thread, allowing correction of wing position (e.g. after the winter season).
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | PSG |
| Parametry | Kind | adjustable |
| Parametry | Thread length | 125 mm |
| Parametry | Metric threads | M 16 |
| Parametry | Thread diameter | 16 mm |
| Parametry | Plate width | 50 mm |
| Parametry | Plate length | 82 mm |
| Parametry | Manufacturer code | 61.327 |
