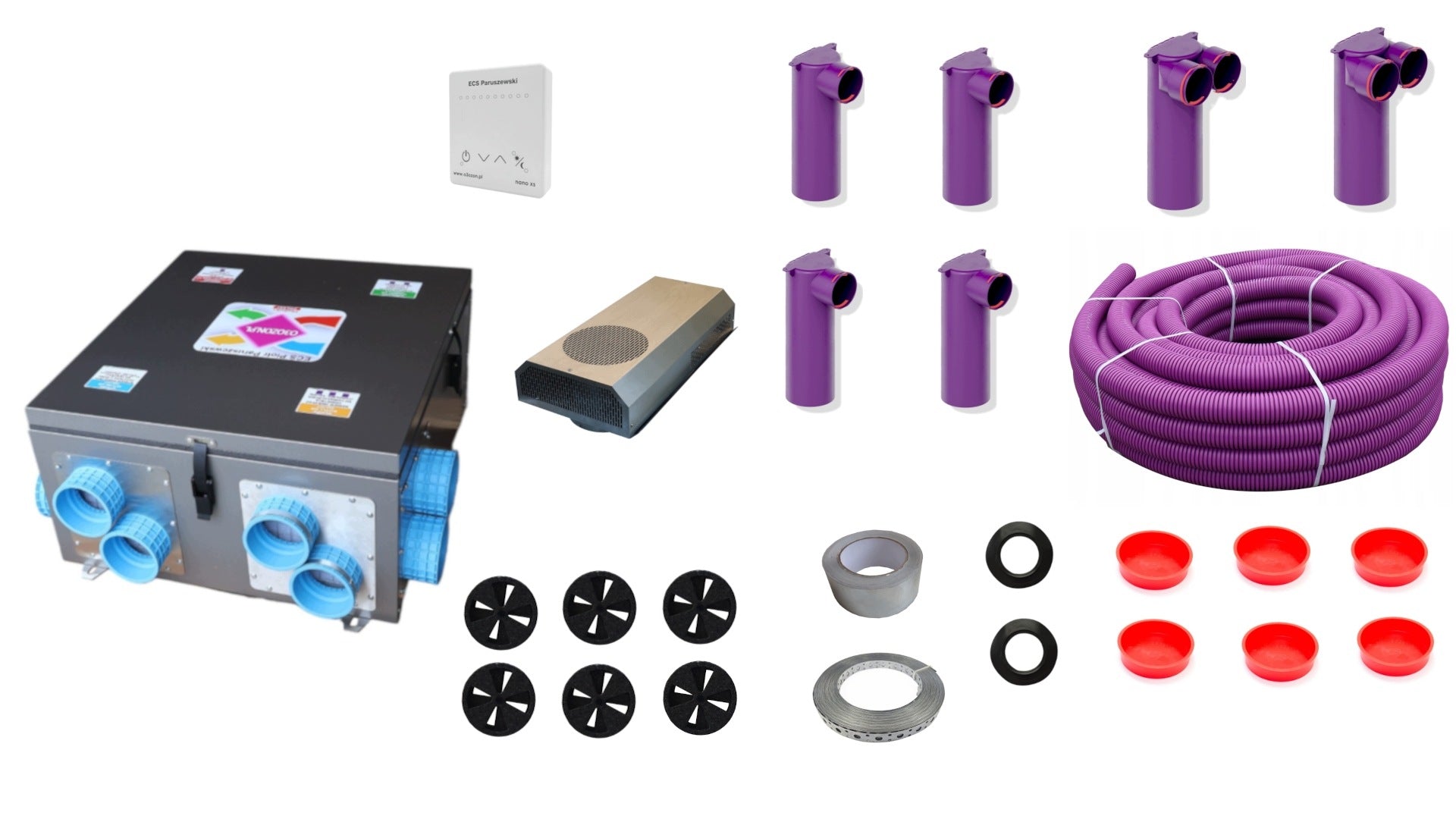

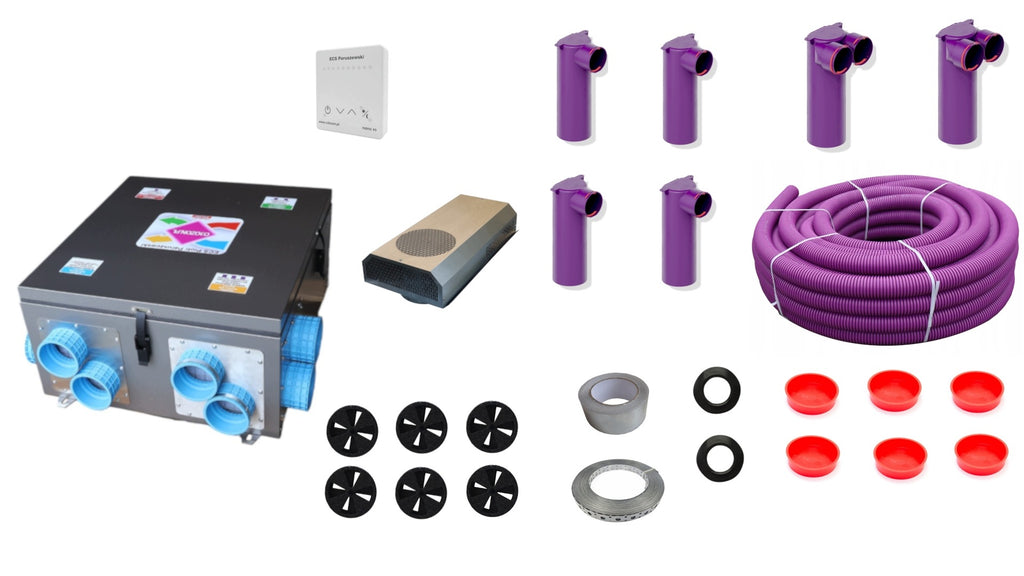

Rekuperacijos elementų rinkinys namui, 3 kambarių butui, 50–70 m², fi90

Trumpai apie prekę

Prekė: Rekuperacijos elementų rinkinys namui, 3 kambarių butui, 50–70 m², fi90. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: MAX-VENT
• Modelis: 5907344501543

✅ Ventilation pipe fi 90 with antibacterial coating (30ppm Ag) MAX-VENT ATEST 50m - 1 puck

✅ Ventilation unit CWPP 210 ENTHALPIC EXCHANGER 4x90 direct connection-1 pc.

✅ Nano xs controller - 1 pc.

✅ Expansion box 2x90 - 2 pcs.

✅ Expansion box 1x90 - 4 pcs.

✅ Intake - Launcher CWK2-125 - 1 pc.

✅ Cap fi 90 - 6 pcs.

✅ Throttle Max-Vent - 6 pcs.

✅ Perforated tape - 1 pc.

✅ Tape - 1 pc.

✅ Lip seal 90mm set of 10 pieces - 2 sets

✅ Ventilation recuperation guide

plastic with smooth, antibacterial and antifungal (30 ppm Ag)

outer diameter: Ø90 mm

Flexible ventilation pipe MAX-VENT are used for movement, transport of supply and exhaust air in mechanical ventilation systems

Wires are characterized by:

-Large flexibility

-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.

MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

EXPANSION BOX 90mm / 125mm

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 90mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.

See the presentation of the MAX-VENT gen2 system, you can mount it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

Intake - launcher CWK2

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects.

The set includes 6 pieces of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy an exceptional quiet installation

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

Characteristics of throttle

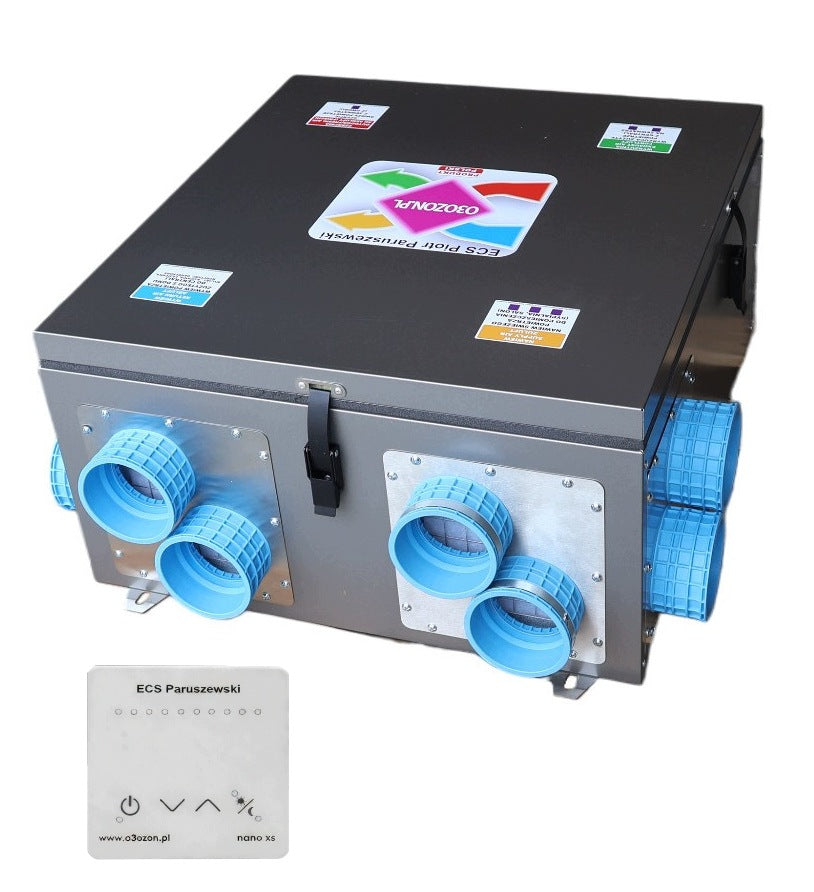

Ventilation unit

Technical specification

• capacity 210m3/h depending on the filter used
• power min 30W max 110W
• pressure up to 200Pa
• Voltage 230 V 50 Hz
• heat recovery efficiency from 65% to 92%
• engine speed 2400 rpm
• noise level db/(A)3m 24-52
• maximum operating speed up to 45C
• housing material alumcynk sheet 0,7mm
• G4 air supply filter
• filter extractor G4
• stub diameter 160 mm or modular 90mm , 75mm
• recuperator efficiency up to max 95%
• ENTHALPIC COUNTERCURRENT EXchanger
• emmennik PLASTIC
• anti-freeze system
• weight about 50 kg
• speed controller

We add a controller to each control panel
