Apraksts
Trumpai apie prekę

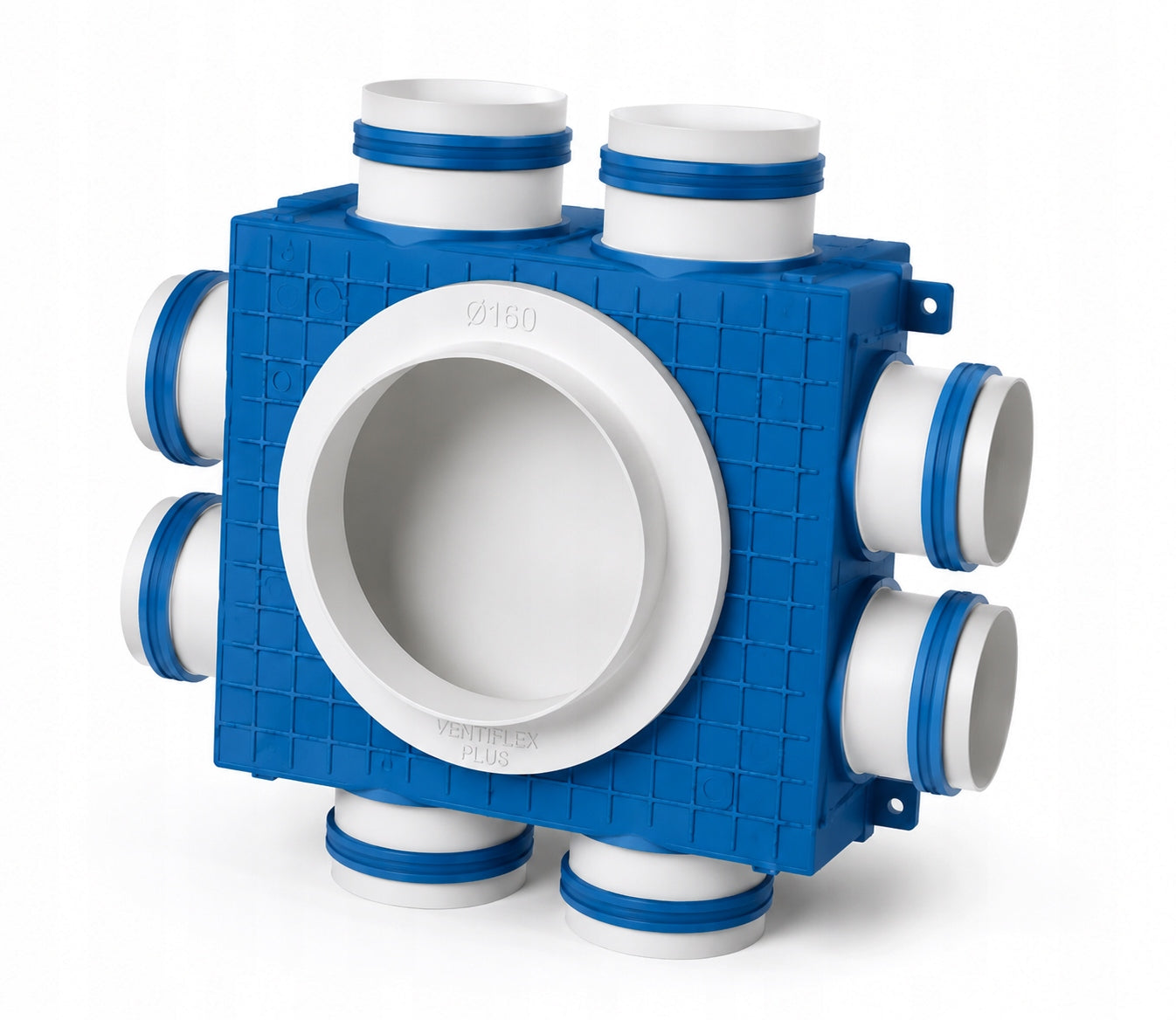

Prekė: Rekuperacijos paskirstymo dėžė VENTIFLEX+ 8xØ75, Ø160, 8 atšakos. Kategorija: Dalys.
- Gamintojas: Groundtherm
- Modelis: VT-75 kolektor 8x75 DEKA. 1
Professional collector for mechanical ventilation installation with heat recovery
The VENTIFLEX PLUS distribution manifold is designed for the construction of modern mechanical ventilation systems with recuperation. Thanks to its modular design, it allows easy air distribution up to eight ventilation ducts Ø75 mm while maintaining high tightness and low flow resistance.
It works perfectly with the Ventiflex Plus ventilation duct system.
Technical data
- Producer: Ground-Therm
- System: VENTIFLEX PLUS
- Number of nozzles: 8 × Ø75 mm
- Main connector: Ø160 mm
- Material: PP (Polypropylene)
- Color: Blue and White
- Application: mechanical ventilation with heat recovery (recuperation)

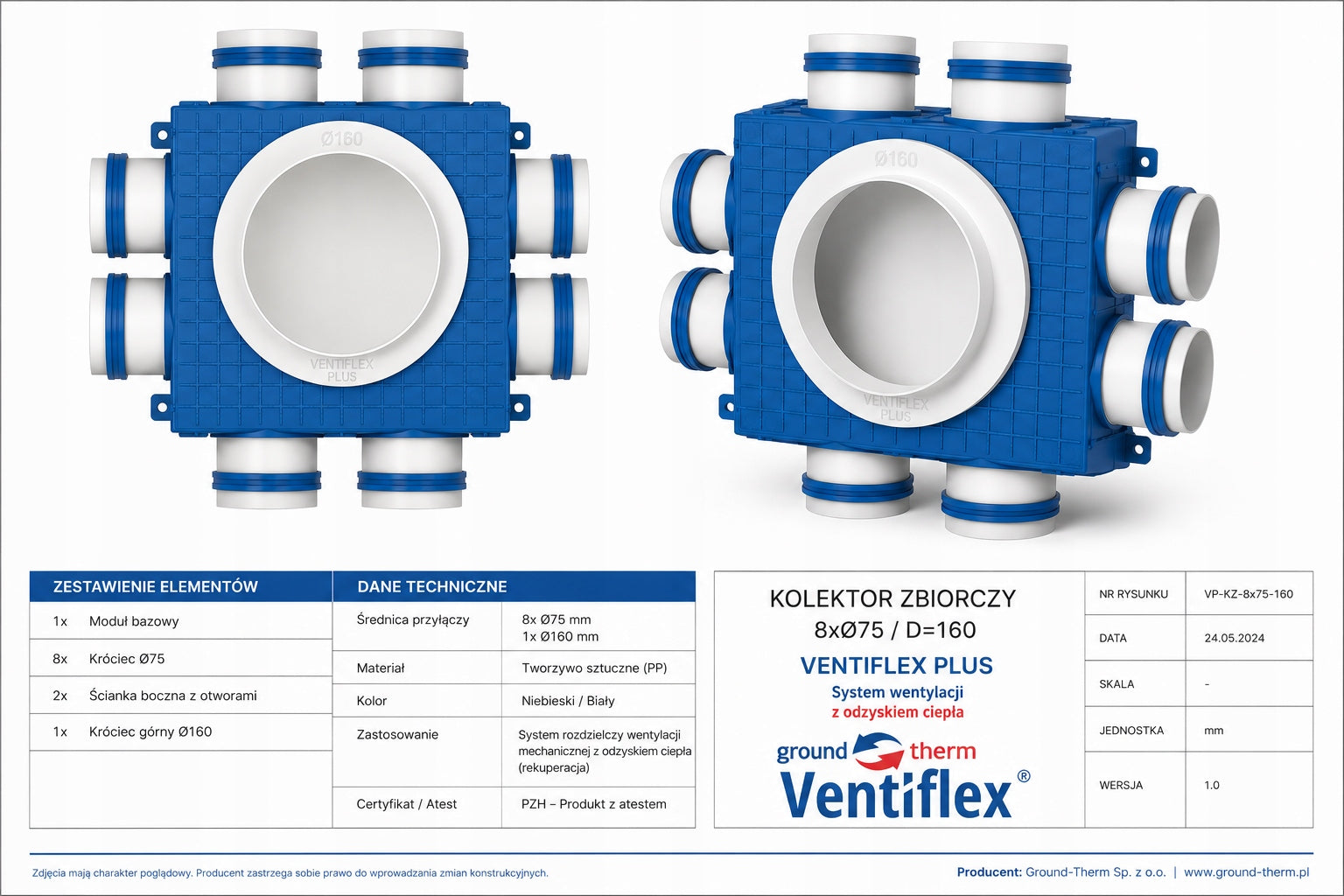

The set includes
- ✔ 1 × base module
- ✔ 2 × side wall with holes
- ✔ 8 × connector Ø75 mm
- ✔ 1 × connector Ø160 mm
This arrangement allows you to conveniently conduct the installation and reduce the bending radii of the wires.
NOTE: SELF-ASSEMBLY PRODUCT ACCORDING TO THE MANUFACTURER'S CATALOGUE.
Why choose Ventiflex Plus?
Ground-Therm’s VENTIFLEX PLUS system is a modular solution for building professional ventilation systems. The components are made of high-quality PP plastic, ensuring durability, tightness, and a long lifespan for the installation.
The most important advantages
- Modular design
- Very high tightness of connections
- Low air flow resistance
- Durable PP material resistant to corrosion and moisture
- Easy installation and expandability of the system
- Compatible with Ventiflex Plus Ø75 mm cables
- The product is designed for professional recuperation installations
Application
The collector is used in:
- single-family houses,
- energy-efficient buildings,
- passive objects,
- service premises,
- offices,
- mechanical ventilation installations with heat recovery.
Technical data
- Producer: Ground-Therm
- System: VENTIFLEX PLUS
- Number of connections: 8 × Ø75 mm
- Main connection: Ø160 mm
- Material: polypropylene (PP)
- Color: Blue and White
- Design: Modular
- Purpose: mechanical ventilation systems with heat recovery (recuperation)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Groundtherm |
| Parametry | Kind | air distributor |
| Parametry | Manufacturer code | VT-75 kolektor 8x75 DEKA. 1 |
