Rekuperacinės vėdinimo sistema su rekuperatoriumi, namui 150–220 m²

Trumpai apie prekę

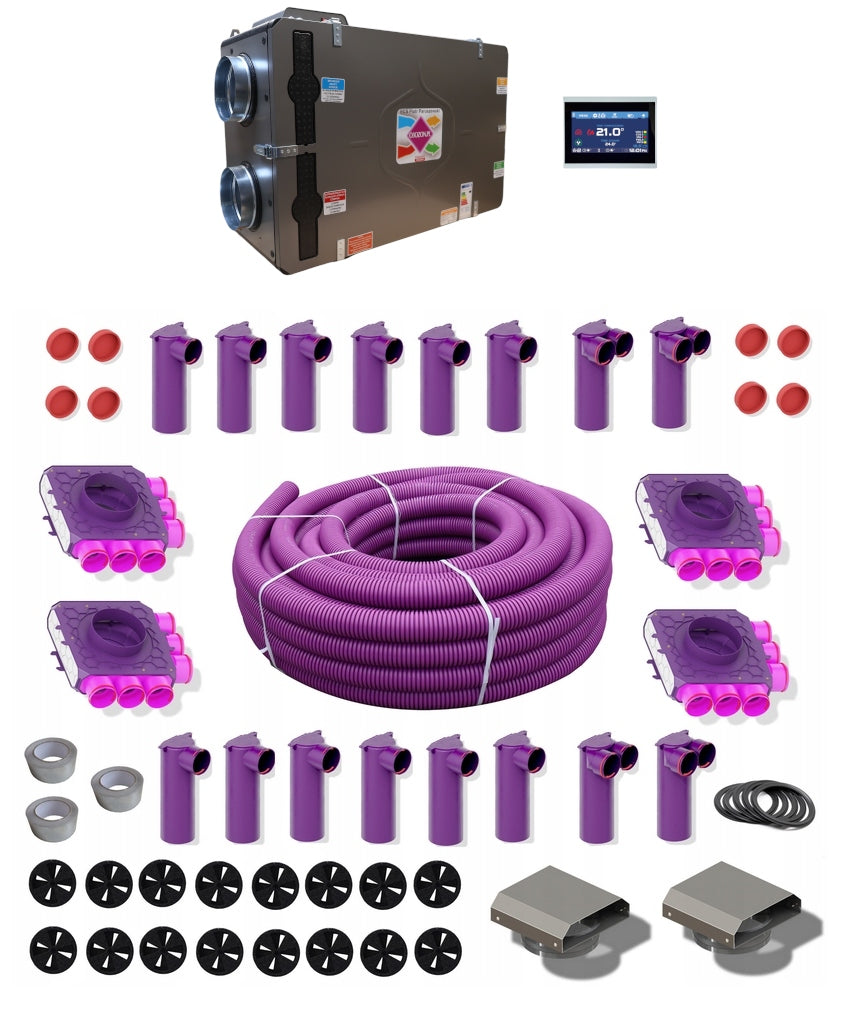

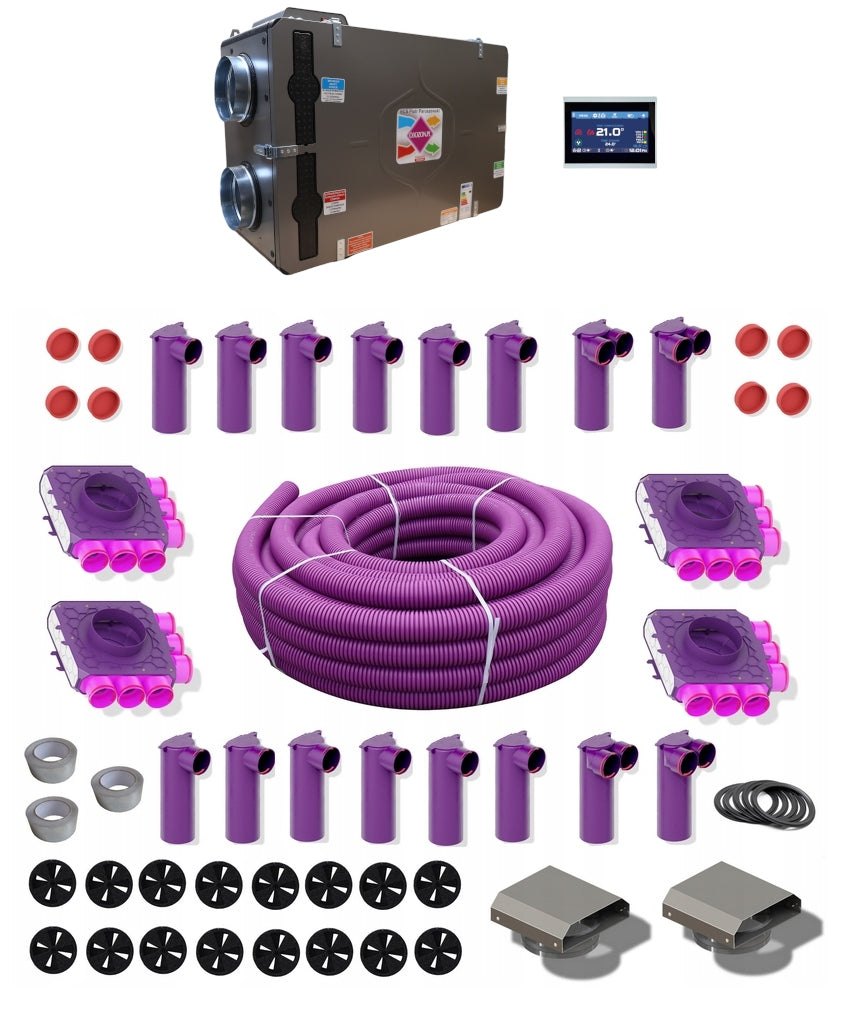

Prekė: Rekuperacinės vėdinimo sistema su rekuperatoriumi, namui 150–220 m². Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: MAX-VENT
• Modelis: 5907344501574

✅ Ventilation pipe with antibacterial coating (30 ppm Ag)

90mm - 150 mb (3 discs)

✅ Ventilation unit CWK 600/200

✅ Through distribution box 6x90/200 - 2 pcs.

✅ Distribution box 6x90/200 - 2 pcs.

✅ Expansion box 1x90/125 -12 pcs.

✅ Expansion box 2x90/125 - 4 pcs.

✅ Intake K1 - 1pc.

✅ Launcher K1 - 1pc.

✅ Cap - 8 pcs.

✅ Max-Vent Throttle - 16 pcs.

✅ Tape - 3 pcs.

✅ Gaskets - 40 pcs.

plastic with smooth, antibacterial and antifungal (30 ppm Ag)

outer diameter: Ø90 mm

MAX-VENT flexible ventilation pipe is used for movement, transport of supply and exhaust air in mechanical ventilation systems

Wires are characterized by:

-Large flexibility

-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.

MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

Distribution boxes 200mm

DISTINGUISHING FEATURES OF THE PRODUCT:

• Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
• External reinforcement increases strength does not interfere with flow
• Extended mounting per channel -90mm (in some cases, fixing with rings will be unnecessary)
• The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
• They are quiet you do not need to suppress them
• They put up a small resistance
• PERIPHERAL SEAL guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )
• They have the addition of silver are antibacterial biocides
• They are antistatic
• 21st century technology NANOMATERIALS was used which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial effect causing less burden on the environment, provides long-term microbiological protection

EXPANSION BOX 90mm / 125mm

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 90mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

Intake, launcher

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects.

The set includes 10pcs of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy an exceptional quiet installation

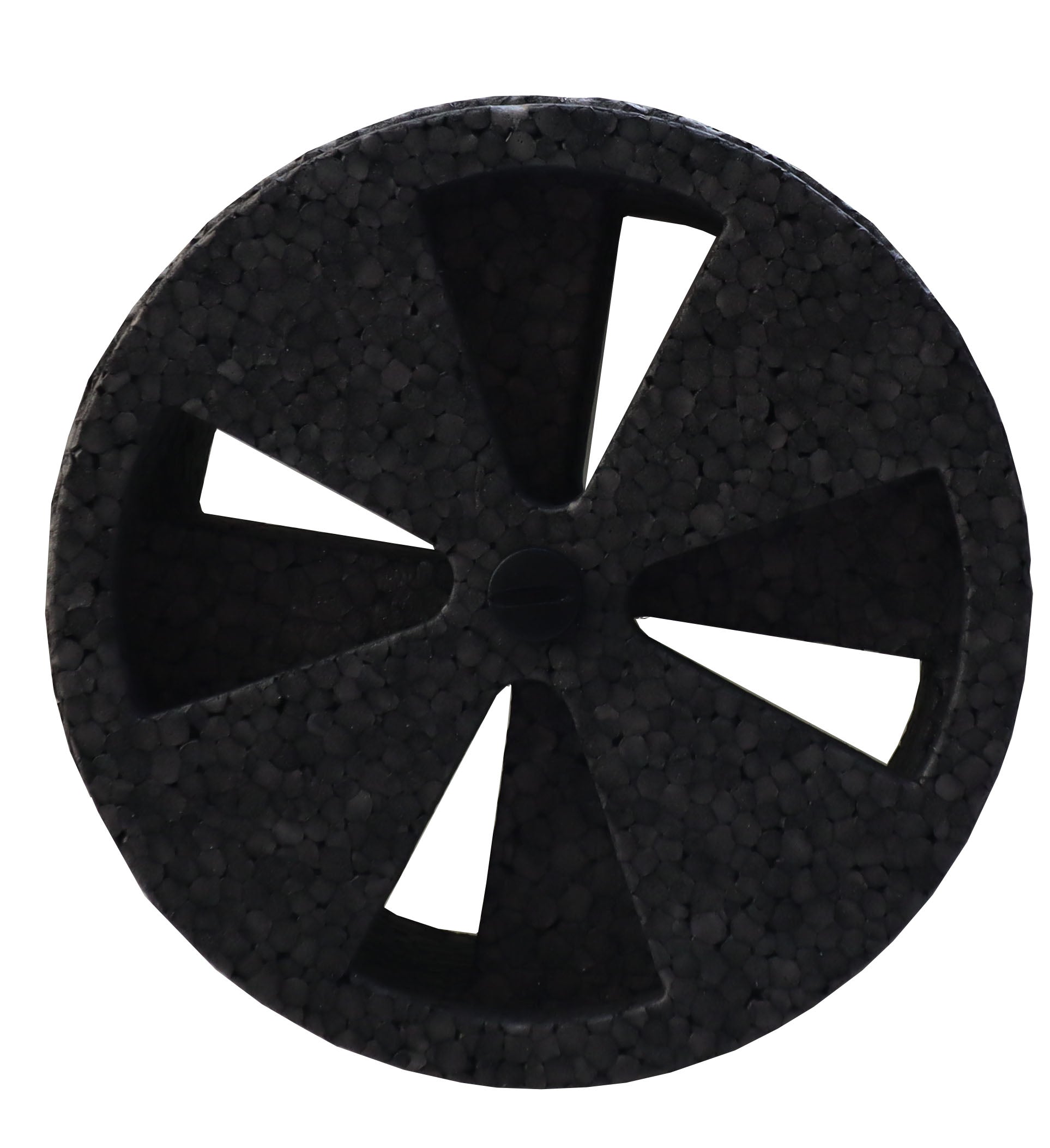

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

Throttle characteristics

Ventilation unit

• capacity 600m3/h depending on the filter used
• capacity of the control panel 600 m3/h
• power min 30W max 340W
• pressure up to 600Pa
• efficiency of fans "EC" 2x1200m3/h
• Voltage 230 V 50 Hz
• heat recovery efficiency from 65% to 92%
• engine speed 2400 rpm
• noise level db/(A)3m 24-40
• maximum operating speed up to 45C
• G4 air supply filter
• filter extractor G4
• diameter of the stubs 200 mm
• recuperator efficiency up to max 95%
• COUNTERCURRENT recuperator
• recuperator PLASTIC
• anti-freeze system
• weight about 50 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS
• dimensions 500x750x1100 mm
• TOUCH PANEL

We add a controller to each control panel

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MAX-VENT
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	5907344501574
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
