Rekuperatorius Blauberg Freshpoint 160E su variniu šildytuvu ir WiFi

Trumpai apie prekę

Prekė: Rekuperatorius Blauberg Freshpoint 160E su variniu šildytuvu ir WiFi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Blauberg
• Modelis: FRESHPOINT160E

Wall recuperator with heating mat and WiFi

⭐ ⭐ ⭐ ⭐ ⭐

✅Advantages and features:

• Performance - from 15 to 57 m³/h (70m³/h in Boost mode)
• Heat recovery efficiency - up to 88%
• Power consumption (without heater) - from 5 to 22 W
• Power consumption (with heater) - 100 W
• Noise level - from 12 to 42 dB(A)/3m
• Effective supply and exhaust ventilation in apartments, single-family houses, cottages, public facilities and service premises.
• Simultaneous supply and exhaust through one hole in the external wall – without the need to build ventilation ducts.
• Heat recovery – reduction of energy losses thanks to the use of a copper heat exchanger with high efficiency.
• Full automation – basic version (sold on this offer) equipped with temperature and humidity sensors, and Pro version (available on our other offers) additionally with CO₂ and tVOC sensors (volatile organic compounds).
• Sustainable ventilation – ensuring an optimal indoor microclimate throughout the year.
• Built-in Wi-Fi module – allows wireless control of the device from a smartphone (Android / iOS) and communication between units.
• NEW: Weekly schedule and working hours counter – even more control and adjustment to the rhythm of the day.

✳ THE DEVICE IS ON THE ZUM LIST OF THE CLEAN AIR PROGRAM!!!

Sealing Collar - FREE Masking Included

⭐️⭐️⭐️⭐️⭐️

✅Collar necessary for proper finishing on the exterior wall is included for Free.

➡️If the installation location is accessible from the outside of the wall, use the MPS metal sealing collar or the CPSO compensation washer (CPSO washers are available in our other Allegro listings).

Wall-Mounted Heat Recovery Ventilator with Electric Heater

⭐️⭐️⭐️⭐️⭐️

✅Device Construction

✳️Thoughtful Design – Every detail matters. Freshpoint is a complete ventilation unit that combines high functionality with a compact housing and aesthetic finish.

• 1️⃣ Manual Air Dampers – Allow manual adjustment of airflow to individual needs – ideal for precise control of supply and exhaust air.
• 2️⃣ High-Efficiency EC Fans – Modern, energy-saving motors with a specially designed impeller ensure quiet and efficient operation.
• 3️⃣ Airflow Separators – Ensure effective separation of supply and exhaust air, which increases heat recovery efficiency and improves hygiene.
• 4️⃣ External Air Inlet/Outlet Cover – In addition to separating air streams, it protects the installation from weather conditions, insects, and external contaminants.
• 5️⃣ Filters (2 pcs.) ISO Coarse (G3) >45% – Effective filtration of dust and pollutants – easy maintenance and low operating costs.
• 6️⃣ Illuminated Information Display – Modern screen with automatic brightness adjustment – always readable and discreet.
• 7️⃣ Patented Copper Heat Exchanger (up to 88% efficiency) – High thermal conductivity, antibacterial properties, and longevity – the patented copper design guarantees quality and hygiene.
• 8️⃣ Electric Heater – Warms the incoming air on cool days, ensuring thermal comfort year-round without feeling cold drafts.
• 9️⃣ Condensate Defrost Heater – Ensures reliable operation even at negative temperatures down to -30°C.

Recuperator with modern copper exchanger

⭐ ⭐ ⭐ ⭐ ⭐

✅Patented heat exchanger – the heart of effective ventilation

➡ Copper of the highest quality. The exchanger made of copper – a material commonly used in professional ventilation and air conditioning – guarantees very high thermal conductivity and natural antibacterial properties.

➡ Increased heat transfer area. Thanks to the patented design of corrugated ribs, the air-copper contact surface has been significantly increased, which increases the efficiency of heat recovery while maintaining the compact dimensions of the device.

➡ Hygienic and tight construction. Automatic production and the absence of porous materials and gaps, eliminates the risk of mold, bacteria and pollution – an ideal solution for allergy sufferers and demanding users

➡ Low air resistance. Quiet and energy-efficient operation. The special design of the exchanger ensures minimal flow resistance, thanks to which the fans consume less energy and operate quieter.

Modern information display – everything under control

⭐ ⭐ ⭐ ⭐ ⭐

✅Advantages and construction of the display

➡ Modern screen informs about all key operating parameters of the device. The brightness of the screen automatically adapts to the lighting in the room, thanks to the built-in light sensor – it does not hurt at night and is readable during the day. Simple and intuitive operation – you can see everything at a glance.

1. Turn the 2 device on/off. Wi-Fi connection status 3. Timer 4. Fan speed level 5. Night mode 6. 7 alerts and notifications. Filter status indicator 8. Settings schedules weekly 9. Current time and data from 10 sensors. Status of electric heater 11. Automatic mode 12. Operating mode: recovery, only exhaust 13. Timer Turbo (quick airing) 14. Defrosting status 15. CO₂ / tVOC concentration level (only available in the Pro version - available on our other offers / auctions).

COMFORT THROUGHOUT THE YEAR

✅Working modes

Freshpoint offers several modes of operation that you can easily adjust to your current needs:

➡ Supply and exhaust operation with heat recovery.:

• The device simultaneously blows fresh air and removes used air using one hole in the wall.
• It provides balanced ventilation of the room and high thermal comfort throughout the year.
• Built-in temperature sensors automatically activate the heater and defrost function when the temperature drops below the threshold value.

➡ Fresh air supply only:

• Only the supply fan works, providing fresh air to the room.
• Possibility of activating the heater – especially useful in winter.

➡ Only extract of used air:

• Only the exhaust fan works, effectively removing moisture, odors and polluted air.
• Heater in this mode is inactive

➡ Automatic mode:

• The device independently selects the intensity and direction of ventilation based on readings from temperature and humidity sensors – ensuring constant, optimal internal conditions, without the need for manual operation.

Freshpoint is equipped with an air humidity sensor – when its level exceeds the threshold value, the device automatically switches to the highest speed, regardless of the settings of other units in the system.

⭐ ⭐ ⭐ ⭐ ⭐

✅Features and description of the remote control

– convenience at your fingertips (included in standard equipment)

With the remote control, you can conveniently control all the basic functions of the device:

• 1 Turn the device on and off with one button.
• 2 Heat recovery mode provides energy savings and thermal comfort throughout the year.
• 3 Night mode (8 hours ) provides quiet operation at a minimum speed so as not to disturb sleep.
• 4 The inclusion of the heater ensures a comfortable temperature of the supplied air even in winter.
• 5 Inactive button, currently unused and reserved for future functions.
• 6 Wi-Fi connection to your smartphone manages your device in the mobile app
• 7 Change of airflow and exhaust speed adjusts the intensity of ventilation.
• 8 Air extraction effectively removes moisture and odors.
• 9 Turbo mode (4 hours ) quickly ventilates rooms.
• 🔟 Reset filter indicator reminds you to replace the filter. Reset possible from the remote control: just press and hold the reset button for 3 seconds until you hear a beep. Reset can also be done conveniently from the mobile app.

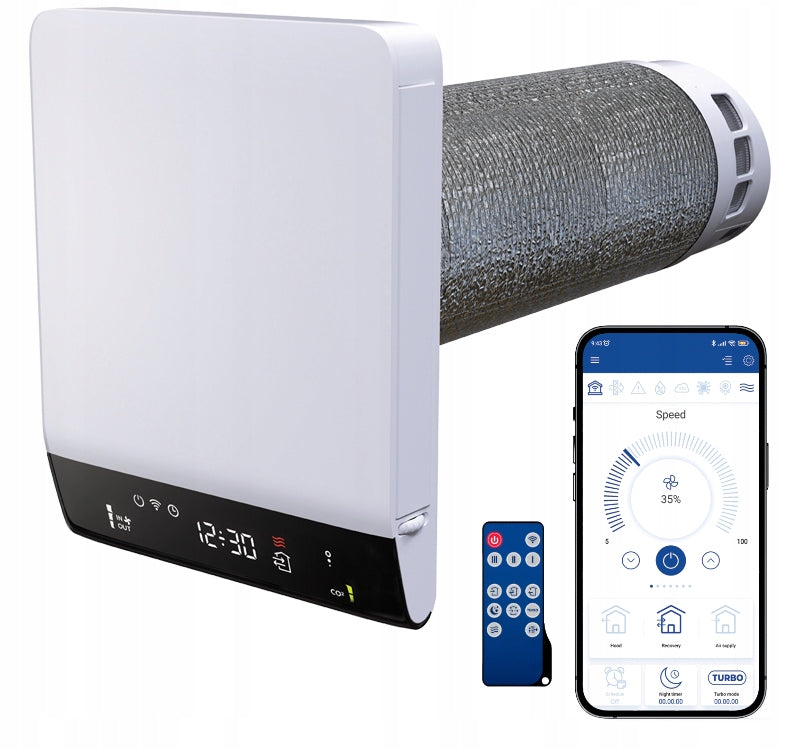

Controlling the application installed on your smartphone or tablet

⭐ ⭐ ⭐ ⭐ ⭐

✅All functions on your smartphone

Freshpoint has a built-in Wi-Fi module, so you can control the ventilation wirelessly from your smartphone (Android / iOS). Thanks to the cloud connection, you have full access to your device from anywhere in the world – regardless of whether you are at home, in the office, or on vacation.

The Blauberg Home app allows you m.in :

• • turning on/off,
• • changing modes and speeds,
• • turning the heater on/off,

AND THAT'S NOT ALL!

Just say “Hey Google” to control your Freshpoint device by voice – in Polish, English, German, Swedish, Norwegian, Danish, Dutch, French or Spanish*. See how convenient it can be to control your ventilation – without having to get up from the couch.

*Feature availability may vary by country, language and device. Check with the manufacturer of your speaker or smartphone.

⚙ TECHNICAL DATA

• Rated voltage - 220÷240 [V/50(60)Hz]
• Power consumption (without heater) - 5÷22 [W]
• Power consumption (heater) - 100 [W]
• Operating current (without heater) - 0,03÷0,10 [A]
• Operating current (with heater) - 0,56÷0,65 [A]
• Air efficiency - 15÷57 (70* in Boost mode) [m3/h]
• Efficiency in heat recovery mode - 8÷25 [m3/h]
• Temp. transported air - -30...+50 [°C]
• Sound pressure level ~1m - 23÷53 [dB(A)]
• Sound pressure level ~3m - 12÷42 [dB(A)]
• Classification of air flow sensitivity to pressure difference changes according to EN 13141-8 - S3
• Classification of internal/external tightness of the complete unit according to EN 13141-8 - D1
• Heat recovery efficiency - up to 88 [%]
• Safety class - IP24
• Energy efficiency class - A
• Filter included - basic G3 (+Option G4 - available on our other offers/auctions)

*Enhanced performance mode (Boost)

📏DIMENSIONS

• Ø D - 162 mm
• L1 - 439 mm
• L - 540 mm
• wall thickness - 200*...400

*For walls between 200 and 400 mm thick, an optional compensation cap (compensator) of appropriate length should be used - overlays to be purchased on our separate offers/auctions

✅Determining the optimal location of the device

✔ The device is mounted in the external wall in such a way that its internal panel is located in the room, while part of the external housing with outlets of supply and exhaust ducts and condensate drainage – outside the building. To ensure optimal operation of the device, the supply air flow should mix evenly with the air in the room and cannot be directly sucked into the exhaust duct.

✔ To ensure the free flow of air in the room, the space in front of the interior panel must not be limited by elements that hinder circulation, such as furniture, curtains or other equipment. If the area around the internal panel is separated from the rest of the room by a partition, the air supplied by the supply duct will be directly discharged through the exhaust duct. In the rest of the room, ventilation efficiency will be significantly reduced. Heat recovery will also be completely limited.

✔ In addition, to ensure free air circulation, the recommended minimum distances between the device and the ceiling, corner of the room, floor and window should be maintained, according to the scheme presented.

✅Proper placement in the room with air conditioner

✔ The device should be installed as far away from heat sources as possible (e.g. heating systems, electric cookers) and air intake devices for combustion processes (e.g. fireplaces, gas cookers).

✔ Effective cooperation of the device with the air conditioner in the same room is possible with their proper placement. Cooled air from the air conditioner drops, so it is recommended to install the device at the same height as the air conditioner.

When planning the location of the device in rest and sleep zones, its noise level should be taken into account as an additional factor affecting the comfort of use. It should also be remembered that in winter the temperature of the supply air from the device will be lower than the temperature of the air in the environment. A falling stream of supply air can cause thermal discomfort in people in the room and be felt as a draft. The device should be installed at an appropriate distance from beds, armchairs, etc. .

Do not install the device in rooms with high humidity (bathrooms, sanitary rooms, greenhouses, etc. ). Only exhaust ventilation should be installed in these rooms.

The pressure difference between the room and the outside space during the operation of the exhaust ventilation can interfere with the operation of the device. This can lead to the appearance of an unwanted draft, and in the winter to lower the temperature in the room and freeze the device.

Installation of the device

⭐ ⭐ ⭐ ⭐ ⭐

✅Matching the length of the product to the thickness of the outer wall

For the product to work properly, the ventilation hood must be placed according to the drawing.

The distance from the wall to the edge of the ventilation hood should not be less than 40 mm, and the condensate drainage hole should be directed strictly downwards.

Installation of the recuperator in the wall of different thickness

⭐ ⭐ ⭐ ⭐ ⭐

✅Assembly options with compensators

The figure above shows the available compensation pads and an example of their use when installing Freshpoint 160/200-Е (Pro) in a wall with a thickness of less than 400 mm. Compensation pads are available separately on our other offers/auctions.

WATCH THE DEVICE PRESENTATION

➡️ https://youtu.be/yYXMjZcu2OY?si=L84cvyHg5Jeyhnw_
