Rekuperatorius FRAPOL OnyX Sky 750 valdiklis ADVANCED

Trumpai apie prekę

Prekė: Rekuperatorius FRAPOL OnyX Sky 750 valdiklis ADVANCED. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Frapol
• Modelis: Rekuperator OnyX Sky 750

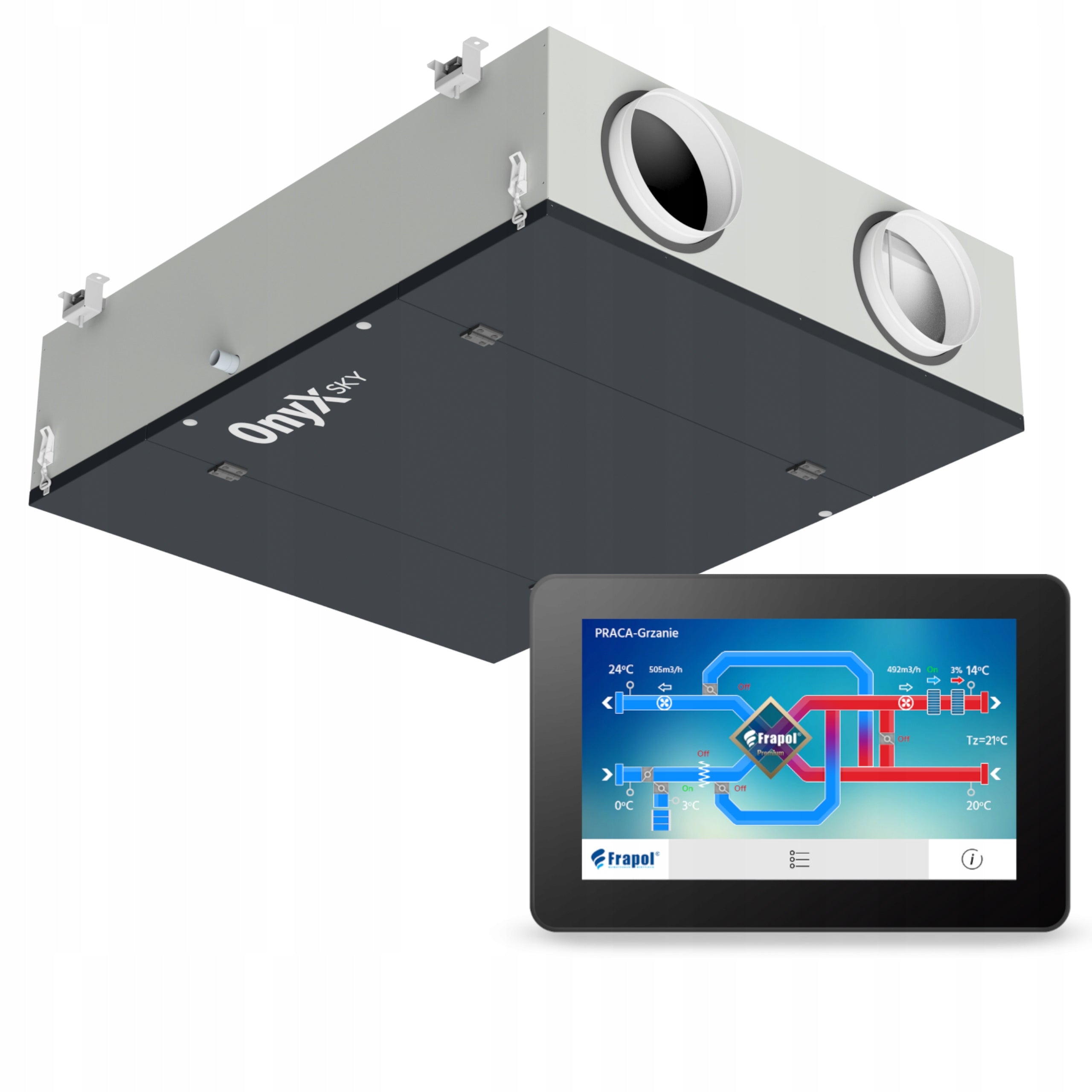

Suspended control panel Frapol Onyx Sky 750 + most advanced driver Advanced

*Photos/renders. The appearance of the control panel may vary slightly. Dimensions are accurately mapped

• OnyX Sky 750 is a classic suspended control panel designed for ventilation of small houses and apartments.

• The OnyX Sky 750 recuperator is the main element of the supply and exhaust ventilation system with high-efficiency heat recovery.

• It provides continuous inflow of fresh air and removal of used air, while reduces at the same time level of carbon dioxide and moisture. Through continuous filtration, it also reduces the concentration of harmful dust in ventilated rooms.

• The system controlling the operation of ventilation units OnyX enables m.in. configuration of several user modes, time schedule, GWC throttle adjustment, bypass control (freecooling), which allows for the most energy-efficient operation of the mechanical ventilation system. The devices are standard equipped with a controller.

OnyX Sky 500 is a suspended control panel with a height of 345 mm.

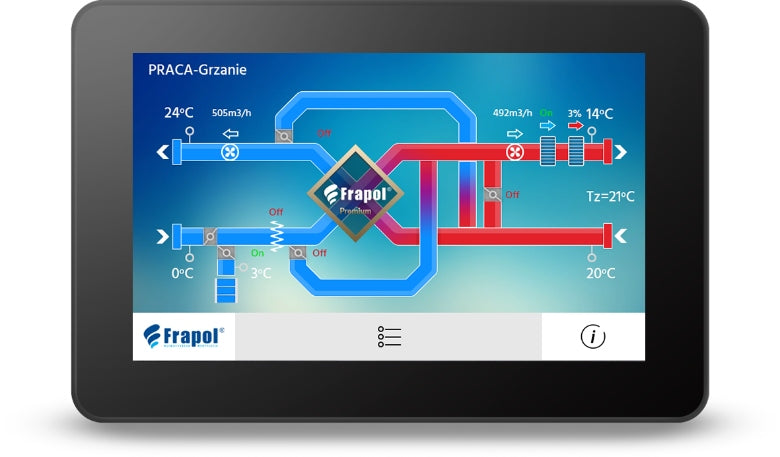

AND). Full view of recuperator operating parameters on the color touch screen – visualization of the entire ventilation system.

B). The option of remote access from anywhere in the world using a computer, tablet or mobile phone – FraNET module.

C). Update software via SD card.

D). Monitoring of quality air – temperature, humidity, concentration of gases.

E). Cooperation with ground heat exchanger (GWC)

F). Integration with the BMS system, thanks to the Modbus RTU communication protocol

G). Cooperation with channel heaters and coolers.

H). Comprehensive regulation of the degree of use of heat recovery.

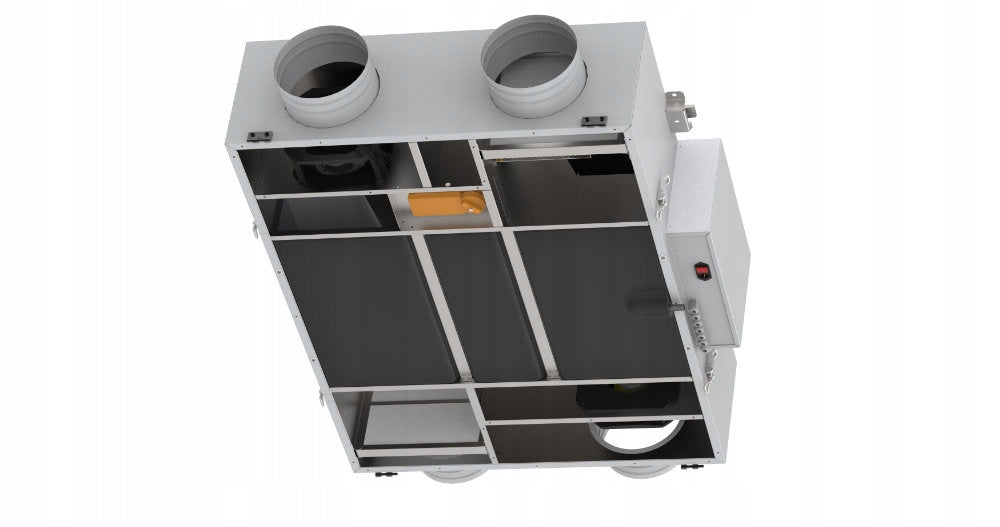

• In OnyX Sky control panels, the Recair Comfort heat exchanger is responsible for the recovery of heat from the exhaust air, which features s significantly smaller resistance of air flow than a standard heat exchanger.
• The recuperator is made of 100% plastic, making it much more resistant to corrosion than conventional solutions .
• The flow of air streams is carried out countercurrently, which ensures the highest possible efficiency recovery heat.

• OnyX Sky central ventilation is equipped with fans with EC motors with innovative RadiCal rotors.
• Fans placed in OnyX recuperators provide saving electricity and significant noise reduction. They are also characterized by increased life.

• OnyX SKY devices are equipped with automatic 100% bypass of the exchanger allowing to take advantage of the natural coolness of the external air.
• In summer evenings and in transitional periods (spring, autumn), when the recovery of heat from the exhaust air would adversely heat the supply air.

a) Launcher

b) Intake

c) Ventilation

d) Extract

E) Condensate drain

• Maximum airflow (100 Pa): 750 m3/h
• Maximum fan power consumption: 337 W
• Preheater power: max. 1800 IN
• Rated supply voltage: 230V AC/50Hz
• Fuse type - overcurrent, off. installation C6
• External dimensions (W) x H x L ): 1100 x 345 x 1520
• Dimensions of ventilation connections (diameter): 250 mm
• Weight: 134 kg
• Class of filters used - G4
• Filter dimensions (width. x H ): 2x 400 x 180 x 25
• Degree of protection - IP 40
• Insulation class of the device - I

• Operating temperature range: 5-45 'C
• Permissible humidity: 60% or maximum 9g/kg p.s.
• Bypass 100%, Standard

a) Intake

b) Launcher

c) Extract

d) Ventilation

e) Condensate drain

Specifications
