Rekuperatorius Komfovent DOMEKT-R-450-V-L1 su entalpiniu šilumokaičiu

Trumpai apie prekę

Prekė: Rekuperatorius Komfovent DOMEKT-R-450-V-L1 su entalpiniu šilumokaičiu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Komfovent
• Modelis: DOMEKT-R-450-V-L1

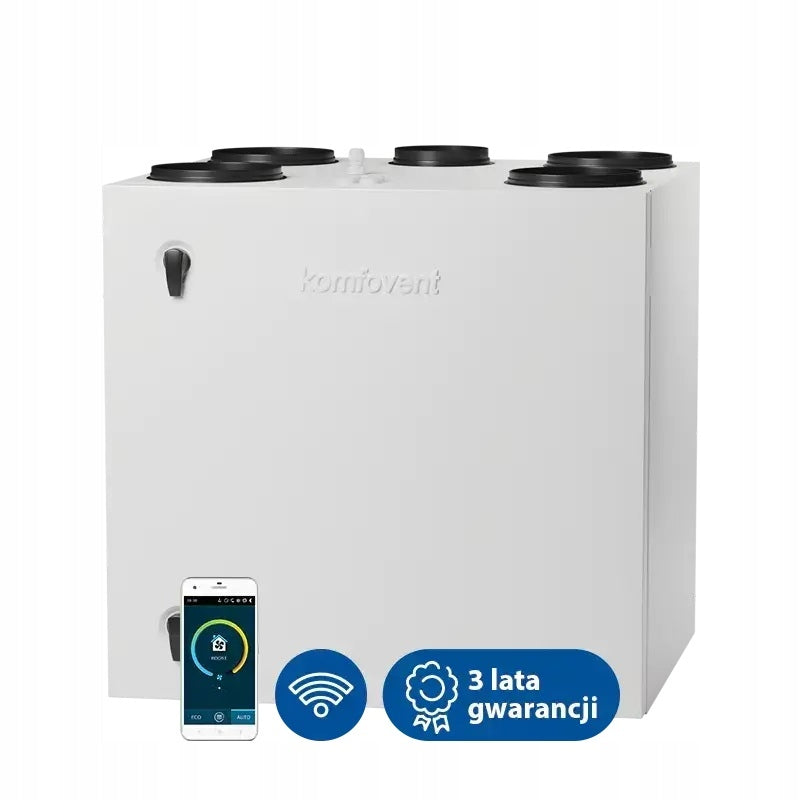

Ventilation unit Komfovent Domekt R 450 V

DR450-V-L1-F7/M5-C6M-L/AZ

Ideal for houses 140 - 170 m2.

Left or right version

Equipped with an innovative heat exchanger - rotary second generation - sorption-enthalpic

Product Features:

Ventilation units Komfovent meeting the criteria of the Clean Air Programme

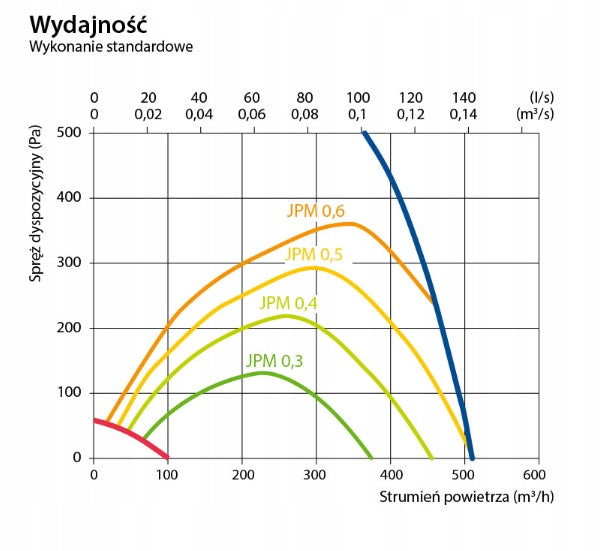

Maximum air flow - 496 m3/h. High-efficiency rotary exchanger - temperature efficiency of heat recovery - 86%.

Energy class - A+, power consumption by the fan drive at maximum flow - 147 W.

Comes with recuperator WIFI module

Has as standard:

• Application Komfovent Control to control the control panel
• Possibility of on-line update of the control panel software

NOTE The listing is not a set and does not include an external setter.

You can buy the C6.1 and C6.2 external trays at our other auctions.

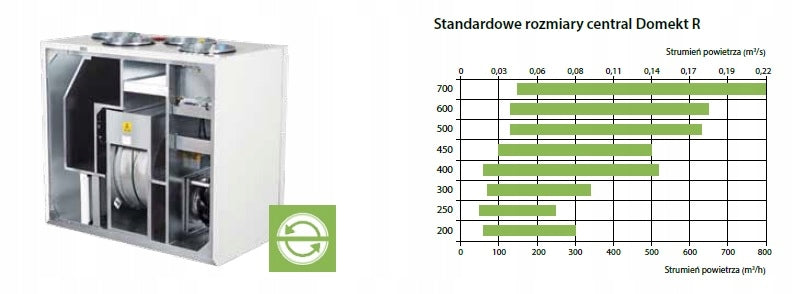

Komfovent DOMEKT is a series of recuperators dedicated for single-family houses and apartments. These are ventilation units with a capacity of from 50 to 800 m3/h, equipped with rotary (regular or sorption-enthalpic), countercurrent (ordinary or enthalpic) heat exchanger and horizontal, vertical or flat, suspended version.

NOTE! All Komfovent Domekt recuperators with C6/C6M/C8 automation have the following as standard:

- Wi-Fi module, for wireless Internet connection,

- built-in webserver,

- possibility of current software update,

Recuperator Komfovent Cottaget will make the house energy-efficient, environmentally friendly, but also comfortable.

ODA - air intake, ETA - exhaust air, SUP - supply air, EHA - air launcher, ETB - additional exhaust port (bypass: extractor without recovery)

Advantages of central series Dome R

• Saving of thermal energy

In the process of ventilation of rooms, heat from the exhaust air is transferred to the supply air.

• Effective heating

Under normal operating conditions, the rotary heat exchanger does not freeze. Even at outdoor temperatures below -20°C, additional heating of fresh air is not necessary, resulting in significant thermal energy savings even during high frosts. The use of a rotary heat exchanger allows you to reduce energy consumption for heating the supplied air about four times.

• Balance of moisture in the air

Under normal operating conditions, no moisture condensation occurs on the rotary heat exchanger, because most of it is returned to the premises. Excess moisture is discharged to the outside. The indoor air is not dried and adequate humidity is maintained. Since no condensate is formed, condensate drainage is also not needed, which simplifies the assembly of the unit.

• Low noise

In the Domekt R air handling units, silent fans and soundproofing insulation are installed, which ensure quiet operation of the units.

• Rotary heat exchanger

Advantages of Rotary Heat Exchanger:

• High efficiency factor
• No freezing
• Four times lower energy consumption for heating the supplied air.
• Transferring moisture to the supplied air - the use of additional humidifiers in ventilated rooms is not necessary.
• No need for condensate drain - easy installation of the unit.
• Possibility of cold recovery, and therefore lower energy consumption for air cooling.

• Energy-efficient EC engine

All rotary heat exchangers are equipped with EC motors, characterized by energy efficiency and quieter operation and control of the rotary heat exchanger.

Nano WiFi router for air handling units Komfovent Domekt

• Wi-Fi connections with a speed of 300 Mbps, fully sufficient for data streaming,
• Pocket size,
• Micro-USB port,
• Power supply and Ethernet cable included,
• Hassle-free installation that only takes a few minutes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Komfovent
Parametry	Kind	heat recovery ventilator
Parametry	Product weight with unit packaging	52 kg
Parametry	Manufacturer code	DOMEKT-R-450-V-L1
Parametry	Packaging status	original
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A+
Parametry	Batteries included	no
