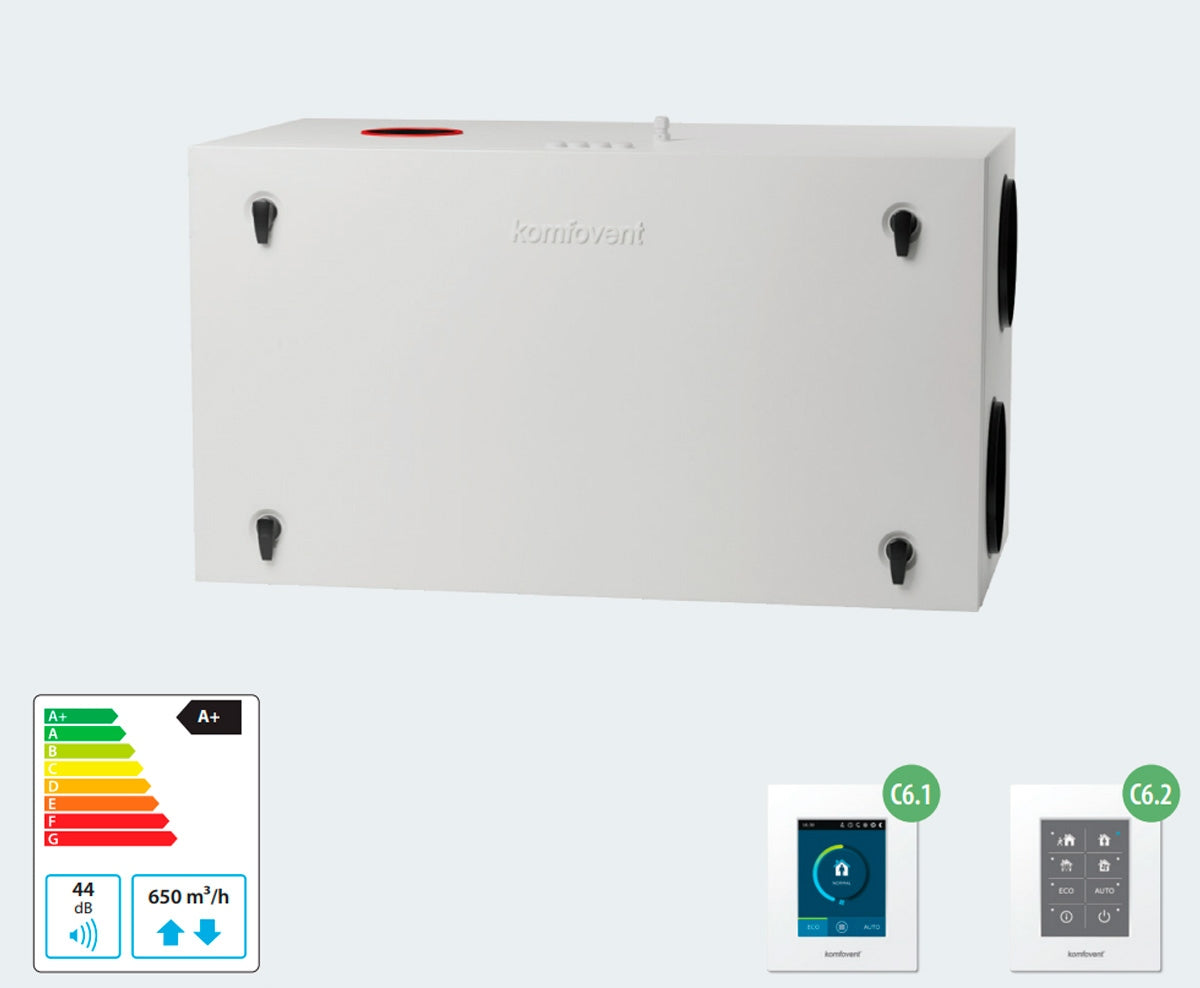

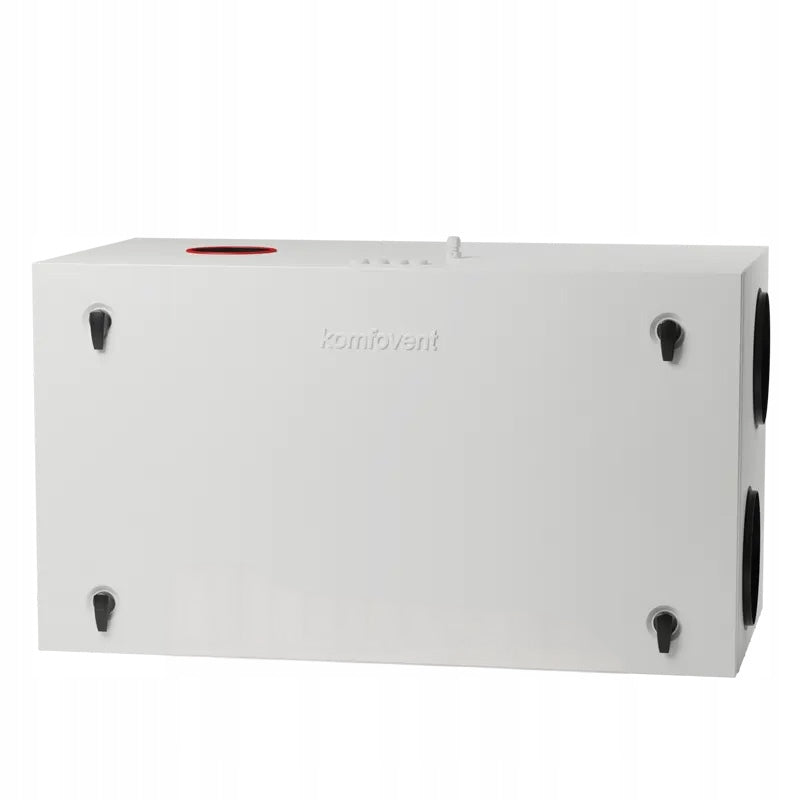

Rekuperatorius Komfovent Domekt R 600 H C6M su entalpijos šilumokaičiu

Trumpai apie prekę

Prekė: Rekuperatorius Komfovent Domekt R 600 H C6M su entalpijos šilumokaičiu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Komfovent
• Modelis: 1089235

• DR600-H-L1-F7/M5-C6M-L/AZ

Exceptional performance in a very compact size, recuperator with an innovative heat exchanger - second generation rotary, sorption-enthalpic, for houses with an area. up to 180 - 240 m2.

Left or right version to choose from.

The most important features of the product:

• Maximum airflow - 650 m3/h. condensing rotary exchanger - temperature efficiency of heat recovery - 83%.
• JPM - 0,26 (W/m3/h), power consumption by the fan drive at maximum flow - 158 W.

Has as standard:

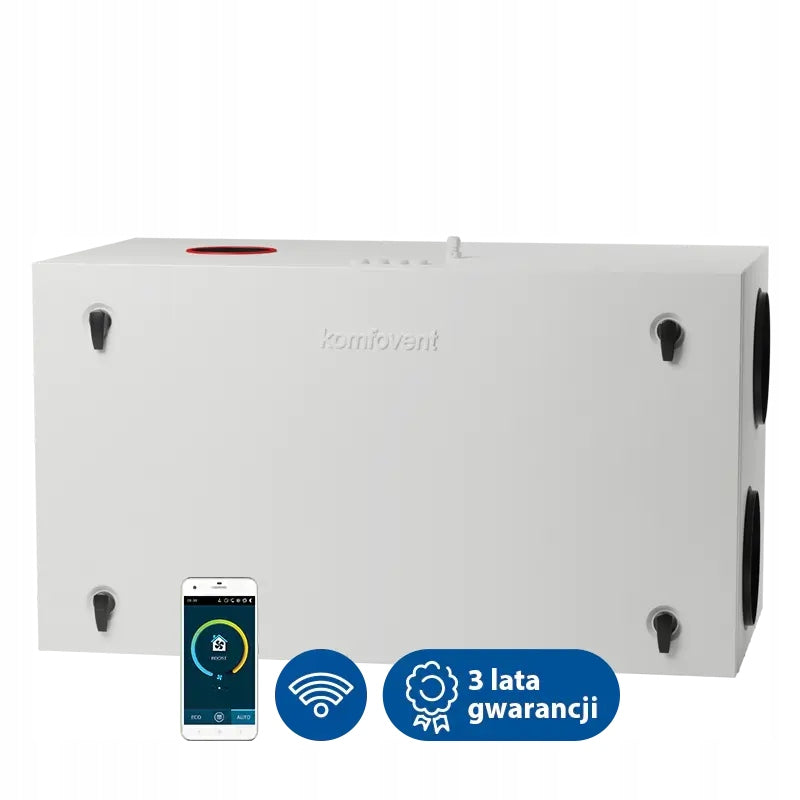

• Application Komfovent Control to control the control panel
• Possibility of on-line update of the control panel software

NOTE The listing is not a set and does not include an external setter.

You can buy the C6.1 and C6.2 external trays at our other auctions.

1. Fresh air from the outside is taken by the intake
2. Through ventilation ducts it gets to the recuperator Komfovent Domekt and in it: It passes through a filter class F7 stopping up to 65% of ePM2,5 and 55% of ePM1 particles and goes to the heat exchanger where it is heated with heat energy recovered from the used air
3. In addition, in the case of using a rotary exchanger, there is a process of partial recovery of moisture from the used air - the air is not excessively drained.
4. Fresh, clean and heated air enters all rooms in the house
5. Used air containing CO2, dust, allergens, mites, fungi, bacteria and viruses get into the recuperator through separate channels where it goes to the exhaust filter
6. There is a process of thermal energy recovery, thanks to which we can again heat the supply air from the outside
7. All dirty, used air is removed with a launcher outside the building

Comfort under control - Breathe fresh air with low CO2 concentration all the time

Air filtration - You are not exposed to allergens, pollen of plants – the filter stops them

Less Dust in the Air - It is easier to keep your home clean because less dust is in the air.

You don't open windows - You have no problem with mosquitoes, insects and other insects.

You care about health - Ongoing air exchange limits the development of fungal spores at home.

Low operating costs - Optimal use of heat produced

Optimal investment costs - Lower demand for thermal power – lower power furnace, no chimney for gravity ventilation.

Cooling Recovery - To cool your home you need less powerful air conditioning, recuperation will regain coolness and distribute it throughout your home.

The heat exchanger is the heart of every recuperator. He is responsible for recovering energy from the air exhausted from your home.

• High year-round heat recovery efficiency (83%), even at temperatures below -20°C outdoors.
• No freezing of the exchanger
• Efficient cold recovery in summer, thereby reducing air conditioning costs.
• Balanced indoor air humidity, ensuring adequate comfort throughout the year.
• Minimum degree of air mixing (less than 1%).
• No condensate condensation.
• No need for a preheater.

• Maximum airflow (m³/h): 650
• Maximum airflow (l/s): 181
• Nominal airflow (m³/s): 0,126
• Nominal pressure difference (Pa): 50
• JPM (W/(m³/h)): 0,26
• Temperature efficiency of heat recovery (%): 83
• Power of electric heater (kW) / ∆t (°C): 1/6,4
• Rated voltage (V): 1~230
• Maximum load current HE (A): 7,3
• Power cord (mm²): 3×1,5
• Power consumption by fan drive at maximum flow (W): 158
• Power consumption by fan drive at rated flow (W): 62
• Acoustic power level, LWA, dB(A): 44
• Sound pressure level, LPA, dB(A) (3 m): 33
• Filter dimensions B×H×L (mm): 475×235×46
• Dimensions of BxHxL unit (mm): 570×600×1060
• Required operating space (mm): 1100
• Mass (kg): 80

Standard execution

Specifications
