Rekuperatorius THESSLA GREEN AirPack4 500V su entalpijos šilumokaičiu ir montavimo rinkiniu

Trumpai apie prekę

Prekė: Rekuperatorius THESSLA GREEN AirPack4 500V su entalpijos šilumokaičiu ir montavimo rinkiniu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thesslagreen
• Modelis: 005C0024

Thesslagreen Air Pack4 500v ENTHATPY

The subject of this offer is a product with assembly, it is the price of the product itself in the case of assembly. (at a VAT rate of 8%)For a previously completed installation with all media and connections to the control panel.

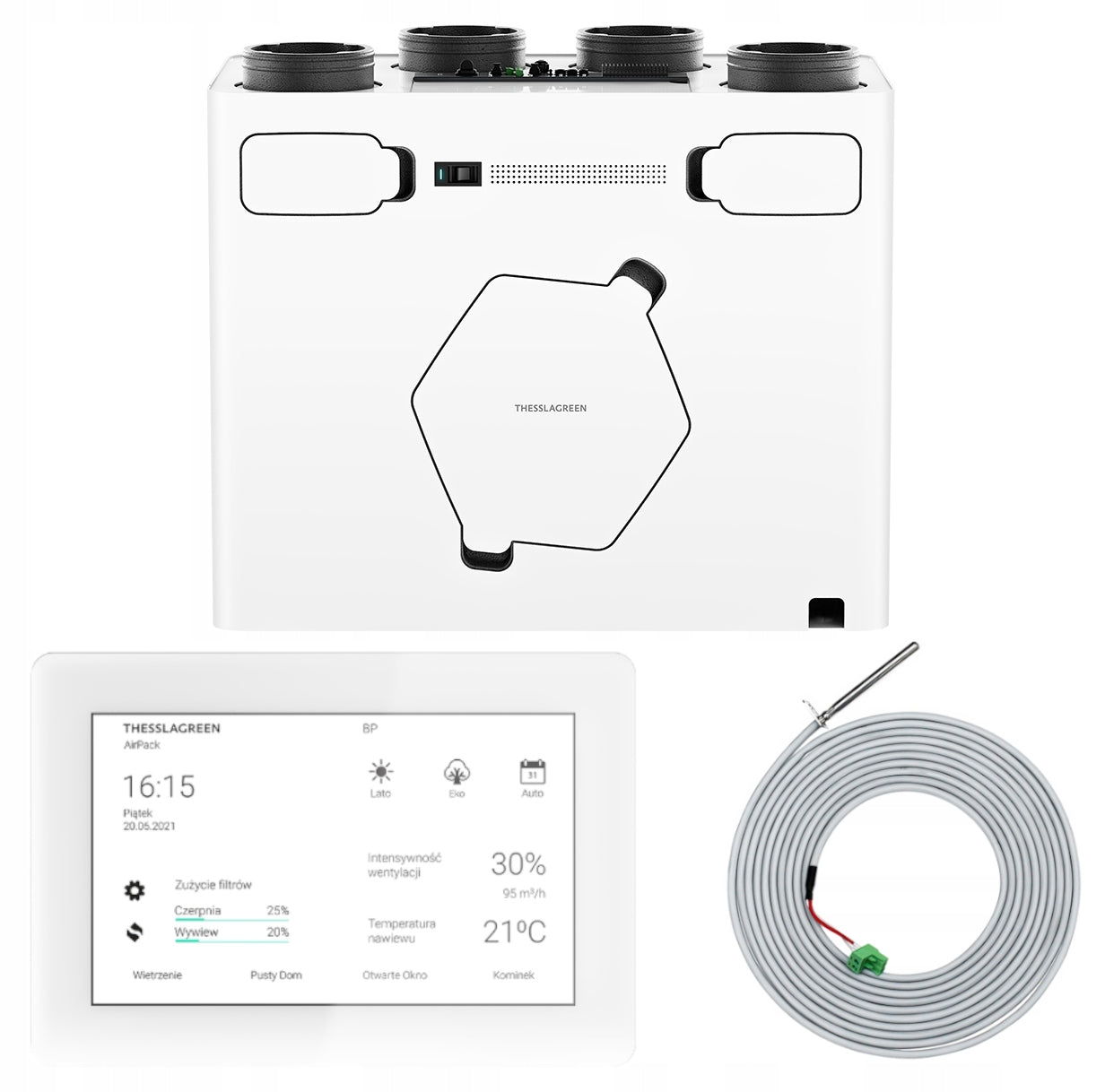

The set includes:

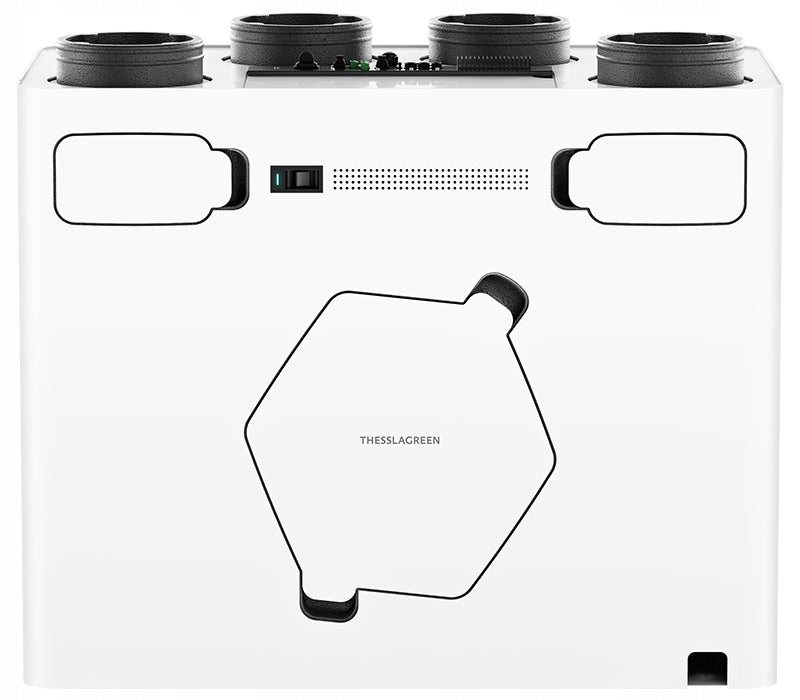

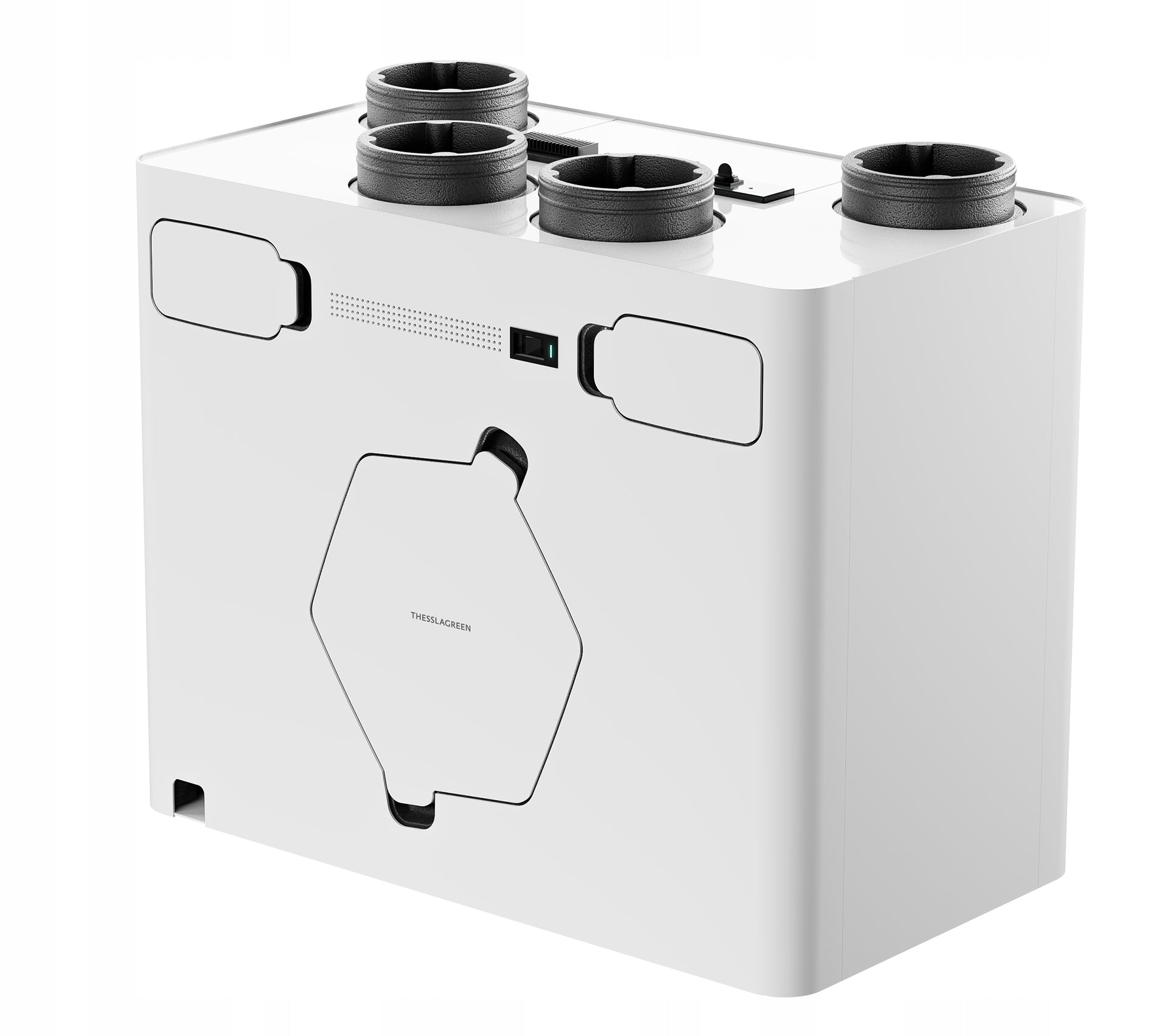

• AirPack4 500V ENTHALPY recuperator
• AIR++ remote color touch panel for wall mounting
• Temperature sensor for recuperators, heaters and radiators

AirPack4 Enthalpy 100% solves the problem of dry air in winter, even at -15oC. It is one of the quietest air handling units in the world and may be the only recuperator that can be mounted in an unheated attic, where the temperature in winter drops to -15C without worrying about failure.

In a standard configuration, it comes with a unique AFC system that can measure the actual consumption of each filter, so you can accurately replace the filters when they are really worn out.

AirPack4 Enthalpy gives you the confidence that odors in the exhaust gases will never get into the fresh air supplied to your home, because every AirPack4 leaving the production line is tested for tightness in accordance with PN-EN 13141-7

AirPacka4 can be installed in an unheated room where the temperature drops to -15°C in winter.

AirPack4 operates at high efficiency even at low ambient temperatures. Thanks to this, it can be installed in non-utility rooms, saving valuable space of the building. The recuperator will not lose its efficiency and there will be no risk of moisture condensation on the surfaces of its housing. All this is possible thanks to the unique concept of the FULLSHELL housing made of foamed polypropylene with a thickness of 50 mm devoid of fasteners and other thermal bridges.

Silent work

AirPack4 has an InFlow system, which reduces noise emissions to the supply duct at a nominal efficiency of up to 10 dB(A). In the control panel, the fans are located in front of the heat exchanger in the direction of air flow. Thanks to this, the acoustic wave generated in the supply fan before it reaches the supply duct must pass through thousands of channels of the heat exchanger, while undergoing significant dispersion. In addition, the recuperator is entirely made of material that does not reflect the sound wave. Thanks to this design, with nominal efficiency, AirPack4 will emit an acoustic power of 50 to 58 dB(A) into the supply duct, and 60 to 65 dB(A) to the exhaust duct.

Product description:

• A recuperator is a ventilation device used to recover heat from the air exhausted from a room and transfer it to the supply air, without mixing these two air streams.
• AirPack4 is the first recuperator designed to work even in unheated and uninsulated attics.
• You can install it in rooms where in winter the temperature drops to -15°C without fear of failure or loss of recuperation efficiency.
• AirPack4 500v is extremely quiet - a special InFlow system that reduces noise emissions to the supply duct at a nominal efficiency of up to 10 dB.
• AFC system informs about the degree of filter consumption so that you can replace each filter when it is completely used. The system is intuitive and controls the quality of the filters itself.

Dear Sir or Madam,

We kindly ask you to carefully check the contents of the shipment in the presence of the courier. In the event of damage to the goods or shortages in the shipment, a damage report should be drawn up, which the courier is obliged to provide.

Such a document will be the basis for submitting a complaint.

Specifications
