Rekuperatorius Vallox 149 MV-E CFi entalpinis

Trumpai apie prekę

Prekė: Rekuperatorius Vallox 149 MV-E CFi entalpinis. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vallox
• Modelis: MVECFI149VALLOX

⬇ Unique features and distinguishing features of Vallox⬇ recuperators

1. Lack of preheater in the absence of balancing the amount of air in winter periods – energy efficiency
2. METALPIC – a new technology combining the advantages of HRV aluminum exchanger and ERV polymer exchanger. Heat recovery up to 90% and moisture up to 75%. METALPIC is not available for Vallox 125 MV, MyVallox 125 CFi models.
3. Modulated partial bypass – automatic maintenance of comfort temperature (e.g. spring, autumn)
4. Automatic software updates – all control panels connected to the Internet are automatically updated
5. As standard, CO2 and RH% measurement – CO2 measurement is carried out using NDIR technology (smooth fan adjustment)
6. Enthalpic exchangers
7. Selection program Vallox MySelecta – information on energy efficiency (energy consumption) with real climate data
8. Availability of spare parts and service documentation for all control panels manufactured since 1983
9. Over 52 years of experience in the production of HRV exchangers

The new constant flow feature makes it easy to set up and increases the comfort of life. The MyVallox 149 CFi ventilation unit is equipped with constant flow fans that compensate for pressure differences and balance ventilation, keeping air flow always at the preferred level in windy conditions, in high-rise buildings. MyVallox 149 CFi is a quiet unit that increases the comfort of life.

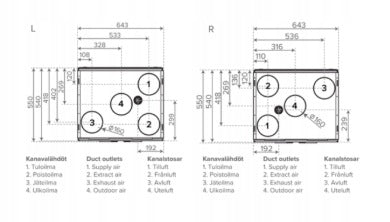

MyVallox 149 CFi has an innovative construction frame, and the version of the device does not have to be determined when ordering the device. The device has a door on both sides, and the version can be changed by changing the position of the door and turning the device. The factory standard is R version. The front door of the unit has separate filter doors. This means that replacing the filters is effortless, without having to open the entire device.

MyVallox 149 CFi is designed to be an energy-efficient device and reduce energy consumption and energy costs. The SEC class of the MyVallox 149 CFi ventilation unit is A+.

Thanks to the MyVallox Cloud service, control of the Vallox 149 MV CFi unit is possible from anywhere with Internet access. The recuperator combines intuitive operation and high energy efficiency. Built-in moisture and carbon dioxide sensors make the ventilation unit perfectly adapt its operating parameters to the conditions prevailing in the house. The device can also be connected to the intelligent building control system via the Modbus or KNX interface. Vallox 149 MV CFi is a reliable ventilation unit with modulated heat exchanger bypass and an innovative and energy-efficient defrosting system. In the Vallox MV ventilation units, the preheater has been eliminated. The Vallox 149 MV CFi recuperator is designed for buildings with an area of up to approx. 250 m2.

⬇️STANDARD EQUIPMENT FOR MV SERIES HEAT RECOVERY UNITS⬇️

• MyVallox Control or MyVallox Touch controller
• Access to cloud control – MyVallox Cloud
• Integrated humidity and carbon dioxide sensors
• Innovative, energy-saving heat exchanger defrosting system, with no pre-heater for greater energy efficiency
• Modulating/partial bypass
• Internet and ModBus control, with optional KNX
• Electric secondary heater or secondary and additional heater
• Counter-flow aluminum heat exchanger or counter-flow enthalpy heat exchanger with the latest METALPIC technology
• Air filters – Supply: ISO Coarse > 75% + ePM1 ≥ 50%, Exhaust: ISO Coarse > 75%
• Wall mounting plate
• Odorless Silent Click siphon
• EC DC fans

⬇ Features of MyVallox Control or MyVallox Touch⬇

• 4 operating modes: At home, Outside the house. Booster, Custom (any customizable)
• Intuitive weekly programmer
• reading five temperatures: air supply, exhaust, intake, launcher, temperature behind the exchanger and data from the humidity and carbon dioxide sensor
• full automatic operation of the recuperator
• remote reading of data during operation of the control panel via the Internet (e.g. IP address)
• self-diagnosis of recuperator work
• standard MyVallox Control graphic panel or MyVallox Touch graphic touch panel
• possibility of automatic and manual firmware update

⬇ MyVallox (MV)⬇

• remote control via the Internet – MyVallox Cloud – and remote service
• the ability to set each parameter of the unit on the screen of a computer, tablet, smartphone
• possibility of connecting external sensors and switches, e.g.: kitchen hood, central vacuum cleaner, alarm, etc.
• possibility of controlling external peripherals, e.g.: water cooler/heater, air conditioning, GWC, etc...
• possibility of connecting additional sensors of carbon dioxide, humidity and VOC – volatile organic compounds, in order to improve automation of the unit
• possibility of connection to building automation via MODBUS interface and optionally via KNX
• access to statistics – history of measurements of recuperator operation with values of individual parameters with the possibility of exporting data to Excel file
• fully automatic recuperator operation throughout the year
• information about the need to replace air filters
• remote service and self-diagnosis of the device

Specifications
