Apraksts
Trumpai apie prekę
Prekė: Relės modulis RTX Mini 16A, TUYA ZigBee valdymas. Kategorija: Automatizavimo moduliai.
- Gamintojas: RTX
- Modelis: ZRS1M

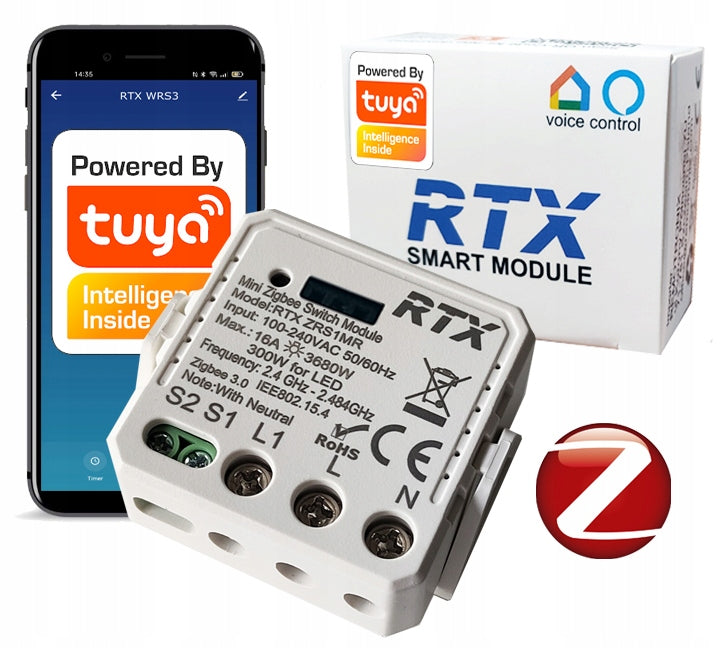

RTX Mini Relay Module Controller 16A TUYA ZigBee
RTX
Universal miniature module RTX ZRS1M designed for intelligent control of mechanical light switches and traditional sockets
- Maximum power: 3680W (16A)
- Extreme small dimensions 39mm x 39mm x 15mm
- Allows you to control the mechanical light switch or traditional outlets
- Works with monostable or bistable switch
- Communication BLE-instant connection to the application
- Control operation of devices from anywhere in the world
- Possibility to set timer and schedule
- Free Tuya Smart app for Android and iOS
- Easy installation and operation
- Works with Google Home and Amazon Alexa
For the operation of ZigBee devices , it is necessary to have a ZigBee gateway, which is a "node" between the system components and the Tuya Smart cloud server.
Gates are offered in separate offers:
- WiFi gateway, offer number 9054486387
- LAN gateway, offer number 9291747069

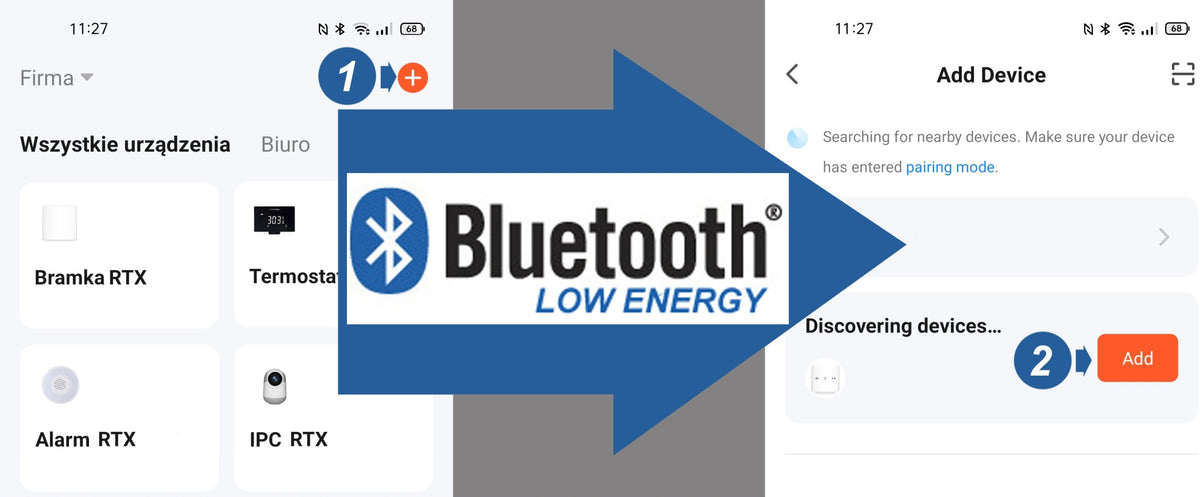

The RTX controller has a built-in Bluetooth Low Energy (BLE) communication module - the device is automatically identified in the TUYA environment
- Click "+"to add a device - thanks to Bluetooth communication directly with your phone, the application will instantly find a new device
- Click "Add" -if you have a Zigbee gateway in your system, after confirmation the device will be paired.
Remote control, automatic operation
You can easily turn any light switch or outlet into an element that is part of a smart home, the operation of which can be controlled remotely or automatically as part of a pre-programmed scenario
Working with Google Home and Amazon Alexa gives you additional integration options
Unique local control capability for two types of switches
In addition to remote control, the module has the ability to control local using a switch or button.
Unique functionality is the possibility of using interchangeably two types of contactors:
-switch (bistable/switchable)- must be connected to the S1 input
-button (monostable/instantaneous) must be connected to the S2 input
NOVELTY!!! - Optional expandability
The controller module has an RF connector - you can connect the receiver to obtain the possibility of additional control of the radio remote control (the remote control with RF receiver is available in a separate offer)
Universal application
Small dimensions allow the device to be mounted in a wall box or lighting fixture, as well as on a DIN rail in a fuse box using the holder included in the set.
Control of a single light circuit or stair switch
The relay module is installed in the can under a traditional light switch. When connected according to the scheme, you will be able to control the lighting remotely from the application, traditionally switch or in an automated manner according to pre-programmed scenarios.
The module works with traditional switches (bi-stable), does not need to be replaced with temporary (monostable) - even after manually turning the light on or off the user on the application sees whether the light has been turned on or off - very useful and unique functionality.
The relay module can be installed in a can under a traditional outlet.
After installation, you will be able to control any device connected to the outlet.
Voice support
After linking the Tuya Smart Life app to your Google Home account, you can control your device using voice commands
Supported functions controlled from the application:
- Enable/disable from any location in the world
- Local on/off manually with the button
- Timer - setting the time to turn on
- Stopwatch- setting the time to turn off
- Terminator - planned weekly automation cycle on/off
- Scene - setting the control dependence on the time of day
- Voice support when connected to Google Assistant or Alexa
The device works with Tuya Smart - the most popular application for IoT devices (internet of things)
The application works in Polish, you can add and control various smart devices that we have in our offer
- Integration of over 11000 devices
- 30 categories (control, air conditioning, monitoring, etc.)
- 10000 manufacturers of smart devices
- daily developed with new functions and supported devices
- available free for Android and iOS
Due to its advantages ZigBee gains new users at a very fast pace
There are more and more compatible elements of the system, whose common feature is reliability and small dimensions, which is possible thanks to negligible power consumption, and thus - no need for large battery sets.
ZigBee devices should be used where certainty of operation of automated processes is essential.
Since automation management is carried out by the control panel (gateway), the programmed rules will be implemented regardless of access to the WiFi network or in the absence of Internet connectivity.
Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee
ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.
The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.
Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.
The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.
Technical specification:
- Control range: unlimited (works with mobile internet)
- ZigBee protocol: version 3.0 by standard: 802.15.4
- Antenna type: built-in
- ZigBee range: up to 30m (depending on ambient conditions)
- Operating temperature: 0-50st.C
- Mains Voltage: 85-265V AC 50-60Hz
- Maximum Power: 3680Watt (16A), 300W forLED
- Dimensions: 39x39x15mm
- Weight: 60g
NOTE: For proper operation, it is required to connect L and N cables and have a Zigbee gate, which we offer in separate offers:
- WiFi gateway, offer number 9054486387
- Power Supply: mains
- EAN (GTIN): 5903794123410
- Manufacturer code: ZRS1M
- Brand: RTX
- Series: TUYA ZIGBEE
- Condition: New
- Type: driver
- Communication: ZigBee
- Number of communication channels: 1
- Product weight with unit packaging: 0.06
- Package condition: original
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | TUYA ZIGBEE |
| Parametry | Power supply | mains |
| Parametry | Communication | ZigBee |
| Parametry | Brand | RTX |
| Parametry | Number of communication channels | 1 |
| Parametry | Additional features | radio communication |
| Parametry | Product weight with unit packaging | 0.06 kg |
| Parametry | Manufacturer code | ZRS1M |
| Parametry | EAN (GTIN) | 5903794123410 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
