Relės valdiklis 16A ZigBee 3.0 Tuya

Trumpai apie prekę

Prekė: Relės valdiklis 16A ZigBee 3.0 Tuya. Kategorija: Automatizavimo moduliai.

• Gamintojas: Tuya
• Modelis: WHD02(Z)

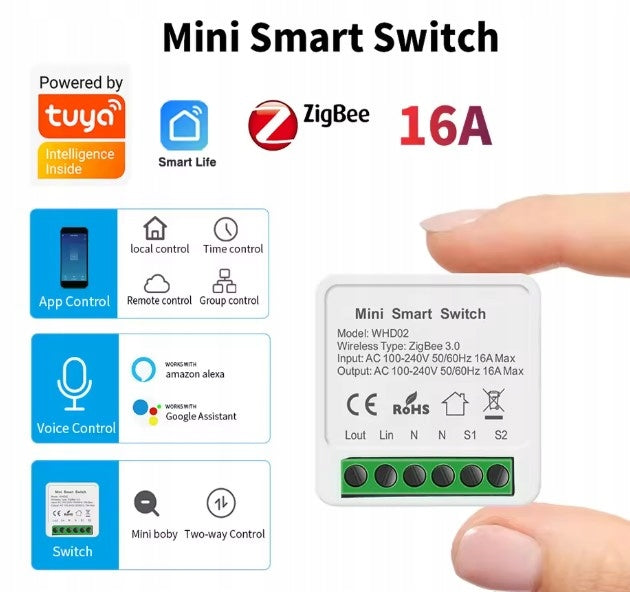

Single, recessed ZigBee 3.0 switch

• The relay works with traditional switch and network socket.
• Relay works with ZigBee 3.0 protocol
• You can manage it from two of the most popular applications TUYA and Smart Life. Thousands of devices available on the market can be connected to applications, e.g. wifi cameras, carbon monoxide, gas sensors, alarm, motion sensors, power strips.
• It has a mini size, fits in the end can, behind a switch or power outlet.

✅Great for stairways.

• The relay operates in the standard Wi-Fi band 2,4 GHz.
• Manage your lighting from anywhere in the world.
• Schedules for automatic turning on and off lighting.
• Create groups of devices and then control them with a single click.
• The status of the connected device in real time is available in the application.
• Voice control with voice assistants: Amazon Alexa and Google Home.
• You can share the devices added in the app with your family, friends or colleagues so they can control them as well.

TUYA and Smart Life app

Other smart devices can also be connected to applications, for example cameras, ringtones, motion sensors, carbon monoxide, gas. With the app’s capabilities, you manage your home in one place and don’t have to switch between different apps.

The principle of operation of the voice control solution is very simple. All you need to do is turn on the assistant with the appropriate voice command and then tell what function on your smartphone to turn on.

The relay works with two voice assistants: Google Home and Alexa.

Schedule

You can schedule the operation of the circuit breaker or power socket by setting the hours of their on and off in the application. Thanks to this, you have full control over the devices connected to the list and over electricity bills.

Safe for users

The relay is made of the highest quality materials. The manufacturer primarily, during production, focused on safety and the possibility of long-term use.

Specification:

• Power max. 3500W
• Input voltage: 100-240V~ 50/60 Hz
• Max. Load Current: 16A
• Communication: ZigBee 3.0
• Application name: Tuya Smart / Smart Life
• Operating temperature: -10 ℃ ~ +40 ℃
• Size: 40 x 40 x 20 mm
• Reset button on housing
• LED signaling - does not squeak!

Requires full power supply in the can - L and N

Schedules and Timers

Do you want to fully automate the operation of your electrical appliances and not wonder if you have turned something on or off? Set a relay schedule! You can choose from:

Countdown - countdown - one-time shutdown after a set time

Schedule - schedule - switching and only at certain times of selected days.

Circulate - loop work on/off. For example: on for 1 minute, off for 2 minutes - in a continuous loop, at certain times and days.

Random - accidental on and off. The turn-on and off times are generated randomly. Used e.g. to simulate the presence at home during holidays.

Inching - countdown after enabling. Whenever turned on, the relay will turn off after the set time. Forget to turn off the light? - set Inching to 30 minutes. Whenever turned on, the relay will turn off the light automatically after 30 minutes.
