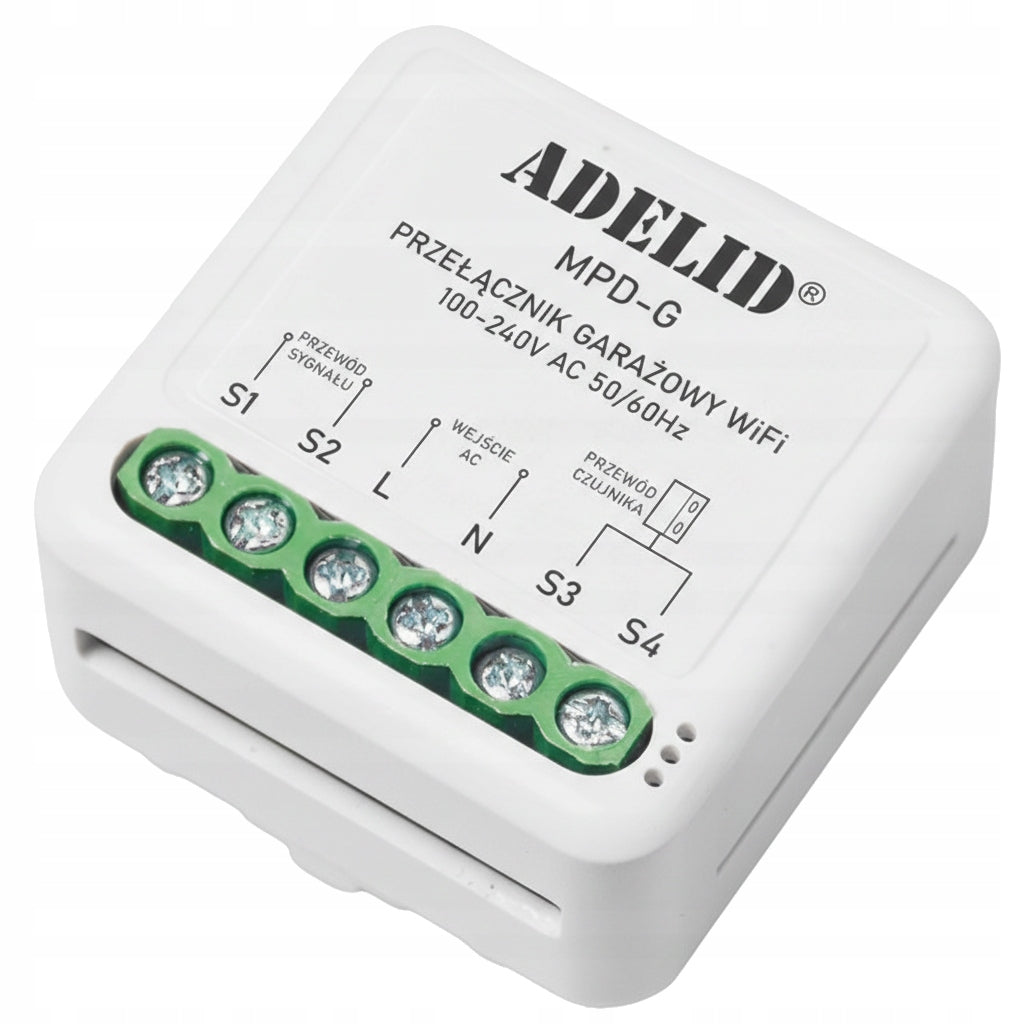

Relės valdiklis garažo vartams WiFi Tuya su jutikliais

Trumpai apie prekę

Prekė: Relės valdiklis garažo vartams WiFi Tuya su jutikliais. Kategorija: Automatizavimo moduliai.

• Gamintojas: Adelid
• Modelis: MPD PRZEŁĄCZNIK DO PUSZKI BRAM HORMAN NICE

Product code: MPD-G

• Thanks to the possibility of connecting to the Internet, MPD controller allows you to control the gate remotely using a mobile phone or tablet with the dedicated Tuya application installed.
• Voltage-free, potential-free garage door controller can be connected to a sliding, swinging or vertical gate. In addition, the opening/closing status is shown in the app.

✅ Technical data:

• Product Material:PC,
• Max. power: 3500W,
• Input voltage: 100-240V~ 50/60 Hz,
• Max. Load current: 5A,
• Wi-Fi standard: 2,4 GHz 802,11 b/g/n
• Application name: Tuya Smart,
• Application to support: for Android and iOS,
• Operating temperature: -10 ℃ ~ +40 ℃
• Size: 46 x 46 x 18 mm
• Weight: approx. 37 g,
• LED signaling - does not squeak,
• Degree of protection: IP20.

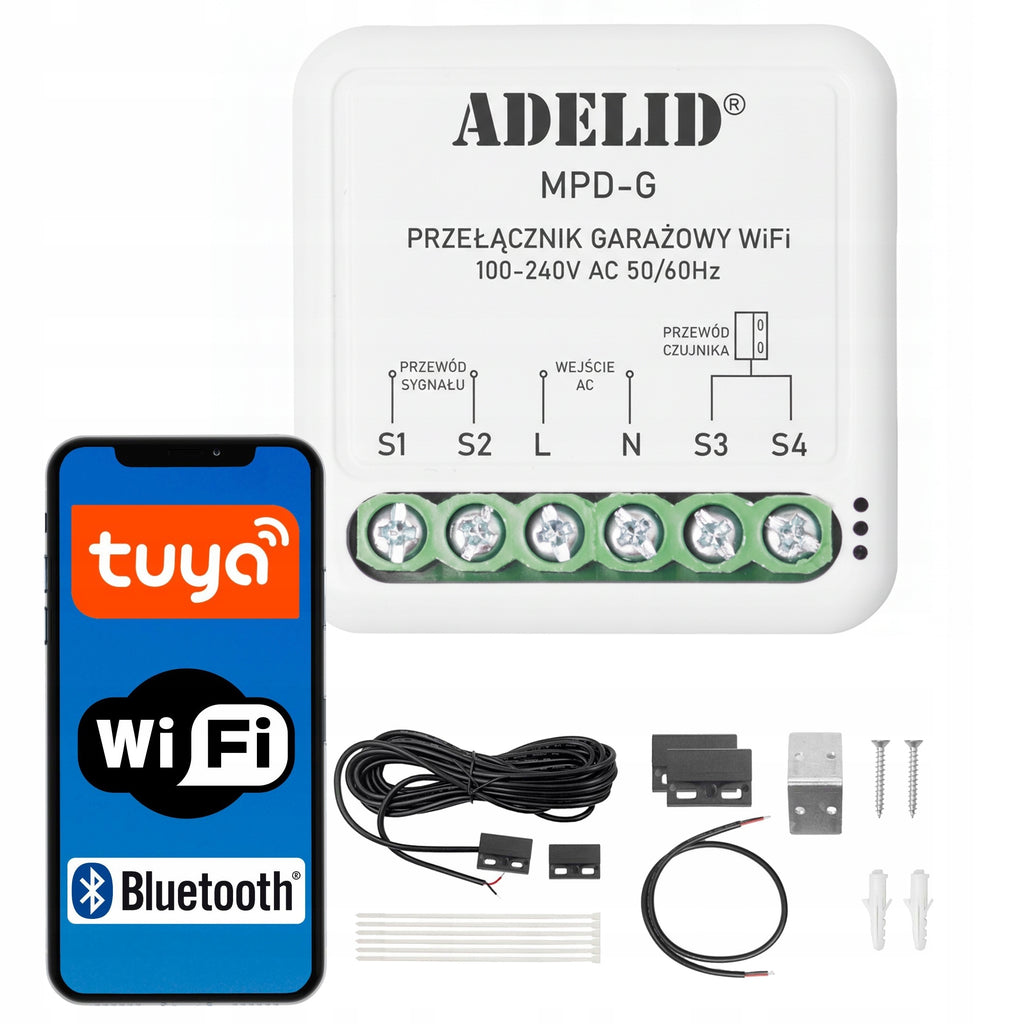

✅ The set includes:

• Relay module,
• 5m closure sensor,
• Cable for connecting the stepper controller in the gate,
• Mounting kit,
• Tricks for wiring,
• User manual.

An MPD module designed to turn a traditional circuit breaker or outlet into a smart device controlled by a smartphone!

✅ The most important features of the product:

• Remote control of the gate from anywhere
• Small power consumption in standby mode,
• Simple installation and operation,
• Ideal for installation in hard-to-reach places and in concealed boxes,
• Dedicated free application na phone,
• Monitoring of opening and closing states,
• It allows you to create your own smart home.
• Possibility to set working time by hours,
• Schedule of work during the week,
• Operation via TUYA application,
• Reset button,
• Small dimensions,
• Instruction in Polish.

✅ Control Your Home Appliances From Anywhere, Anytime With The TUYA App!

This smart Wi-Fi controller lets you freely decide whether to turn on or off various household appliances. You can do this virtually anywhere, no matter how far you are from home - all you need is to connect the outlet to the Internet via a router and a smartphone with the dedicated app. The setup itself is very easy and straightforward.

✅ Tuya Smart - application for Android and iOS.

Free application running on Android and iOS, thanks to which you can control the intelligent relay from anywhere. The application does not limit use to control one device, you can configure any number of relays and other smart devices. The application that works in Polish allows you to manage access to the smart home for family members and gives the possibility of granting access permissions to individual members.

✅ Dimensions of the device:

• A: 18mm,
• B: 38 mm,
• C: 38mm.

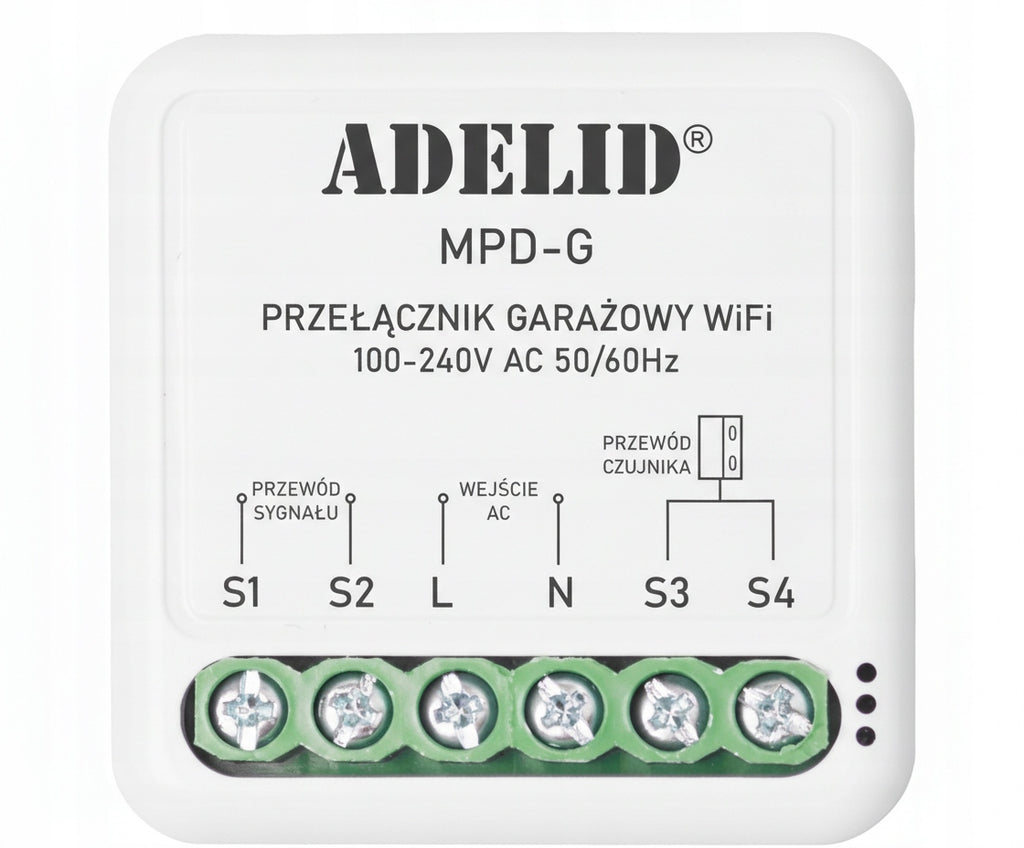

✅Assembly of MPD controller:

The module can be hidden in an electrical box or mounted on a mounting bracket/DIN rail.

1. AC100-240V power connection
2. Connection of the reed (state sensor) and fixing it
3. Installation of the closing sensor so that when the gate is opened, the sensors disconnect from each other
4. Connection of the signal cable to the gate machine (so-called. step control - pulse, if the entrance is already occupied - we plug into the same place in parallel).
5. Physical opening with the push of a button. Not always used. If it is connected, you can easily track the inputs in the machine to connect the driver.

✅ Included:

• Relay module - 1 pc.,
• Closing sensor 5m - 1 pc.,
• Cable for connecting stepper control in the gate (pulse) - 1 pc.,
• Mounting kit: mounting screws - 1 set,
• User manual - 1 pc.
