Apraksts
Trumpai apie prekę

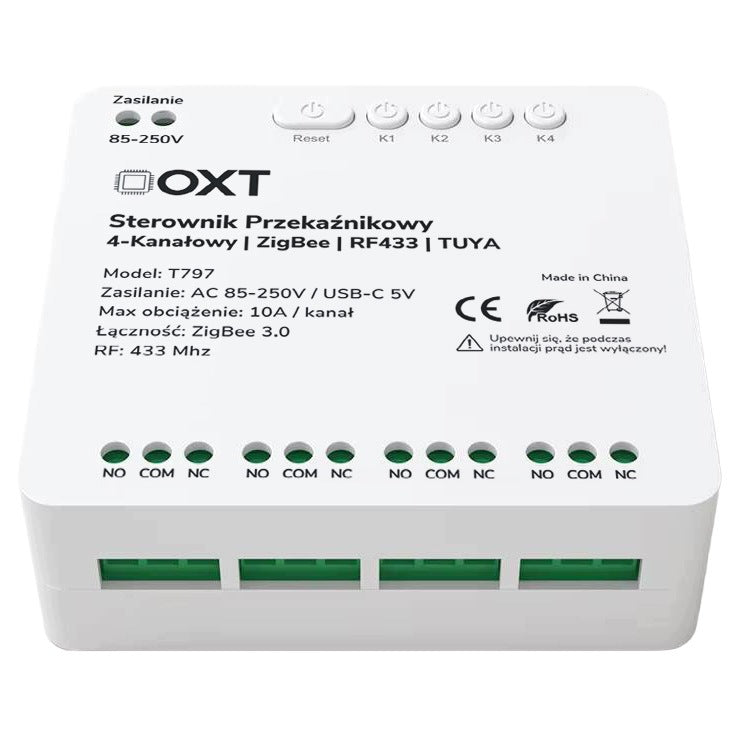

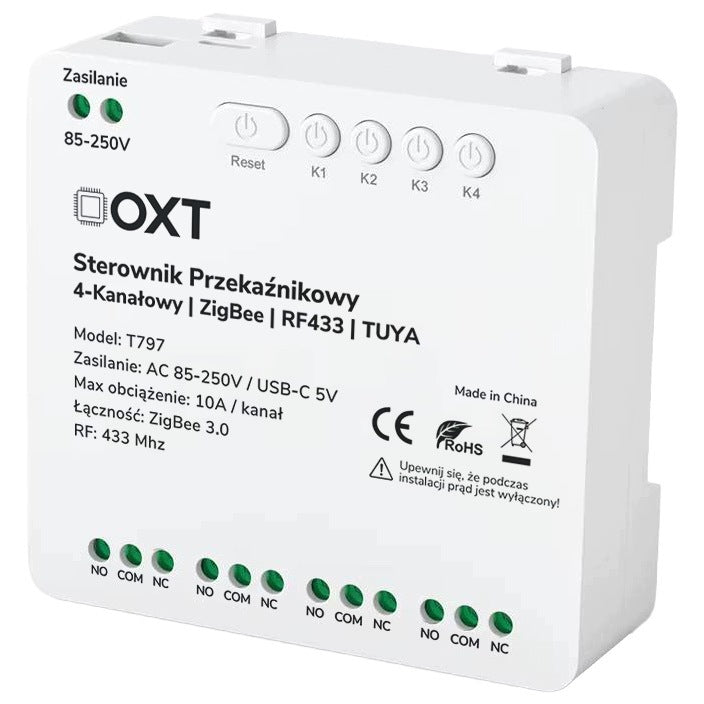

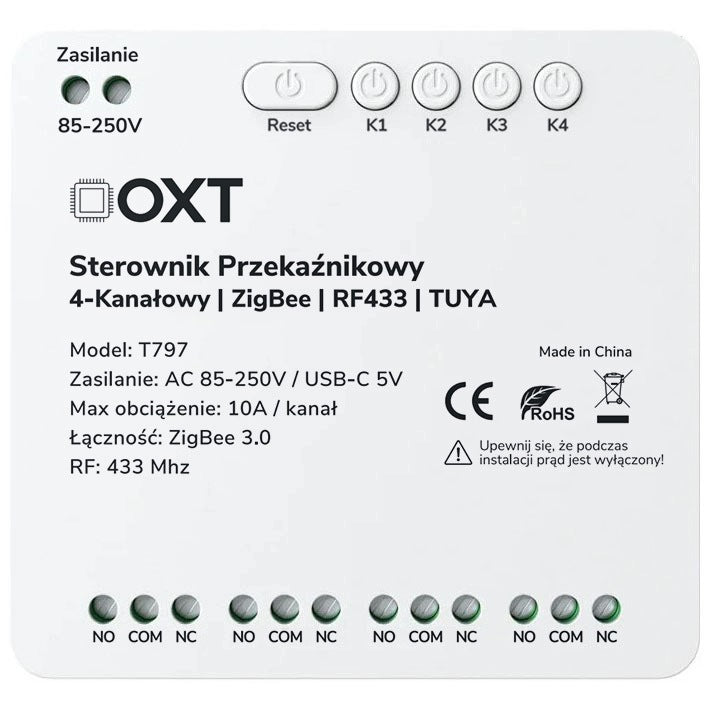

Prekė: Relės valdiklis OXT, 4 kanalų, 10A, 5V, USB, 230V, ZigBee, RF 433, TUYA. Kategorija: Automatizavimo moduliai.
- Gamintojas: OXT
- Modelis: T797
4-Channels | 10A/Channel | 230V AC / 5V USB
ZigBee + RF433 | TUYA / Smart Life
▶ Technical Parameters and Construction
- 4 Independent channels: Control lighting, outlets, pump, gate or other devices.
- Multi-voltage input: Support AC 85 – 250V or USB 5V mains power supply.
▶ Control Methods
- Remote control of the application: Turn any channel on and off manually, remotely or automatically.
- Radio receiver: Option to pair individual channels with the RF 433 MHz remote control.
- Voice control: Compatible with Amazon Alexa and Google Home.
▶ Automation and Management
- Schedules and Automation: Countdown, Circulation, Random and Other modes.
- Device Sharing: Share access with others in the Tuya / Smart Life app.
- Security mode: Incorrect connection warnings and manual reset option.
▶ Examples of application
- ✅ Gate switch: Automatic control of garage or entrance doors.
- ✅ Light: Ceiling lighting, lamps, LED, floodlights.
- ✅ Sockets: Turn on and off devices connected to outlets.
- ✅ Pumps and technical equipment: Control of water pump, fans or drives.
- ✅ AC/DC motors: Support for motor loads.
Specification:
Communication and communication
- Wireless protocol: ZigBee 3.0
- Radio frequency: RF 433 MHz
- Ecosystem / Compatibility: TUYA / Smart Life
Power supply and electrical parameters
- Power supply: AC 85-250V
- Alternative power supply: USB-C 5V
- Maximum load: 10A per channel
Interface and connectors
- Buttons on housing: Reset, K1, K2, K3, K4
- Output terminals: Relay contacts type NO, COM, NC for each of the 4 channels
Dimensions and assembly
- Housing width: 8.4 cm
- Housing height: 7.9 cm
- Housing thickness: 2.85 cm
- Mounting bracket spacing: 3.58 cm
Included:
- 1x Driver
- 1x Instructions
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | Przekaźnik DIN 4-Kanały RF 433 MHZ |
| Parametry | Power supply | mains |
| Parametry | Communication | ZigBee |
| Parametry | Brand | OXT |
| Parametry | Number of communication channels | 4 |
| Parametry | Additional features | radio communication |
| Parametry | Manufacturer code | T797 |
| Parametry | EAN (GTIN) | 5906203626243 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Certificates of conformity | CE,REACH,WEEE |
