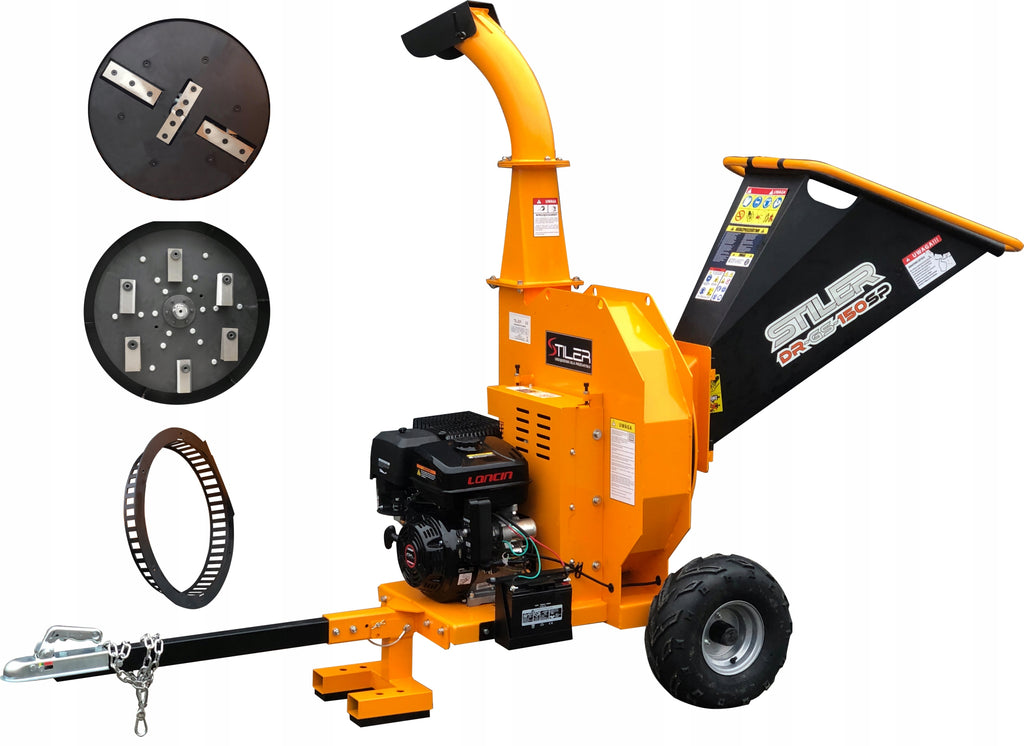

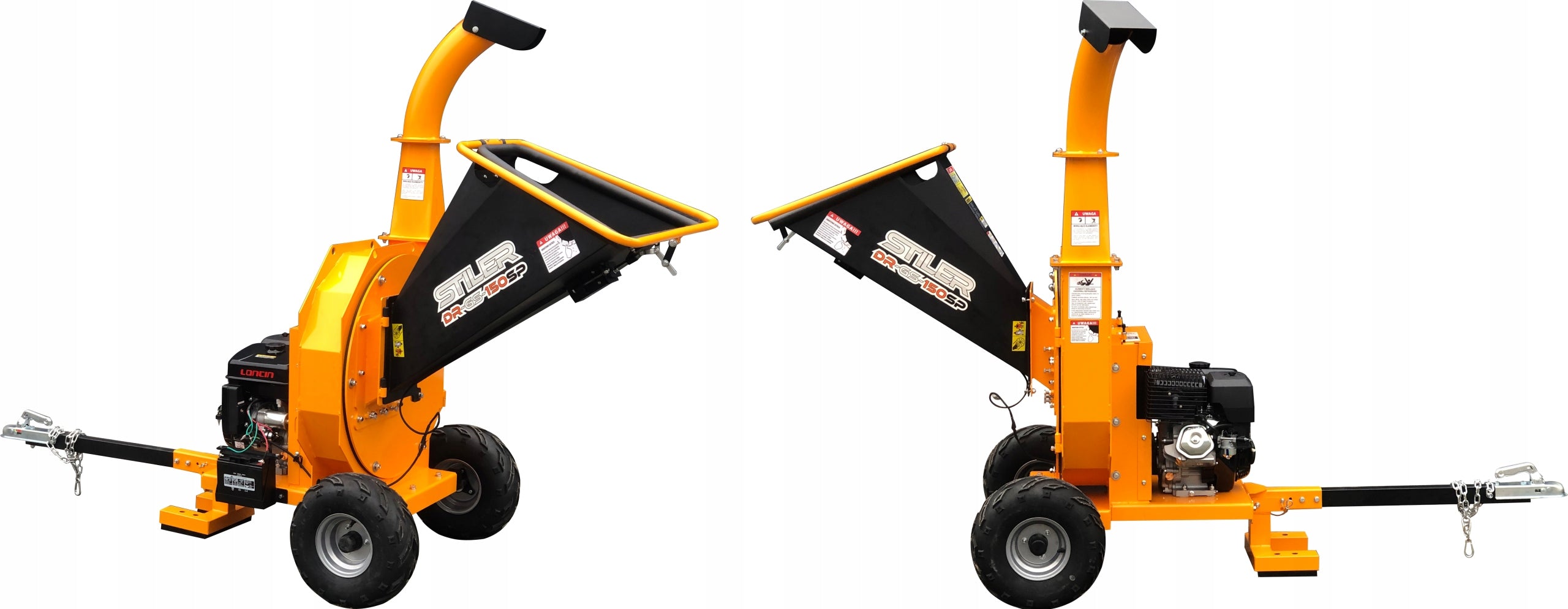

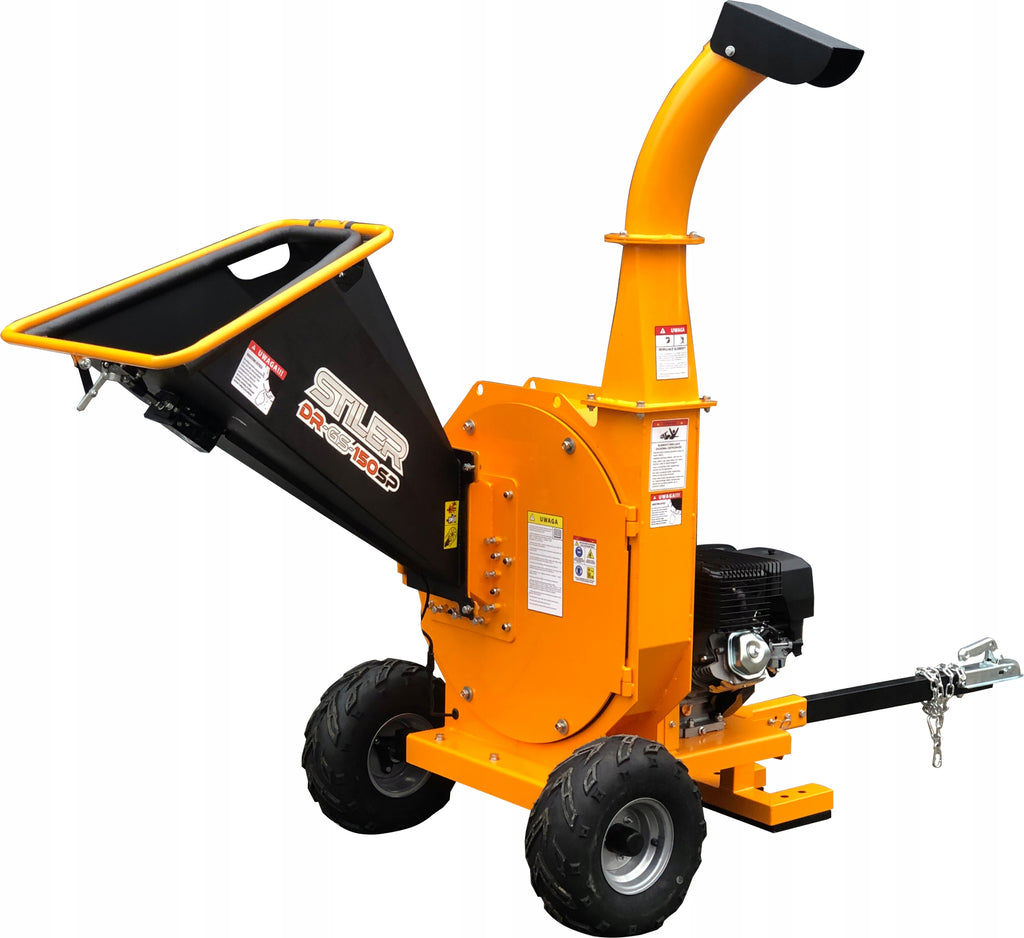

Šakų smulkintuvas MILL, 15 AG, 22 plaktukai, sietas

Trumpai apie prekę

Prekė: Šakų smulkintuvas MILL, 15 AG, 22 plaktukai, sietas. Kategorija: Smulkintuvai, kapoklės.

• Gamintojas: Stiler
• Modelis: RĘBAK ROZDRABNIACZ GAŁĘZI 15KM TARCZA BIJAKI

☑ The latest flail disc cutting system allows you to get a very fine fraction of the shredded material.

The built-in sieve will not let the larger pieces through until the beaters grind the material into a fine wood chip.

Thanks to this, we get a uniform small fraction without longer pieces.

☑ Powerful and reliable LONCIN engine ensures high performance and high durability.

☑ The chipper is able to shred a tree up to 120 mm in diameter and up to 250 mm with roots.

Technical data of the chipper:

• Model: ST-150TB
• Drive: V-belts, centrifugal clutch
• Engine: LONCIN, 15 HP, 420 CM3, G420F
• Diameter of the shredded tree: 120 mm
• Number of cutting knives: 4 pcs
• Knife type: Hardened tool steel
• Number of beaters: 22 pcs
• Material download: Self-downloading disc
• Rotor diameter: 600 mm
• Dimensions of the hopper: width. 580 mm, H 500 mm
• Hopper hole at the shield: width. 165 mm, H 265 mm
• Ejection hopper rotation: 360 degrees
• Height of ejection hopper: 1990 mm
• Wheels: 16x8 - 7''
• Rotor rotation: 2000 rpm. / min.
• Dimensions: 2670 x 1050 x 1990 mm
• Net / gross weight: 220 / 268 kg

Engine parameters:

• Model: G420F
• Engine type: petrol, single cylinder, four stroke, top-valve (OHV), air-cooled
• Power: 15,0 HP / 3600 rpm
• Rotary torque: 26,5 N.m
• Capacity: 420 cm3
• Capacity of lubrication system: 1,1 L
• Capacity of fuel tank: 6,5 L
• Diameter of shaft: 25,00 mm
• Shaft length from sealant: 71 mm
• Wedge outlet: rectangular along the entire length of the shaft with a width of 4,78 mm
• Oil level sensor: yes
• Ignition switch: yes
• Iron engine sleeve
• Start: manual / electric cable (built-in starter and battery)
• Weight without liquids: 34 kg

✅ The two-stage cutting system ensures a uniform fine fraction regardless of the size and type of material thrown in.

• In the first stage, the disc equipped with 4 knives, cuts the material into smaller pieces.
• In the second stage, 22 sharpened beaters placed behind the shield break the material into a small fraction. Properly shredded material passes through a sieve and is then ejected by bulk shovels.

✅ The shredded material is scraped by shovels and then ejected by the ejection hopper.

✅ Chipper equipped with a sieve that regulates the size of the wood chip.

✅ The latest model of LONCIN engine with a capacity of 420 cm3.

The 15 horse unit can handle shredding even a hard tree up to 120 mm in diameter.

START WITH KEY / JERKY (BUILT-IN STARTER AND BATTERY)

✅ A large disc with a diameter of 600 mm has 4 knives.

The back of the shield is equipped with collective shovels and beaters.

Easy access to the cutting chamber.

✅ The fold-out hopper allows for easy and quick access to cutting knives.

✅ The chipper is equipped with a safety switch located at the hopper.

✅ The 360 degree rotating ejection hopper allows you to eject the wood chips in any direction.

✅ Transport wheels and ball holder allow for easy movement of the machine even on unpaved surfaces.

✅ Folding support leg.

✅ Wood chipper produced by the chipper is from 2 to 3 cm long.
