Sausās urbšanas iekārta EIBENSTOCK ESD 162 03E25000

Trumpai apie prekę

Prekė: Sauso gręžimo staklės EIBENSTOCK ESD 162 03E25000. Kategorija: Grunto grąžtai.

• Gamintojas: Eibenstock
• Modelis: 03E25000

03E25000

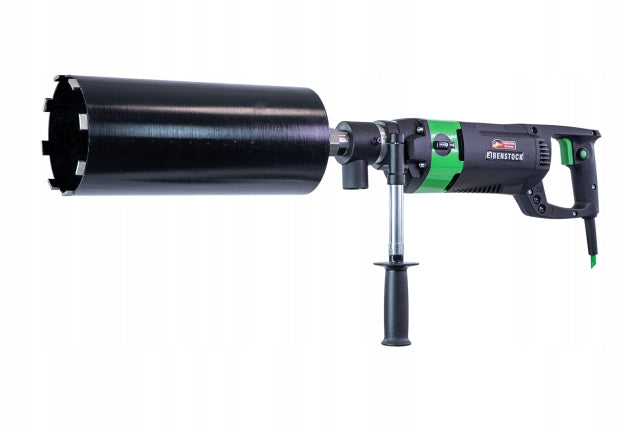

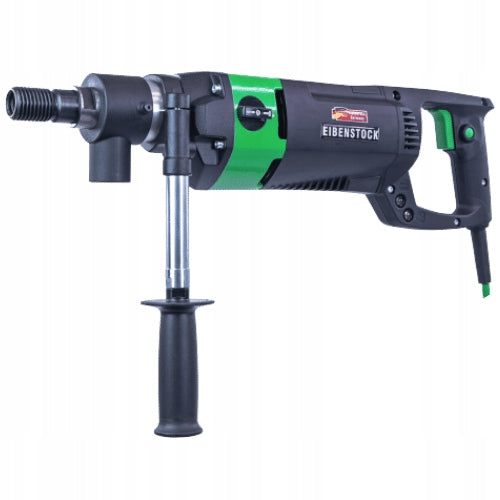

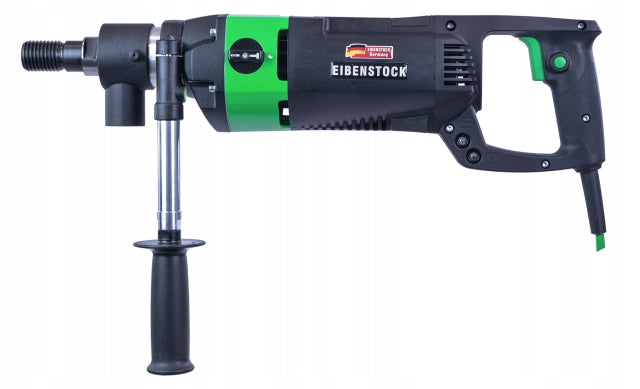

Diamond drill Eibenstock ESD 162 – for dry drilling in hard materials

The Eibenstock ESD 162 (03E25000) is a versatile and extremely efficient diamond drilling rig designed to work dry in very hard building materials such as reinforced concrete, silicate brick or brick masonry. It is perfect for installation work in places where thermal drilling is not possible — e.g. in sanitary, ventilation or heating rooms.

The drilling rig can work both manually and in combination with the stand, which allows for precise hole making in walls and ceilings. The use of modern technological solutions makes it an indispensable tool on the construction site and in the work of the installer.

Most important features:

• IHT (Impact Hybrid Technology) – hybrid transmission for greater durability and better work efficiency
• Digital controller EDMC Pro – with service display and overload protection function
• Direct connection of the vacuum cleaner to the spindle – effective dust extraction, higher comfort and safety at work
• Precise gear geometry – optimised impact pulses to accelerate drilling
• Only working with an industrial vacuum cleaner – a guarantee of cleanliness and protection of the operator

Application:

• Dry drilling in reinforced concrete and silicate masonry
• Installation works in sanitary, heating and ventilation systems
• Creating wall and ceiling openings by hand or on a tripod (stand not included)

Technical data of Eibenstock ESD 162

• Power Supply: Mains
• Rated Power: 2200 W
• Supply Voltage: 230 V
• Rotation speed (no load): 0-1100 rpm
• Drilling Range:
• reinforced concrete: up to 162 mm
• Wall: up to 202 mm
• Stroke: max. 2200 bpm
• Spindle: 1¼" male
• Flange diameter: 60 mm
• Weight: 6,6 kg
• Order No.: 03E25000

The Eibenstock 03E25000 kit includes:

• ESD 162 diamond drilling rig
• Transport case
• Flat wrench SW 32/41

*No tripod included
